REAR DOOR LOCK

DLK-781

< REMOVAL AND INSTALLATION >

[TYPE 3]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

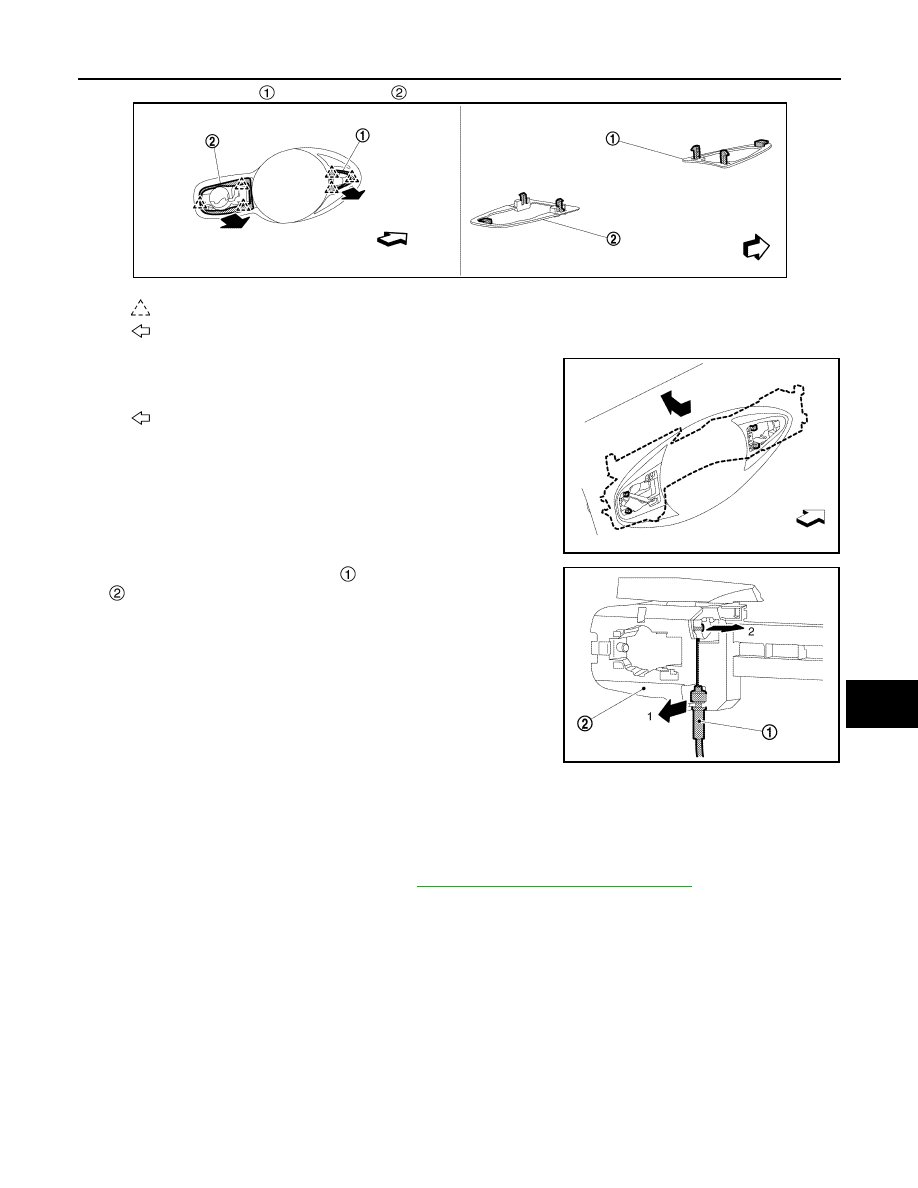

8.

Remove front gasket

 and rear gasket

.

9.

Slide outside handle bracket toward rear of vehicle and remove
it.

10. Disconnect outside handle cable

 from outside handle bracket

 according to the numerical order 1

→

2 indicated by arrows as

shown in the figure.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• When installing outside handle cable to outside handle, be careful that outside handle cable is

routed normally.

• After installation, check door lock. Refer to

DLK-779, "DOOR LOCK : Inspection"

.

: Pawl

: Vehicle front

JMKIB2240ZZ

: Vehicle front

JMKIB2241ZZ

JMKIB2242ZZ

DLK-782

< REMOVAL AND INSTALLATION >

[TYPE 3]

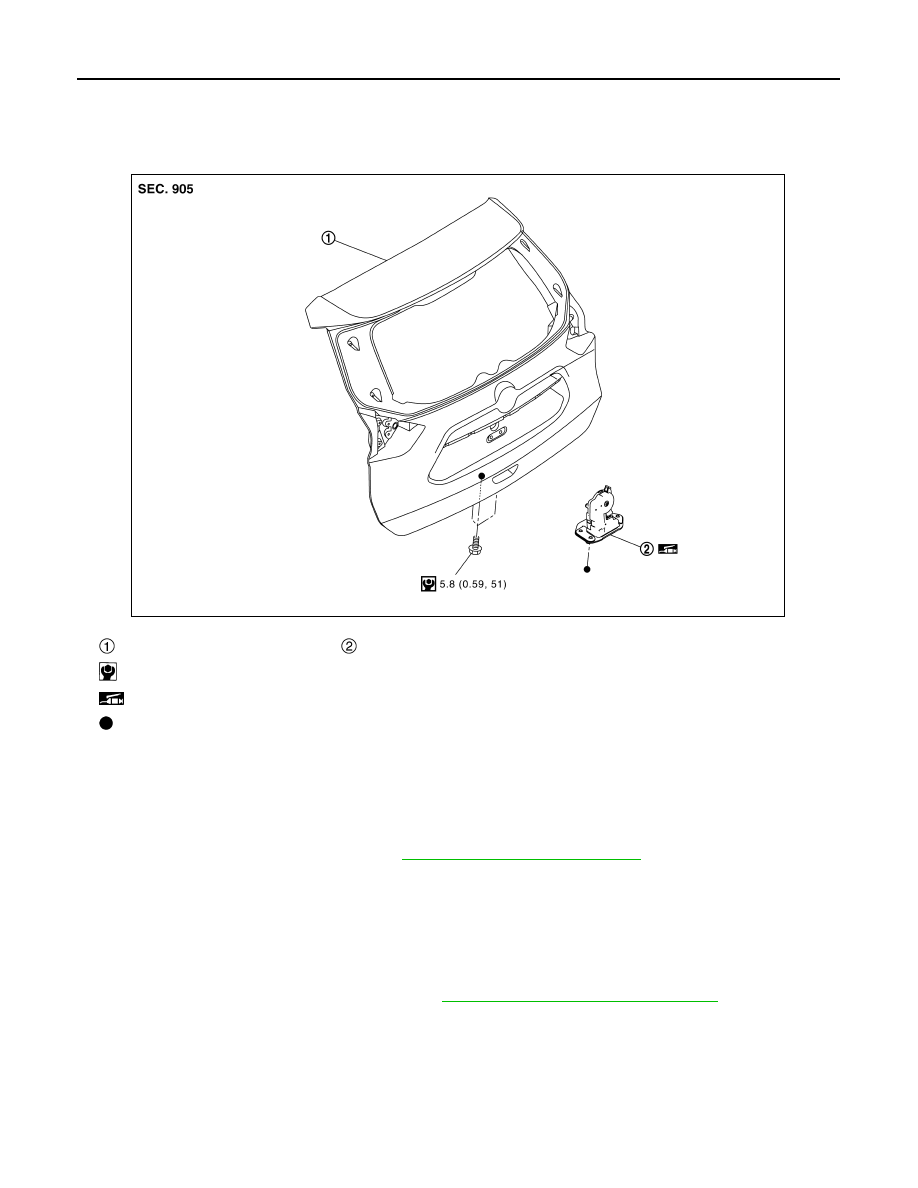

BACK DOOR LOCK

BACK DOOR LOCK

Exploded View

INFOID:0000000010728593

DOOR LOCK

DOOR LOCK : Removal and Installation

INFOID:0000000010728594

REMOVAL

1.

Remove back door inner finisher. Refer to

INT-47, "Removal and Installation"

.

2.

Disconnect back door lock assembly harness connector.

3.

Remove back door lock assembly mounting bolts, and then remove back door lock assembly from back
door panel.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

After installation, check back door lock. Refer to

DLK-782, "DOOR LOCK : Inspection"

.

DOOR LOCK : Inspection

INFOID:0000000010728595

1.

After opening and closing the back door, check that door is fixed to the vehicle body normally.

2.

Check the lock/unlock operation of door lock.

Back door panel

Back door lock assembly

: N·m (kg-m, in-lb)

: Body grease

: Indicates that the part is connected at points with same symbol in actual vehicle.

JMKIB3481GB

BACK DOOR LOCK

DLK-783

< REMOVAL AND INSTALLATION >

[TYPE 3]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

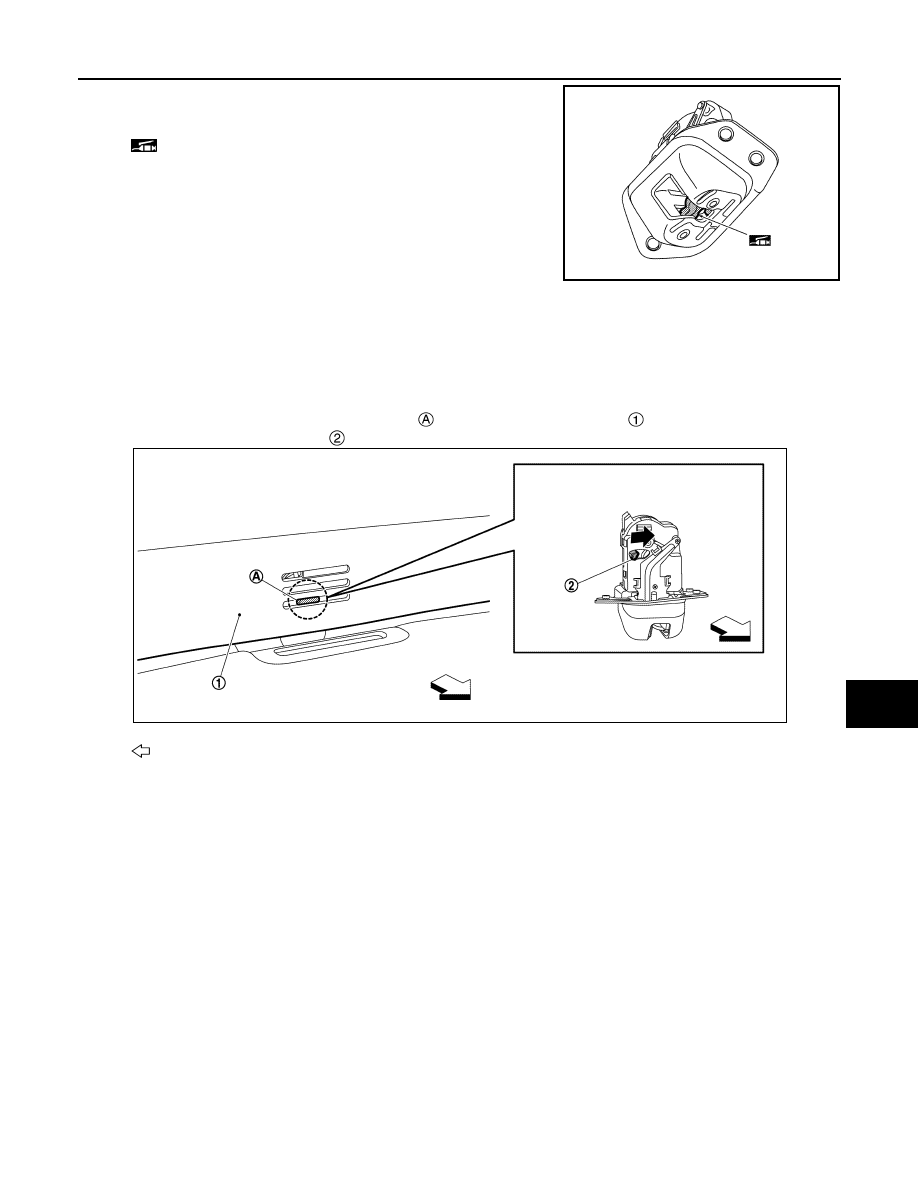

3.

Check door lock assembly for poor lubrication. Apply body
grease to door lock if necessary.

DOOR LOCK : Unlock procedures

INFOID:0000000010728596

UNLOCK PROCEDURES

NOTE:
Release lock according to the following procedures when lock cannot be unlocked due to a malfunction of
door lock assembly or battery discharge.
Insert a screwdriver, etc. into tool insertion hole

 of back door inner finisher

, and then back door lock is

unlocked by operating opener lever

 in the direction of arrow as shown in the figure.

: Body grease

JMKIB1220ZZ

: Vehicle front

JMKIB3162ZZ

DLK-784

< REMOVAL AND INSTALLATION >

[TYPE 3]

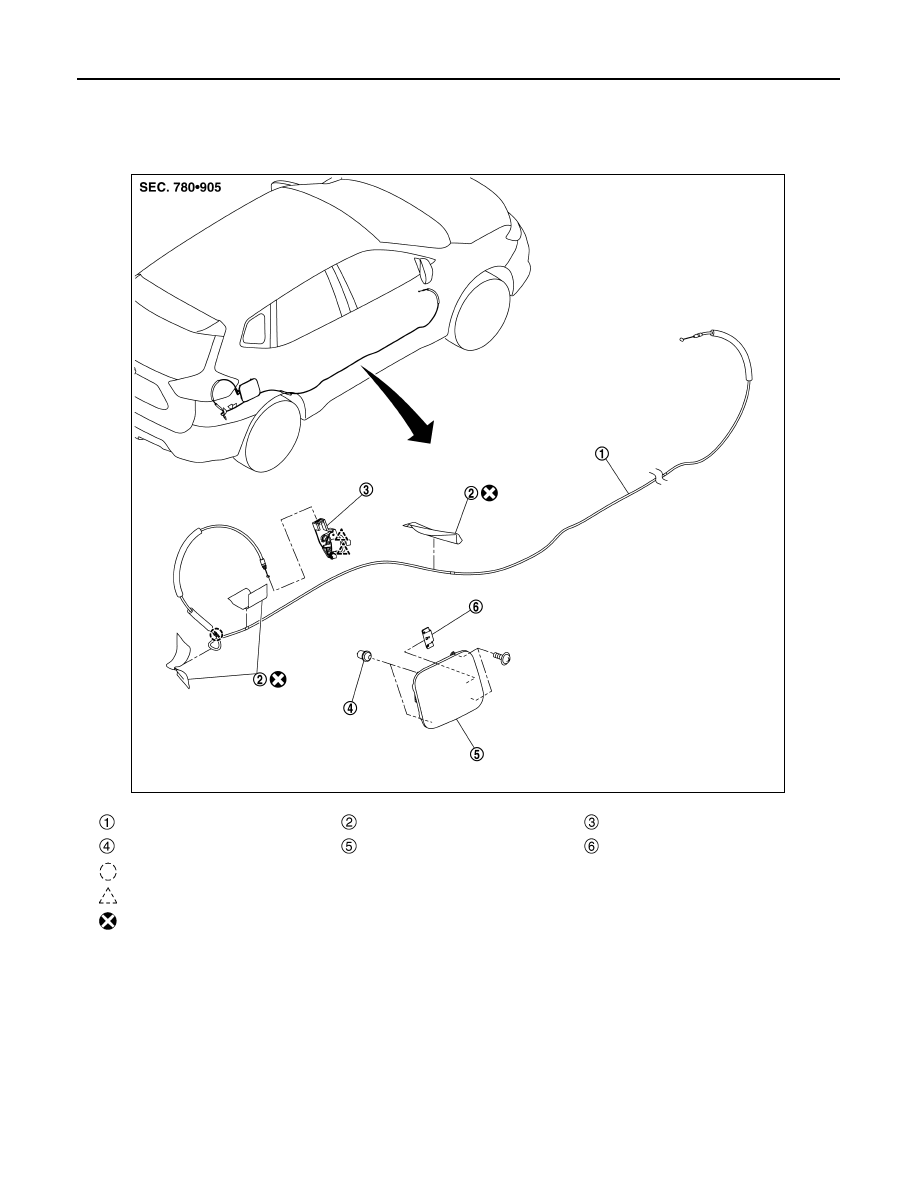

FUEL FILLER LID OPENER

FUEL FILLER LID OPENER

Exploded View

INFOID:0000000010728599

FUEL FILLER LID

FUEL FILLER LID : Removal and Installation

INFOID:0000000010728600

REMOVAL

1.

Fully open fuel filler lid.

Fuel filler lid opener cable

Cable protector

Fuel filler lid lock assembly

Bumper rubber

Fuel filler lid assembly

Spring

: Clip

: Pawl

: Always replace after every disassembly.

JMKIB3182ZZ
