FRONT DOOR LOCK

DLK-777

< REMOVAL AND INSTALLATION >

[TYPE 3]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

10. Slide outside handle grip

 toward rear of vehicle and remove it

according to the numerical order 1

→

2 indicated by arrows as

shown in the figure.

11. Remove front gasket

 and rear gasket

.

12. Slide outside handle bracket toward rear of vehicle and remove

it.

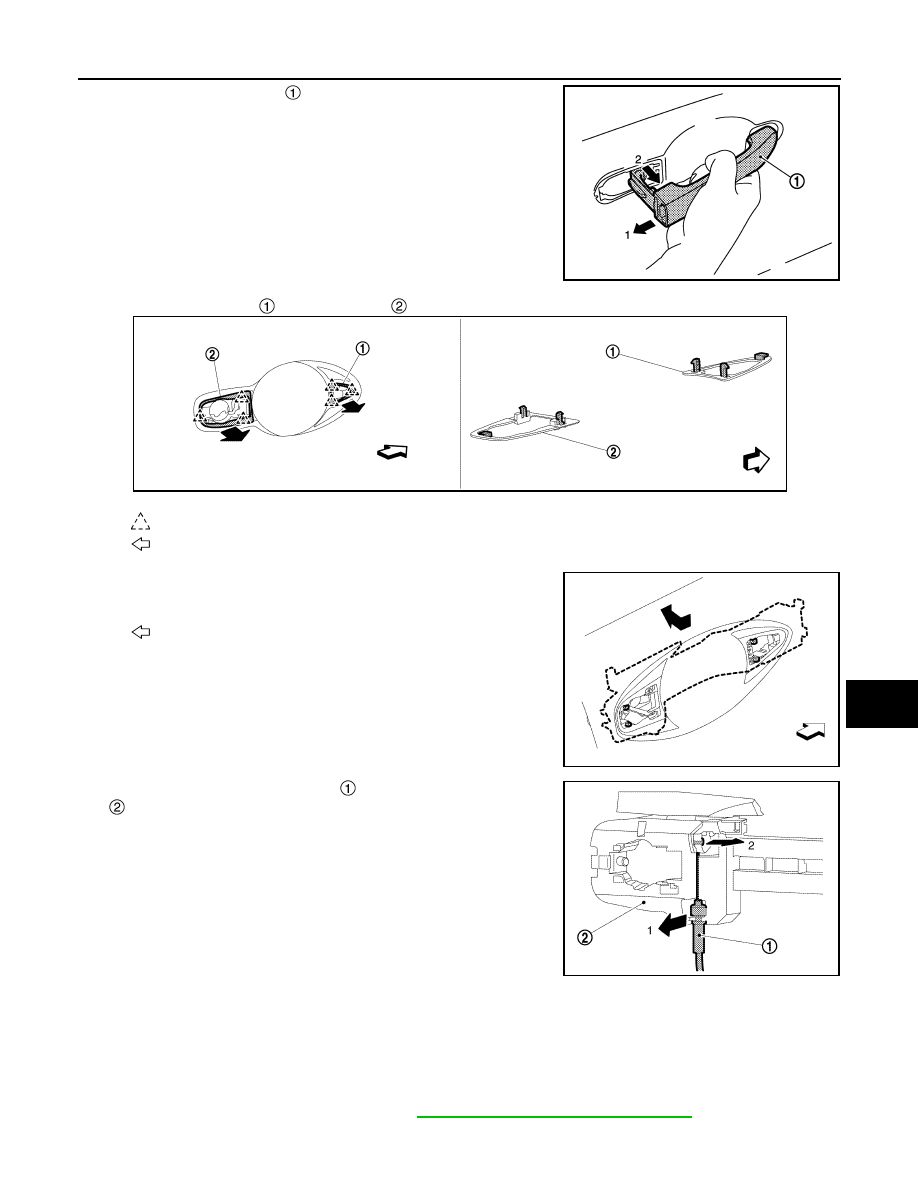

13. Disconnect outside handle cable

 from outside handle bracket

 according to the numerical order 1

→

2 indicated by arrows as

shown in the figure.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• When installing outside handle cable to outside handle, be careful that outside handle cable is

routed normally.

• When installing key rod, rotate key rod holder until a click is felt.
• After installation, check door lock. Refer to

DLK-774, "DOOR LOCK : Inspection"

.

JMKIA2948ZZ

: Pawl

: Vehicle front

JMKIB2240ZZ

: Vehicle front

JMKIB2241ZZ

JMKIB2242ZZ

DLK-778

< REMOVAL AND INSTALLATION >

[TYPE 3]

REAR DOOR LOCK

REAR DOOR LOCK

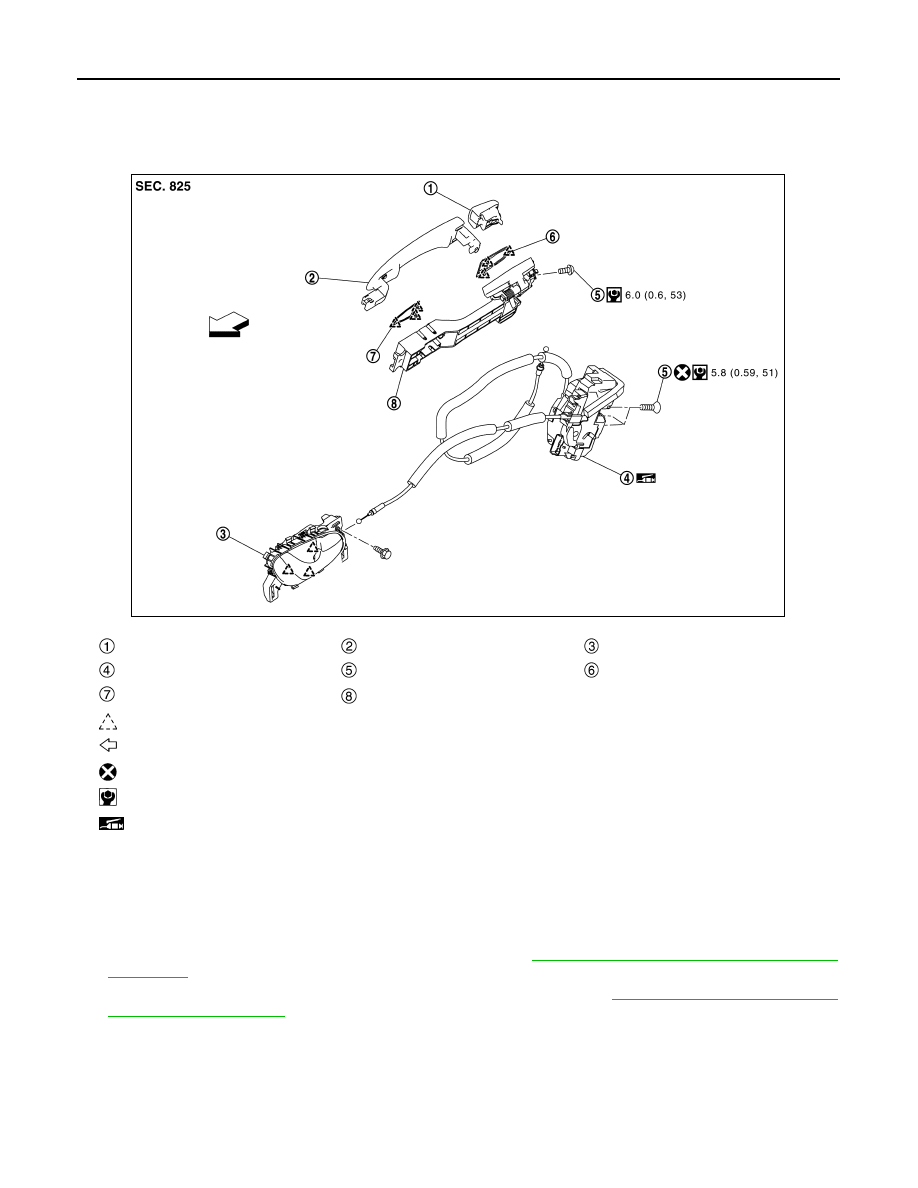

Exploded View

INFOID:0000000010728588

DOOR LOCK

DOOR LOCK : Removal and Installation

INFOID:0000000010728589

REMOVAL

1.

Disconnect inside handle cable from inside handle. Refer to

DLK-779, "INSIDE HANDLE : Removal and

Installation"

.

2.

Disconnect outside handle cable from outside handle bracket. Refer to

DLK-780, "OUTSIDE HANDLE :

Removal and Installation"

.

3.

Disconnect door lock assembly connector.

4.

Remove door lock assembly TORX bolts, and then remove door lock assembly.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Never reuse TORX bolt. Always replace it with a new one when it is removed.

Outside handle escutcheon

Outside handle grip

Inside handle

Door lock assembly

TORX bolt

Rear gasket

Front gasket

Outside handle bracket

: Pawl

: Vehicle front

: Always replace after every disassembly.

: N·m (kg-m, in-lb)

: Body grease

JMKIB3684GB

REAR DOOR LOCK

DLK-779

< REMOVAL AND INSTALLATION >

[TYPE 3]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

• When installing outside handle cable to outside handle, be careful that outside handle cable is

routed normally.

• After installation, check door lock. Refer to

DLK-779, "DOOR LOCK : Inspection"

.

DOOR LOCK : Inspection

INFOID:0000000010728590

1.

After opening and closing the door, check that door is fixed to the vehicle body normally.

2.

Check the lock/unlock operation of door lock.

3.

Check door lock assembly for poor lubrication. Apply body
grease to door lock if necessary.

INSIDE HANDLE

INSIDE HANDLE : Removal and Installation

INFOID:0000000010728591

REMOVAL

1.

Remove rear door finisher. Refer to

INT-19, "Removal and Installation"

.

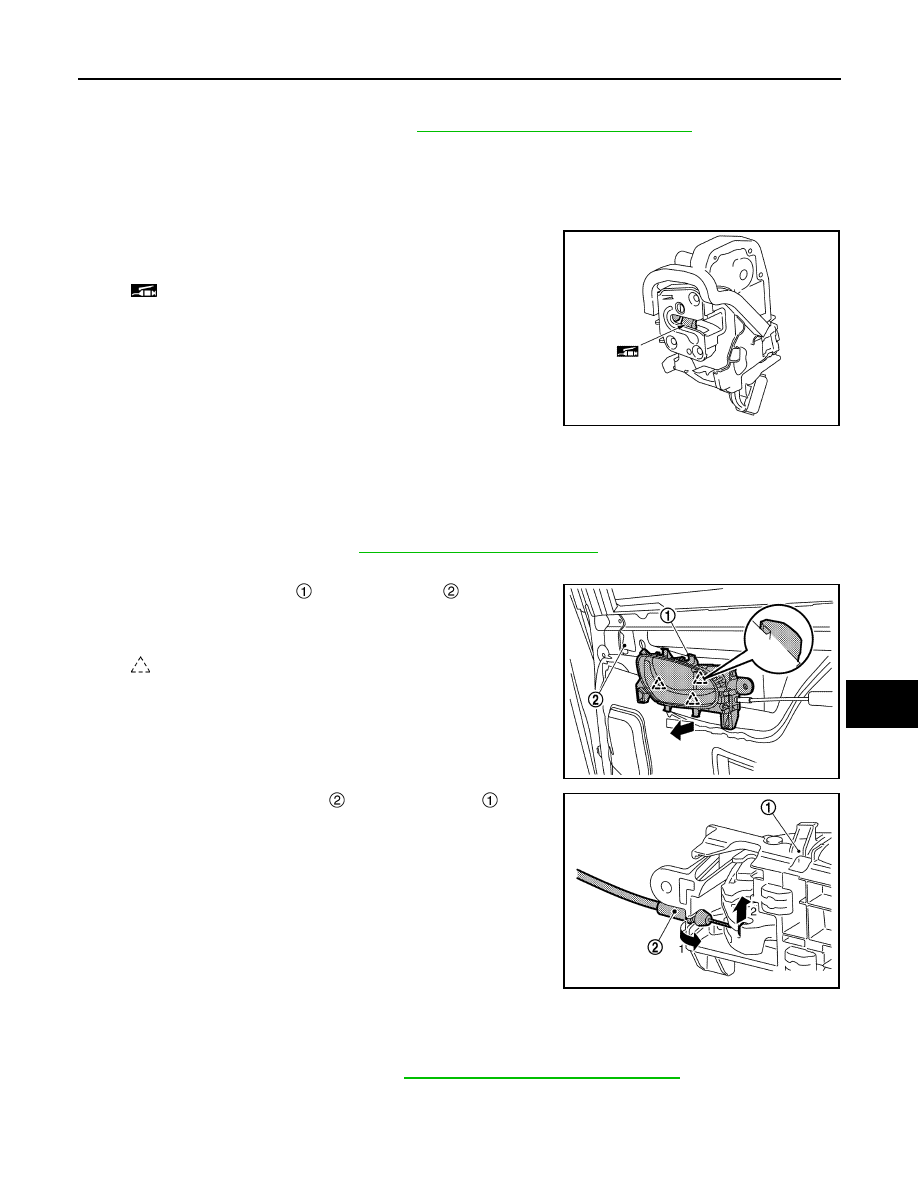

2.

Remove inside handle mounting bolt.

3.

Disengage inside handle

 from door panel

 while sliding

inside handle toward vehicle rear, and then separate inside han-
dle.

4.

Disengage inside handle cable

 from inside handle

 accord-

ing to the numerical order 1

→

2 indicated by arrows as shown in

the figure.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

After installation, check door lock. Refer to

DLK-779, "DOOR LOCK : Inspection"

.

OUTSIDE HANDLE

: Body grease

JMKIA8534ZZ

: Pawl

JMKIB3685ZZ

JMKIB3669ZZ

DLK-780

< REMOVAL AND INSTALLATION >

[TYPE 3]

REAR DOOR LOCK

OUTSIDE HANDLE : Removal and Installation

INFOID:0000000010728592

REMOVAL

1.

Fully close the rear door glass.

2.

Remove rear door finisher. Refer to

INT-19, "Removal and Installation"

.

3.

Remove inside handle. Refer to

DLK-779, "INSIDE HANDLE : Removal and Installation"

.

4.

Remove sealing screen and rear door lower sash. Refer to

GW-52, "REAR DOOR LOWER SASH :

Removal and Installation"

.

5.

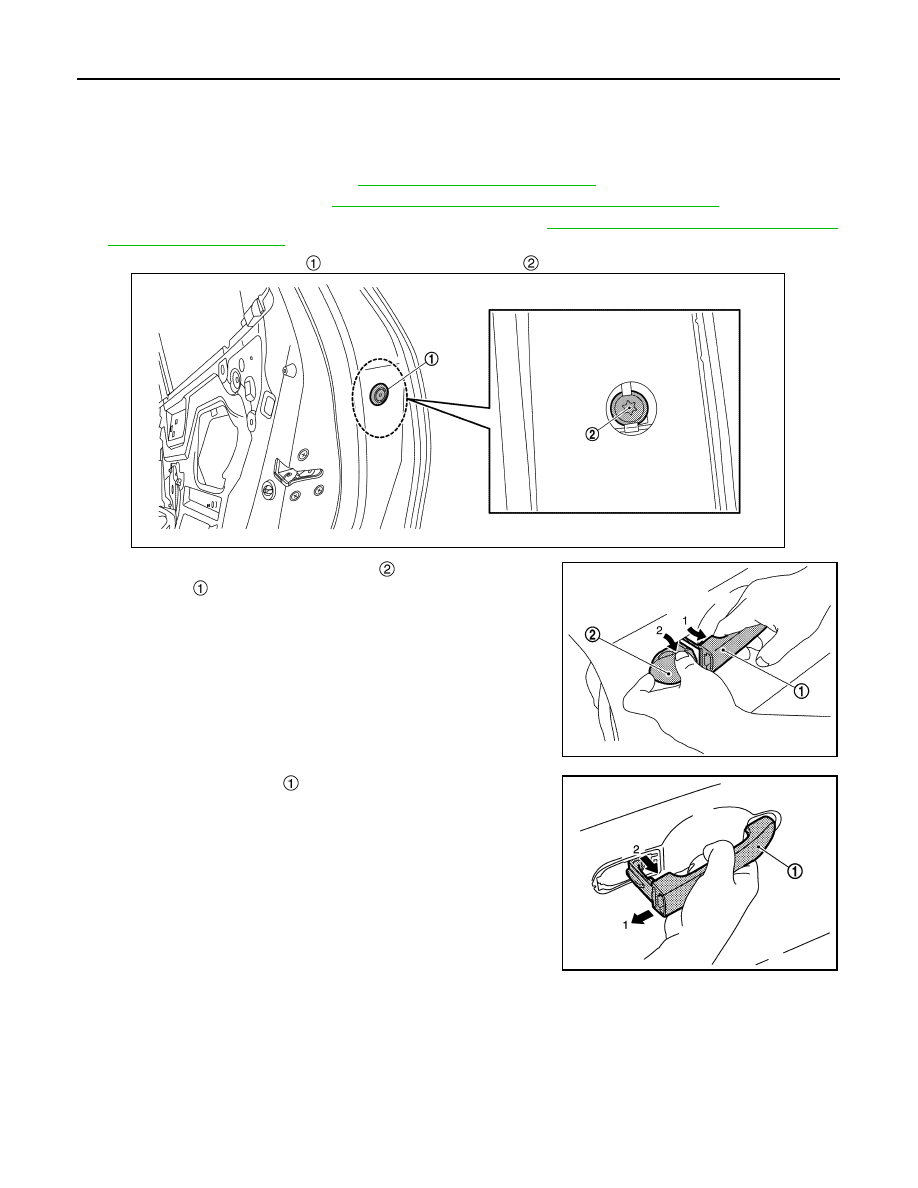

Remove door side grommet

, and then loosen TORX bolt

 from grommet hole.

6.

Remove outside handle escutcheon

 while pulling outside

handle grip

 according to the numerical order 1

→

2 indicated

by arrows as shown in the figure.

7.

Slide outside handle grip

 toward rear of vehicle and remove it

according to the numerical order 1

→

2 indicated by arrows as

shown in the figure.

JMKIB3096ZZ

JMKIA9526ZZ

JMKIA2948ZZ
