FRONT DOOR LOCK

DLK-773

< REMOVAL AND INSTALLATION >

[TYPE 3]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

FRONT DOOR LOCK

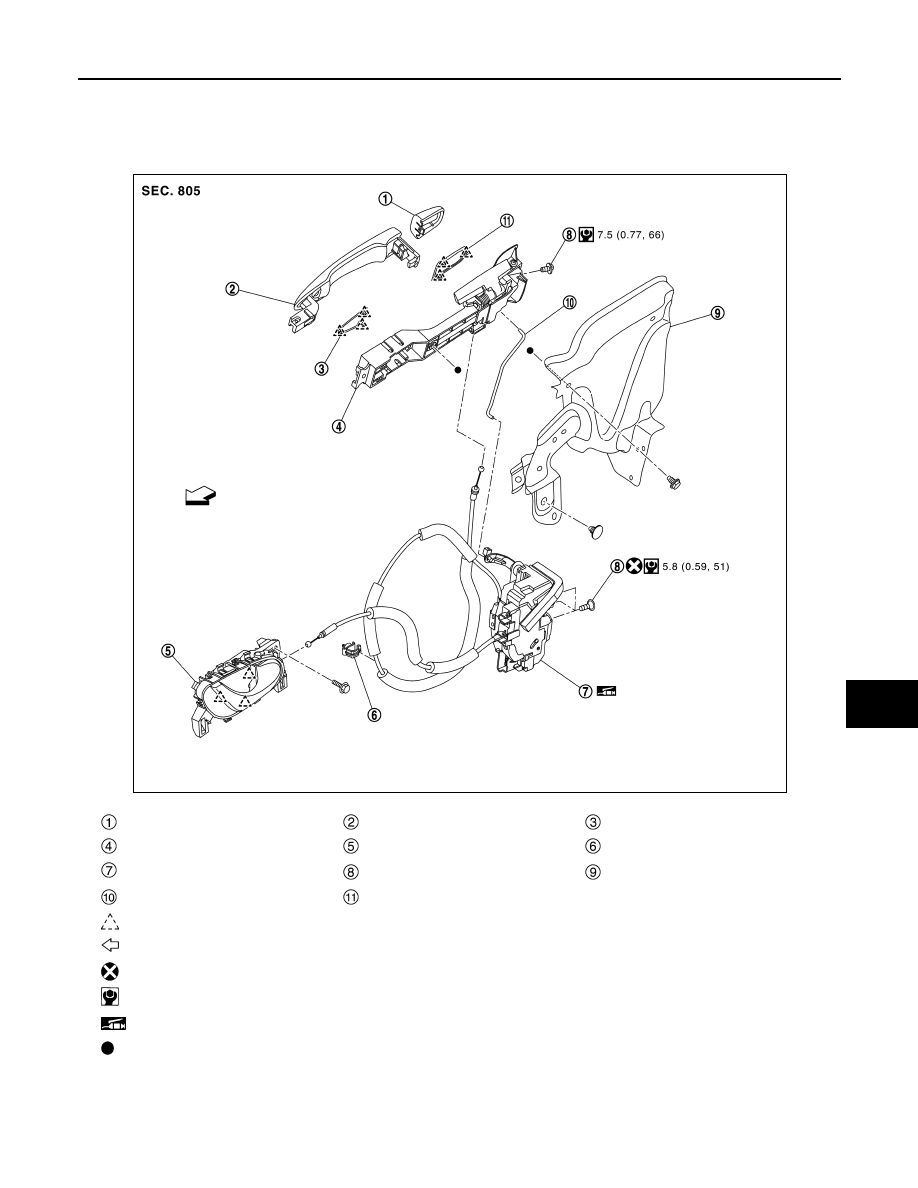

Exploded View

INFOID:0000000010728583

DOOR LOCK

Outside handle escutcheon

Outside handle grip

Front gasket

Outside handle bracket

Inside handle

Cable clip

Door lock assembly

TORX bolt

Key rod protector (driver side)

Key rod (driver side)

Rear gasket

: Pawl

: Vehicle front

: Always replace after every disassembly.

: N·m (kg-m, in-lb)

: Body grease

: Indicates that the part is connected at points with same symbol in actual vehicle.

JMKIB3667GB

DLK-774

< REMOVAL AND INSTALLATION >

[TYPE 3]

FRONT DOOR LOCK

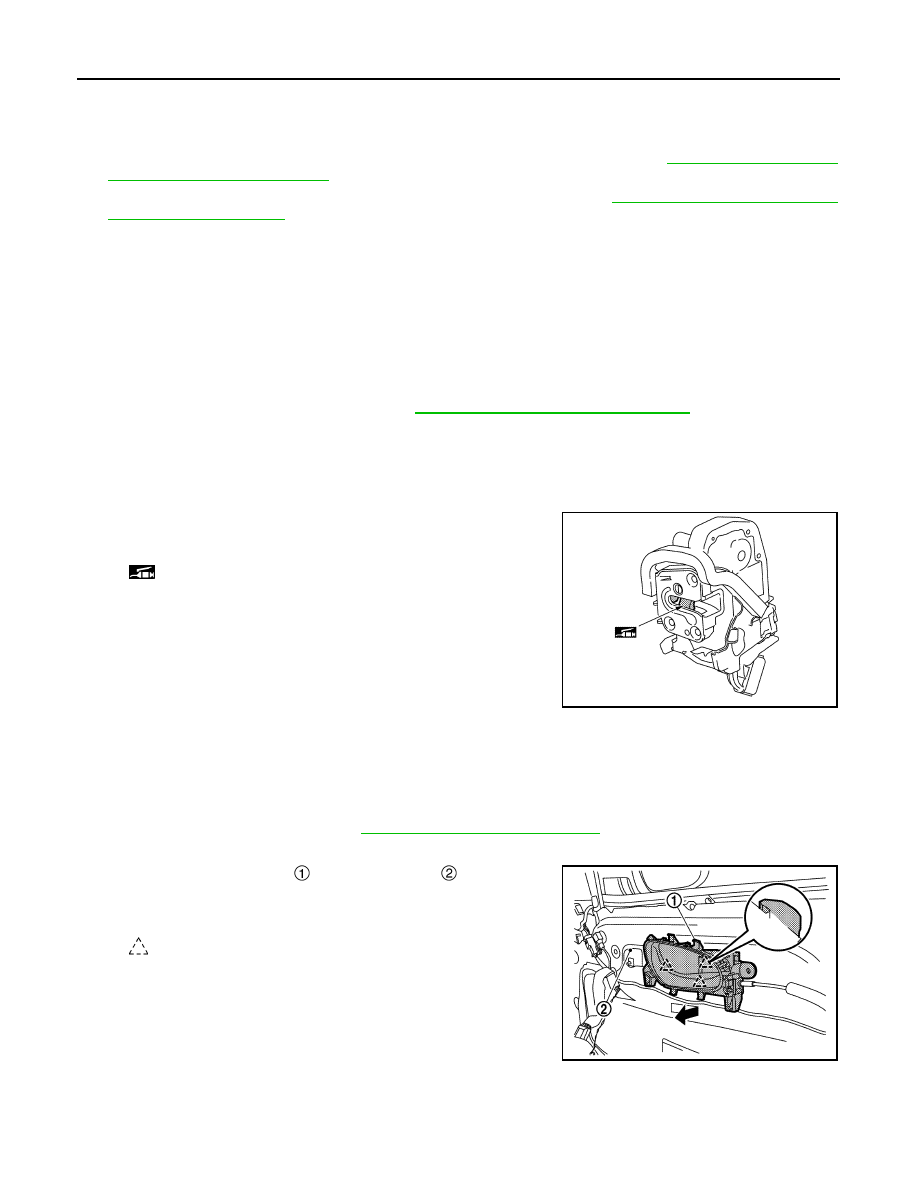

DOOR LOCK : Removal and Installation

INFOID:0000000010728584

REMOVAL

1.

Disconnect lock knob cable and inside handle cable from inside handle. Refer to

DLK-774, "INSIDE HAN-

DLE : Removal and Installation"

.

2.

Disconnect outside handle cable from outside handle bracket. Refer to

DLK-775, "OUTSIDE HANDLE :

Removal and Installation"

.

3.

Disconnect door lock assembly connector.

4.

Remove door lock assembly TORX bolts, and then remove door lock assembly.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Never reuse TORX bolt. Always replace it with a new one when it is removed.
• When installing outside handle cable to outside handle, be careful that outside handle cable is

routed normally.

• When installing key rod, rotate key rod holder until a click is felt.
• After installation, check door lock. Refer to

DLK-774, "DOOR LOCK : Inspection"

.

DOOR LOCK : Inspection

INFOID:0000000010728585

1.

After opening and closing the door, check that door is fixed to the vehicle body normally.

2.

Check the lock/unlock operation of door lock.

3.

Check door lock assembly for poor lubrication. Apply body
grease to door lock if necessary.

INSIDE HANDLE

INSIDE HANDLE : Removal and Installation

INFOID:0000000010728586

REMOVAL

1.

Remove front door finisher. Refer to

INT-14, "Removal and Installation"

.

2.

Remove inside handle mounting bolt.

3.

Disengage inside handle

 from door panel

 while sliding

inside handle toward vehicle rear, and then separate inside han-
dle.

: Body grease

JMKIA8534ZZ

: Pawl

JMKIB3668ZZ

FRONT DOOR LOCK

DLK-775

< REMOVAL AND INSTALLATION >

[TYPE 3]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

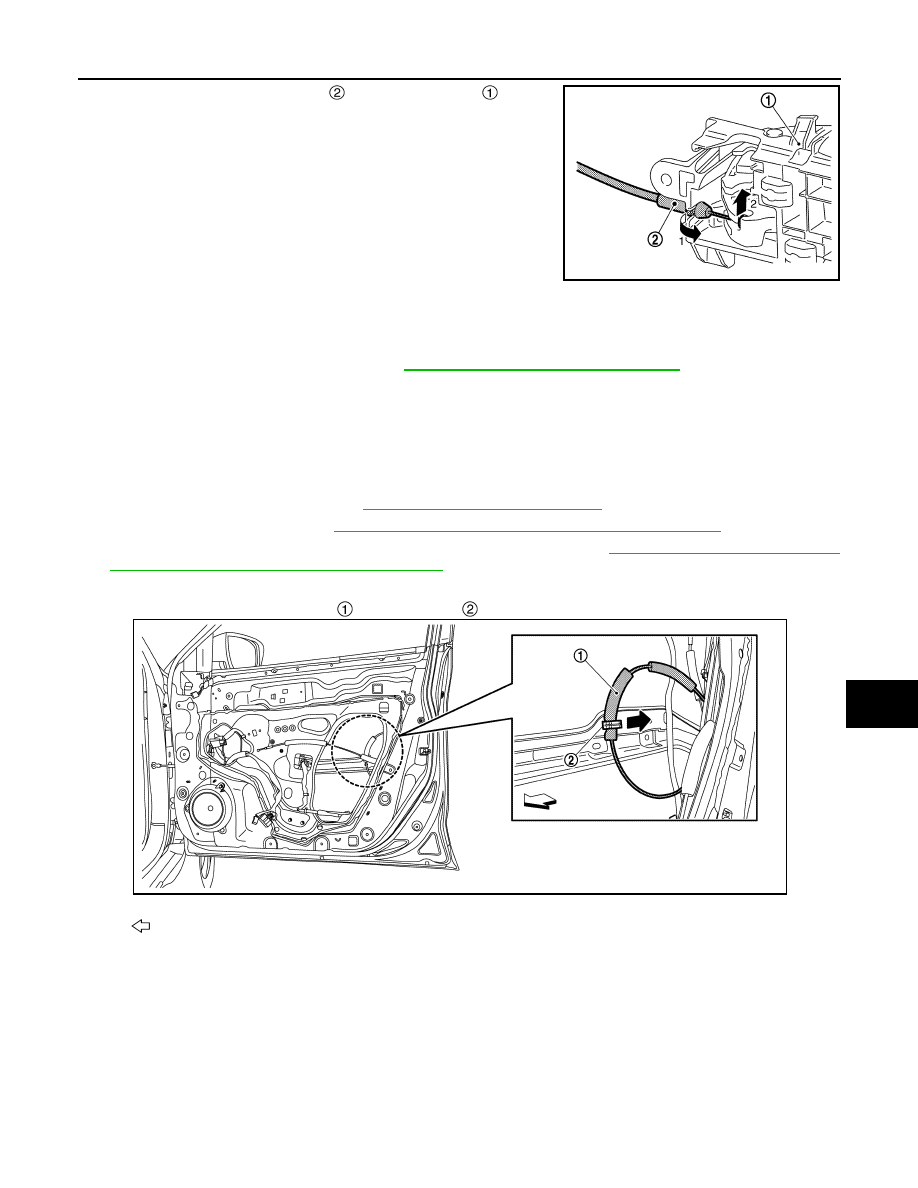

4.

Disengage inside handle cable

 from inside handle

 accord-

ing to the numerical order 1

→

2 indicated by arrows as shown in

the figure.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

After installation, check door lock. Refer to

DLK-774, "DOOR LOCK : Inspection"

.

OUTSIDE HANDLE

OUTSIDE HANDLE : Removal and Installation

INFOID:0000000010728587

REMOVAL

1.

Fully close the front door glass.

2.

Remove front door finisher. Refer to

INT-14, "Removal and Installation"

.

3.

Remove inside handle. Refer to

DLK-774, "INSIDE HANDLE : Removal and Installation"

.

4.

Remove sealing screen and front door glass run lower sash. Refer to

GW-43, "FRONT DOOR GLASS

RUN LOWER SASH : Removal and Installation"

.

5.

Remove key rod protector mounting bolt and fixing clip, and then remove key rod protector.

6.

Disengage outside handle cable

 from cable clip

.

JMKIB3669ZZ

: Vehicle front

JMKIB3670ZZ

DLK-776

< REMOVAL AND INSTALLATION >

[TYPE 3]

FRONT DOOR LOCK

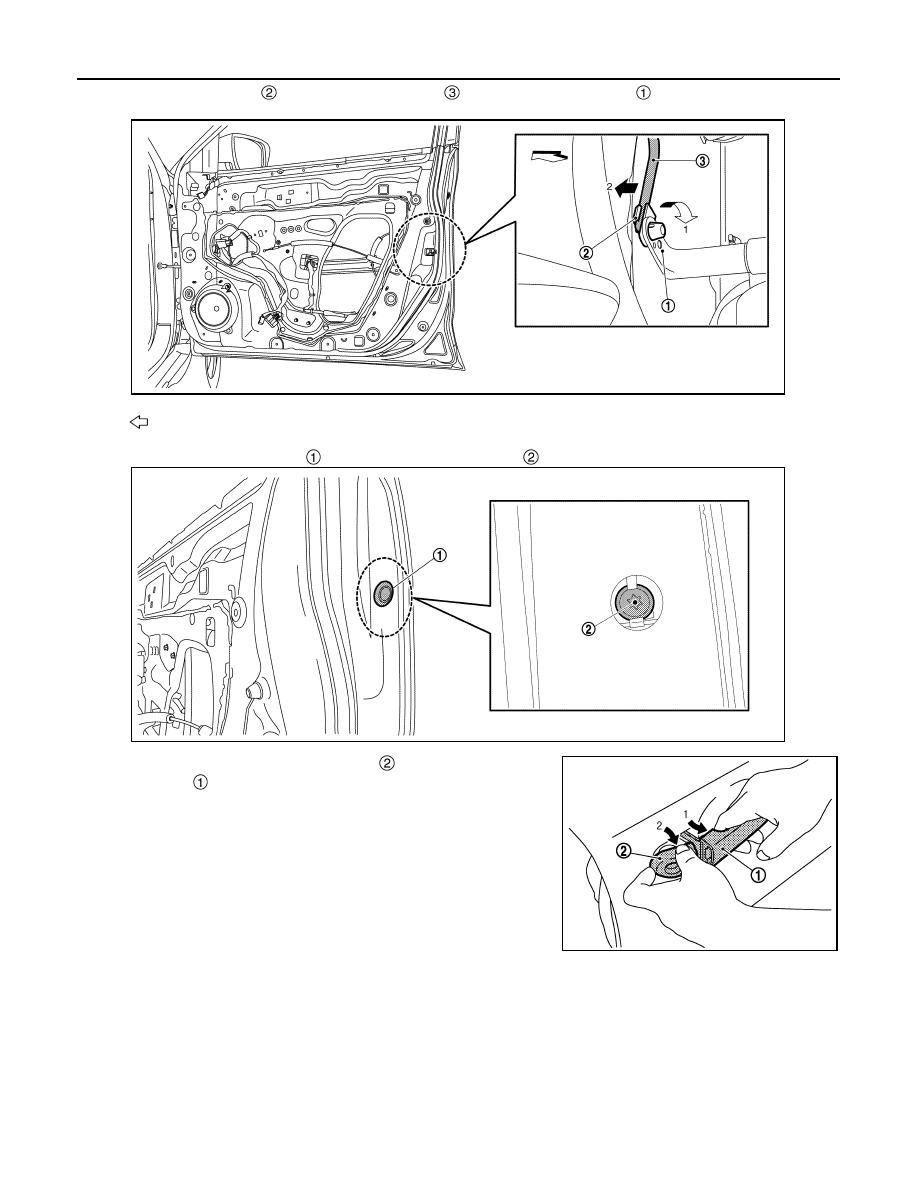

7.

Disengage rod holder

 and disconnect key rod

 from door lock assembly

 according to the numerical

order 1

→

2 indicated by arrows as shown in the figure (driver side).

8.

Remove door side grommet

, and then loosen TORX bolt

 from grommet hole.

9.

Remove outside handle escutcheon

 while pulling outside

handle grip

 according to the numerical order 1

→

2 indicated

by arrows as shown in the figure.

: Vehicle front

JMKIB3672ZZ

JMKIB3066ZZ

JMKIA0441ZZ
