7.

After adjustment, tighten back door striker mounting TORX bolts, bumper rubber and back door hinge
mounting nuts of back door side to the specified torque.

CAUTION:

After installation, apply touch-up paint to the body color if the paint around back door hinge and
back door hinge mounting nuts is peeled off.

8.

Install luggage rear plate mask. Refer to

INT-41, "LUGGAGE REAR PLATE : Removal and Installation"

.

CAUTION:

• After adjusting, check that bumper rubber is in contact with vehicle body surely.
• After adjusting, check that door opens and closes normally. Refer to

DLK-762, "BACK DOOR

ASSEMBLY : Inspection"

.

• After adjusting, perform calibration camera image (with around view monitor). Refer to

AV-161,

"CALIBRATING CAMERA IMAGE (AROUND VIEW MONITOR) : Work Procedure"

 (with navigation).

BACK DOOR STRIKER ADJUSTMENT

Adjust back door striker so that it becomes parallel with back door lock insertion direction.

BACK DOOR STRIKER

BACK DOOR STRIKER : Removal and Installation

INFOID:0000000010728572

REMOVAL

1.

Remove luggage rear plate. Refer to

INT-41, "LUGGAGE REAR PLATE : Removal and Installation"

.

2.

Remove TORX bolts, and then remove back door striker.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Never reuse TORX bolt. Always replace it with a new one when it is removed.
• After installation, perform the fitting adjustment. Refer to

DLK-763, "BACK DOOR ASSEMBLY :

Adjustment"

.

• After installation, check that door opens and closes normally. Refer to

DLK-762, "BACK DOOR

ASSEMBLY : Inspection"

.

BACK DOOR HINGE

BACK DOOR HINGE : Removal and Installation

INFOID:0000000010728573

REMOVAL

1.

Remove back door assembly. Refer to

DLK-760, "BACK DOOR ASSEMBLY : Removal and Installation"

.

2.

Remove back door hinge cover. Refer to

EXT-46, "Removal and Installation"

.

3.

Remove back door hinge mounting nuts of vehicle body side, and then remove back door hinge.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• After installation, perform the fitting adjustment. Refer to

DLK-763, "BACK DOOR ASSEMBLY :

Adjustment"

.

• After installation, apply touch-up paint (the body color) onto the head of door hinge mounting nuts.
• After installation, check that door opens and closes normally. Refer to

DLK-762, "BACK DOOR

ASSEMBLY : Inspection"

.

BACK DOOR STAY

BACK DOOR STAY : Removal and Installation

INFOID:0000000010728574

REMOVAL

CAUTION:

2 workers are required to support back door.

1.

Support the back door with the suitable material to prevent it from falling.

WARNING:

DLK-766

< REMOVAL AND INSTALLATION >

[TYPE 3]

BACK DOOR

Bodily injury may occur if no supporting rod is holding the back door open when removing the
back door stay.

2.

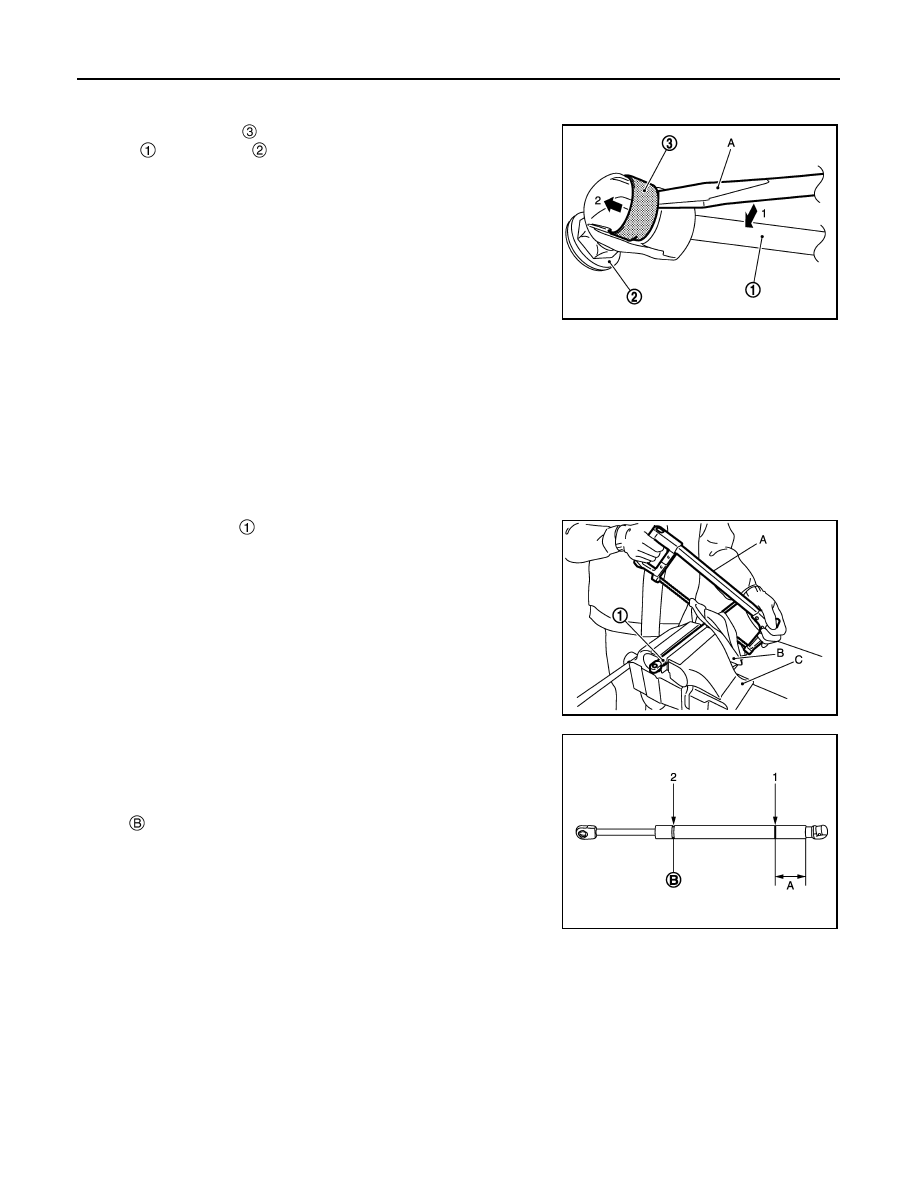

Remove metal clip

 located on connection between back door

stay

 and stud ball

 using a remover tool (A) according to the

numerical order 1

→

2 indicated by arrows as shown in the figure.

CAUTION:

2 workers are required to support back door.

3.

Disengage back door stay and stud ball of back door side.

4.

Remove back door stay mounting bolts, and then remove back door stay.

INSTALLATION

Install in the reverse order of removal.

BACK DOOR STAY : Disposal

INFOID:0000000010728575

CAUTION:

When performing disposal operation, wear the protective glasses and protective gloves.

1.

Fix back door stay

 using a vise (C).

CAUTION:

When cutting a hole on back door stay, always cover a
hacksaw (A) using a shop cloth (B) to avoid scattering
metal fragments or oil.

2.

Using hacksaw (A) slowly make 2 holes in the back door stay, in
numerical order as shown in the figure.

BACK DOOR WEATHER-STRIP

BACK DOOR WEATHER-STRIP : Removal and Installation

INFOID:0000000010728576

REMOVAL

Pull up and remove engagement with body from weather-strip joint.

CAUTION:

Never pull strongly on back door weather-strip.

INSTALLATION

JMKIA2255ZZ

JMKIA3336ZZ

A:

20.0 mm (0.787 in)

:

Cut at the groove.

JMKIA3609ZZ

BACK DOOR

DLK-767

< REMOVAL AND INSTALLATION >

[TYPE 3]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

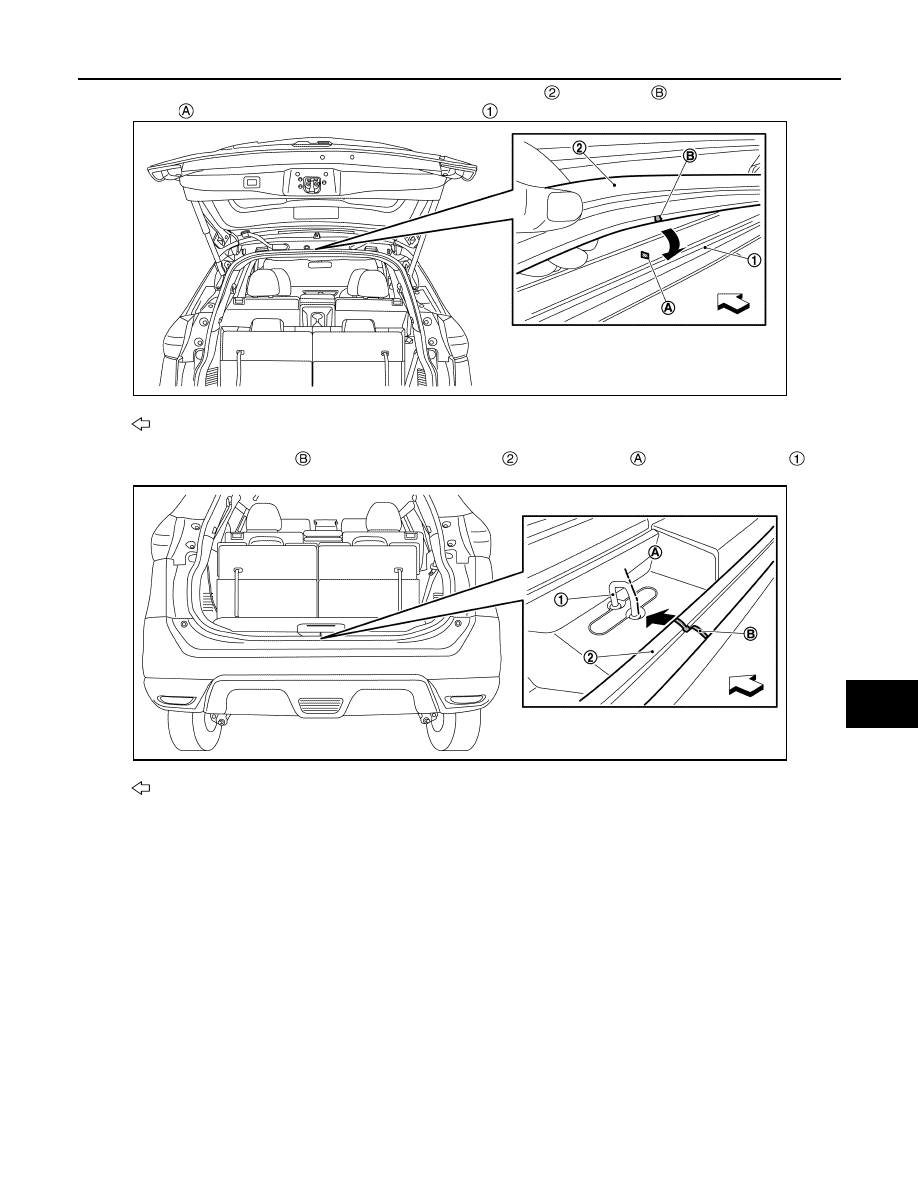

1.

Working from the upper section, align back door weather-strip

 center mark

 with vehicle center posi-

tion mark

 and install weather-strip onto the vehicle

.

2.

Align the connecting point

 of back door weather-strip

 with the center

 of back door striker

, and

then install weather-strip onto the vehicle.

3.

Pull back door weather-strip gently to ensure that there is no loose section.

CAUTION:

Check that weather-strip fits tightly in each corner.

: Vehicle front

JMKIB3151ZZ

: Vehicle front

JMKIB3152ZZ

DLK-768

< REMOVAL AND INSTALLATION >

[TYPE 3]

HOOD LOCK

HOOD LOCK

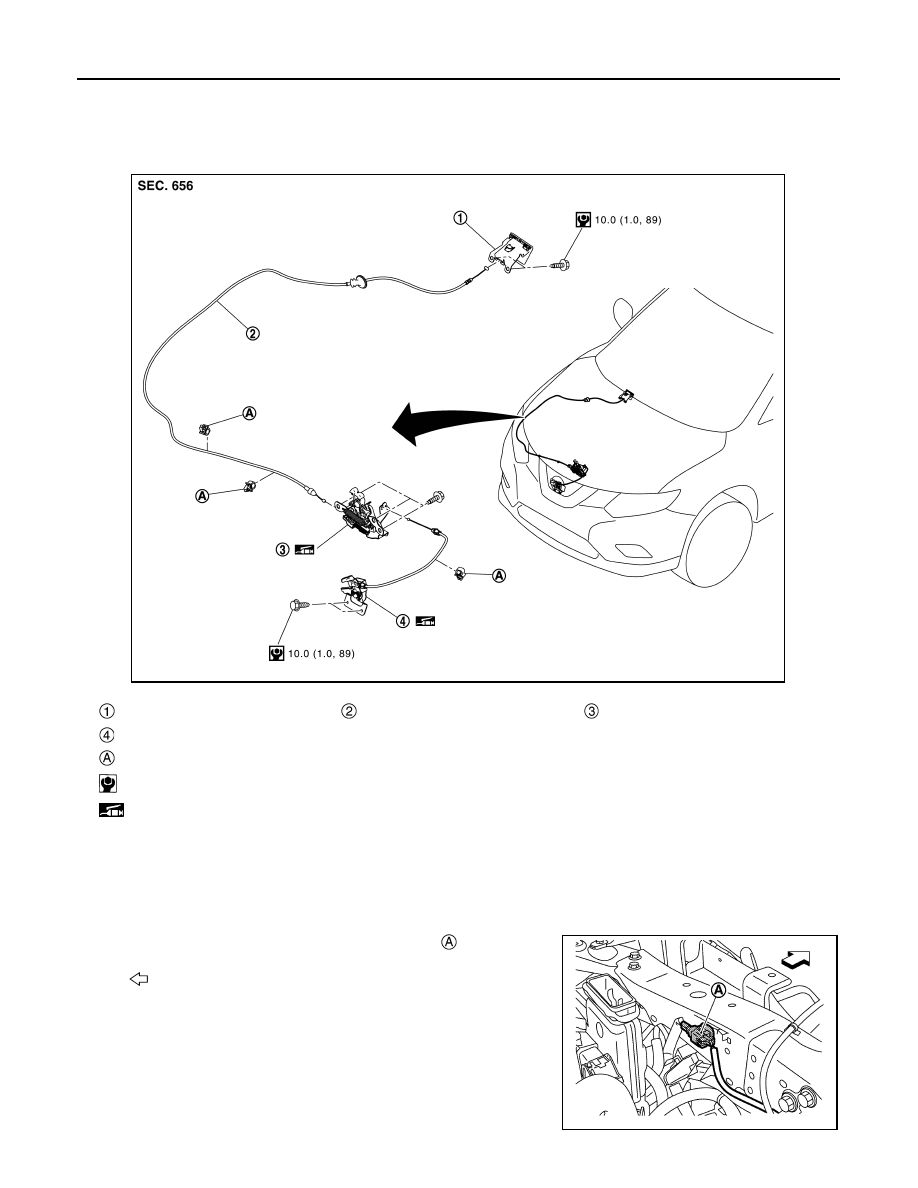

Exploded View

INFOID:0000000010728577

HOOD LOCK

HOOD LOCK : Removal and Installation

INFOID:0000000010728578

REMOVAL

1.

Disconnect hood lock switch harness connector

 (if equipped).

Hood lock control handle assembly

Hood lock control cable assembly

Hood lock assembly

Hood lock bell crank assembly

Cable clip

: N·m (kg-m, in-lb)

: Body grease

JMKIB3483GB

: Vehicle front

JMKIB2974ZZ
