REAR DOOR

DLK-757

< REMOVAL AND INSTALLATION >

[TYPE 3]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

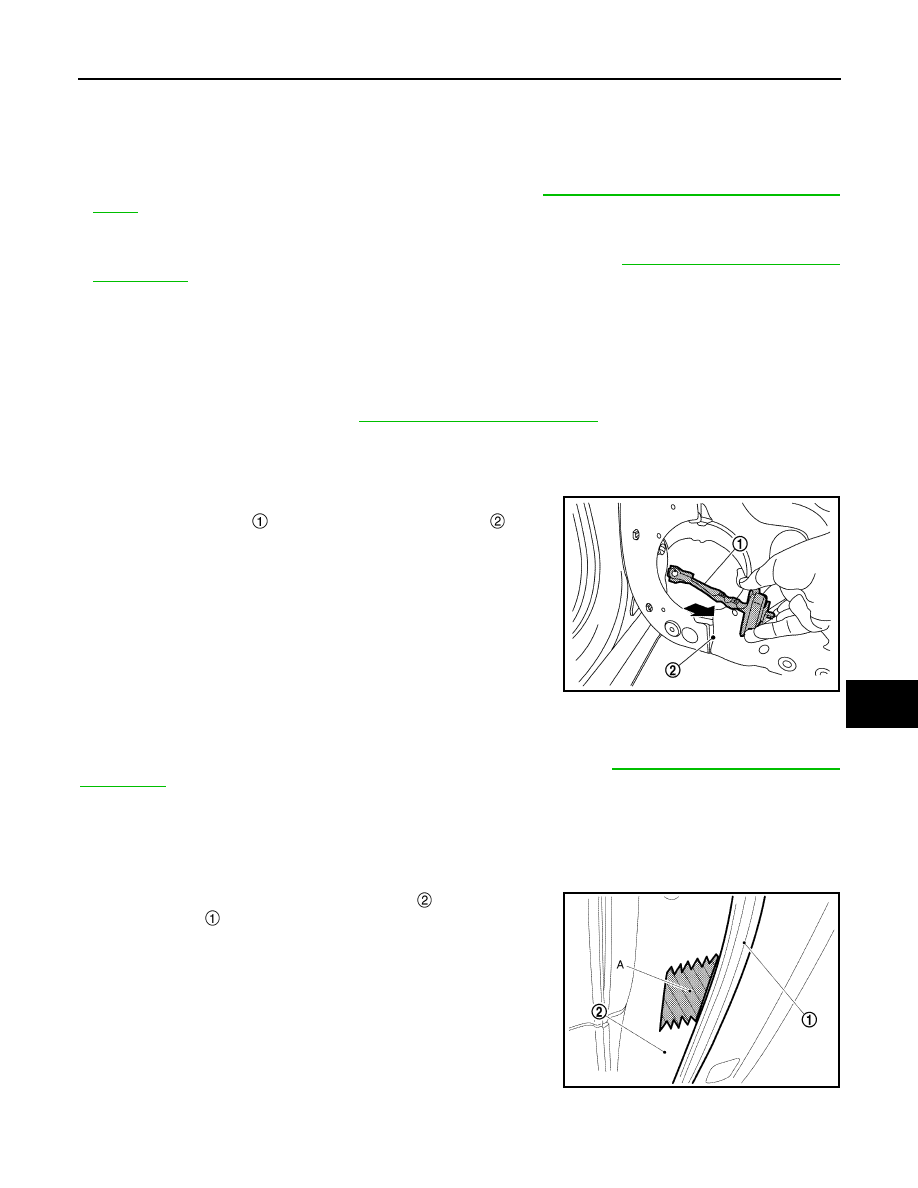

3.

Remove rear door hinge mounting bolts and nuts of vehicle body side, and then remove rear door hinge.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Apply anticorrosive agent onto the mounting surface.
• After installation, perform the fitting adjustment. Refer to

DLK-754, "DOOR ASSEMBLY : Adjust-

ment"

.

• After installing, apply the touch-up paint (the body color) onto the head of door hinge mounting bolts

and nuts.

• After installation, check that door opens and closes normally. Refer to

DLK-754, "DOOR ASSEMBLY

: Inspection"

.

DOOR CHECK LINK

DOOR CHECK LINK : Removal and Installation

INFOID:0000000010728566

REMOVAL

1.

Fully close rear door glass.

2.

Remove rear door finisher. Refer to

INT-19, "Removal and Installation"

.

3.

Disconnect harness connector of rear door speaker.

4.

Remove mounting bolts of rear door speaker, and then remove rear door speaker.

5.

Remove door check link mounting bolt of vehicle body side.

6.

Remove door check link mounting bolts of door panel, and then
take door check link

 out from the hole of door panel

.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

After installation, check that door opens and closes normally. Refer to

DLK-754, "DOOR ASSEMBLY :

Inspection"

.

DOOR WEATHER-STRIP

DOOR WEATHER-STRIP : Removal and Installation

INFOID:0000000010728567

REMOVAL

1.

Apply protective tape (A) to rear door panel

 around rear door

weather-strip

 fixing clips for preventing damage.

JMKIB3073ZZ

JMKIB2232ZZ

DLK-758

< REMOVAL AND INSTALLATION >

[TYPE 3]

REAR DOOR

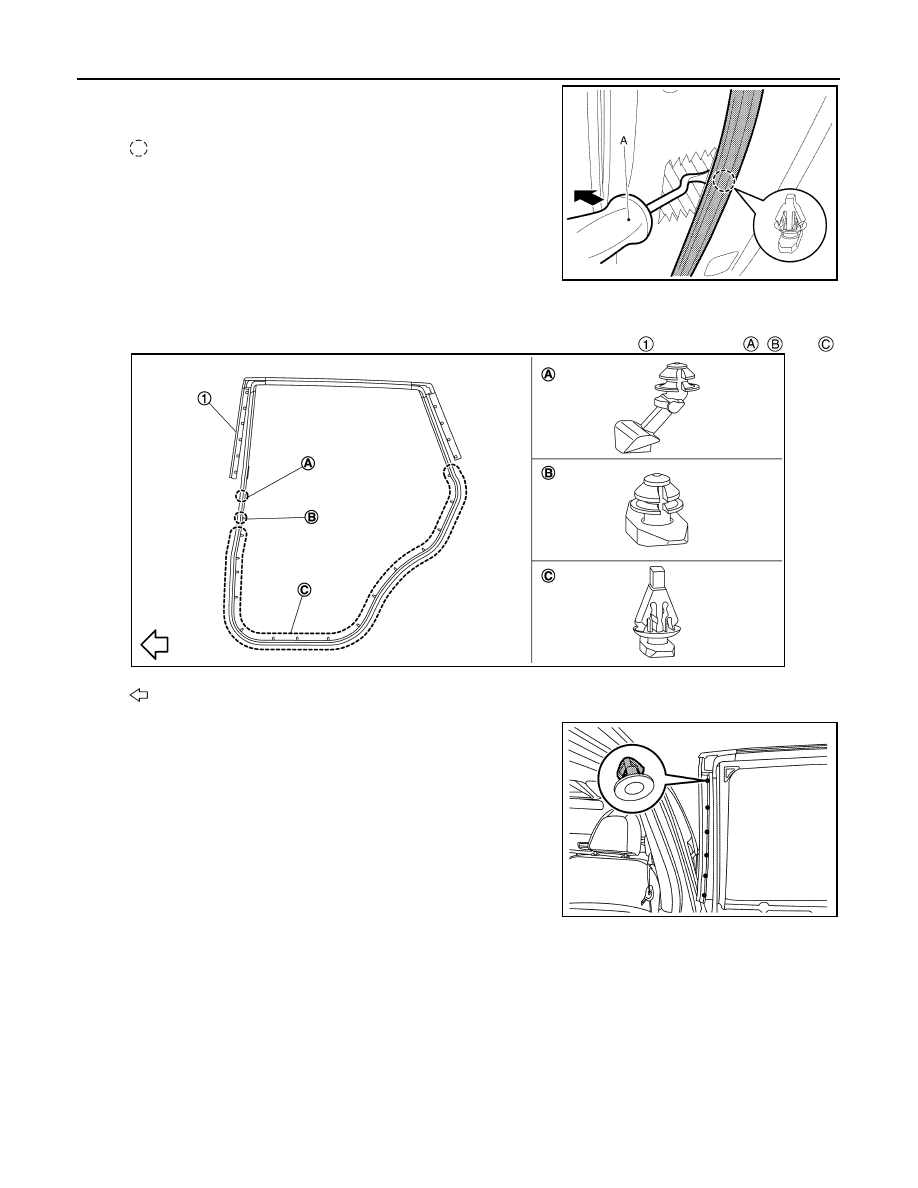

2.

Disengage fixing clips on the reverse side of rear door weather-
strip using a remover tool (A).

CAUTION:

• Never damage rear door panel.
• When removing, never confuse the 3 types of rear door weather-strip

 fixing clips

,

 and

.

3.

Remove front fixing clips from weather-strip.

: Clip

JMKIB2233ZZ

: Vehicle front

JMKIB3090ZZ

JMKIB3091ZZ

REAR DOOR

DLK-759

< REMOVAL AND INSTALLATION >

[TYPE 3]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

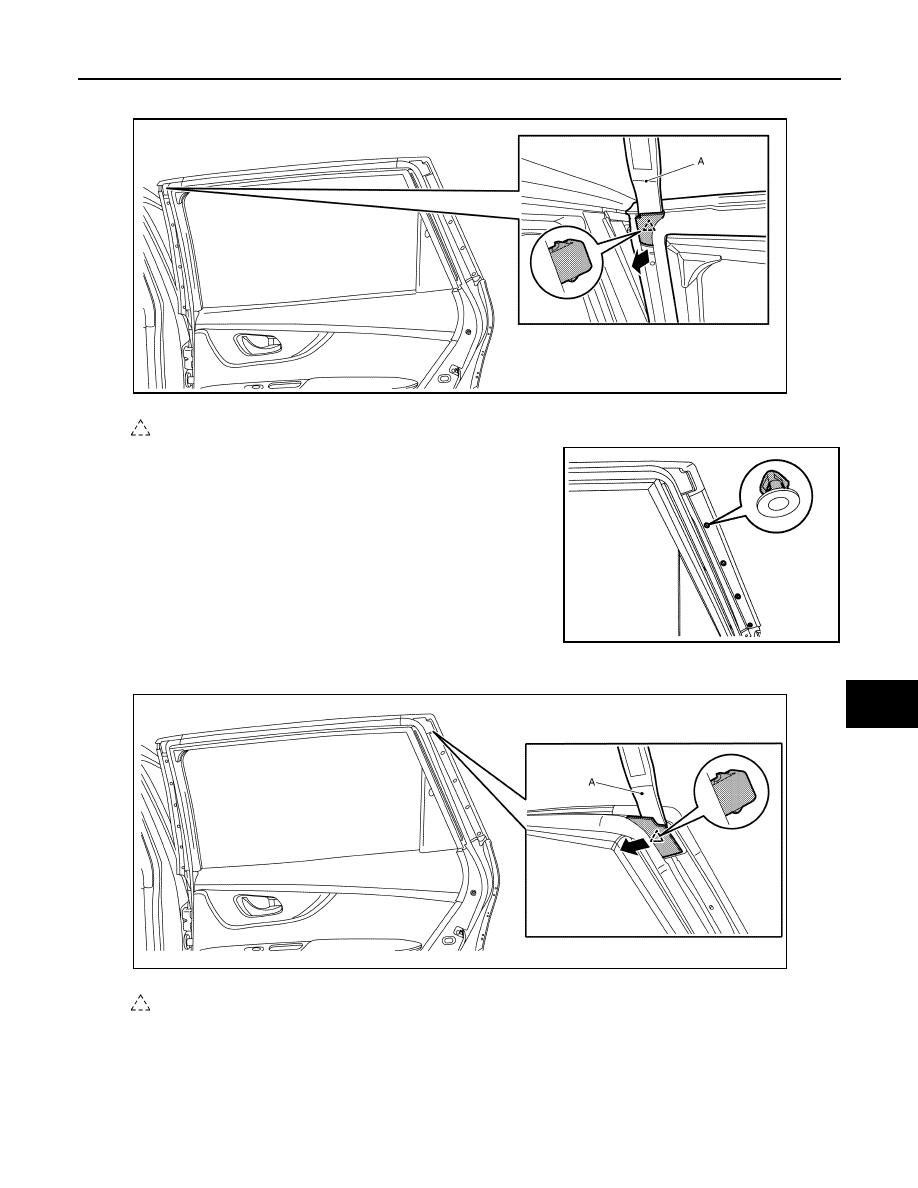

4.

Disengage fixing pawl on front upper end of rear door weather-strip using a remover tool (A), and then
remove weather-strip clip.

5.

Remove rear fixing clips from weather-strip.

6.

Disengage fixing pawl on rear upper end of rear door weather-strip using a remover tool (A), and then
remove weather-strip clip.

7.

Remove door check link mounting bolt of vehicle body side.

8.

Remove rear door weather-strip from rear door panel.

INSTALLATION

Install in the reverse order of removal.

: Pawl

JMKIB3092ZZ

JMKIB3093ZZ

: Pawl

JMKIB3094ZZ

DLK-760

< REMOVAL AND INSTALLATION >

[TYPE 3]

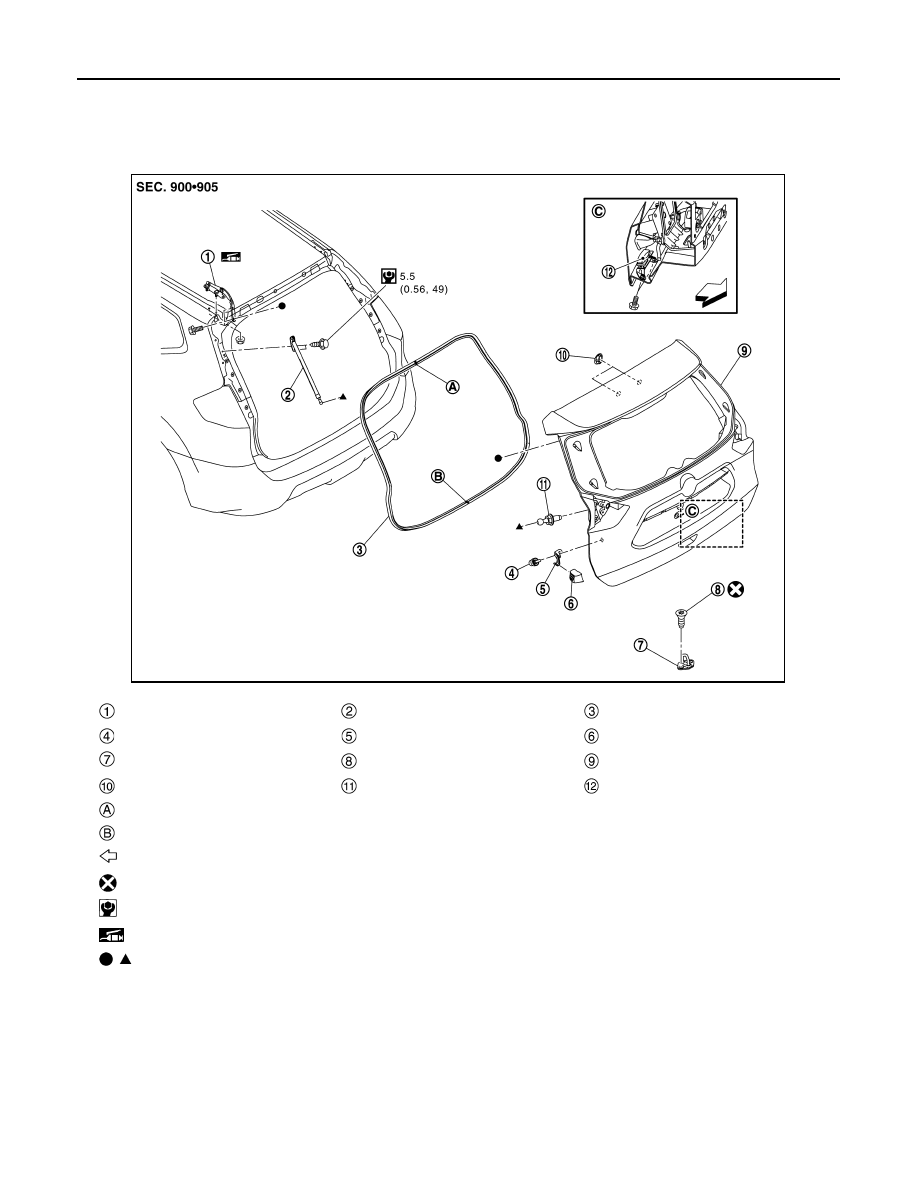

BACK DOOR

BACK DOOR

Exploded View

INFOID:0000000010728568

BACK DOOR ASSEMBLY

BACK DOOR ASSEMBLY : Removal and Installation

INFOID:0000000010728569

CAUTION:

• Back door is made of resin. Never apply strong force to it, and be careful to prevent contact with oil.
• Perform work with 2 workers, because of its heavy weight.
• Use protective tape or shop cloth to protect from damage during removal and installation.

Back door hinge

Back door stay

Back door weather-strip

Bumper rubber

Wedge bracket

Back door wedge

Back door striker

TORX bolt

Back door panel

Plug

Stud ball

Back door damper

: Center mark

: Seam

: Vehicle front

: Always replace after every disassembly.

: N·m (kg-m, in-lb)

: Body grease

,

: Indicates that the part is connected at points with same symbol in actual vehicle.

JMKIB2695GB
