REAR DOOR

DLK-753

< REMOVAL AND INSTALLATION >

[TYPE 3]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

DOOR ASSEMBLY

DOOR ASSEMBLY : Removal and Installation

INFOID:0000000010728561

CAUTION:

• Perform work with 2 workers, because of its heavy weight.
• When removing and installing rear door assembly, support door with a jack and shop cloth to pro-

tect door and body.

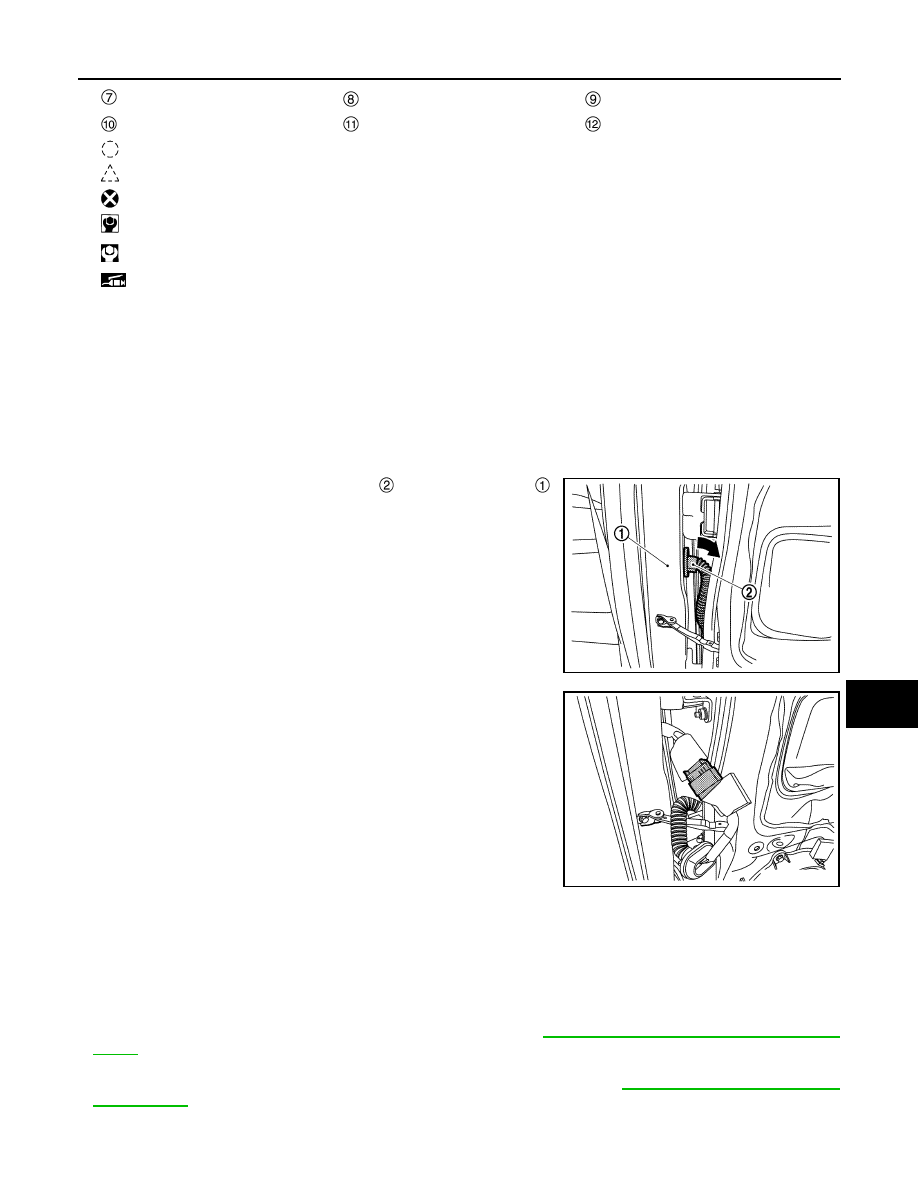

REMOVAL

1.

Remove rear door harness grommet

 from vehicle body

,

and then pull out rear door harness.

2.

Disconnect rear door harness connector.

3.

Remove mounting bolt of door check link of vehicle body side.

4.

Remove door hinge mounting nuts of door side, and then remove door assembly.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Apply anticorrosive agent onto the mounting surface.
• After installation, perform the fitting adjustment. Refer to

DLK-754, "DOOR ASSEMBLY : Adjust-

ment"

.

• After installation, apply touch-up paint (the body color) onto the head of door hinge mounting nuts.
• After installation, check that door opens and closes normally. Refer to

DLK-754, "DOOR ASSEMBLY

: Inspection"

.

Door striker

TORX bolt

Grommet

Rear door weather-strip clip

Rear door weather-strip

Rear door weather-strip clip

: Clip

: Pawl

: Always replace after every disassembly.

: N·m (kg-m, in-lb)

: N·m (kg-m, ft-lb)

: Body grease

JMKIB3071ZZ

JMKIB3072ZZ

DLK-754

< REMOVAL AND INSTALLATION >

[TYPE 3]

REAR DOOR

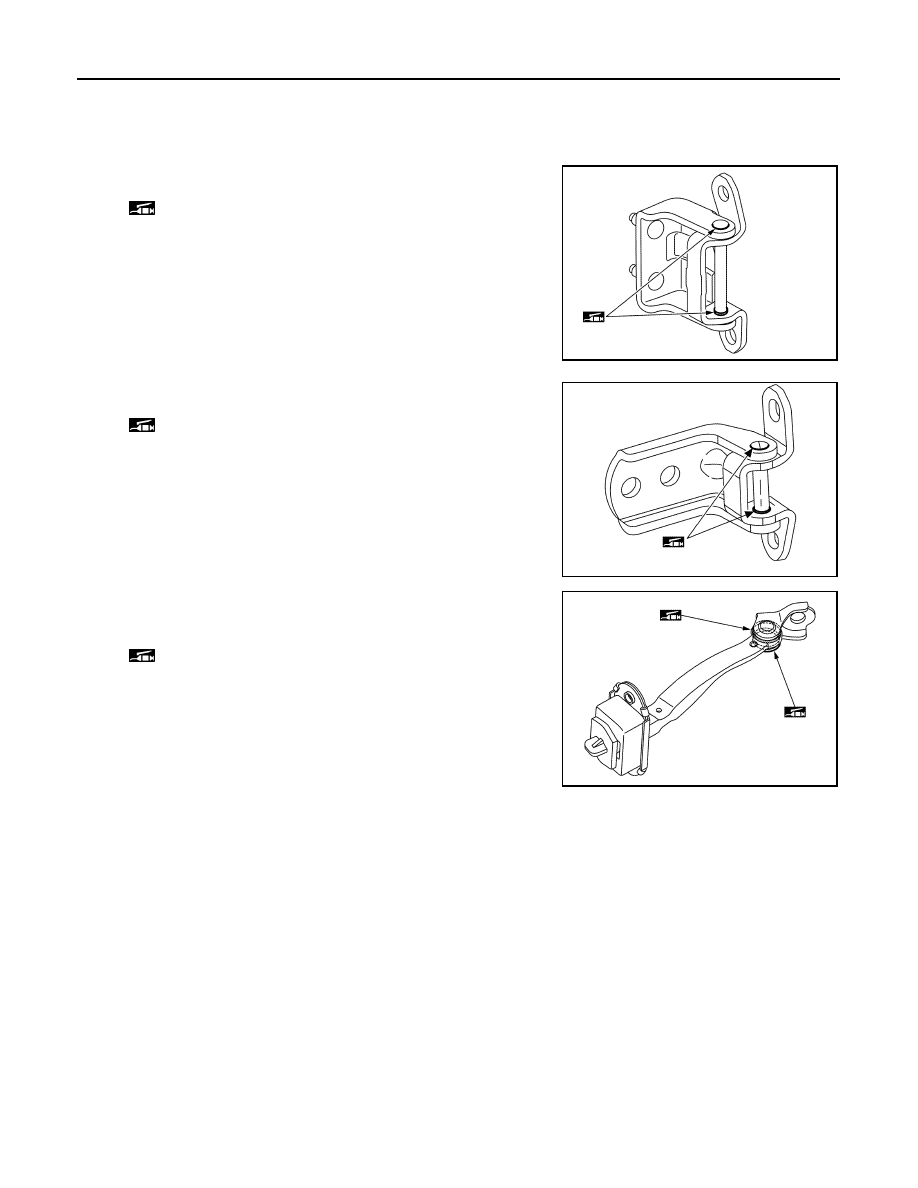

DOOR ASSEMBLY : Inspection

INFOID:0000000010728562

1.

Open and close the door. Check that door hinge and check link rotation portion moves smoothly.

2.

Check door hinge rotating part for poor lubrication. Apply body grease if necessary.
• Door hinge (upper)

• Door hinge (lower)

3.

Check door check link rotating part for poor lubrication. Apply
body grease if necessary.

DOOR ASSEMBLY : Adjustment

INFOID:0000000010728563

FITTING ADJUSTMENT

: Body grease

JMKIB0329ZZ

: Body grease

JMKIB0321ZZ

: Body grease

JMKIB0322ZZ

REAR DOOR

DLK-755

< REMOVAL AND INSTALLATION >

[TYPE 3]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

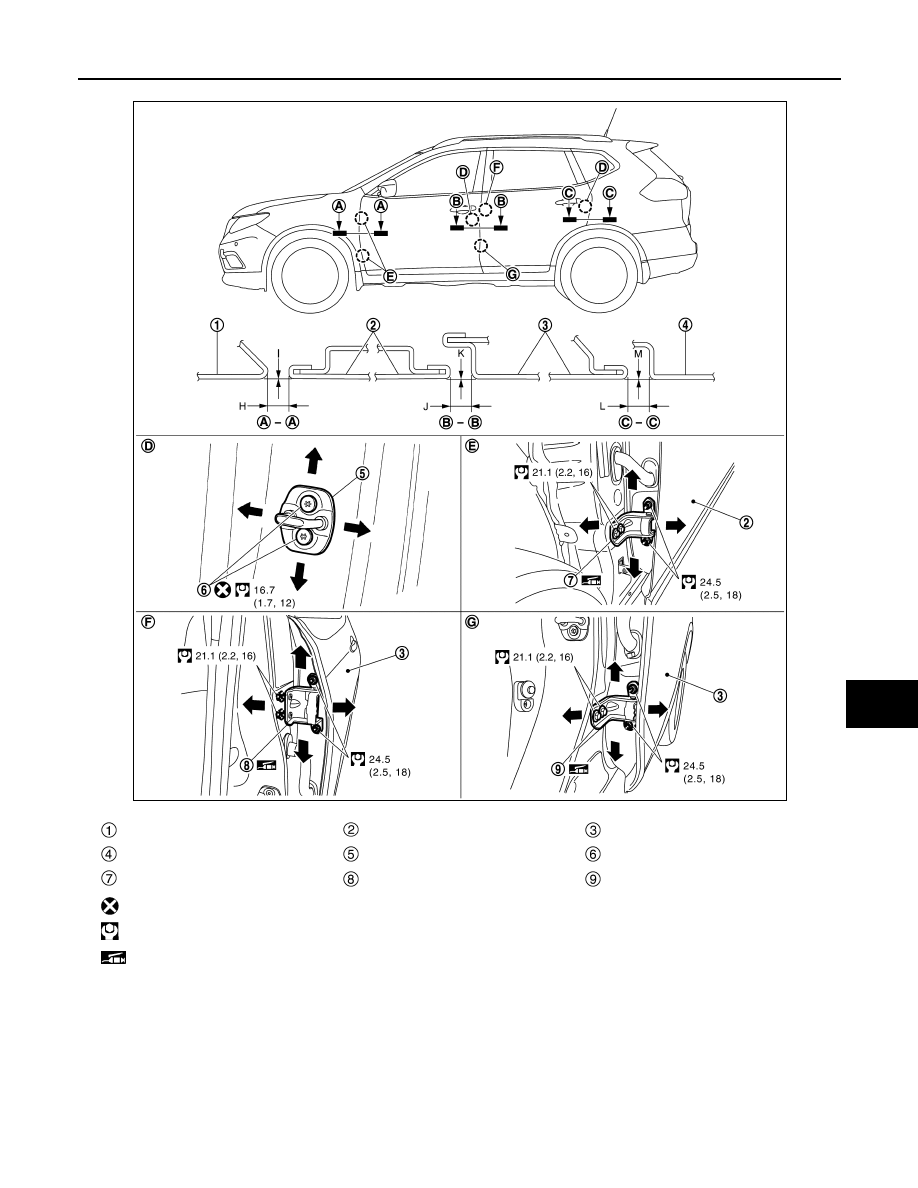

Fitting Adjustment Standard

Check the clearance and surface height between rear door and each part by visually and touching.
If the clearance and the surface height are out of specification, adjust them according to the procedures
shown below.

Front fender

Front door

Rear door

Body side outer

Door striker

TORX bolt

Front door hinge

Rear door hinge (upper)

Rear door hinge (lower)

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

: Body grease

JMKIB3479GB

DLK-756

< REMOVAL AND INSTALLATION >

[TYPE 3]

REAR DOOR

Unit: mm [in]

Fitting Adjustment Procedure

1.

Remove center pillar lower garnish. Refer to

INT-27, "CENTER PILLAR LOWER GARNISH : Removal

and Installation"

.

2.

Loosen door hinge mounting nuts of door side.

3.

Adjust the surface height of rear door according to the fitting standard dimension.

4.

Temporarily tighten door hinge mounting nuts of door side.

5.

Loosen door hinge mounting nuts and bolts of vehicle body side.

6.

Raise rear door at rear end to adjust clearance of rear door according to the fitting standard dimension.

7.

After adjustment, tighten bolts and nuts to the specified torque.

CAUTION:

After installation, apply touch-up paint (the body color) onto the head of hinge mounting bolts and
nuts.

8.

Install center pillar lower garnish. Refer to

INT-27, "CENTER PILLAR LOWER GARNISH : Removal and

Installation"

.

DOOR STRIKER ADJUSTMENT

Adjust door striker so that it becomes parallel with door lock insertion direction.

DOOR STRIKER

DOOR STRIKER : Removal and Installation

INFOID:0000000010728564

REMOVAL

Remove TORX bolts, and then remove door striker.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Never reuse TORX bolt. Always replace it with a new one when it is removed.
• After installation, perform the fitting adjustment. Refer to

DLK-754, "DOOR ASSEMBLY : Adjust-

ment"

.

• After installation, check that door opens and closes normally. Refer to

DLK-754, "DOOR ASSEMBLY

: Inspection"

.

DOOR HINGE

DOOR HINGE : Removal and Installation

INFOID:0000000010728565

CAUTION:

• Perform work with 2 workers, because of its heavy weight.
• When removing and installing rear door assembly, support door with a jack and shop cloth to pro-

tect door and body.

REMOVAL

1.

Remove rear door assembly. Refer to

DLK-753, "DOOR ASSEMBLY : Removal and Installation"

.

2.

Remove center pillar lower garnish. Refer to

INT-27, "CENTER PILLAR LOWER GARNISH : Removal

and Installation"

.

Portion

Standard

Front door – Rear door

 –

J

Clearance

3.3 – 5.3

[0.130 – 0.209]

K

Surface height

(

−

1.0) – (+1.0)

[(

−

0.039) – (+0.039)]

Rear door – Body side outer

 –

L

Clearance

3.0 – 5.0

[0.118 – 0.197]

M

Surface height

(

−

1.0) – (+1.0)

[(

−

0.039) – (+0.039)]
