BACK DOOR LOCK

DLK-621

< REMOVAL AND INSTALLATION >

[TYPE 2]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

3.

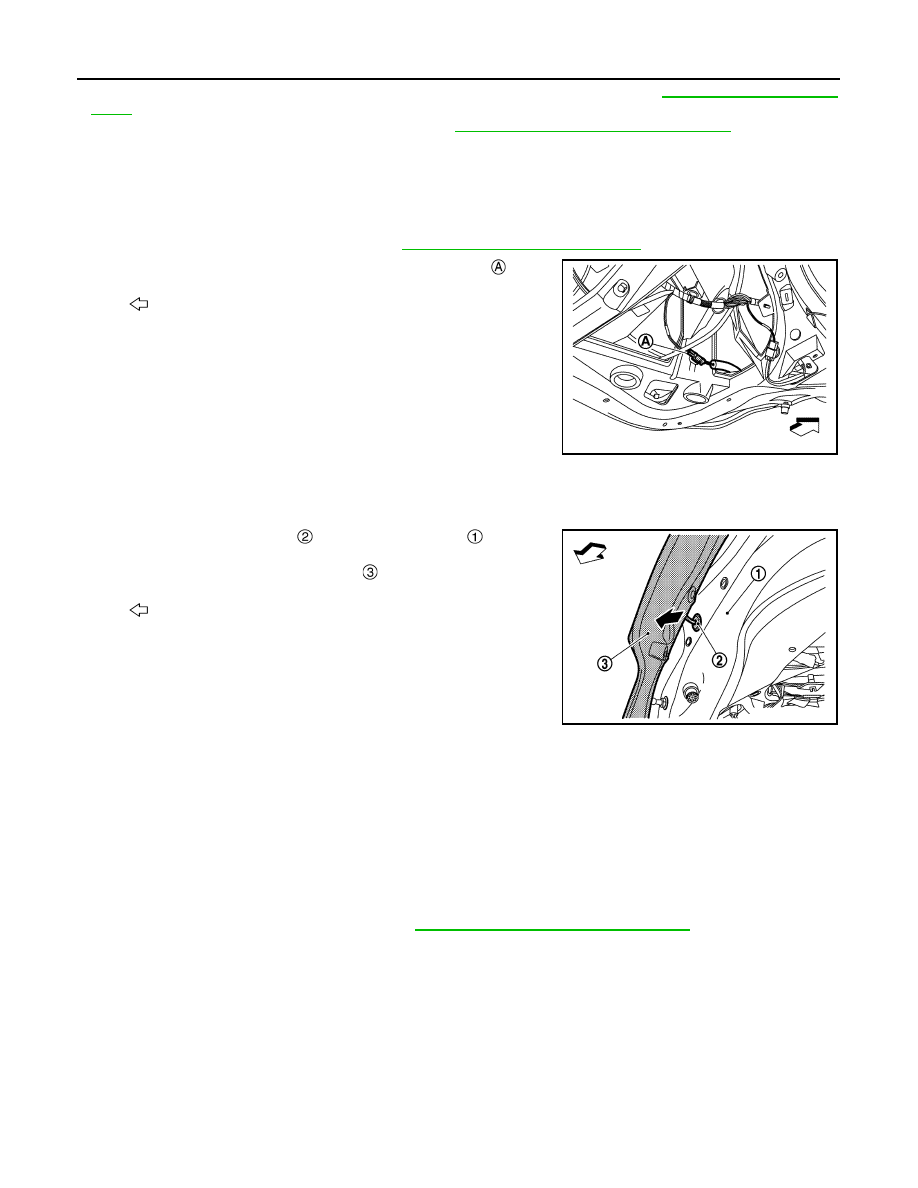

Disconnect spindle unit harness connector.

4.

Remove harness grommet

 from back main center pillar

,

and then pull out spindle unit harness from vehicle body.

5.

Support back door with the proper material to prevent it from falling.

WARNING:

Bodily injury may occur if no supporting rod is holding the back door open when removing the
back door stay.

6.

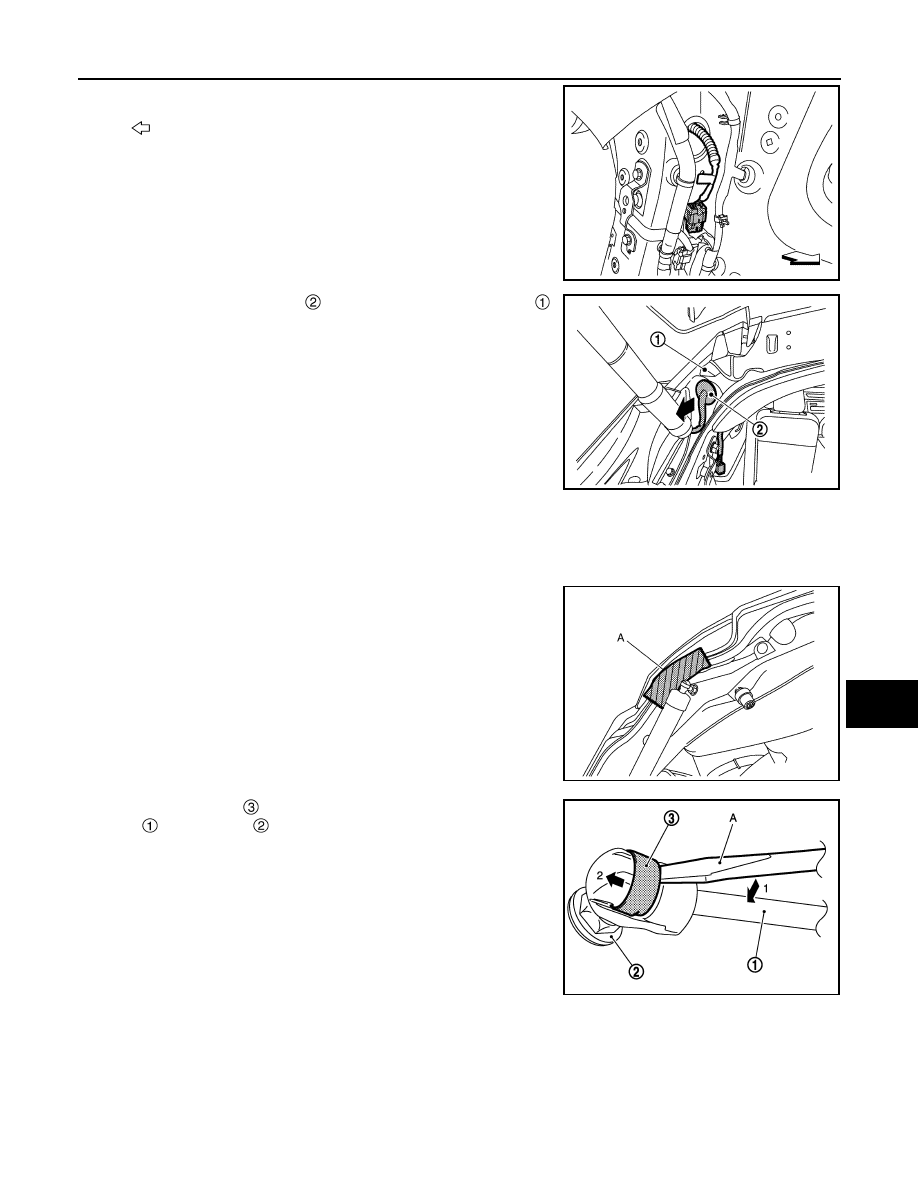

Apply protective tape (A) to back door touch sensor around spin-
dle unit for preventing damage.

7.

Remove metal clip

 located on connection between back door

stay

 and stud ball

 using a remover tool (A) according to the

numerical order 1

→

2 indicated by arrows as shown in the figure.

8.

Disengage spindle unit and stud ball of back door side.

9.

Remove back door stay upper bracket mounting bolts, and then remove spindle unit with back door stay
upper bracket.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

: Vehicle front

JMKIB3153ZZ

JMKIB3154ZZ

JMKIB3155ZZ

JMKIA2255ZZ

DLK-622

< REMOVAL AND INSTALLATION >

[TYPE 2]

BACK DOOR LOCK

• Perform calibration of automatic back door position information. Refer to

DLK-427, "Work Proce-

dure"

.

• After installation, check back door lock. Refer to

DLK-619, "DOOR LOCK : Inspection"

.

TOUCH SENSOR

TOUCH SENSOR : Removal and Installation

INFOID:0000000010728168

REMOVAL

1.

Remove back door inner finisher. Refer to

INT-47, "Removal and Installation"

.

2.

Disconnect back door touch sensor harness connector

.

3.

Remove spindle unit of back door side.

4.

Remove back door touch sensor fixing clips, and then remove back door touch sensor while tearing off
double-sided tape.

5.

Remove harness grommet

 from back door panel

, and then

pull out back door touch sensor harness from back door panel
and remove back door touch sensor

.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• Before installing, remove double-sided tape remaining on back door touch sensor and back door

panel neatly.

• When installing, apply primer for resin to double-sided tape sticking point of back door touch sensor

and back door panel.

• After installing, check that there is no clearance between back door touch sensor and back door

panel.

• After installing, check that back door turns over normally by back door touch sensor.
• After installation, check door lock. Refer to

DLK-619, "DOOR LOCK : Inspection"

.

: Vehicle front

JMKIB3156ZZ

: Vehicle front

JMKIB3157ZZ

FUEL FILLER LID OPENER

DLK-623

< REMOVAL AND INSTALLATION >

[TYPE 2]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

FUEL FILLER LID OPENER

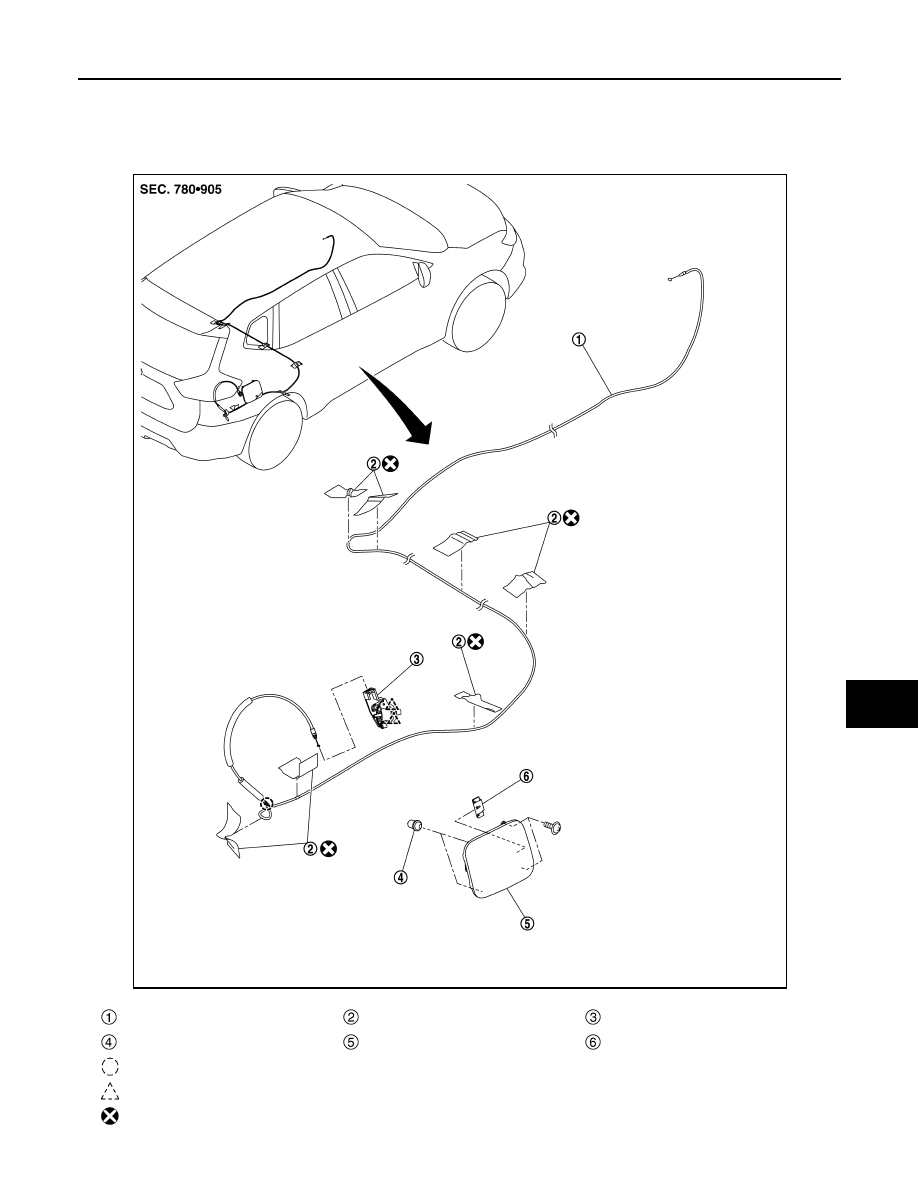

Exploded View

INFOID:0000000010728169

Fuel filler lid opener cable

Cable protector

Fuel filler lid lock assembly

Bumper rubber

Fuel filler lid assembly

Spring

: Clip

: Pawl

: Always replace after every disassembly.

JMKIB3488ZZ

DLK-624

< REMOVAL AND INSTALLATION >

[TYPE 2]

FUEL FILLER LID OPENER

FUEL FILLER LID

FUEL FILLER LID : Removal and Installation

INFOID:0000000010728170

REMOVAL

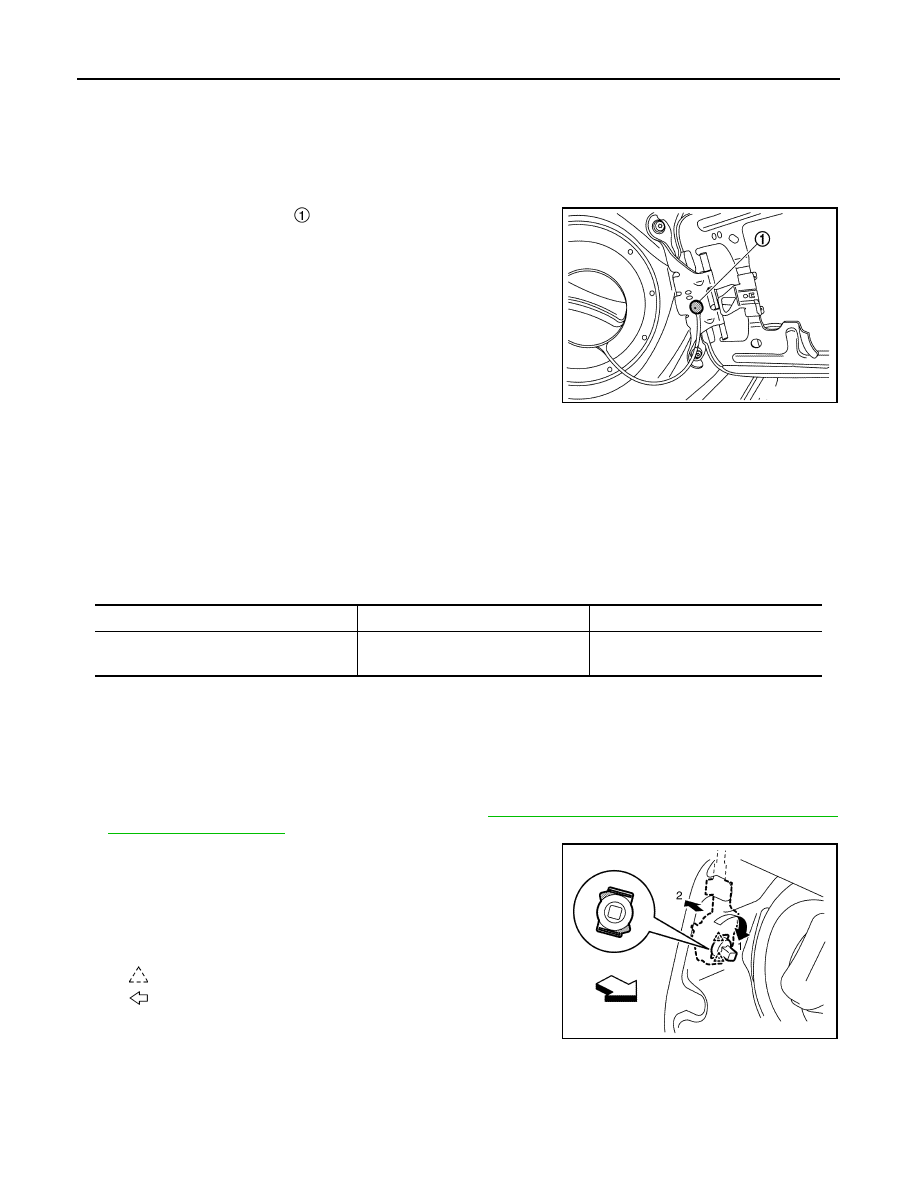

1.

Fully open fuel filler lid.

2.

Remove fuel mounting pin

.

3.

Remove mounting bolts, and then remove fuel filler lid assembly.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• After installation, apply the touch-up paint (the body color) onto the head of the mounting screws.
• After installation, check fuel filler lid assembly open/close, lock/unlock operation.
NOTE:
• The following table shows the specified values for checking normal installation status.
• Fitting adjustment cannot be performed.

Unit: mm [in]

FUEL FILLER LID LOCK

FUEL FILLER LID LOCK : Removal and Installation

INFOID:0000000010728171

REMOVAL

1.

Fully open fuel filler lid.

2.

Remove luggage side lower finisher RH. Refer to

INT-43, "LUGGAGE SIDE LOWER FINISHER :

Removal and Installation"

.

3.

Rotate fuel filler lid lock assembly to disengage pawls and
remove fuel filler lid lock assembly according to the numerical
order 1

→

2 indicated by arrows as shown in the figure.

NOTE:
Operation is performed easily when rotating fuel filler lid lock
from passenger room side.

JMKIB3183ZZ

Clearance

Evenness

Fuel filler lid – Body side outer

2.5 – 4.5

[0.098 – 0.177]

(

−

1.0) – (+1.0)

[(

−

0.039) – (+0.039)]

: Pawl

: Vehicle front

JMKIB1094ZZ
