FRONT DOOR LOCK

DLK-613

< REMOVAL AND INSTALLATION >

[TYPE 2]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

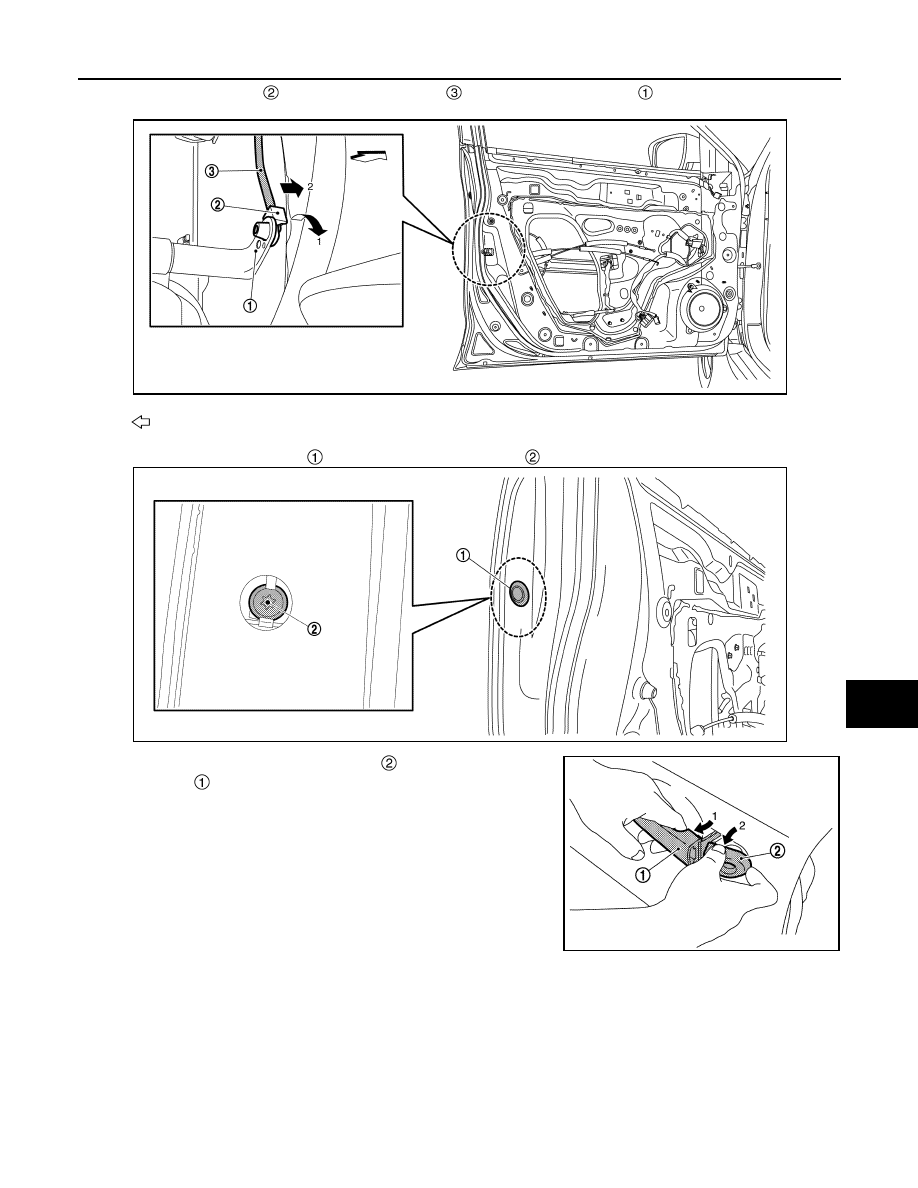

7.

Disengage rod holder

 and disconnect key rod

 from door lock assembly

 according to the numerical

order 1

→

2 indicated by arrows as shown in the figure (driver side).

8.

Remove door side grommet

, and then loosen TORX bolt

 from grommet hole.

9.

Remove outside handle escutcheon

 while pulling outside

handle grip

 according to the numerical order 1

→

2 indicated

by arrows as shown in the figure.

: Vehicle front

JMKIB3523ZZ

JMKIB3524ZZ

JMKIA8374ZZ

DLK-614

< REMOVAL AND INSTALLATION >

[TYPE 2]

FRONT DOOR LOCK

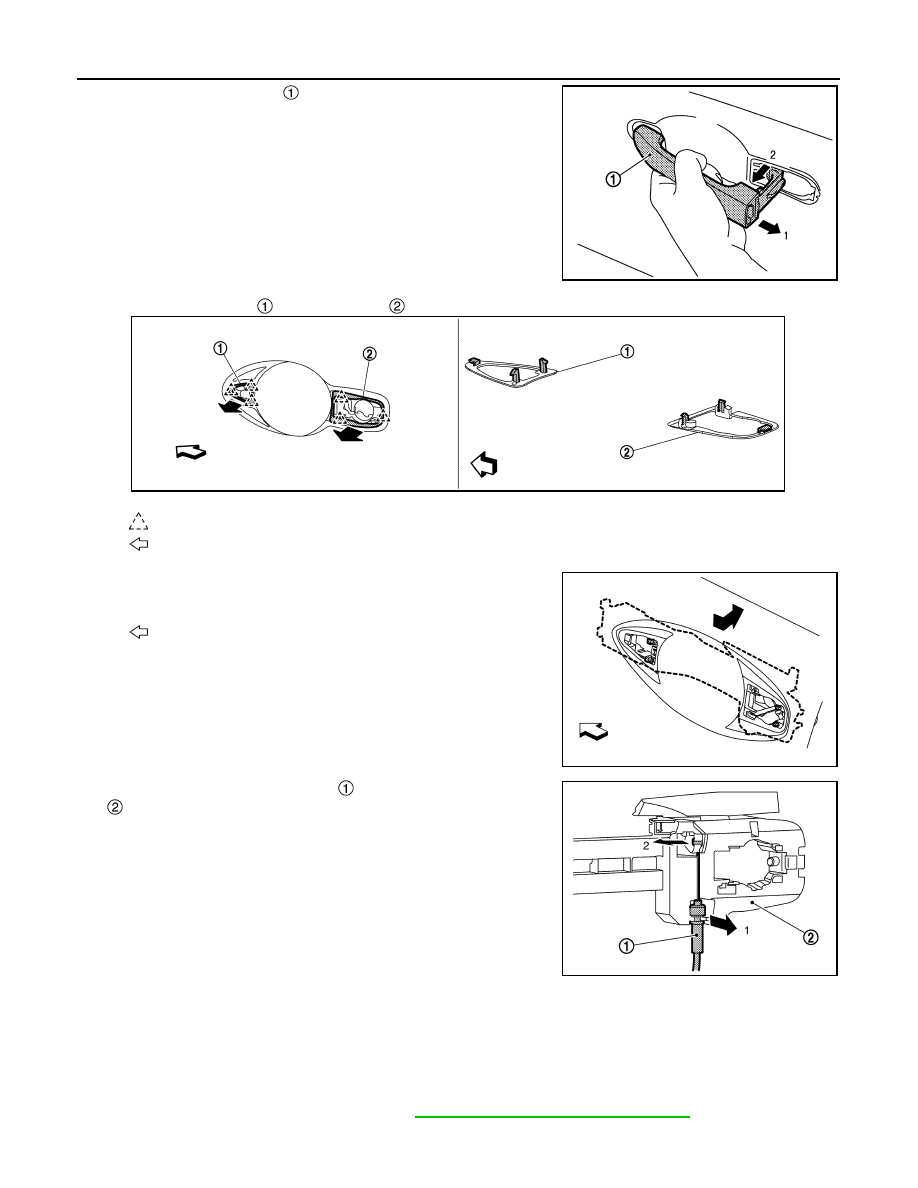

10. Slide outside handle grip

 toward rear of vehicle and remove it

according to the numerical order 1

→

2 indicated by arrows as

shown in the figure.

11. Remove front gasket

 and rear gasket

.

12. Slide outside handle bracket toward rear of vehicle and remove

it.

13. Disconnect outside handle cable

 from outside handle bracket

 according to the numerical order 1

→

2 indicated by arrows as

shown in the figure.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• When installing outside handle cable to outside handle, be careful that outside handle cable is

routed normally.

• When installing key rod, rotate key rod holder until a click is felt.
• After installation, check door lock. Refer to

DLK-611, "DOOR LOCK : Inspection"

.

JMKIA0524ZZ

: Pawl

: Vehicle front

JMKIB1627ZZ

: Vehicle front

JMKIB2034ZZ

JMKIB3525ZZ

REAR DOOR LOCK

DLK-615

< REMOVAL AND INSTALLATION >

[TYPE 2]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

REAR DOOR LOCK

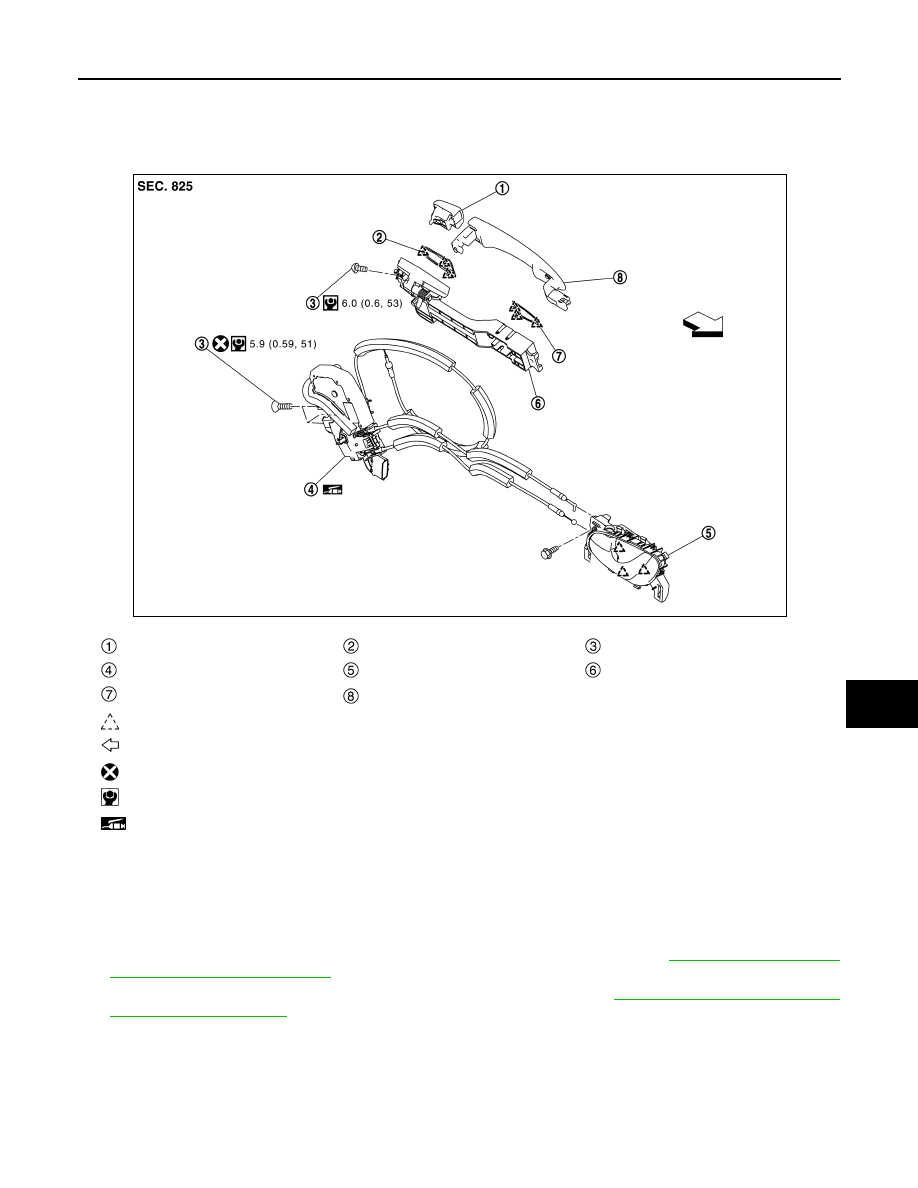

Exploded View

INFOID:0000000010728158

DOOR LOCK

DOOR LOCK : Removal and Installation

INFOID:0000000010728159

REMOVAL

1.

Disconnect lock knob cable and inside handle cable from inside handle. Refer to

DLK-616, "INSIDE HAN-

DLE : Removal and Installation"

.

2.

Disconnect outside handle cable from outside handle bracket. Refer to

DLK-617, "OUTSIDE HANDLE :

Removal and Installation"

.

3.

Disconnect door lock assembly connector.

4.

Remove door lock assembly TORX bolts, and then remove door lock assembly.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Never reuse TORX bolt. Always replace it with a new one when it is removed.

Outside handle escutcheon

Rear gasket

TORX bolt

Door lock assembly

Inside handle

Outside handle bracket

Front gasket

Outside handle grip

: Pawl

: Vehicle front

: Always replace after every disassembly.

: N·m (kg-m, in-lb)

: Body grease

JMKIB3526GB

DLK-616

< REMOVAL AND INSTALLATION >

[TYPE 2]

REAR DOOR LOCK

• When installing outside handle cable to outside handle, be careful that outside handle cable is

routed normally.

• After installation, check door lock. Refer to

DLK-616, "DOOR LOCK : Inspection"

.

DOOR LOCK : Inspection

INFOID:0000000010728160

1.

After opening and closing the door, check that door is fixed to the vehicle body normally.

2.

Check the lock/unlock operation of door lock.

3.

Check door lock assembly for poor lubrication. Apply body
grease to door lock if necessary.

INSIDE HANDLE

INSIDE HANDLE : Removal and Installation

INFOID:0000000010728161

REMOVAL

1.

Remove rear door finisher. Refer to

INT-19, "Removal and Installation"

.

2.

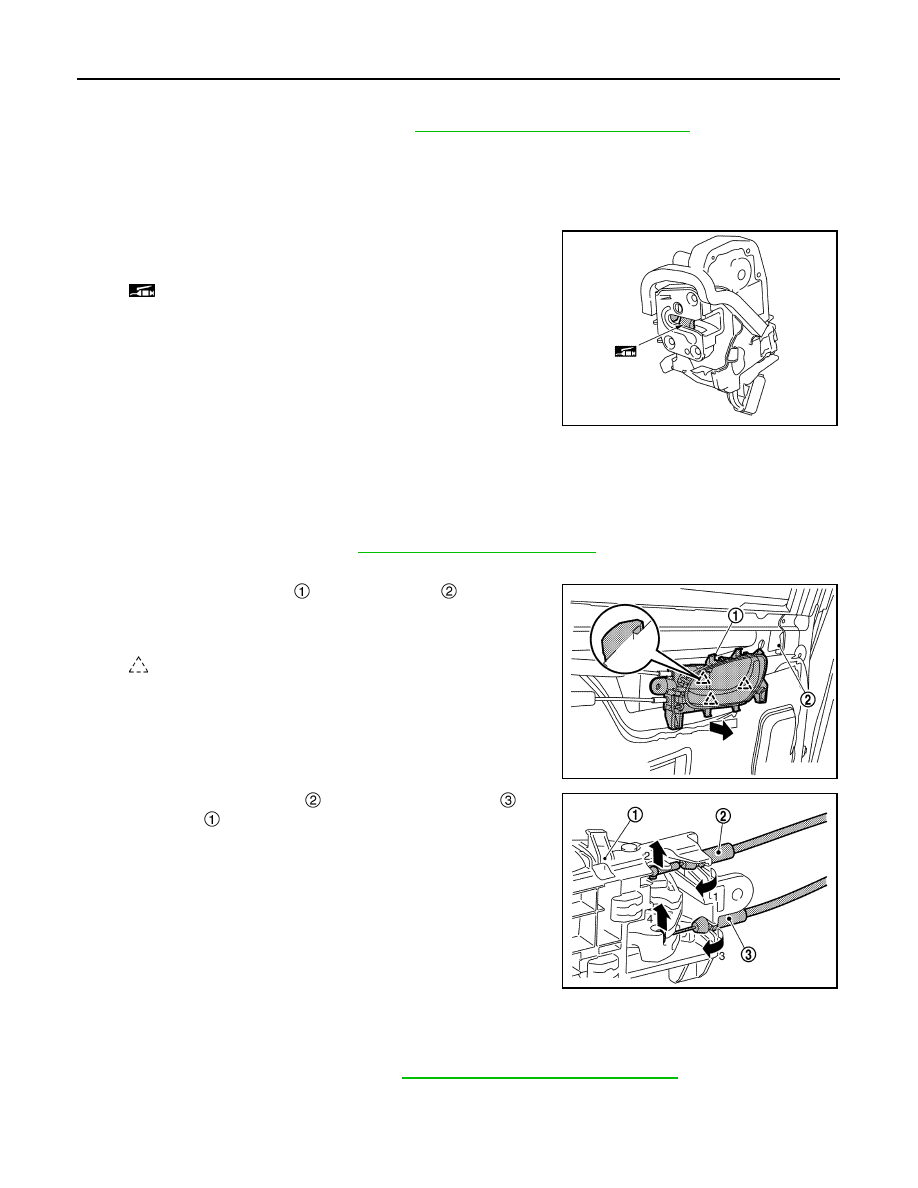

Remove inside handle mounting bolt.

3.

Disengage inside handle

 from door panel

 while sliding

inside handle toward vehicle rear, and then separate inside han-
dle.

4.

Disengage lock knob cable

 and inside handle cable

 from

inside handle

 according to the numerical order 1

→

4 indicated

by arrows as shown in the figure.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

After installation, check door lock. Refer to

DLK-616, "DOOR LOCK : Inspection"

.

OUTSIDE HANDLE

: Body grease

JMKIA8534ZZ

: Pawl

JMKIB3527ZZ

JMKIB3521ZZ
