REAR DOOR LOCK

DLK-617

< REMOVAL AND INSTALLATION >

[TYPE 2]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

OUTSIDE HANDLE : Removal and Installation

INFOID:0000000010728162

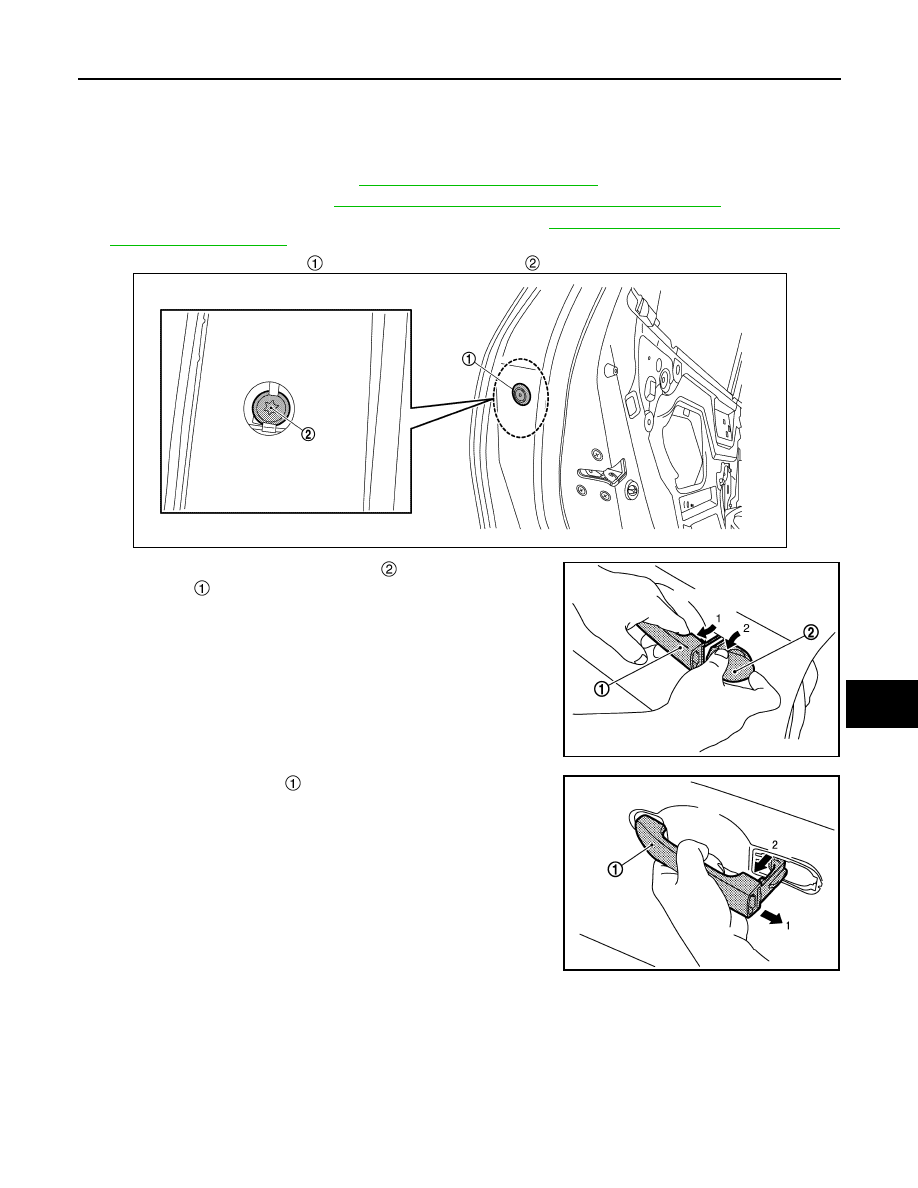

REMOVAL

1.

Fully close the rear door glass.

2.

Remove rear door finisher. Refer to

INT-19, "Removal and Installation"

.

3.

Remove inside handle. Refer to

DLK-616, "INSIDE HANDLE : Removal and Installation"

.

4.

Remove sealing screen and rear door lower sash. Refer to

GW-52, "REAR DOOR LOWER SASH :

Removal and Installation"

.

5.

Remove door side grommet

, and then loosen TORX bolt

 from grommet hole.

6.

Remove outside handle escutcheon

 while pulling outside

handle grip

 according to the numerical order 1

→

2 indicated

by arrows as shown in the figure.

7.

Slide outside handle grip

 toward rear of vehicle and remove it

according to the numerical order 1

→

2 indicated by arrows as

shown in the figure.

JMKIB3528ZZ

JMKIB2479ZZ

JMKIA0524ZZ

DLK-618

< REMOVAL AND INSTALLATION >

[TYPE 2]

REAR DOOR LOCK

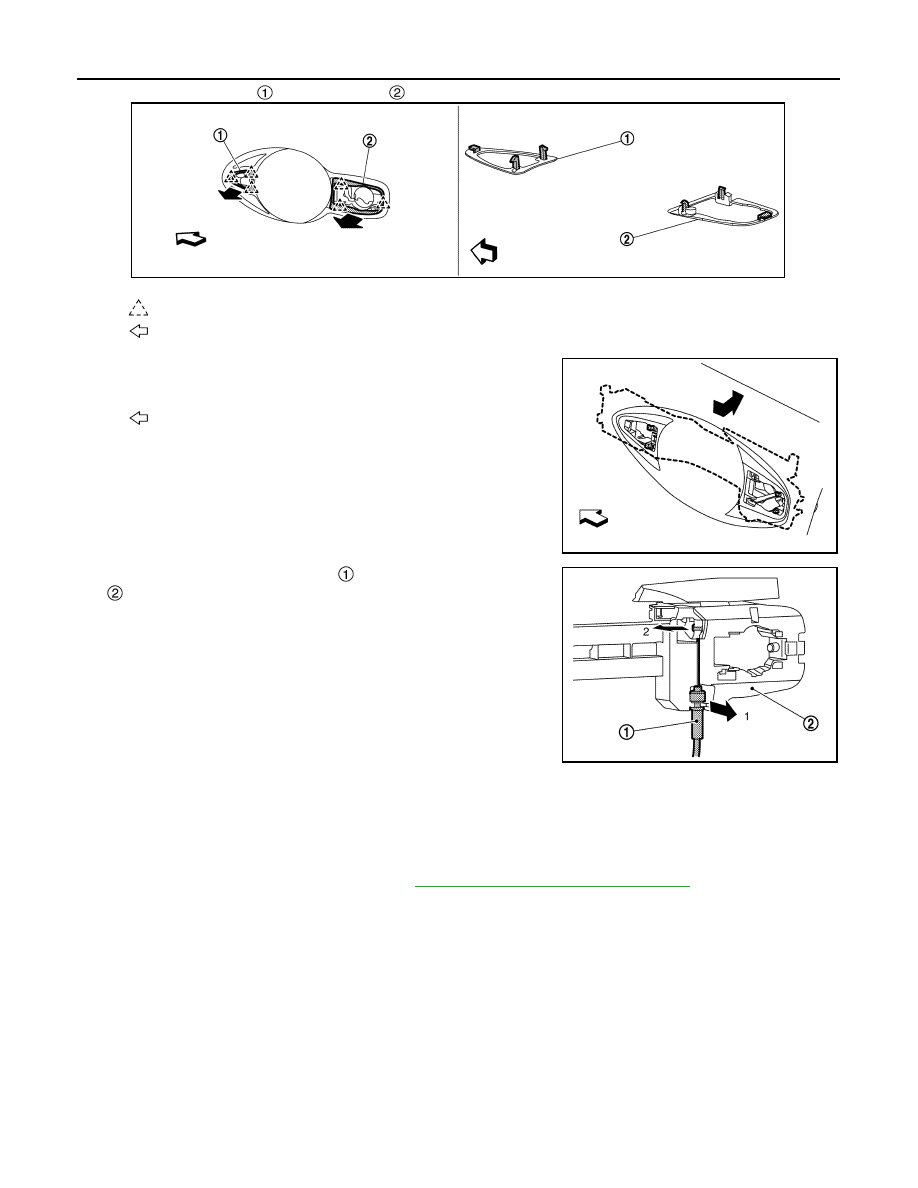

8.

Remove front gasket

 and rear gasket

.

9.

Slide outside handle bracket toward rear of vehicle and remove
it.

10. Disconnect outside handle cable

 from outside handle bracket

 according to the numerical order 1

→

2 indicated by arrows as

shown in the figure.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• When installing outside handle cable to outside handle, be careful that outside handle cable is

routed normally.

• After installation, check door lock. Refer to

DLK-616, "DOOR LOCK : Inspection"

.

: Pawl

: Vehicle front

JMKIB1627ZZ

: Vehicle front

JMKIB2034ZZ

JMKIB3525ZZ

BACK DOOR LOCK

DLK-619

< REMOVAL AND INSTALLATION >

[TYPE 2]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

BACK DOOR LOCK

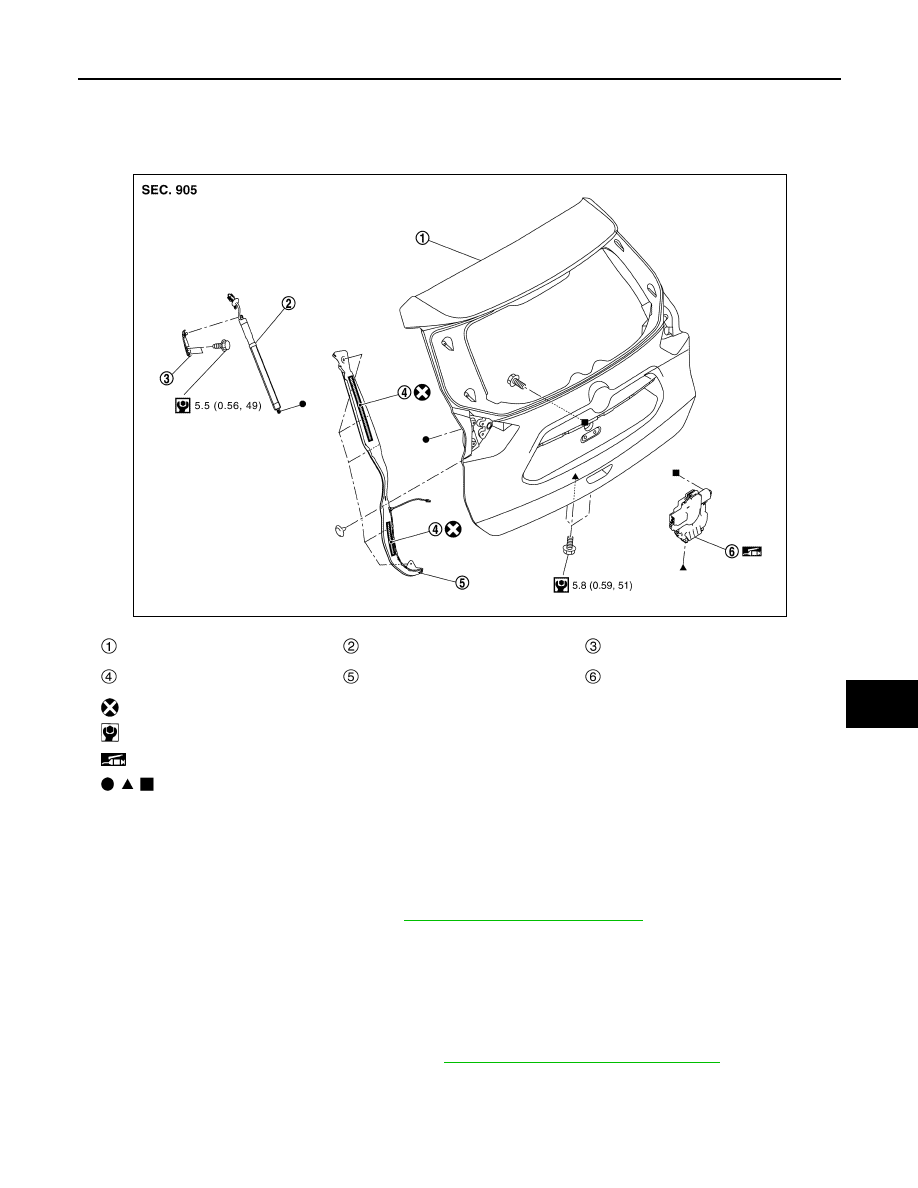

Exploded View

INFOID:0000000010728163

DOOR LOCK

DOOR LOCK : Removal and Installation

INFOID:0000000010728164

REMOVAL

1.

Remove back door inner finisher. Refer to

INT-47, "Removal and Installation"

.

2.

Disconnect back door lock & remote control assembly harness connector.

3.

Remove back door lock & remote control assembly mounting bolts, and then remove back door lock &
remote control assembly from back door panel.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

After installation, check back door lock. Refer to

DLK-619, "DOOR LOCK : Inspection"

.

DOOR LOCK : Inspection

INFOID:0000000010728165

1.

After opening and closing the back door, check that door is fixed to the vehicle body normally.

Back door panel

Spindle unit

Back door stay upper bracket

Double-sided tape
[t: 1.2 mm (0.047 in)]

Back door touch sensor

Back door lock & remote control as-
sembly

: Always replace after every disassembly.

: N·m (kg-m, in-lb)

: Body grease

,

,

: Indicates that the part is connected at points with same symbol in actual vehicle.

JMKIB3552GB

DLK-620

< REMOVAL AND INSTALLATION >

[TYPE 2]

BACK DOOR LOCK

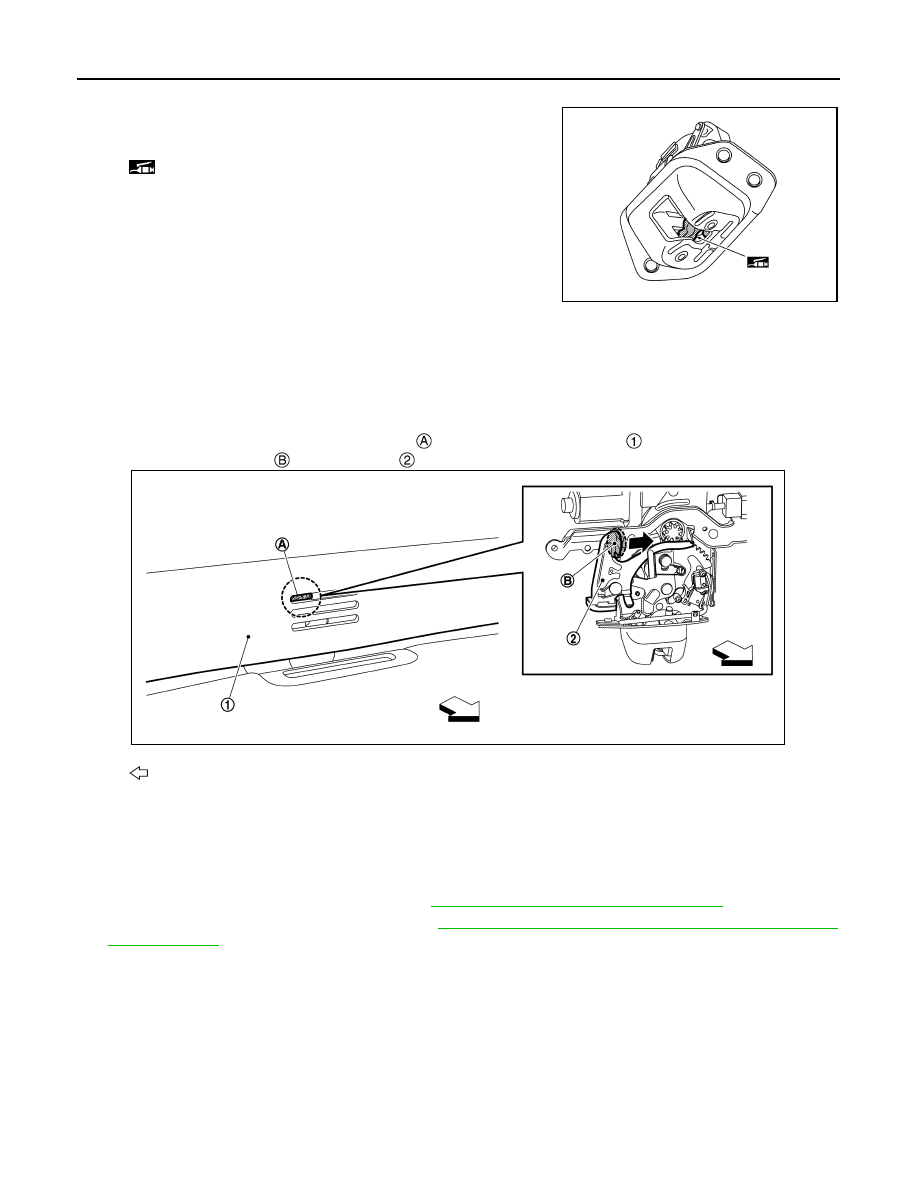

2.

Check the lock/unlock operation of door lock.

3.

Check door lock assembly for poor lubrication. Apply body
grease to door lock if necessary.

DOOR LOCK : Unlock procedures

INFOID:0000000010728166

UNLOCK PROCEDURES

NOTE:
Release lock according to the following procedures when lock cannot be unlocked due to a malfunction of
door lock assembly or battery discharge.
Insert a screwdriver, etc. into tool insertion hole

 of back door inner finisher

, and then back door lock is

unlocked by operating knob

 of cancel lever

 in the direction of arrow as shown in the figure.

SPINDLE UNIT

SPINDLE UNIT : Removal and Installation

INFOID:0000000010728167

REMOVAL

1.

Disconnect battery negative terminal. Refer to

PG-139, "R9M : Removal and Installation"

.

2.

Remove luggage side upper finisher. Refer to

INT-45, "LUGGAGE SIDE UPPER FINISHER : Removal

and Installation"

.

: Body grease

JMKIB1220ZZ

: Vehicle front

JMKIB3161ZZ
