WASHER NOZZLE AND TUBE

WW-103

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

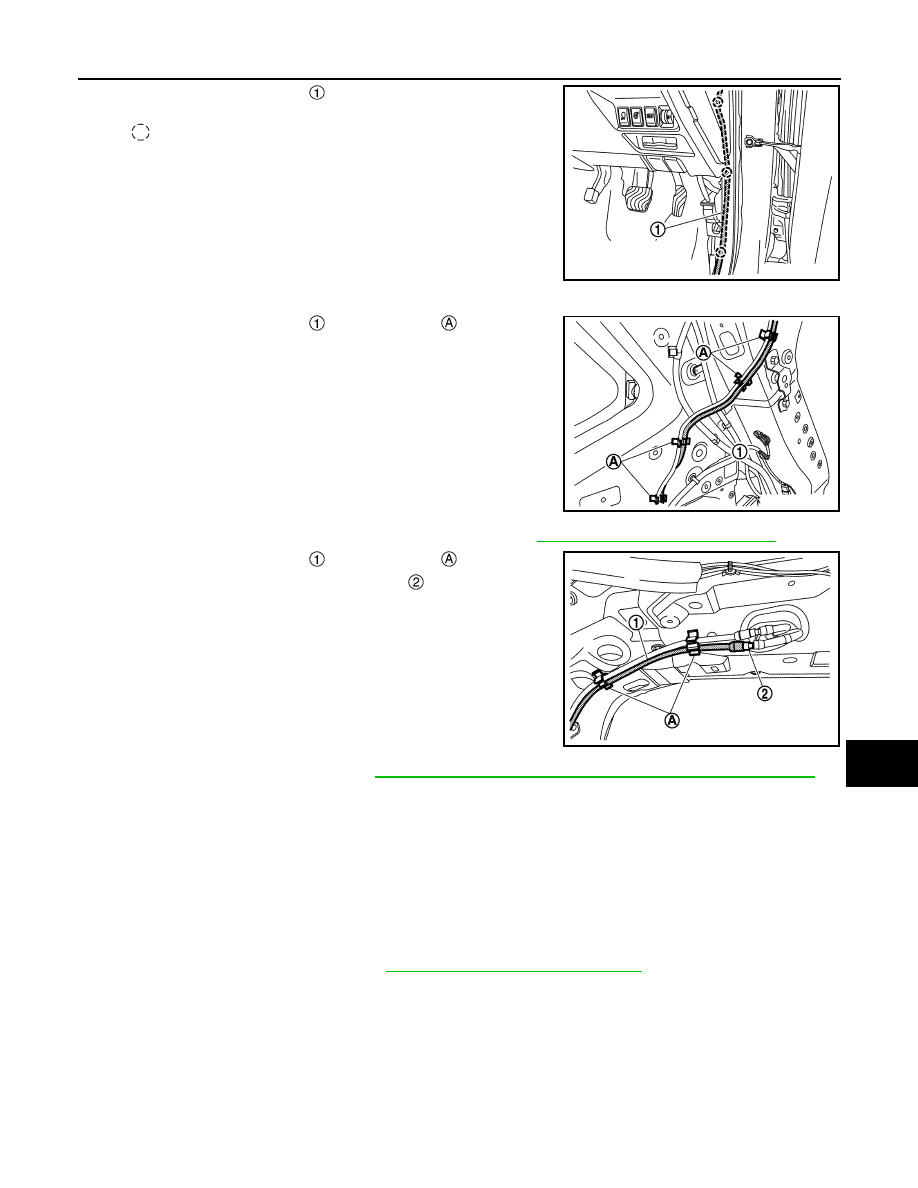

7.

Remove rear washer tube A

 from fixing clips.

8.

Remove rear washer tube A from harness protector.

9.

Remove rear washer tube A

 from fixing clips

.

10. Remove rear end of headlining to make work space. Refer to

INT-37, "Removal and Installation"

.

11. Remove rear washer tube A

 from fixing clips

.

12. Disconnect rear washer tube A from joint

, and then remove

rear washer tube A.

13. Remove rear washer tube C. Refer to

WW-99, "REAR WASHER NOZZLE : Removal and Installation"

.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

Align washer tube marking to the vehicle installation position.

REAR CAMERA WASHER TUBE

REAR CAMERA WASHER TUBE : Removal and Installation

INFOID:0000000010785470

REMOVAL

Remove rear camera washer tube. Refer to

DAS-156, "Removal and Installation"

.

INSTALLATION

Install in the reverse order of removal.

: Clip

JMLIA5021ZZ

JMLIA5022ZZ

JMLIA5024ZZ

WW-104

< REMOVAL AND INSTALLATION >

HEADLAMP WASHER

HEADLAMP WASHER

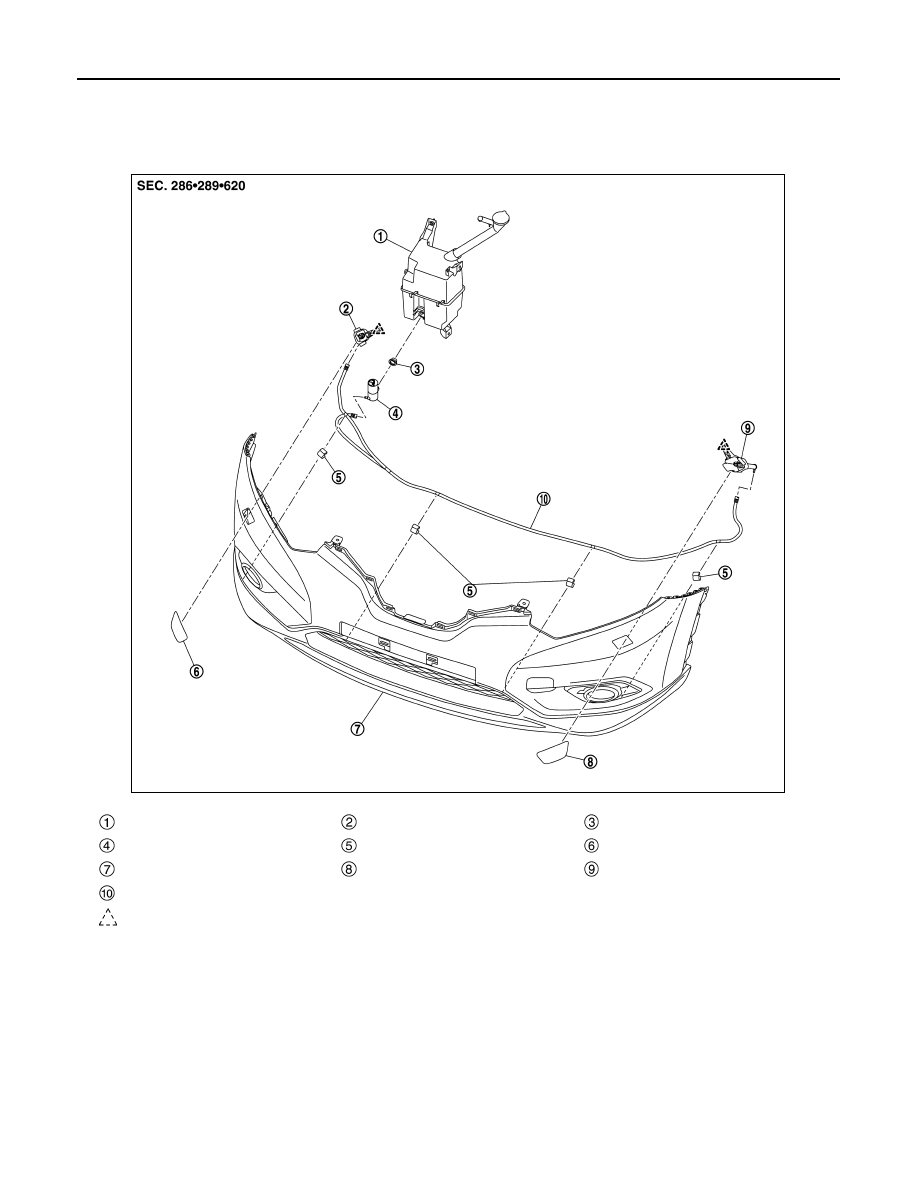

Exploded View

INFOID:0000000010786689

Washer tank

Headlamp washer nozzle RH

Packing

Headlamp washer pump

Tube clip

Headlamp washer cover RH

Front bumper fascia

Headlamp washer cover LH

Headlamp washer nozzle LH

Headlamp washer tube

: Pawl

JMLIA5411ZZ

HEADLAMP WASHER

WW-105

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

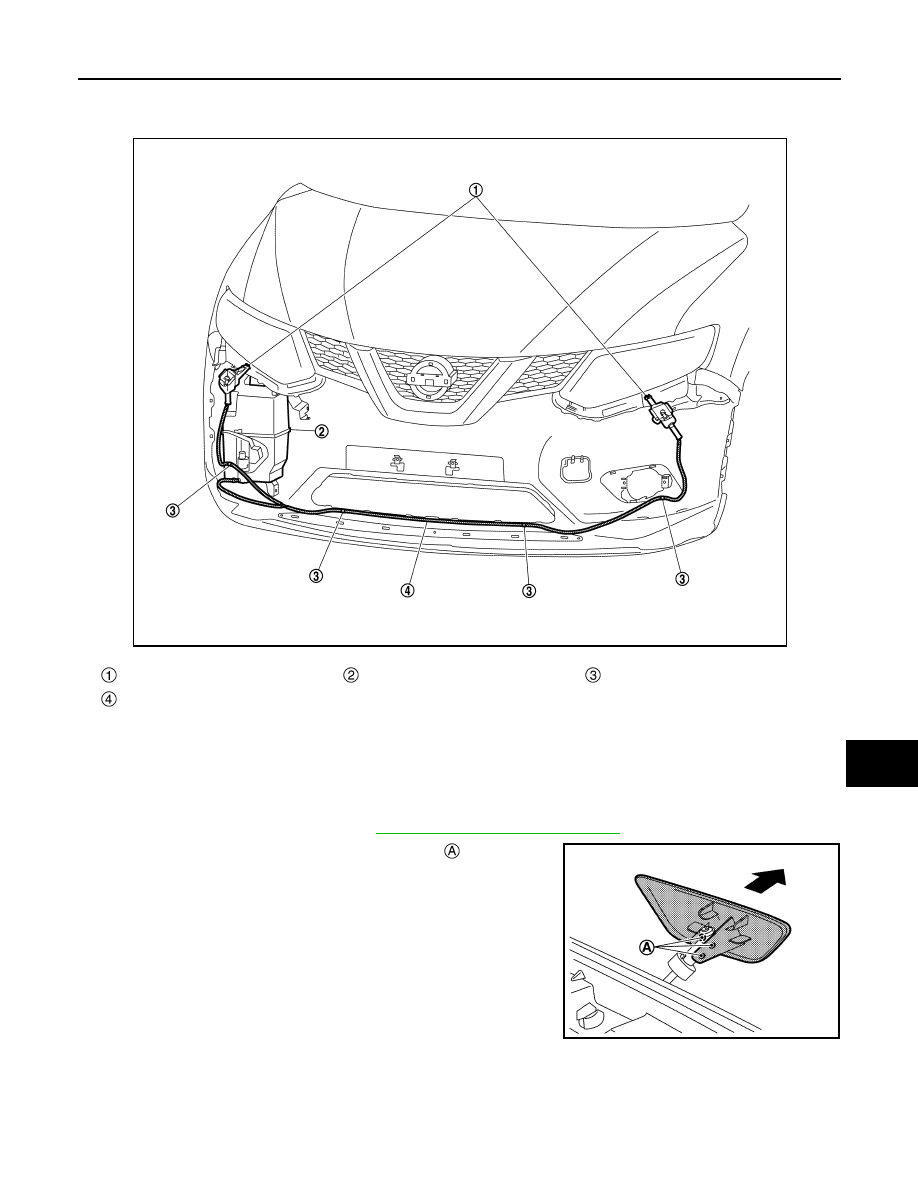

Hydraulic Layout

INFOID:0000000010786690

WASHER NOZZLE

WASHER NOZZLE : Removal and Installation

INFOID:0000000010786691

REMOVAL

1.

Remove front bumper fascia. Refer to

EXT-15, "Removal and Installation"

.

2.

Disengage headlamp washer cover fixing pawls

 while pull out

headlamp washer nozzle from front bumper fascia, and then
remove headlamp washer cover.

Headlamp washer nozzle

Washer tank

Tube clip

Headlamp washer tube

JMLIA5412ZZ

JMLIA5413ZZ

WW-106

< REMOVAL AND INSTALLATION >

HEADLAMP WASHER

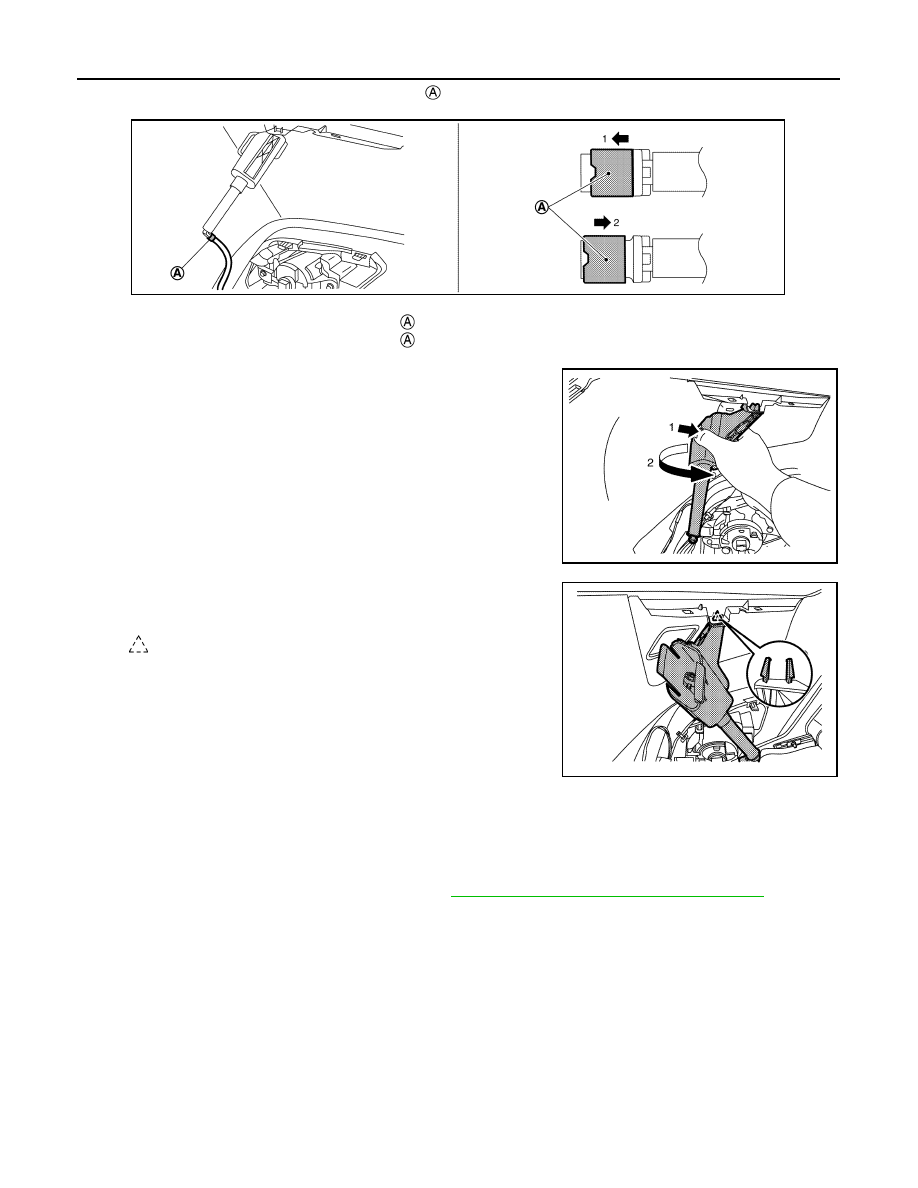

3.

Disconnect headlamp washer tube connector

, and then remove headlamp washer tube from headlamp

washer nozzle.

NOTE:
• Move headlamp washer tube connector

 toward the direction of arrow (1) to unlock.

• Move headlamp washer tube connector

 toward the direction of arrow (2) to lock.

4.

Disengage headlamp washer nozzle from front bumper fascia
according to numerical order 1

→

2 indicated by arrows as shown

in the figure.

5.

Disengage headlamp washer nozzle fixing pawl, and then
remove headlamp washer nozzle.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• Add washer liquid up to the top of the washer tank inlet after installing. Check that there is no leak-

age.

• After installation, check spray position. Refer to

WW-106, "WASHER NOZZLE : Inspection"

.

WASHER NOZZLE : Inspection

INFOID:0000000010786692

HEADLAMP WASHER NOZZLE SPRAY POSITION INSPECTION

CAUTION:

Replace headlamp washer nozzle assembly with a new part if headlamp washer jet position is outside
the headlamp illumination area shown in the figure.

JMLIA5414ZZ

JMLIA5415ZZ

Pawl

JMLIA5416ZZ
