HEADLAMP WASHER

WW-107

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

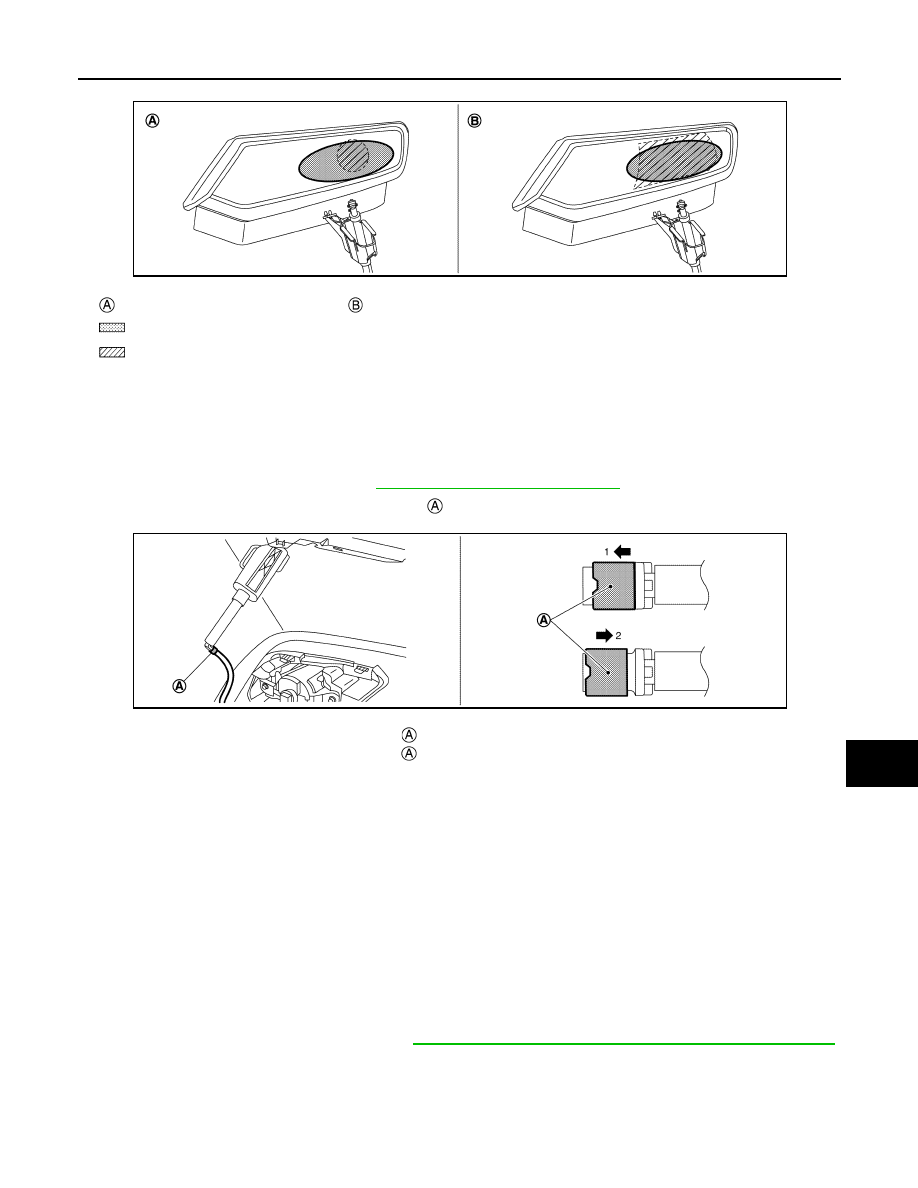

Check that washer fluid is sprayed on the luminescent surface of lamp.

WASHER TUBE

WASHER TUBE : Removal and Installation

INFOID:0000000010786693

REMOVAL

1.

Remove front bumper fascia. Refer to

EXT-15, "Removal and Installation"

.

2.

Disconnect headlamp washer tube connector

, and then remove headlamp washer tube from headlamp

washer nozzle.

NOTE:
• Move headlamp washer tube connector

 toward the direction of arrow (1) to unlock.

• Move headlamp washer tube connector

 toward the direction of arrow (2) to lock.

3.

Disengage headlamp washer tube fixing tube clips, and then remove headlamp washer tube.

INSTALLATION

Note the following item, and then Install in the reverse order of removal.

CAUTION:

Add washer liquid up to the top of the washer tank inlet after installing. Check that there is no leakage.

WASHER PUMP

WASHER PUMP : Removal and Installation

INFOID:0000000010786694

REMOVAL

CAUTION:

When the headlamp washer tube and headlamp washer tube is removed, washer fluid may come out
so prepare a container to receive the fluid and never allow fluid to be sprinkled.

1.

Remove front fender protector RH. Refer to

EXT-35, "FENDER PROTECTOR : Removal and Installation"

.

LED headlamp

Halogen headlamp

: Shooting area

: Lamp light-emitting area

JMLIA5417ZZ

JMLIA5414ZZ

WW-108

< REMOVAL AND INSTALLATION >

HEADLAMP WASHER

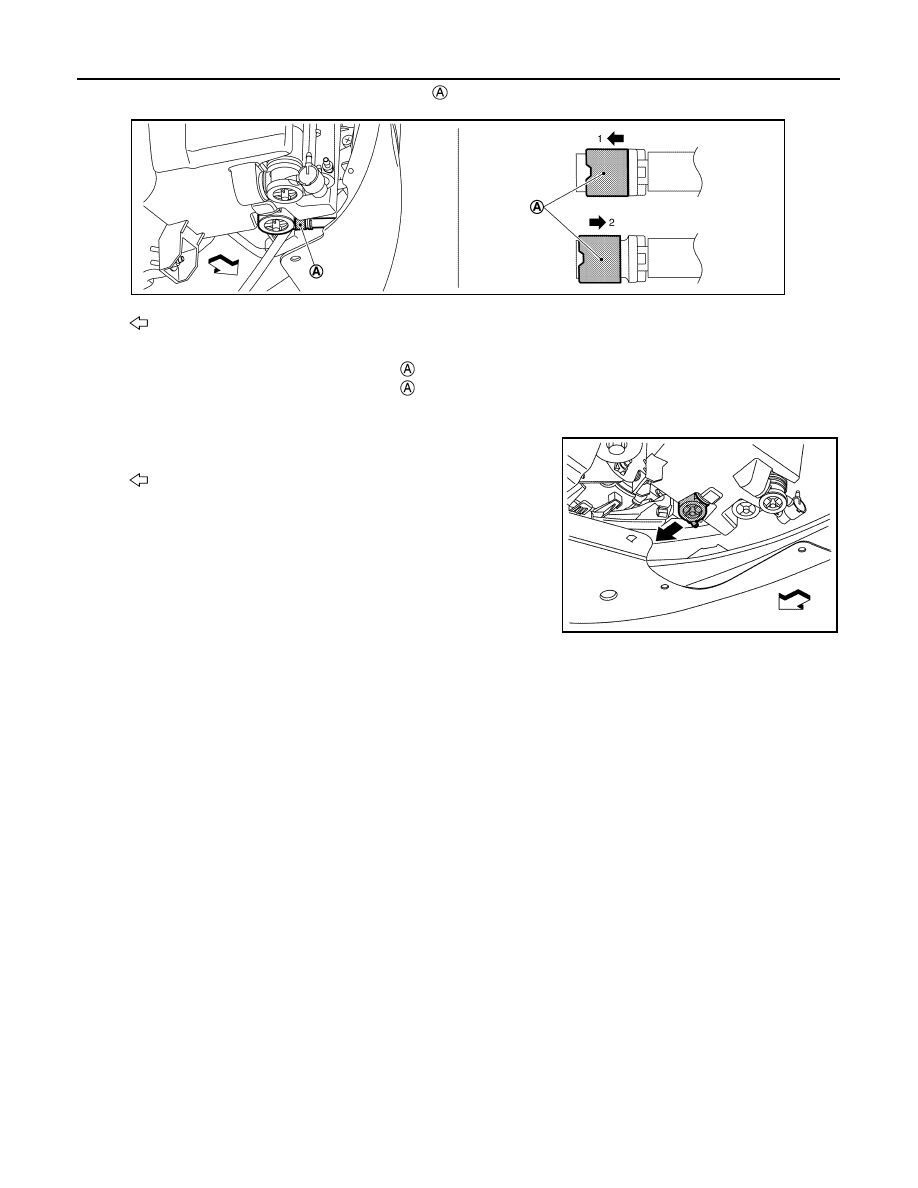

2.

Disconnect headlamp washer tube connector

, and then remove headlamp washer tube from washer

tank.

NOTE:
• Move headlamp washer tube connector

 toward the direction of arrow (1) to unlock.

• Move headlamp washer tube connector

 toward the direction of arrow (2) to lock.

3.

Disconnect headlamp washer pump harness connector.

4.

Pull out headlamp washer pump from washer tank.

5.

Remove packing.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Check that packing is inserted fully. (This may be the cause of washer fluid leakage and washer

pump looseness.)

• Add washer liquid up to the top of the washer tank inlet after installing. Check that there is no leak-

age.

: Vehicle front

JMLIA5418ZZ

: Vehicle front

JMLIA5419ZZ

LIGHT & RAIN SENSOR

WW-109

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

LIGHT & RAIN SENSOR

Exploded View

INFOID:0000000010785471

WITH FRONT CAMERA UNIT

Refer to

MIR-23, "Exploded View"

.

WITHOUT FRONT CAMERA UNIT

Removal and Installation

INFOID:0000000010785472

REMOVAL

With Front Camera Unit

1.

Remove front camera unit cover. Refer to

DAS-149, "Removal and Installation"

.

2.

Disconnect rain sensor harness connector.

3.

Disengage rain sensor fixing lock spring portion

, and then

Peel off rain sensor.

Rain sensor bracket

Rain sensor cover

Rain sensor

Lock spring

: Pawl

: Always replace after every disassembly.

JMLIA1686ZZ

JMLIA4203ZZ

WW-110

< REMOVAL AND INSTALLATION >

LIGHT & RAIN SENSOR

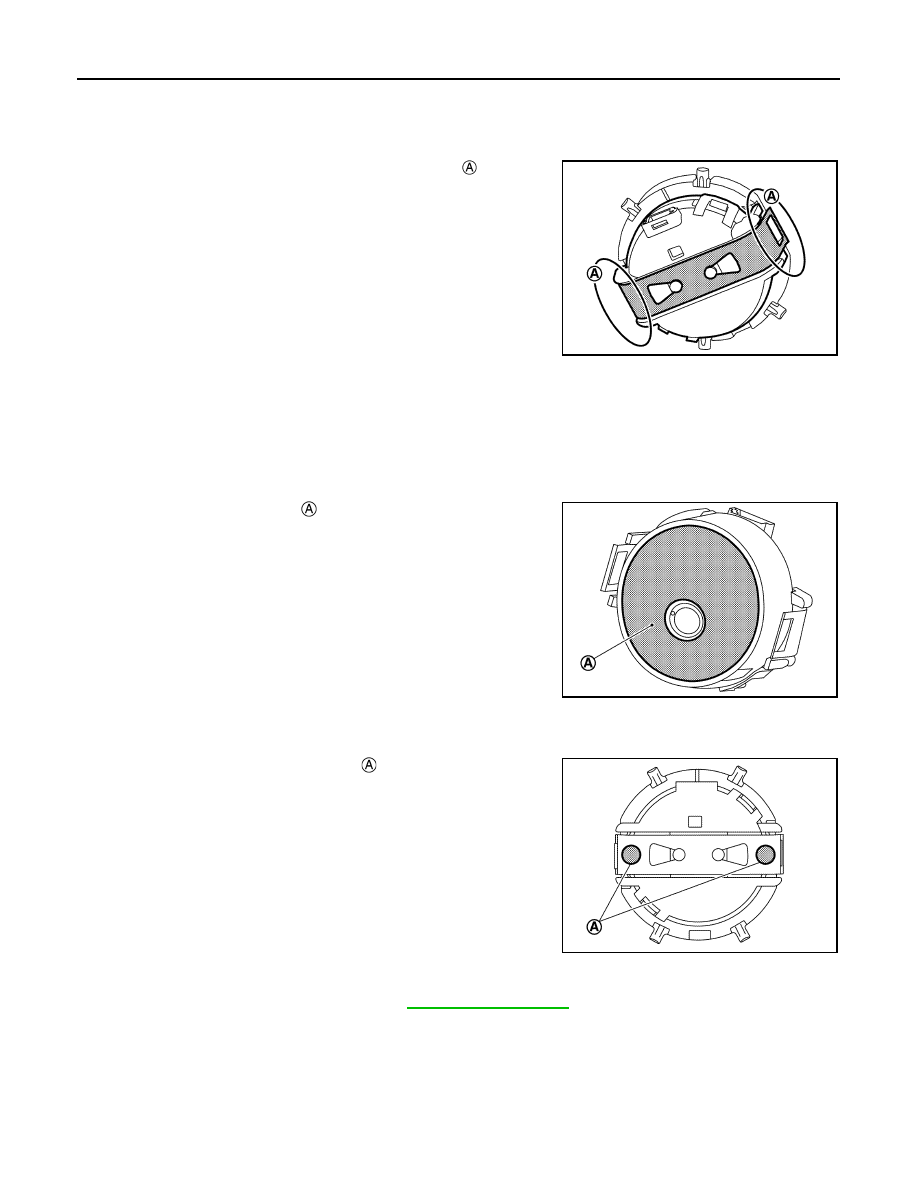

Without Front Camera Unit

1.

Disengage rain sensor cover fixing pawls, and then remove rain sensor cover.

2.

Disconnect rain sensor harness connector.

3.

Disengage rain sensor fixing lock spring portion

, and then

Peel off rain sensor.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Replace rain sensor with a new part after removal. Never reuse rain sensor.
• Clean the sensor installation portion of the windshield.
• When the sensor is removed, wipe off the silicon pad remaining on the windshield surface.
• Remove the sensor protective cover just before installation.
• Never touch the silicon pad

 after removal of sensor protec-

tive cover.

• Install the rain sensor so that the connector faces vehicle upward.
• When installing, never allow silicon pad to touch the sensor bracket and other parts.
• Compress the lock spring portion

 vertically to the glass

surface and fully engage both ends of lock spring.

• Never use a sensor that is dropped.
• Perform check after replacement. Refer to

WW-110, "Inspection"

.

Inspection

INFOID:0000000010785473

CAUTION:

Clean the windshield glass and wiper refill so that the windshield glass may not be damaged by dust,
etc.
1.

Push the ignition switch to the ON position, and set the combination switch to AUTO.

JMLIA4203ZZ

JMLIA4204ZZ

JMLIA4205ZZ
