WASHER NOZZLE AND TUBE

WW-95

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

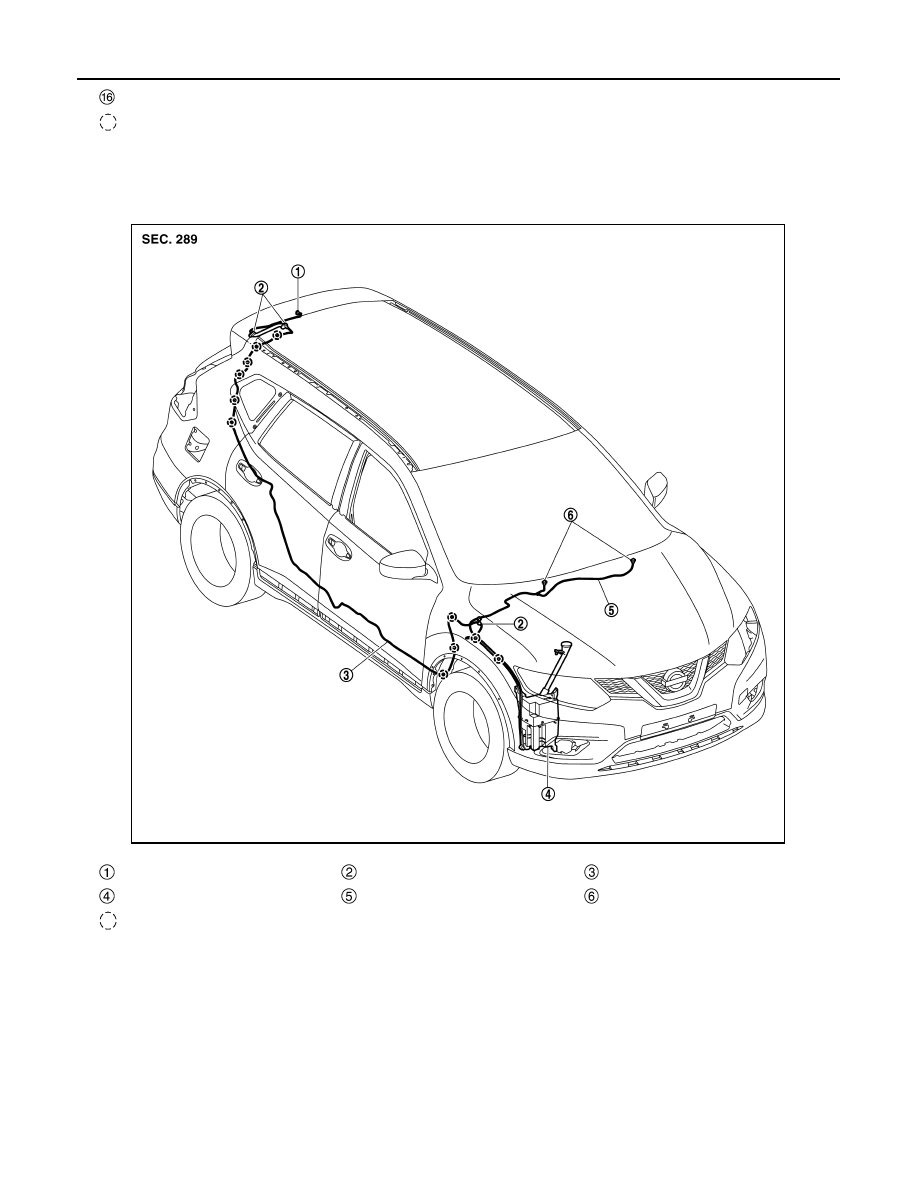

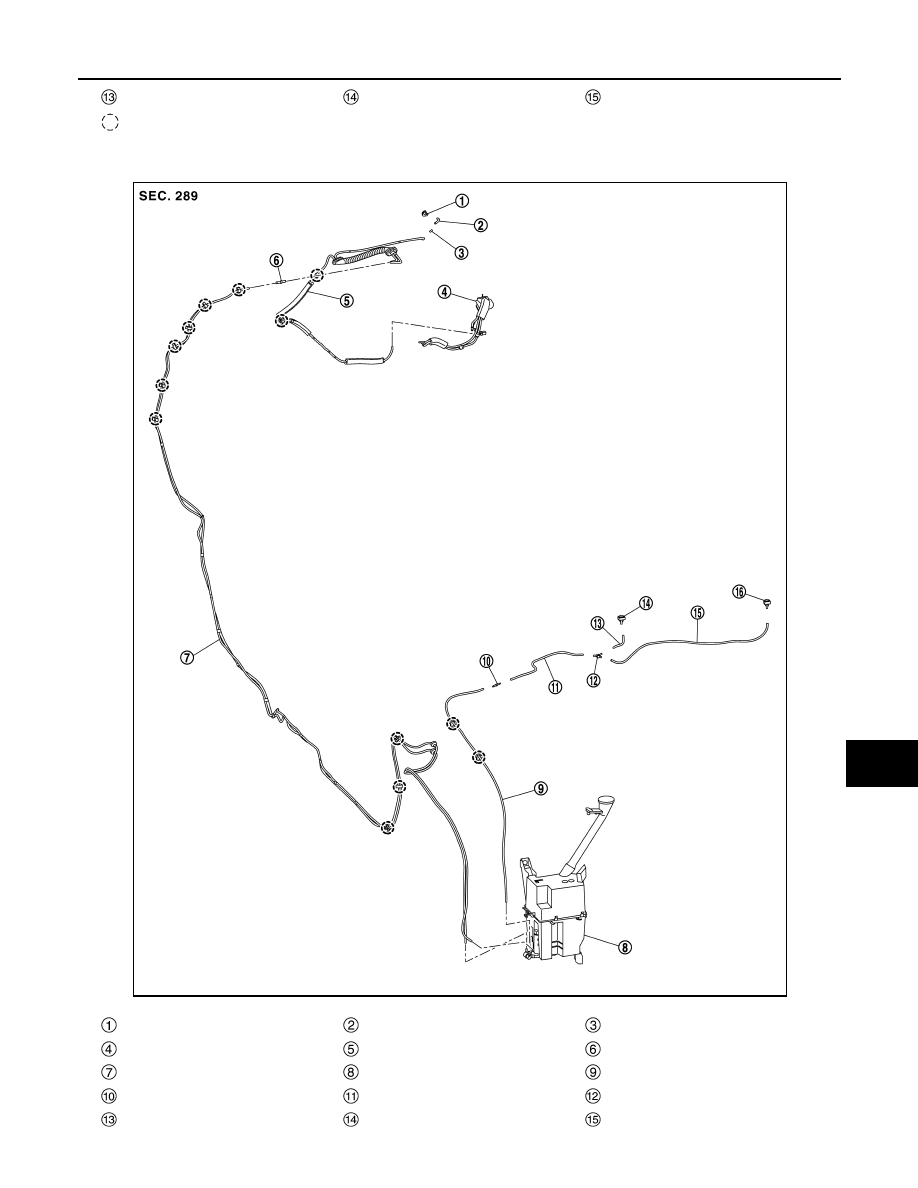

WITH AROUND VIEW MONITOR SYSTEM

Front washer nozzle RH

Front washer tube D

Front washer nozzle LH

: Clip

Rear washer nozzle

Rear washer tube C

Joint

Rear camera assembly

Rear washer tube B

Joint

Rear washer tube A

Washer tank

Front washer tube A

Joint

Front washer tube B

Check valve

Front washer tube C

Front washer nozzle RH

Front washer tube D

JMLIA5008ZZ

WW-96

< REMOVAL AND INSTALLATION >

WASHER NOZZLE AND TUBE

Hydraulic Layout

INFOID:0000000010785463

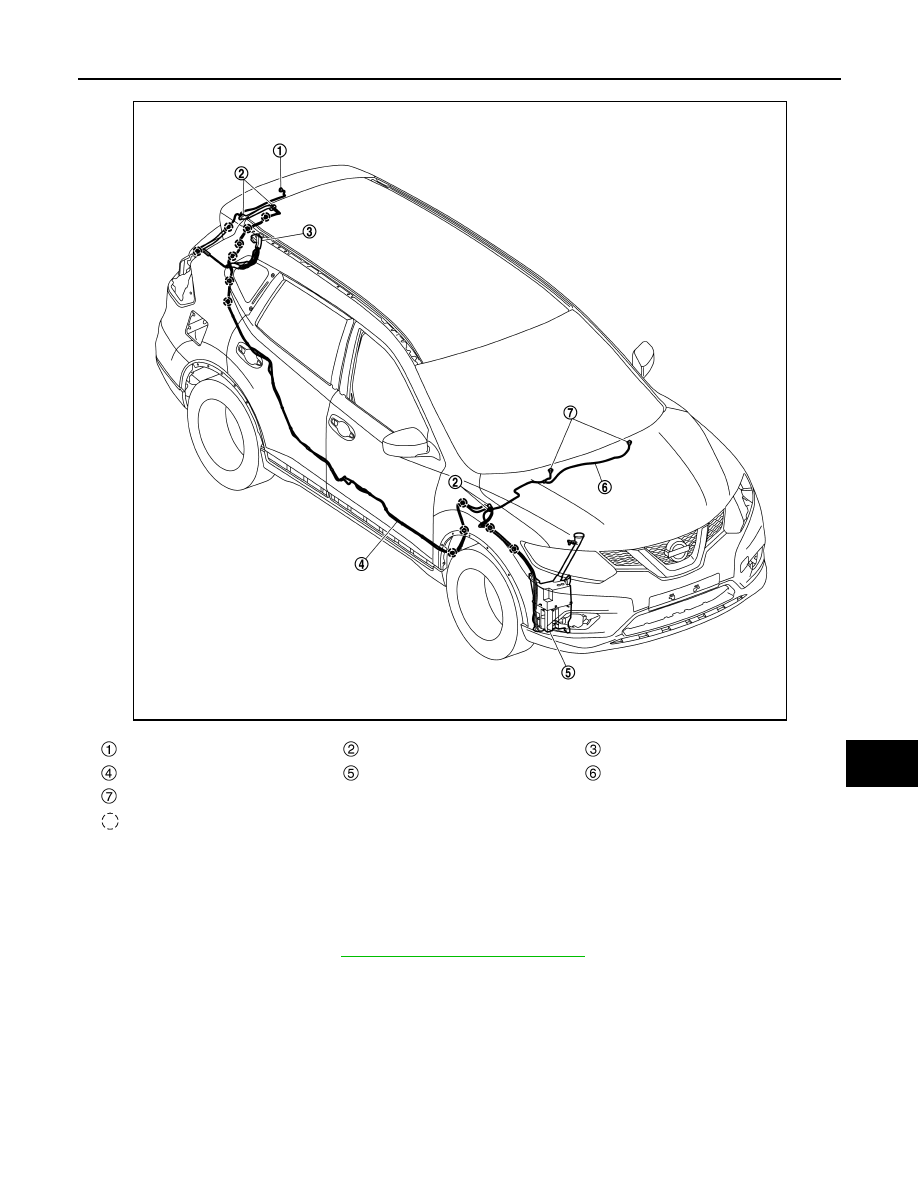

WITHOUT AROUND VIEW MONITOR SYSTEM

WITH AROUND VIEW MONITOR SYSTEM

Front washer nozzle LH

: Clip

Rear washer nozzle

Grommet

Rear washer tube

Washer tank

Front washer tube

Front washer nozzle

: Clip

JMLIA5009ZZ

WASHER NOZZLE AND TUBE

WW-97

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

FRONT WASHER NOZZLE

FRONT WASHER NOZZLE : Removal and Installation

INFOID:0000000010785464

REMOVAL

1.

Remove cowl top cover. Refer to

EXT-25, "Removal and Installation"

.

Rear washer nozzle

Grommet

Rear camera assembly

Rear washer tube

Washer tank

Front washer tube

Front washer nozzle

: Clip

JMLIA5010ZZ

WW-98

< REMOVAL AND INSTALLATION >

WASHER NOZZLE AND TUBE

2.

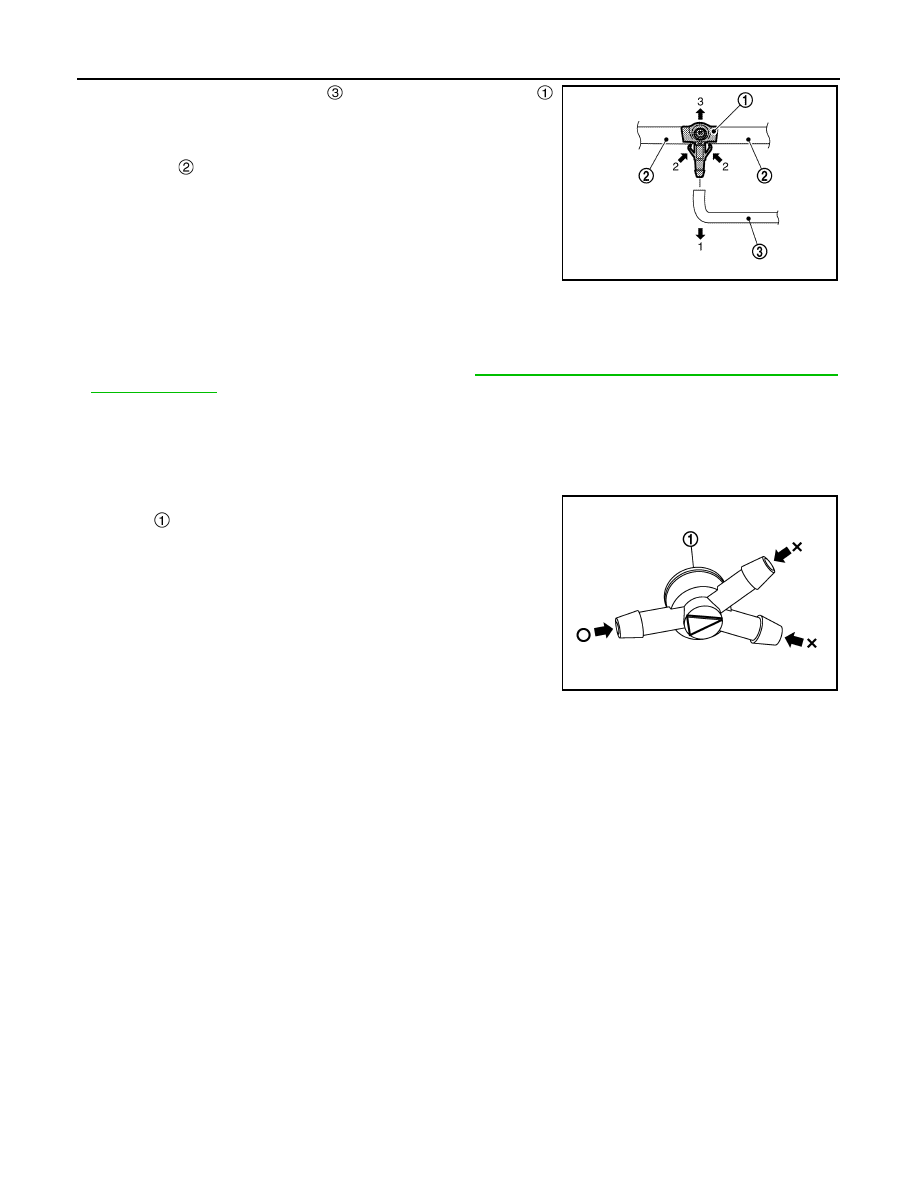

Disconnect front washer tube

 from front washer nozzle

direction by the arrow numerical order 1 as shown in the figure.

3.

Press front washer nozzle fixing pawls toward the direction
shown by the arrows 2

→

3 and pull up remove from hood

assembly .

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• The spray positions differ, check that left and right nozzles are installed correctly.
• Adjust the washer nozzle spray position. Refer to

WW-98, "FRONT WASHER NOZZLE : Inspection

and Adjustment"

.

FRONT WASHER NOZZLE : Inspection and Adjustment

INFOID:0000000010785465

INSPECTION

Front Check Valve Inspection

Check that air can pass through the hose by blowing forward [toward
the nozzle

], and check that air cannot pass through by sucking.

ADJUSTMENT

Front Washer Nozzle Spray Position Adjustment

Adjust spray positions to match the positions shown in the figure.

JMLIA3331ZZ

JMLIA1326ZZ
