REAR WIPER

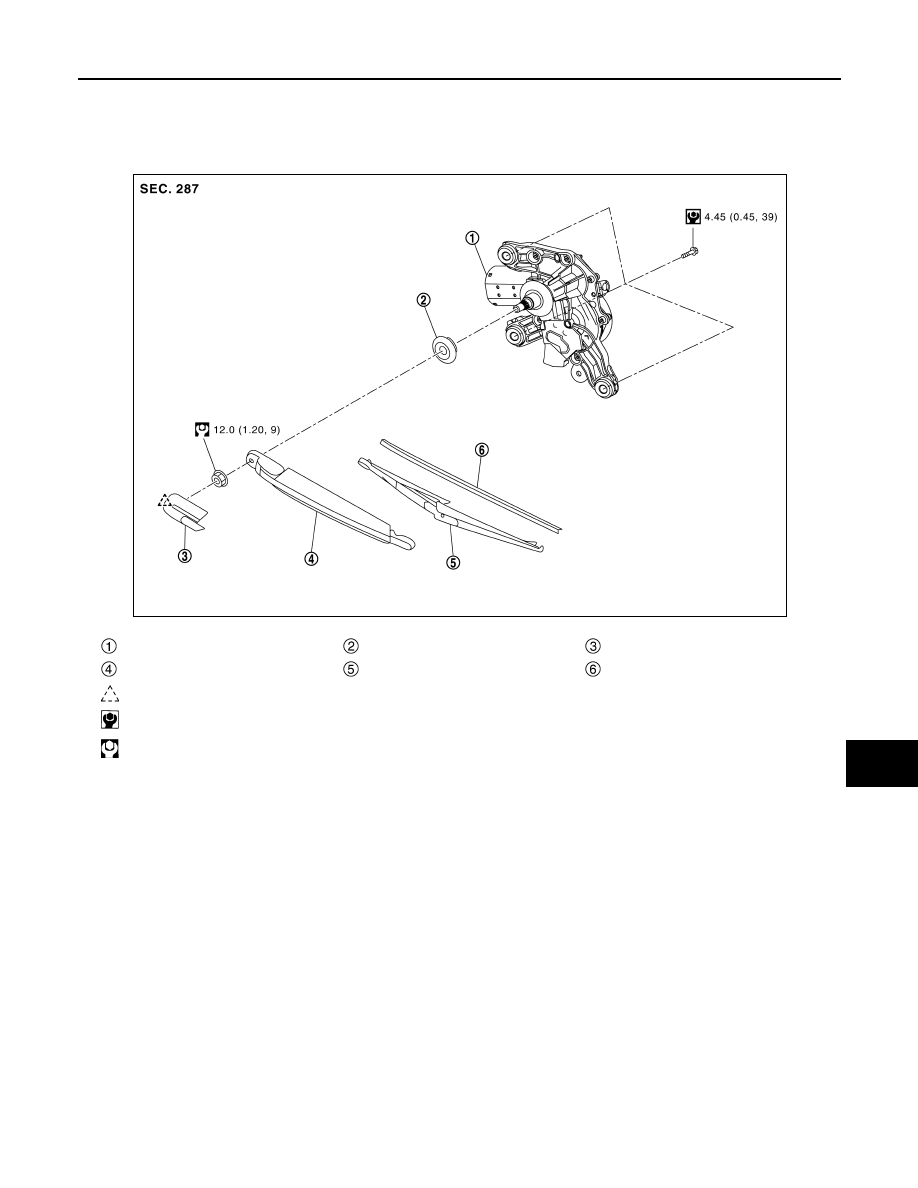

Exploded View

INFOID:0000000010785453

WIPER ARM

WIPER ARM : Removal and Installation

INFOID:0000000010785454

CAUTION:

Clean the back door window glass and rear wiper refill so that the back door window glass may not be
damaged by dust, etc.

REMOVAL

1.

Operate rear wiper to the auto stop position.

Rear wiper motor assembly

Pivot seal

Rear wiper arm cover

Rear wiper arm

Rear wiper blade

Rear wiper refill

: Pawl

: N·m (kg-m, in-lb)

: N·m (kg-m, ft-lb)

JMLIA5003GB

WW-88

< REMOVAL AND INSTALLATION >

REAR WIPER

2.

Open rear wiper arm cover, and then remove rear wiper arm
mounting nut

.

3.

Pull up rear wiper arm, and then remove rear wiper arm from vehicle.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Clean wiper arm installation location as shown in the figure,

and then fully insert wiper arm to prevent nut from being loos-
ened by shakiness.

• When installing rear wiper arm, install so that it is within the standard. For the standard, refer to

WW-

88, "WIPER ARM : Adjustment"

.

• After installation, operate rear wiper, and then check that the rear wiper blade stop at the specified

position. Refer to

WW-88, "WIPER ARM : Adjustment"

.

WIPER ARM : Adjustment

INFOID:0000000010785455

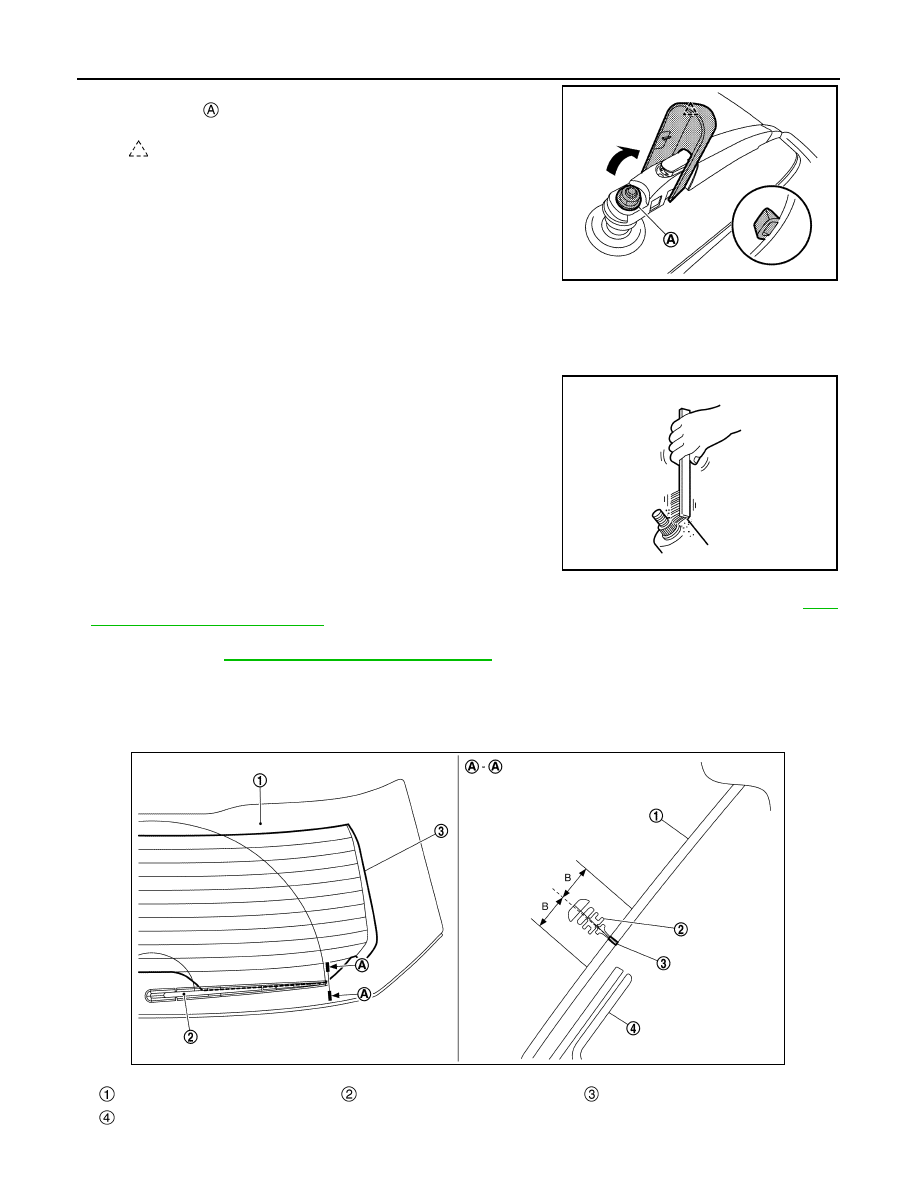

REAR WIPER ARM POSITION ADJUSTMENT

Adjust tip of rear wiper blade as shown in the figure.

: Pawl

JMLIA4855ZZ

SKIA0082J

Back door window glass

Rear wiper assembly

Rear window defogger

Back door panel

JMLIA5013ZZ

REAR WIPER

WW-89

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

Standard clearance from rear window defogger.

WIPER BLADE

WIPER BLADE : Removal and Installation

INFOID:0000000010785456

REMOVAL

1.

Lift up and hold rear wiper arm.

2.

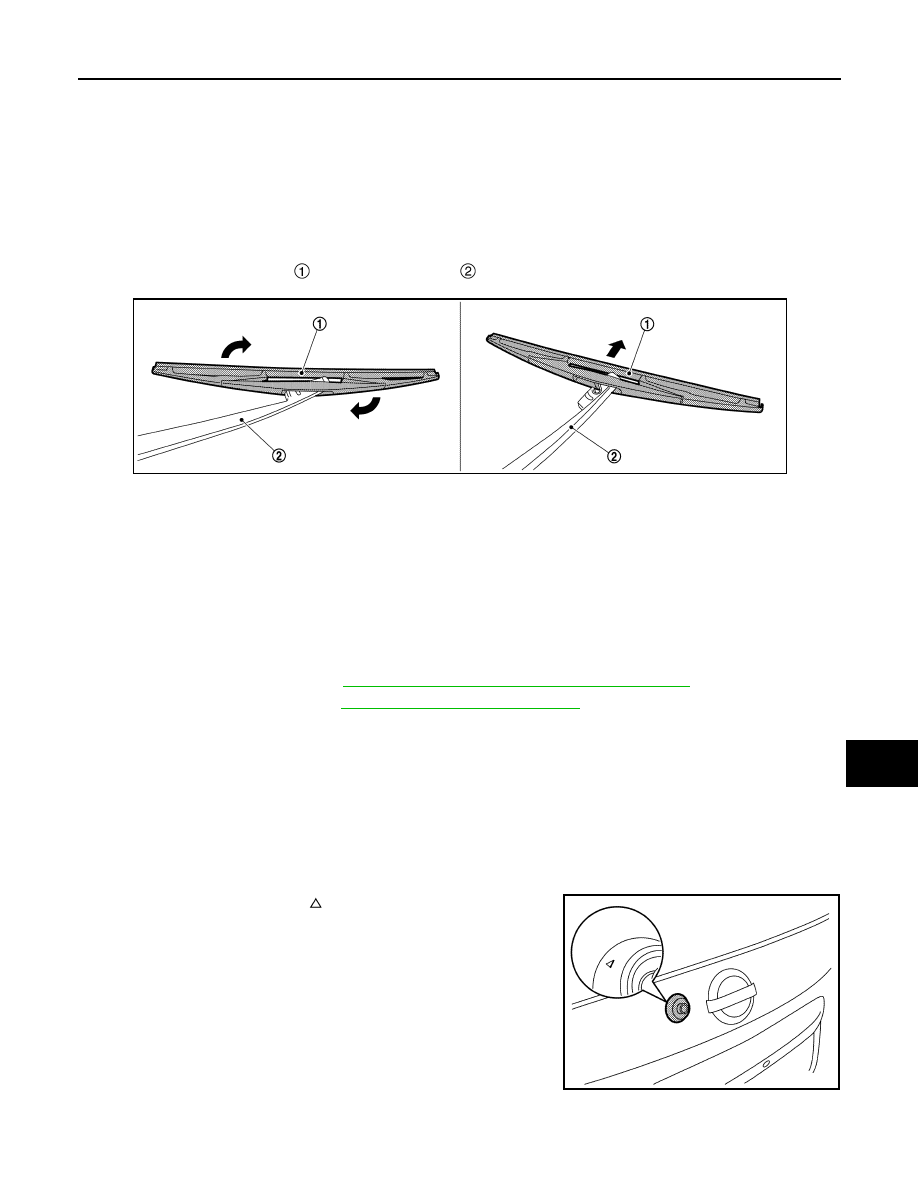

Remove rear wiper blade

 from rear wiper arm

 while rotating rear wiper blade in the direction indi-

cated by the arrow as shown in the figure.

CAUTION:

After rear wiper blade is removed, wrap rear wiper arm tip with a shop cloth and fold it down so
that rear wiper arm does not fall against and damage back door window glass.

INSTALLATION

Install in the reverse order of removal.

WIPER MOTOR

WIPER MOTOR : Removal and Installation

INFOID:0000000010785457

REMOVAL

1.

Remove rear wiper arm. Refer to

WW-87, "WIPER ARM : Removal and Installation"

.

2.

Remove back door trim. Refer to

INT-47, "Removal and Installation"

.

3.

Disconnect rear wiper motor assembly harness connector.

4.

Remove rear wiper motor mounting bolts, and then remove rear wiper motor assembly form back door
panel.

CAUTION:

Never drop rear wiper motor or cause it to come into contact with other parts.

5.

Remove pivot seal from back door panel.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

Always install pivot seal with

“

”

mark facing upward as shown

in the figure.

B : 7.5 mm (0.30 in)

JMLIA1989ZZ

JMLIA3297ZZ

WW-90

< REMOVAL AND INSTALLATION >

WASHER TANK

WASHER TANK

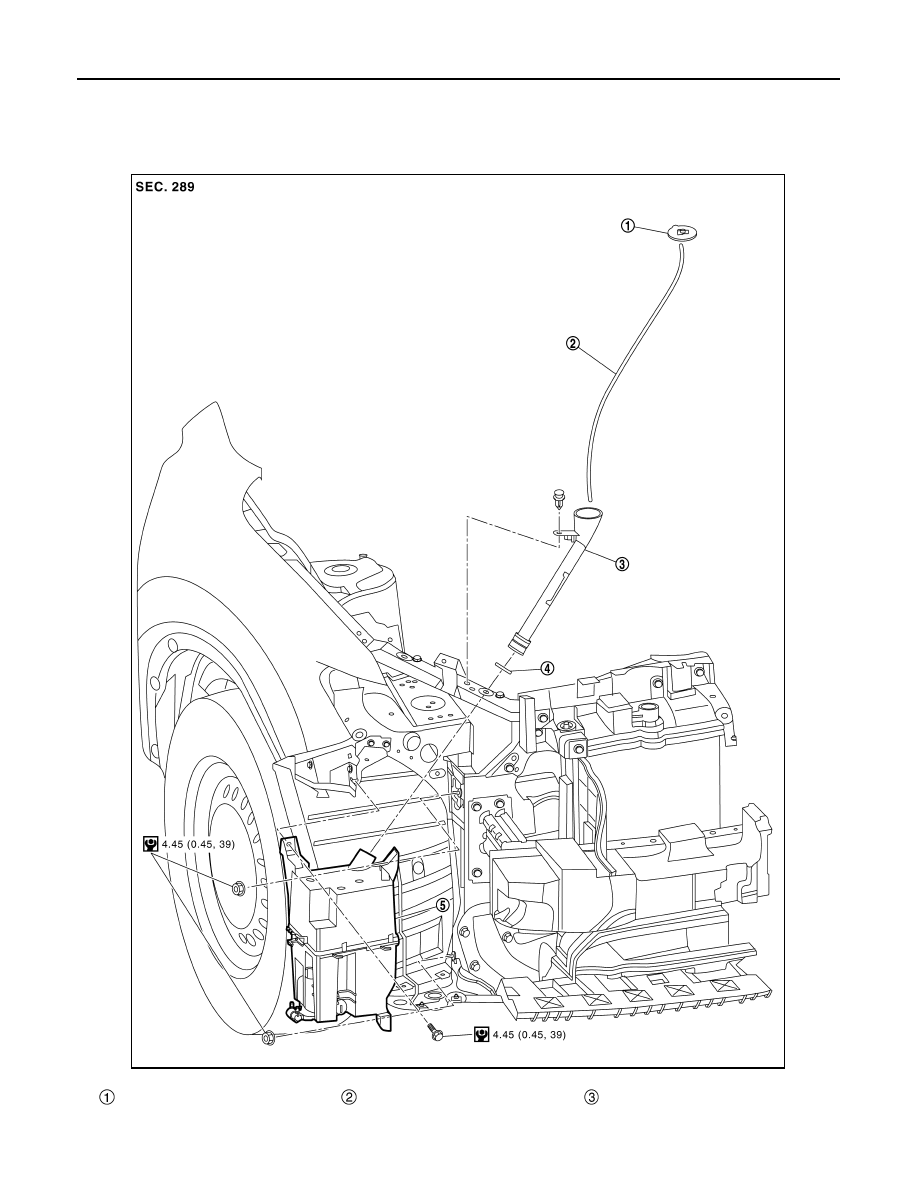

Exploded View

INFOID:0000000010785458

Washer tank cap

Washer tank tube

Washer tank inlet

JMLIA5004GB
