Removal and Installation

INFOID:0000000010785459

CAUTION:

When the washer tank is removed, washer fluid may come out so prepare a container to receive the
fluid and never allow fluid to be sprinkled.

REMOVAL

1.

Fully open hood assembly.

2.

Remove washer tank inlet

 fixing clip

.

3.

Pull out washer tank inlet from washer tank.

4.

Remove front bumper fascia. Refer to

EXT-15, "Removal and Installation"

.

5.

Remove washer pump. Refer to

WW-92, "Removal and Installation"

.

6.

Remove washer tank mounting bolt

 and nuts

.

7.

Remove washer tank.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

Add water up to the top of the washer tank inlet after installing. Check that there is no leakage.

O-ring

Washer tank

: N·m (kg-m, in-lb)

: Vehicle front

JMLIA4856ZZ

JMLIA5005ZZ

WW-92

< REMOVAL AND INSTALLATION >

WASHER PUMP

WASHER PUMP

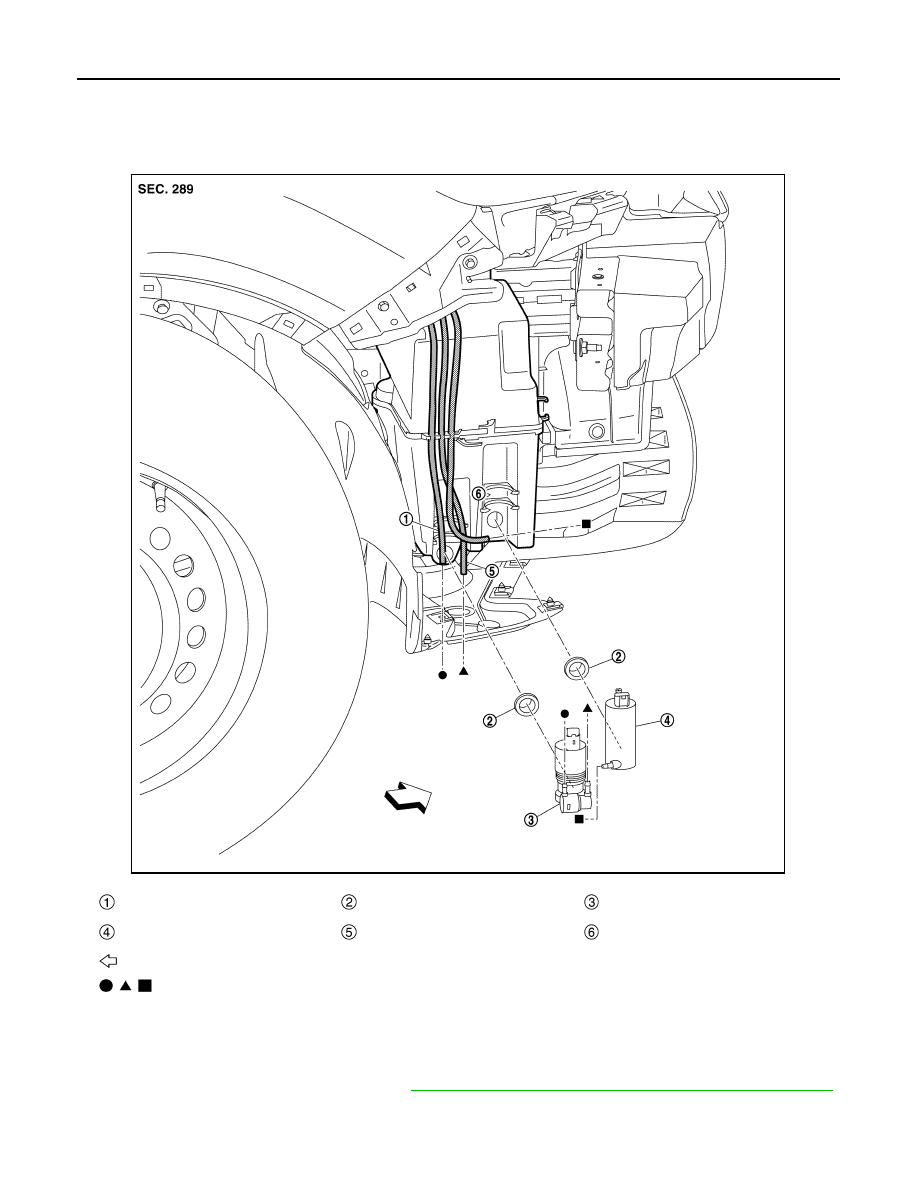

Exploded View

INFOID:0000000010785460

Removal and Installation

INFOID:0000000010785461

REMOVAL

1.

Remove front fender protector RH. Refer to

EXT-35, "FENDER PROTECTOR : Removal and Installation"

.

Rear washer tube

Packing

Washer pump (front/rear washer)

Washer pump (rear camera washer)
(with around view monitor system)

Front washer tube

Rear camera washer tube
(with around view monitor system)

: Vehicle front

,

,

: Indicates that the part is connected at points with same symbol in actual vehicle.

JMLIA5006ZZ

WASHER PUMP

WW-93

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

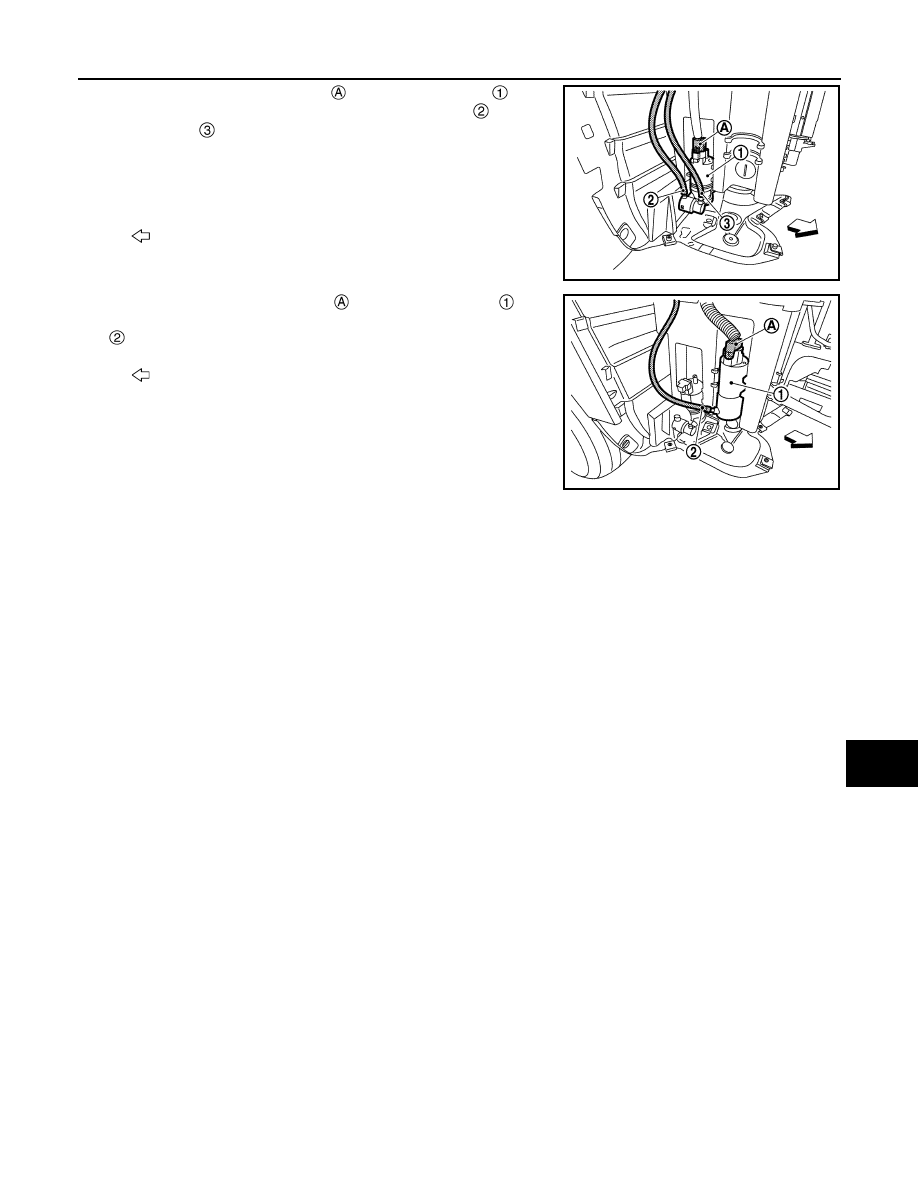

2.

Disconnect harness connector

 from washer pump

 (front/

rear washer), and then disconnect rear washer tube

 and front

washer tube

.

NOTE:
Apply a marking either on front washer tube or rear washer tube
when removing them so that the positions can be identified for
installation.

3.

Disconnect harness connector

 from washer pump

 (rear

camera washer), and then disconnect rear camera washer tube

 (with around view monitor system).

4.

Remove washer pump from washer tank.

5.

Remove packing from washer tank.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Never twist the packing when installing the washer pump.
• When installing tube to washer pump, be sure to install to front and rear correctly.
• Check that there is no leakage after installation or replace packing with new part if it has been dam-

age.

: Vehicle front

JMLIA4857ZZ

: Vehicle front

JMLIA4858ZZ

WW-94

< REMOVAL AND INSTALLATION >

WASHER NOZZLE AND TUBE

WASHER NOZZLE AND TUBE

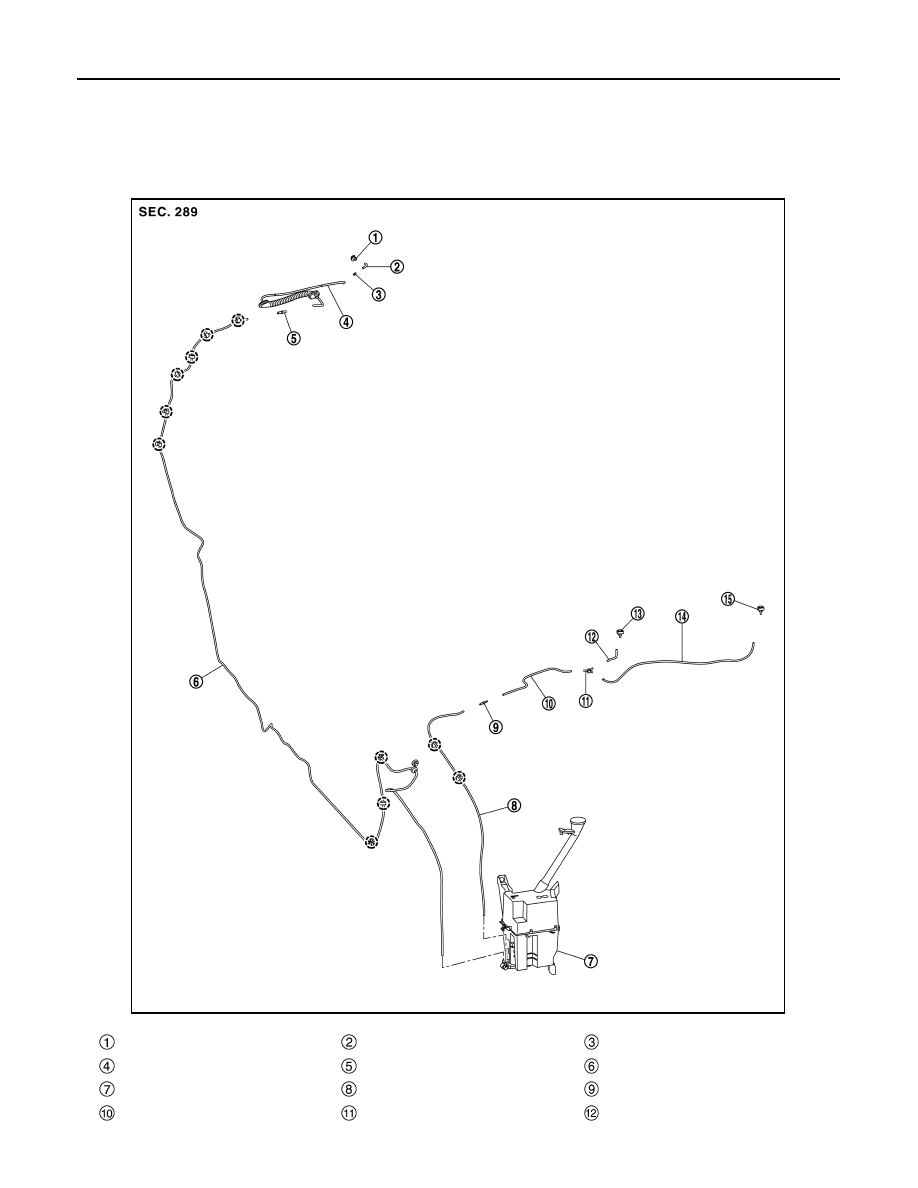

Exploded View

INFOID:0000000010785462

WITHOUT AROUND VIEW MONITOR SYSTEM

Rear washer nozzle

Rear washer tube C

Joint

Rear washer tube B

Joint

Rear washer tube A

Washer tank

Front washer tube A

Joint

Front washer tube B

Check valve

Front washer tube C

JMLIA5007ZZ
