NORMAL OPERATING CONDITION

WW-79

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

NORMAL OPERATING CONDITION

Description

INFOID:0000000010785443

FRONT WIPER MOTOR PROTECTION FUNCTION

• IPDM E/R may stop the front wiper to protect the front wiper motor if any obstruction (operation resistance)

such as a large amount of snow is detected during the front wiper operation.

• At that time turn OFF the front wiper and remove the foreign object. Then reactivate the front wiper. The

wiper will operate normally.

REAR WIPER MOTOR PROTECTION FUNCTION

• BCM may stop rear wiper to protect the rear wiper motor when the rear wiper is stopped for 5 seconds or

more due to a snowfall.

• Rear wiper operates normally 1 minute after the obstacles are removed with rear wiper OFF.

WW-80

< SYMPTOM DIAGNOSIS >

FRONT WIPER DOES NOT OPERATE

FRONT WIPER DOES NOT OPERATE

Description

INFOID:0000000010785444

The front wiper does not operate under any operation conditions.

Diagnosis Procedure

INFOID:0000000010785445

1.

CHECK WIPER RELAY OPERATION

CONSULT ACTIVE TEST

1.

Select “FRONT WIPER” of IPDM E/R active test item.

2.

With operating the test item, check front wiper operation.

Is front wiper operation normally?

YES

>> GO TO 4.

NO

>> GO TO 2.

2.

CHECK FRONT WIPER MOTOR FUSE

1.

Turn ignition switch OFF.

2.

Check that the following fuse is not fusing.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Replace the fuse after repairing the applicable circuit.

3.

CHECK FRONT WIPER MOTOR GROUND CIRCUIT

Check front wiper motor ground circuit. Refer to

WW-60, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace harness.

4.

CHECK FRONT WIPER REQUEST SIGNAL INPUT

CONSULT DATA MONITOR

1.

Select “FR WIP REQ” of IPDM E/R data monitor item.

2.

Switch the front wiper switch to HI and LO.

3.

With operating the front wiper switch, check the status of “FR WIP REQ”.

Is the inspection result normal?

YES

>> Replace IPDM E/R. Refer to

PCS-60, "Removal and Installation"

.

NO

>> GO TO 5.

5.

CHECK COMBINATION SWITCH

Perform the inspection of the combination switch. Refer to

BCS-119, "Symptom Table"

.

Is combination switch normal?

LOW

: Front wiper LO operation

HIGH

: Front wiper HI operation

OFF

: Stop the front wiper.

Unit

Location

No.

Capacity

Front wiper motor

IPDM E/R

90

30 A

Monitor item

Condition

Monitor status

FR WIP REQ

Front wiper switch

HI

HIGH

LO

LOW

INT

OFF

STOP

FRONT WIPER DOES NOT OPERATE

WW-81

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

YES

>> Replace BCM. Refer to

BCS-121, "Removal and Installation"

.

NO

>> Repair or replace the applicable parts.

WW-82

< REMOVAL AND INSTALLATION >

FRONT WIPER

REMOVAL AND INSTALLATION

FRONT WIPER

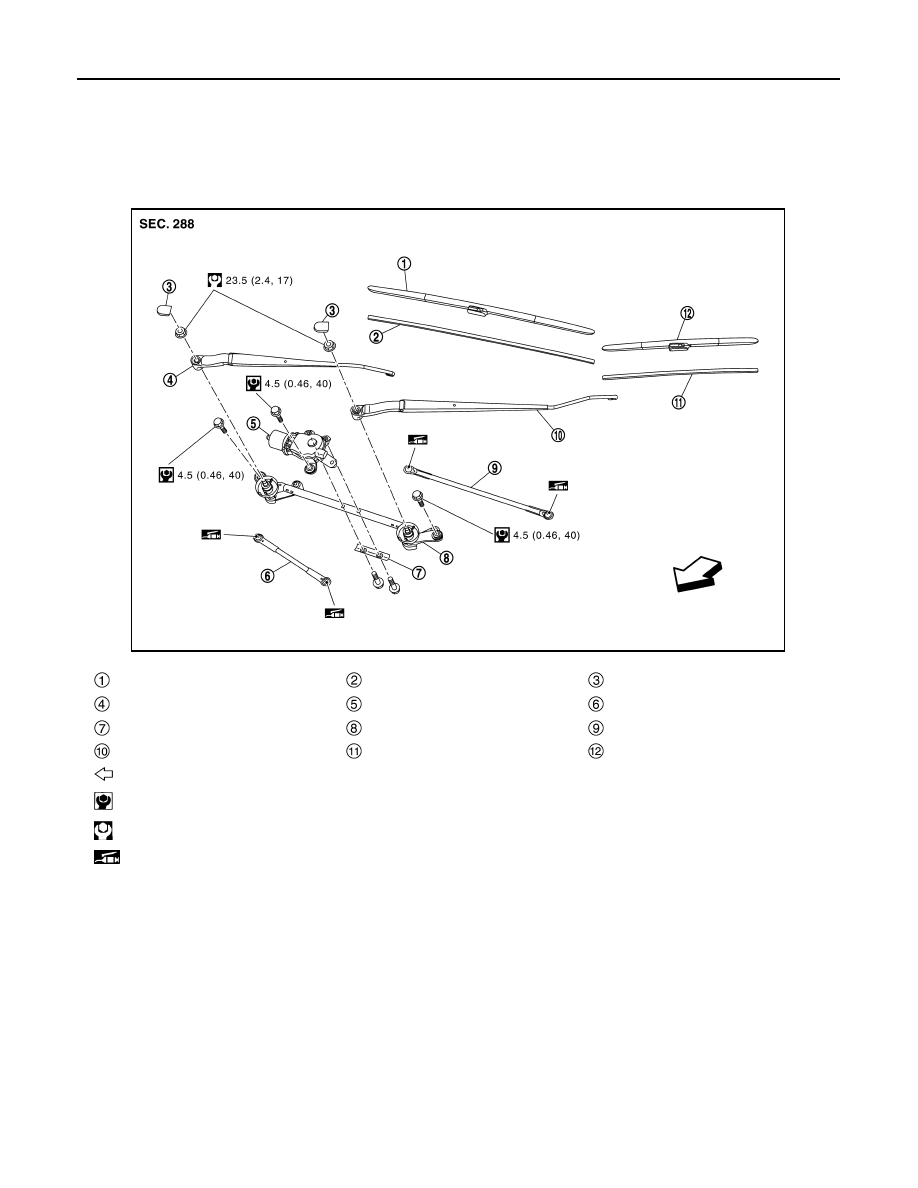

Exploded View

INFOID:0000000010785446

*

: Part of wiper drive assembly.

WIPER ARM

WIPER ARM : Removal and Installation

INFOID:0000000010785447

CAUTION:

Clean the windshield glass and front wiper refill so that the windshield glass may not be damaged by
dust, etc.

REMOVAL

1.

Full open hood assembly.

CAUTION:

Before opening hood assembly, check that front wipers are in auto stop position.

Front wiper blade RH

Front wiper refill RH

Front wiper arm cap

Front wiper arm RH

Front wiper motor

*

Front wiper linkage 1

*

Front wiper motor bracket

*

Front wiper frame

*

Front wiper linkage 2

*

Front wiper arm LH

Front wiper refill LH

Front wIper blade LH

: Vehicle front

: N·m (kg-m, in-lb)

: N·m (kg-m, ft-lb)

: Nissan MP special grease No. 2

JMLIA4839GB
