TM-706

< UNIT REMOVAL AND INSTALLATION >

[CVT: RE0F10G]

TRANSAXLE ASSEMBLY

*: Stud bolt

Inspection and Adjustment

INFOID:0000000010622931

INSPECTION BEFORE INSTALLATION

After inserting a torque converter to the CVT, check dimension (A)
with in the reference value limit.

INSPECTION AFTER INSTALLATION

Check the following items:
• CVT fluid leakage, refer to

TM-663, "Inspection"

.

• For CVT position, refer to

TM-669, "Inspection"

.

• Start the engine and check for coolant leakage from the parts which are removed and reinstalled.

ADJUSTMENT AFTER INSTALLATION

• Adjust the CVT fluid level. Refer to

TM-665, "Adjustment"

.

• When replaced transaxle assembly, perform "ADDITIONAL SERVICE WHEN REPLACING TRANSAXLE

ASSEMBLY". Refer to

TM-546, "Work Procedure"

.

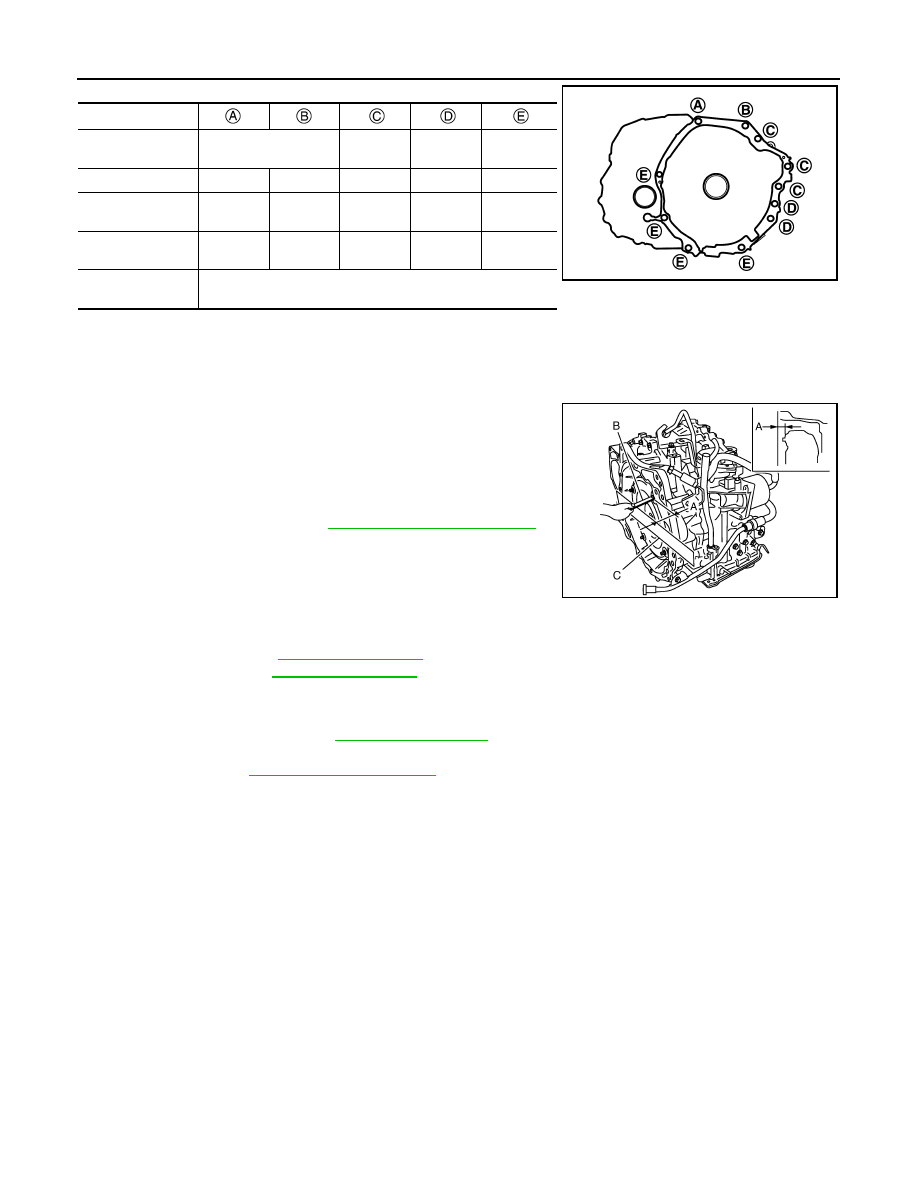

Bolt No.

*

*

Insertion direction

Transaxle to engine

Engine to

transaxle

Transaxle

to engine

Engine to

transaxle

Number  of  bolts

1

1

3

2

4

Bolt length
mm (in)

—

—

60 (2.36)

30(1.18)

55 (2.17)

Stud length
mm (in)

56(2.20)

96(3.78)

—

—

—

Tightening torque
N·m (kg-m, ft-lb)

48.0 (4.9, 35)

JSDIA5239ZZ

B

:  Scale

C

: Straightedge

Dimension (A)

: Refer to

TM-710, "Torque Converter"

.

JPDIA0115ZZ

TORQUE CONVERTER AND CONVERTER HOUSING OIL SEAL

TM-707

< UNIT DISASSEMBLY AND ASSEMBLY >

[CVT: RE0F10G]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

UNIT DISASSEMBLY AND ASSEMBLY

TORQUE CONVERTER AND CONVERTER HOUSING OIL SEAL

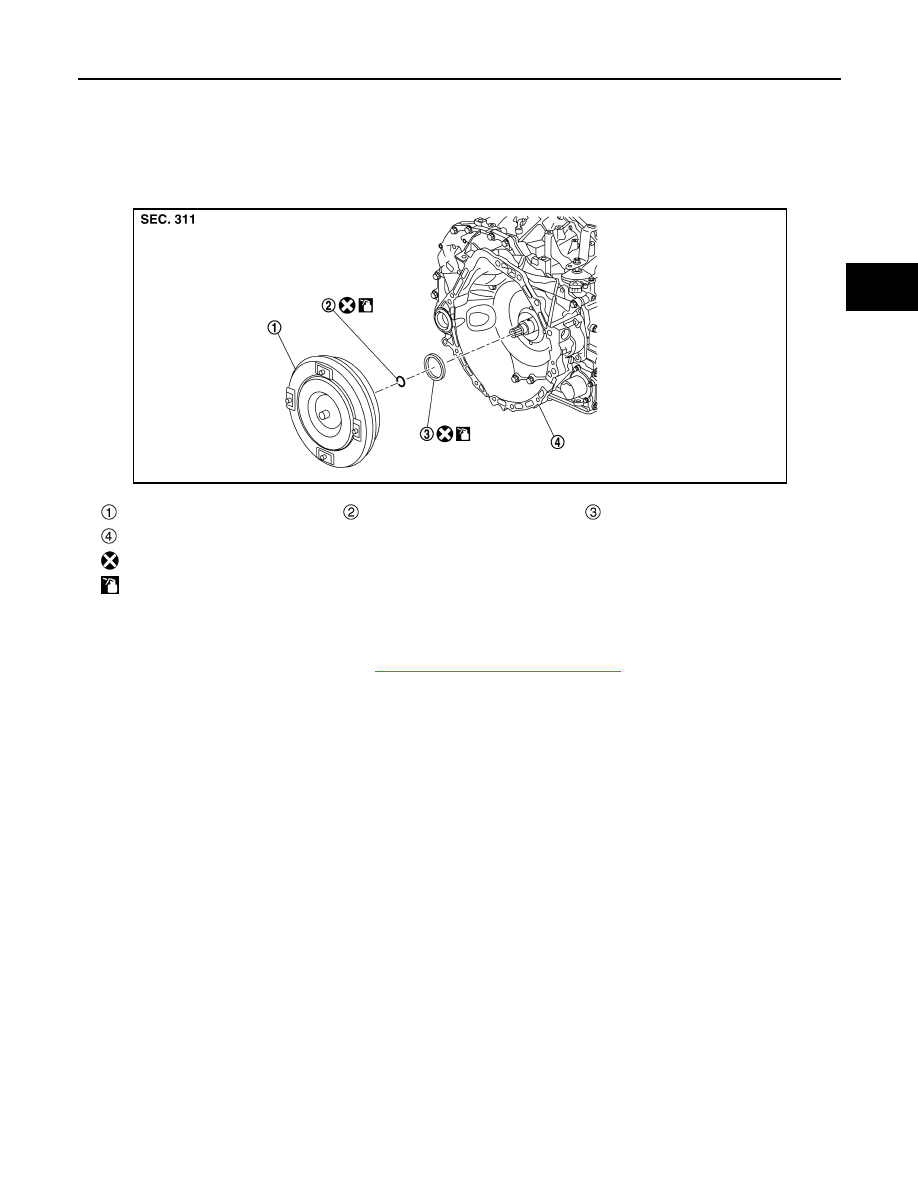

Exploded View

INFOID:0000000010622932

Disassembly

INFOID:0000000010622933

1.

Remove transaxle assembly. Refer to

TM-704, "Removal and Installation"

.

2.

Remove torque converter from transaxle assembly.

CAUTION:

Never damage the bushing on the inside of torque converter sleeve when removing torque con-
verter.

3.

Remove O-ring from input shaft.

4.

Remove converter housing oil seal using a suitable tool.

CAUTION:

Be careful not to scratch converter housing.

Assembly

INFOID:0000000010622934

Note the followings and assembly is in the reverse order of disassembly.

CAUTION:

• Never reuse O-ring.
• Never reuse converter housing oil seal.
• Apply CVT fluid to O-ring.
• Apply CVT fluid to converter housing oil seal.

Torque converter

O-ring

Converter housing oil seal

Transaxle assembly

: Always replace after every disassembly.

: Apply CVT fluid

JSDIA4173ZZ

TM-708

< UNIT DISASSEMBLY AND ASSEMBLY >

[CVT: RE0F10G]

TORQUE CONVERTER AND CONVERTER HOUSING OIL SEAL

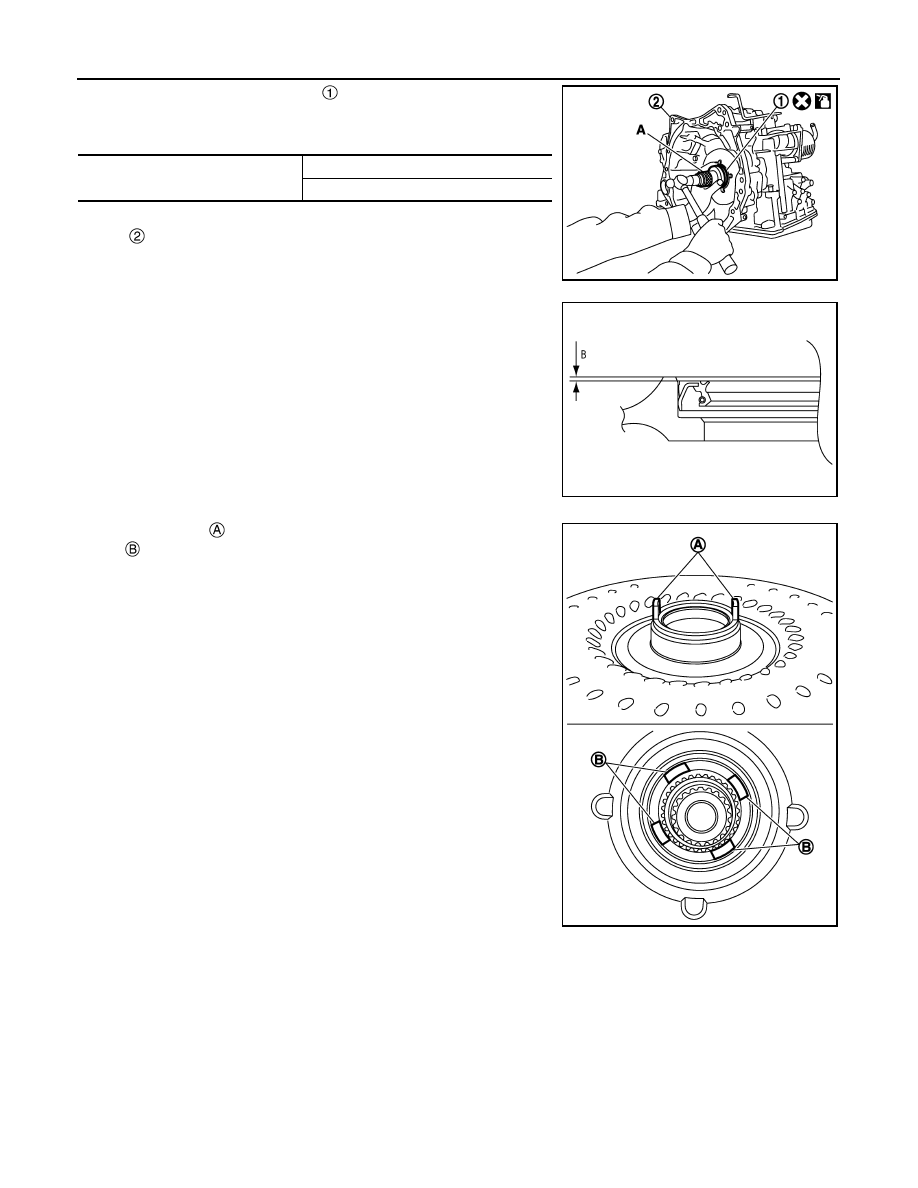

• Drive converter housing oil seal

 evenly using a drift (A) (com-

mercial service tool) so that converter housing oil seal protrudes by
the dimension (B) respectively.

Unit: mm (in)

NOTE:
Converter housing oil seal pulling direction is used as the refer-
ence.

• Attach the pawl

 of the torque converter to the drive sprocket

hole

 on the transaxle assembly side.

CAUTION:

• Rotate the torque converter for installing torque converter.
• Never damage the bushing inside the torque converter

sleeve when installing the converter housing oil seal.

Inspection

INFOID:0000000010622935

INSPECTION AFTER INSTALLATION

Drift (A)

Outer diameter: 65 (2.56)

Inner diameter: 60 (2.36)

: Transaxle assembly

SCIA7908J

Dimension (B)

: 1.0

±

 0.5 mm (0.039

±

 0.020 in)

SCIA7909J

SCIA7907J

TORQUE CONVERTER AND CONVERTER HOUSING OIL SEAL

TM-709

< UNIT DISASSEMBLY AND ASSEMBLY >

[CVT: RE0F10G]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

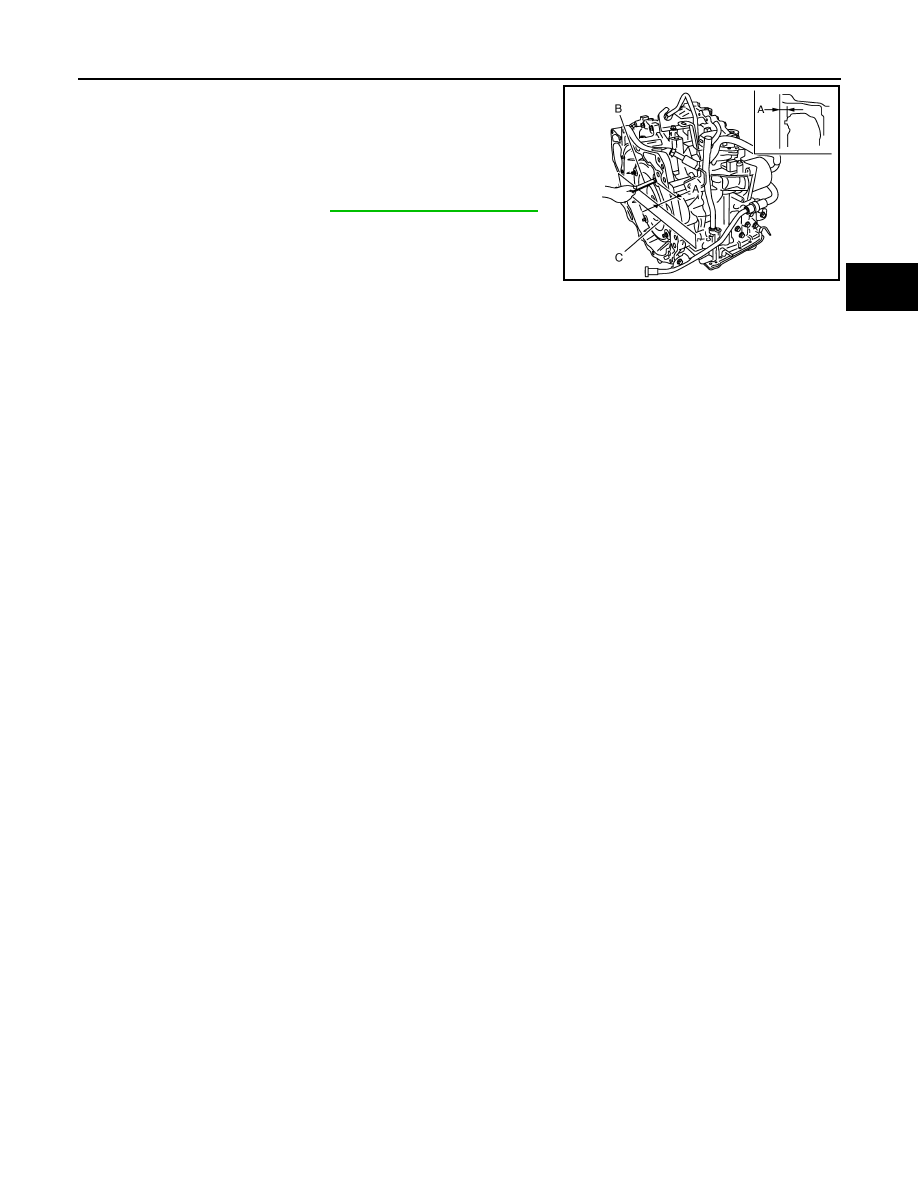

• After inserting a torque converter to the CVT, check dimension (A)

with in the reference value limit.

B

:  Scale

C

: Straightedge

Dimension (A)

: Refer to

TM-710, "Torque Converter"

.
