G SENSOR

G SENSOR

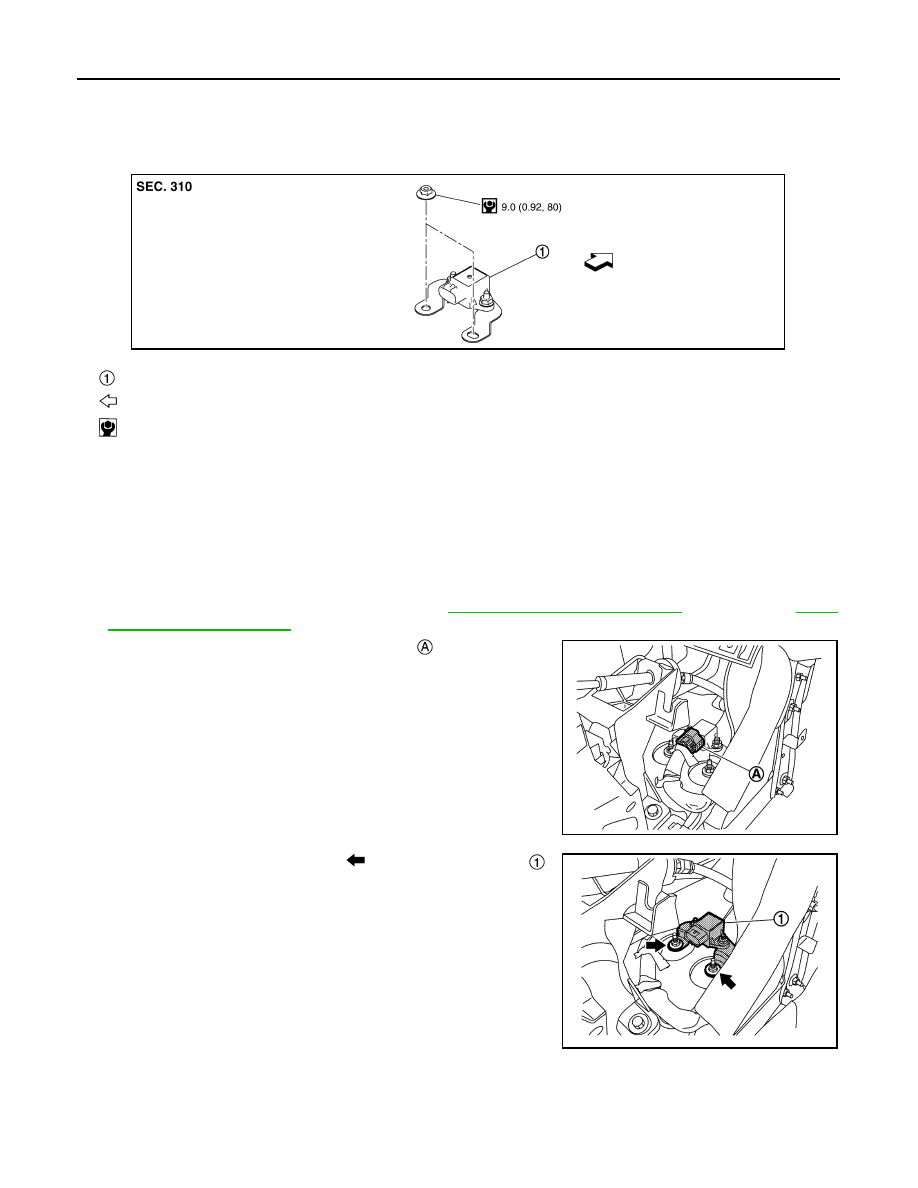

Exploded View

INFOID:0000000010623977

Removal and Installation

INFOID:0000000010623978

CAUTION:

• Never drop or strike G sensor, because it has little tolerance for impact.
• Never use a power tool to avoid impact.

REMOVAL

1.

Turn ignition switch OFF.

2.

Remove the center console assembly. Refer to

IP-25, "Removal and Installation"

 (LHD models),

IP-52,

"Removal and Installation"

 (RHD models).

3.

Disconnect the G sensor harness connector

.

4.

Remove G sensor mounting nuts (

) and remove G sensor

.

INSTALLATION

Installation is the reverse order of removal.

G sensor

: Vehicle front

: N·m (kg-m, in-lb)

JSDIA5138GB

JSDIA5192ZZ

JSDIA5193ZZ

G SENSOR

TM-679

< REMOVAL AND INSTALLATION >

[CVT: RE0F10G]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

Adjustment

INFOID:0000000010623979

ADJUSTMENT AFTER INSTALLATION

Perform “CALIBRATION OF G SENSOR”. Refer to

TM-551, "Work Procedure"

.

TM-680

< REMOVAL AND INSTALLATION >

[CVT: RE0F10G]

AIR BREATHER

AIR BREATHER

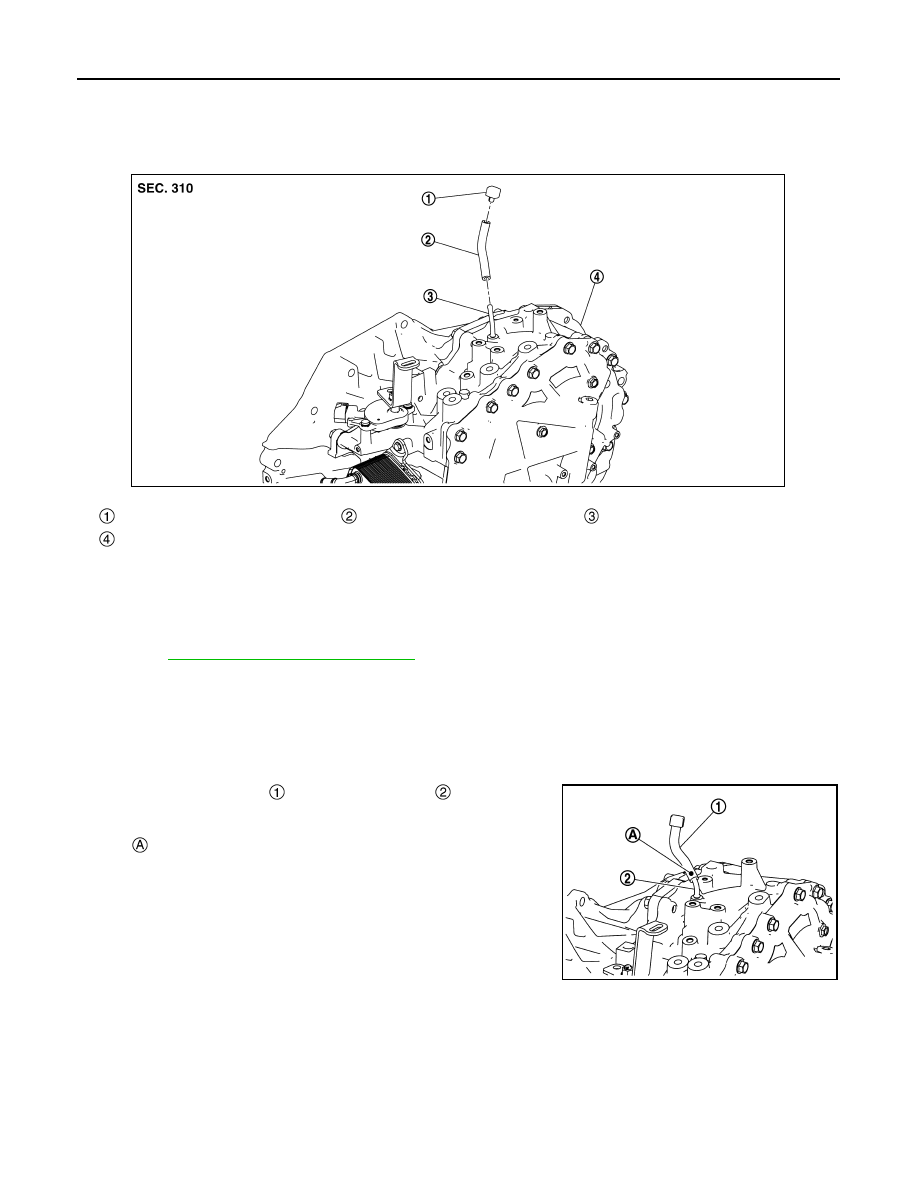

Exploded View

INFOID:0000000010622882

Removal and Installation

INFOID:0000000010622883

REMOVAL

1.

Remove the air duct (inlet), air cleaner cases assembly with mass air flow sensor, and air duct assembly.
Refer to

EM-308, "Removal and Installation"

.

2.

Remove air breather hose.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Never bend the air breather hose to prevent damage to the hose.
• Insert air breather hose to the end of air breather.
• Insert air breather hose

 to air breather tube

 all the way to

the curve of the tube.

• Insert air breather hose to air breather tube so that the paint

mark

 is facing upward.

Air breather hose cap

Air breather hose

Breather tube

Transaxle assembly

JSDIA5220ZZ

JSDIA5387ZZ

OIL PAN

TM-681

< REMOVAL AND INSTALLATION >

[CVT: RE0F10G]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

OIL PAN

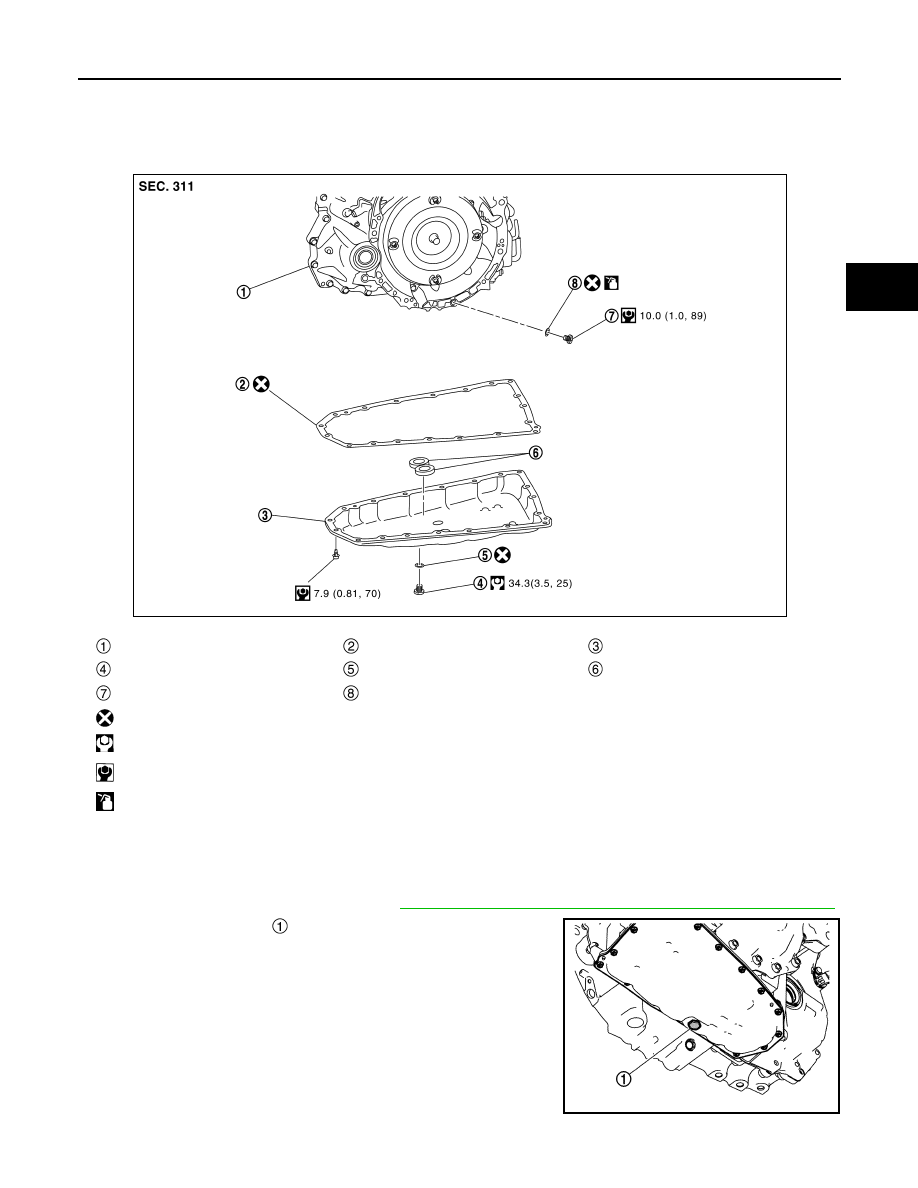

Exploded View

INFOID:0000000010622886

Removal and Installation

INFOID:0000000010622887

REMOVAL

1.

Remove the engine under cover. Refer to

EXT-40, "ENGINE UNDER COVER : Removal and Installation"

.

2.

Remove the drain plug

 from oil pan and drain the CVT fluid.

Transaxle assembly

Oil pan gasket

Oil pan

Drain plug

Drain plug gasket

Magnet

Overflow plug

O-ring

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

: N·m (kg-m, in-lb)

: Apply CVT fluid

JSDIA4194GB

JSDIA5205ZZ
