TM-670

< REMOVAL AND INSTALLATION >

[CVT: RE0F10G]

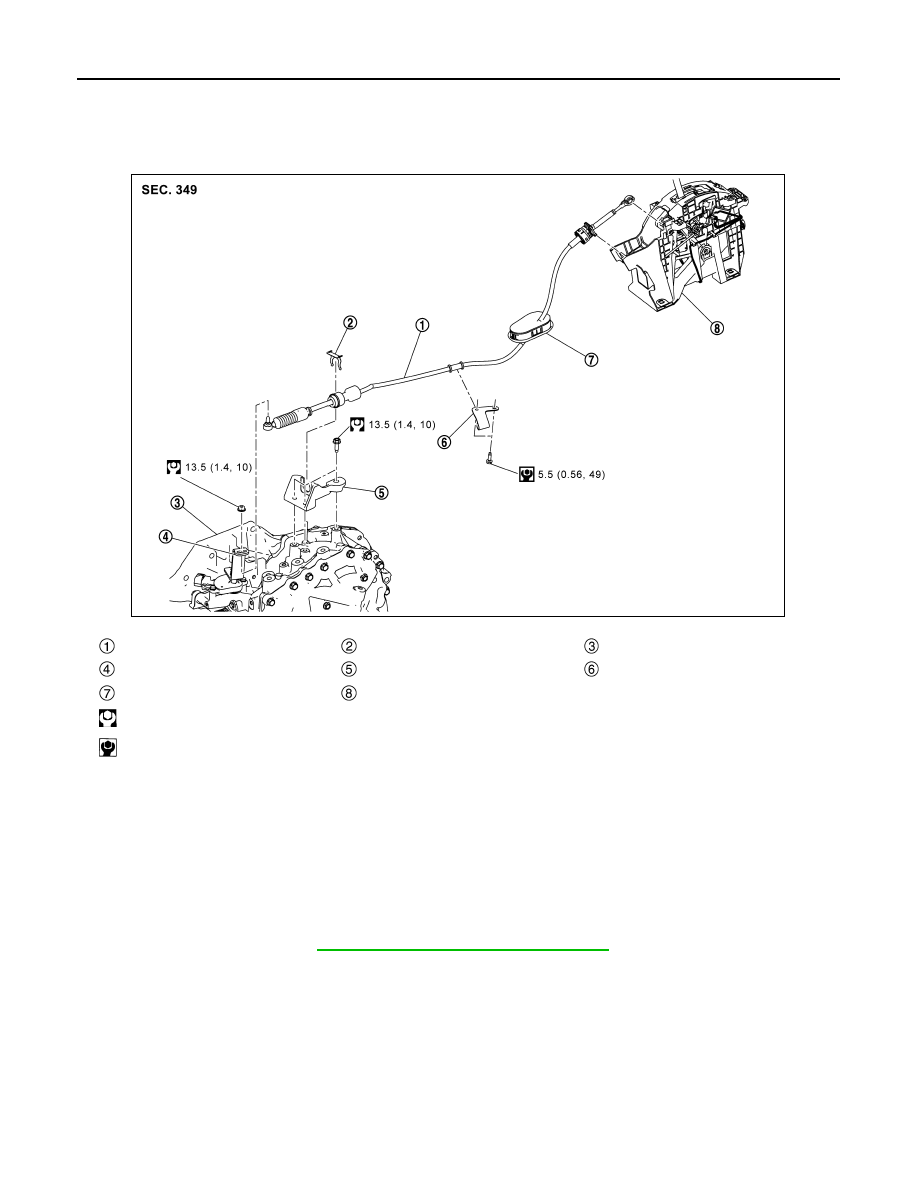

CONTROL CABLE

CONTROL CABLE

Exploded View

INFOID:0000000010622873

Removal and Installation

INFOID:0000000010622874

REMOVAL

CAUTION:

• Always apply the parking brake before performing removal and installation.
• Be careful not to cut your hand on heat insulator edges.

1.

Turn ignition switch OFF.

2.

Shift the selector lever to “P” position.

3.

Remove battery tray. Refer to

PG-143, "R9M : Removal and Installation"

.

Control cable

Lock plate

Transaxle assembly

Manual lever

Bracket A

Bracket B

Grommet

CVT shift selector assembly

: N·m (kg-m, ft-lb)

: N·m (kg-m, in-lb)

JSDIA6082GB

CONTROL CABLE

TM-671

< REMOVAL AND INSTALLATION >

[CVT: RE0F10G]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

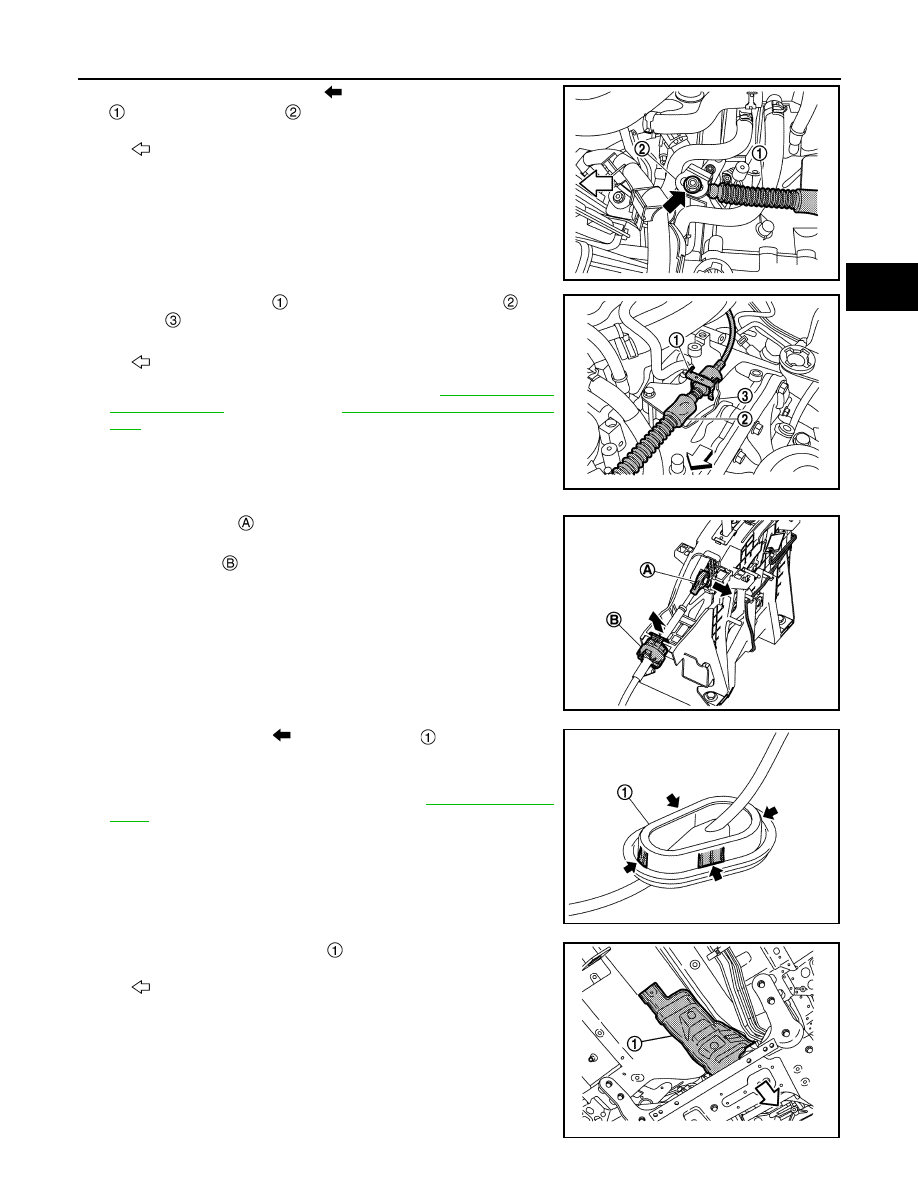

4.

Remove the control cable nut (

) and remove the control cable

 from the manual lever

.

5.

Remove the lock plate

 and remove the control cable

 from

bracket .

6.

Remove the center console assembly. Refer to

IP-25, "Removal

and Installation"

 (LHD models),

IP-52, "Removal and Installa-

tion"

 (RHD models).

7.

Disconnect the tip

 of control cable from the CVT shift selector

assembly.

8.

Remove socket

 from CVT shift selector assembly.

CAUTION:

Never damage pawl of socket.

9.

Disengage the pawls (

) of the grommet

, and pull down-

wards to remove.

10. Lift up the vehicle.

11. Remove the exhaust front tube. Refer to

EX-17, "Exploded

View"

.

12. Remove the heat plate fixtures

.

: Vehicle front

JSDIA4147ZZ

: Vehicle front

JSDIA4148ZZ

JSDIA5661ZZ

JSDIA5182ZZ

: Vehicle front

JSDIA5214ZZ

TM-672

< REMOVAL AND INSTALLATION >

[CVT: RE0F10G]

CONTROL CABLE

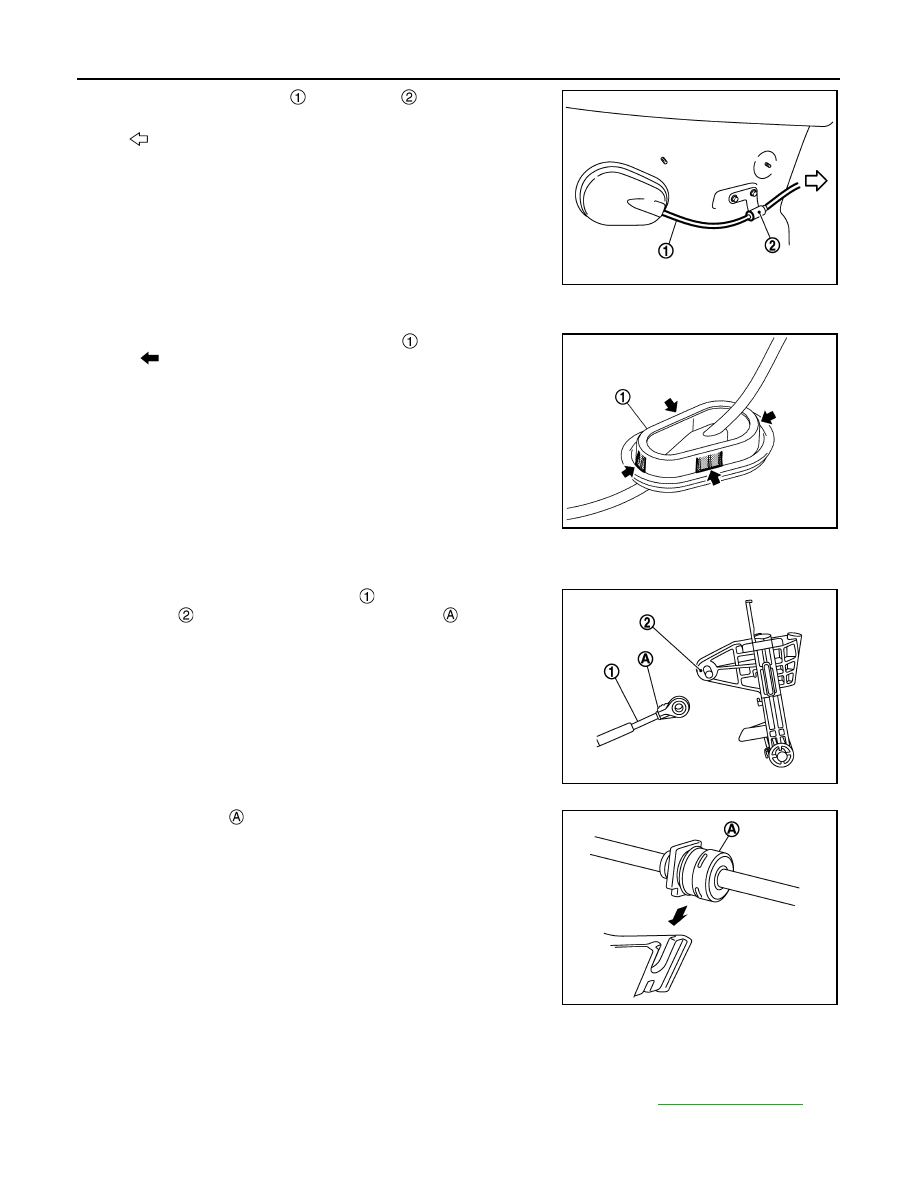

13. Remove the control cable

 from bracket

.

14. Remove the control cable from the vehicle.

INSTALLATION

Note the followings and install in the reverse order of removal.
• From below the vehicle, press the grommet

 into place until the

pawls (

) make a click sound.

CAUTION:

• Place the grommet on the floor, then fasten it in place from

below the vehicle.

• Check that pulling down on the grommet does not discon-

nect it.

• Pay attention to the following when connecting the control cable to the CVT shift selector.
1.

Shift the selector lever and Manual lever to “P” position.

2.

When connecting the control cable

 to the CVT shift selector

assembly

, face the grooved surface of the rib

 up and insert

the control cable until it stops.

3.

Install the socket

 onto the CVT shift selector assembly.

CAUTION:

• Place the socket onto the CVT shift selector assembly,

then fasten it in place from above.

• Check that the pulling on the socket does not disconnect

it.

Inspection

INFOID:0000000010622875

INSPECTION AFTER INSTALLATION

Check the CVT position. If a malfunction is found, adjust the CVT position. Refer to

TM-554, "Inspection"

.

: Vehicle front

JPDIA0107ZZ

JSDIA5182ZZ

JPDIA0609ZZ

JSDIA1810ZZ

KEY INTERLOCK CABLE

TM-673

< REMOVAL AND INSTALLATION >

[CVT: RE0F10G]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

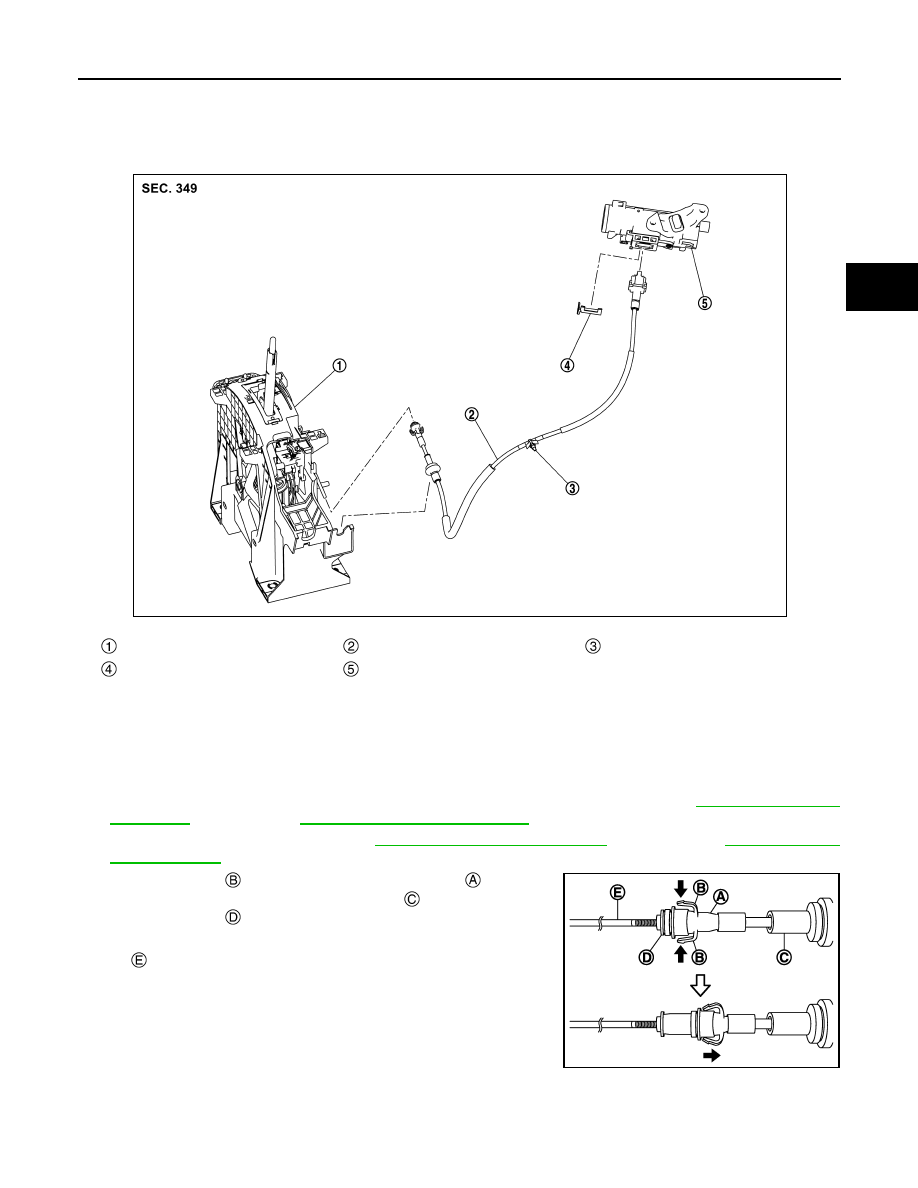

KEY INTERLOCK CABLE

Exploded View

INFOID:0000000011009350

Removal and Installation

INFOID:0000000011009351

REMOVAL

CAUTION:

Always apply the parking brake before performing removal and installation.
1.

Remove the instrument lower panel (driver side) and steering column cover. Refer to

IP-14, "Removal and

Installation"

 (LHD models),

IP-41, "Removal and Installation"

 (RHD models).

2.

Remove the center console. Refer to

IP-25, "Removal and Installation"

  (LHD models),

IP-52, "Removal

and Installation"

 (RHD models).

3.

Press the pawls

 of the key interlock cable slider

 while slid-

ing it in the direction of the casing cap

, and separate the

adjusting holder

 and slider.

4.

Remove the key interlock cable from the shift selector.

Shift selector assembly

Key interlock cable

Clip

Clip

Key cylinder

JSDIA6482ZZ

:Key interlock rod

JSDIA1797ZZ
