TM-426

< REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

PRIMARY SPEED SENSOR

4.

Remove the O-ring

 from the primary speed sensor.

INSTALLATION

Note the followings and installation is in the reverse order of removal.

CAUTION:

• Never reuse O-ring.
• Apply CVT fluid to the O-ring.

Inspection and Adjustment

INFOID:0000000010622616

INSPECTION AFTER INSTALLATION

Start the engine and check visually that there is no leakage of CVT fluid.

ADJUSTMENT AFTER INSTALLATION

If CVT fluid leaks during work, adjust the CVT fluid level. Refer to

TM-401, "Adjustment"

.

JSDIA5199ZZ

OUTPUT SPEED SENSOR

TM-427

< REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

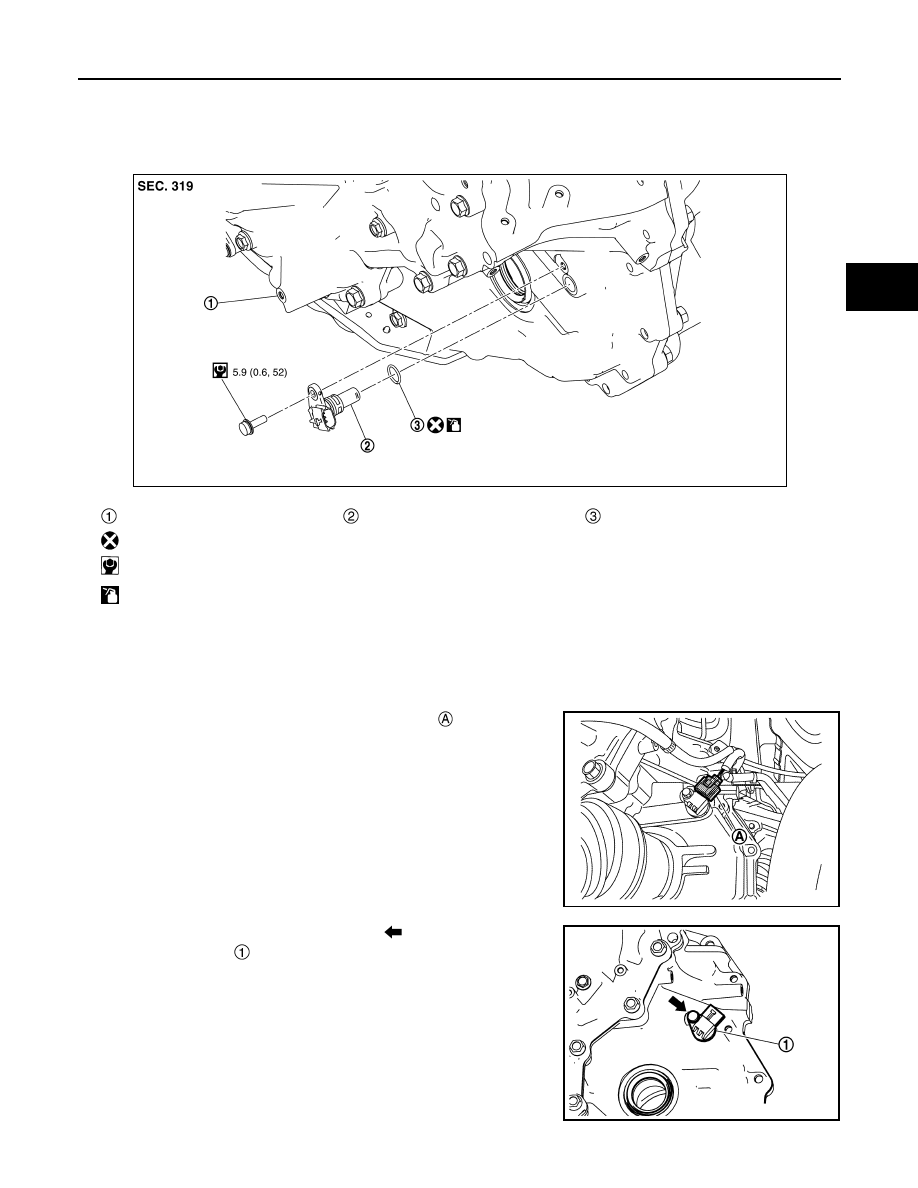

OUTPUT SPEED SENSOR

Exploded View

INFOID:0000000010622617

Removal and Installation

INFOID:0000000010622618

REMOVAL

1.

Turn ignition switch OFF.

2.

Disconnect the output speed sensor connector

.

3.

Remove the output speed sensor bolt (

) and remove the out-

put speed sensor

.

Transaxle assembly

Output speed sensor

O-ring

: Always replace after every disassembly.

: N·m (kg-m, in-lb)

: Apply CVT fluid

JSDIA5033GB

JSDIA5200ZZ

JSDIA5201ZZ

TM-428

< REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

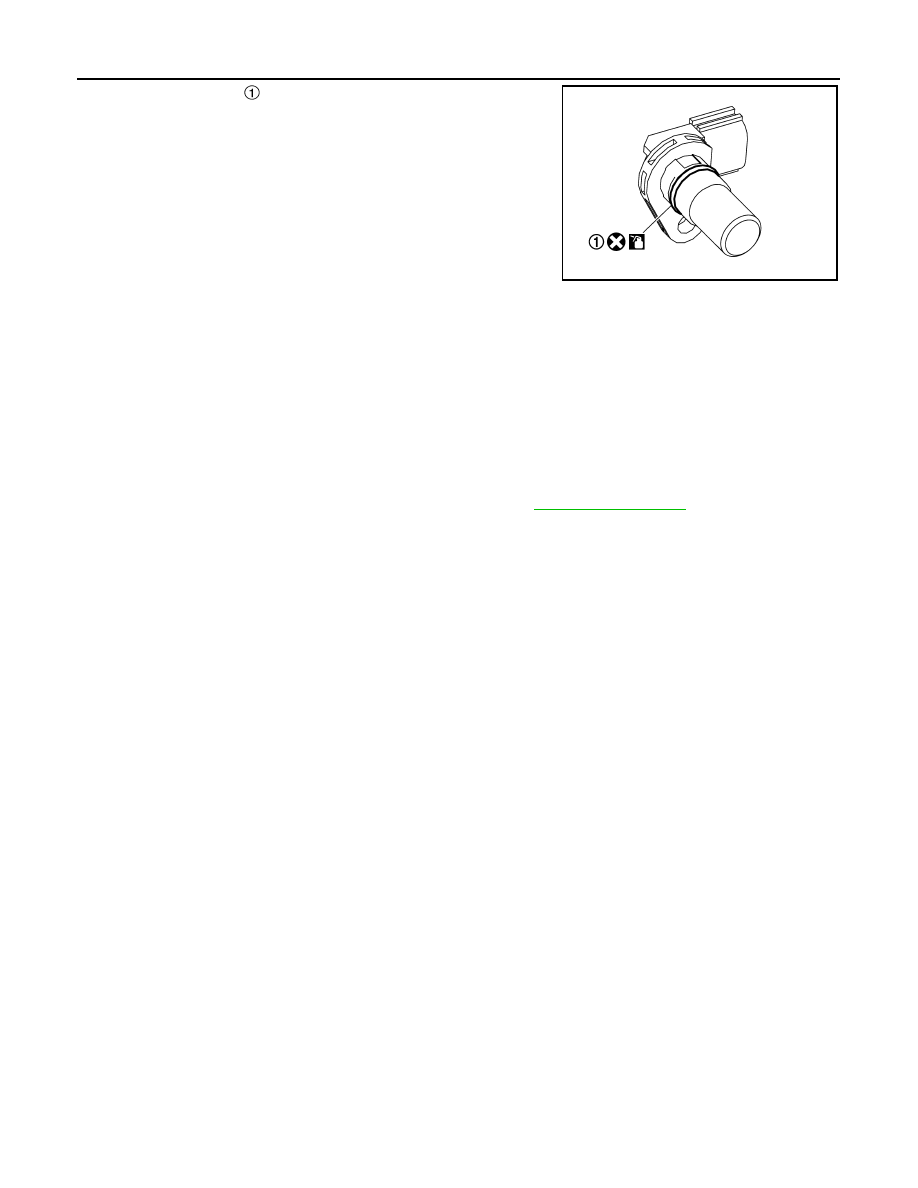

OUTPUT SPEED SENSOR

4.

Remove the O-ring

 from the output speed sensor.

INSTALLATION

Note the followings and installation is in the reverse order of removal.

CAUTION:

• Never reuse O-ring.
• Apply CVT fluid to the O-ring.

Inspection and Adjustment

INFOID:0000000010622619

INSPECTION AFTER INSTALLATION

Start the engine and check visually that there is no leakage of CVT fluid.

ADJUSTMENT AFTER INSTALLATION

If CVT fluid leaks during work, adjust the CVT fluid level. Refer to

TM-401, "Adjustment"

.

JSDIA5199ZZ

DIFFERENTIAL SIDE OIL SEAL

TM-429

< REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

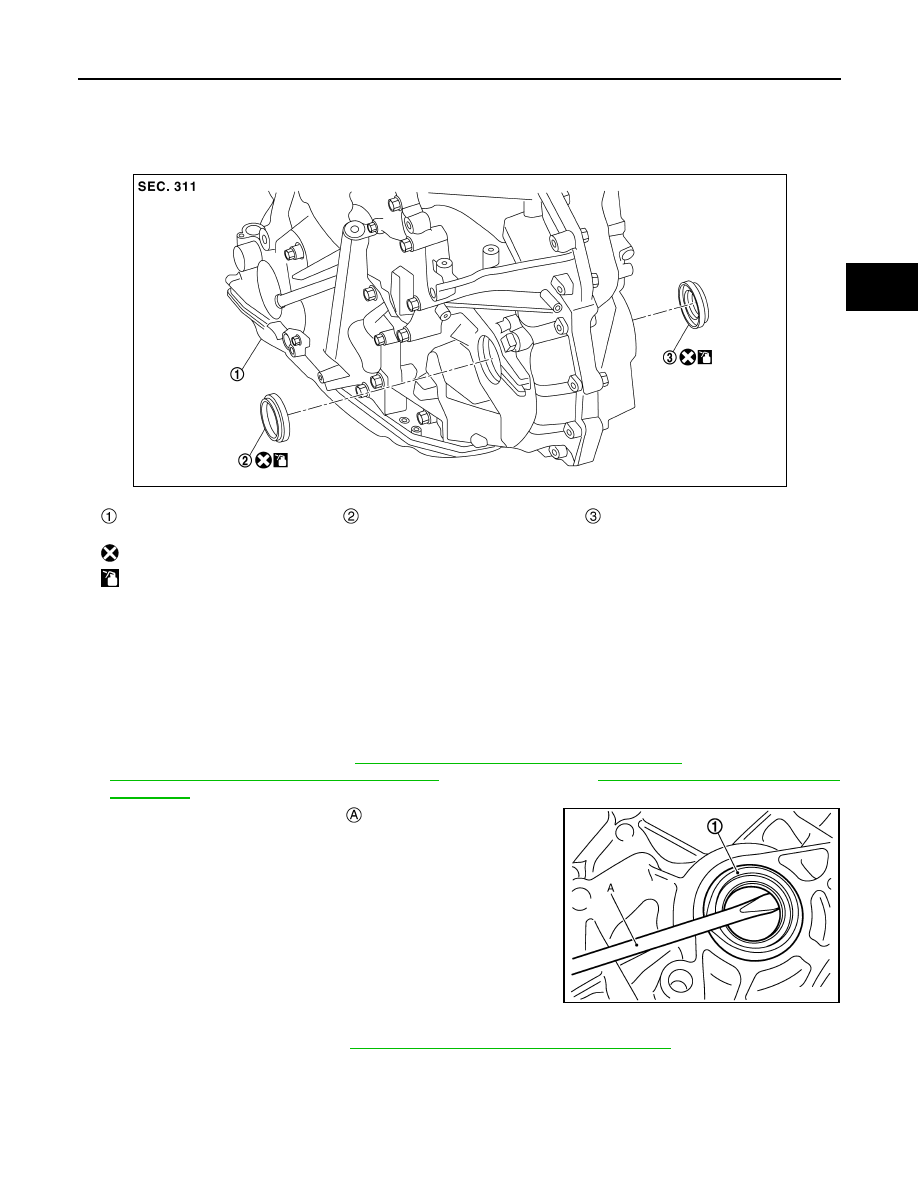

DIFFERENTIAL SIDE OIL SEAL

Exploded View

INFOID:0000000010622620

Removal and Installation

INFOID:0000000010622621

REMOVAL

NOTE:
When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spill-
ing.

Differential Side Oil Seal (Left Side)

1.

Remove front drive shaft. Refer to

FAX-36, "MR20DD : Removal and Installation"

 (2WD with MR20DD),

FAX-101, "MR20DD : Removal and Installation"

 (4WD with MR20DD),

FAX-113, "QR25DE : Removal and

Installation"

 (QR25DE).

2.

Remove differential side oil seal

 using oil seal remover (A)

(commercial service tool).

CAUTION:

Be careful not to scratch transaxle case and converter
housing.

Differential Side Oil Seal (Right Side) (2WD Models Only)

1.

Remove front drive shaft. Refer to

FAX-36, "MR20DD : Removal and Installation"

.

Transaxle assembly

Differential side oil seal (left side)

Differential side oil seal (right side)
(2WD models only)

: Always replace after every disassembly.

: Apply CVT fluid

JSDIA3729GB
