Nissan X-Trail 32. Manual - part 2116

TM-422

< REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

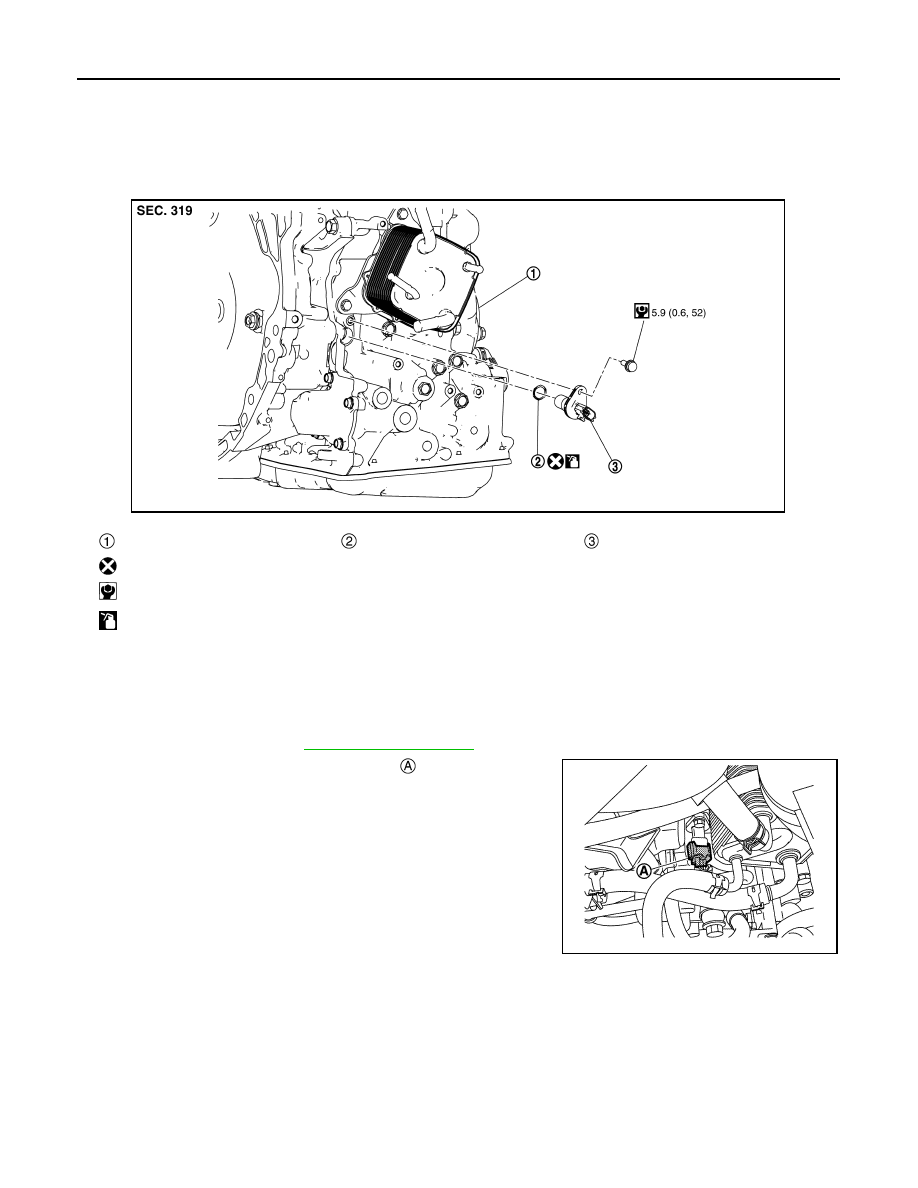

INPUT SPEED SENSOR

INPUT SPEED SENSOR

MR20DD

MR20DD : Exploded View

INFOID:0000000010622608

MR20DD : Removal and Installation

INFOID:0000000010622609

REMOVAL

1.

Turn ignition switch OFF.

2.

Remove air duct 1. Refer to

EM-30, "Exploded View"

.

3.

Disconnect input speed sensor connector

.

Transaxle assembly

O-ring

Input speed sensor

: Always replace after every disassembly.

: N·m (kg-m, in-lb)

: Apply CVT fluid

JSDIA5264GB

JSDIA5194ZZ

INPUT SPEED SENSOR

TM-423

< REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

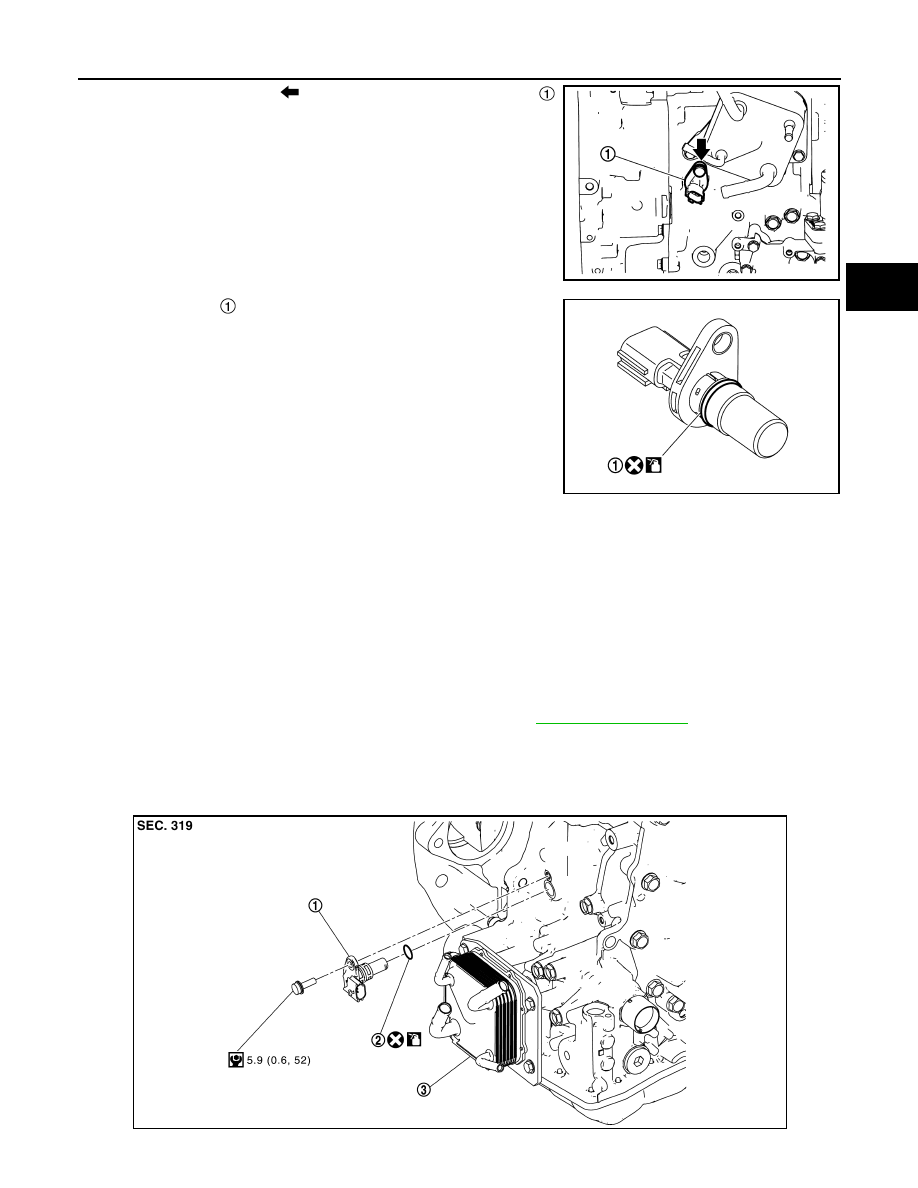

4.

Remove mounting bolt (

) and remove input speed sensor

from transaxle assembly.

5.

Remove O-ring

 from input speed sensor.

INSTALLATION

Note the followings and installation is in the reverse order of removal.

CAUTION:

• Never reuse O-ring.
• Apply CVT fluid to the O-ring.

MR20DD : Inspection and Adjustment

INFOID:0000000010622610

INSPECTION AFTER INSTALLATION

Start the engine and check visually that there is no leakage of CVT fluid.

ADJUSTMENT AFTER INSTALLATION

If CVT fluid leaks during work, adjust the CVT fluid level. Refer to

TM-401, "Adjustment"

.

QR25DE

QR25DE : Exploded View

INFOID:0000000010622611

JSDIA5195ZZ

JSDIA5196ZZ

JSDIA4131GB

TM-424

< REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

INPUT SPEED SENSOR

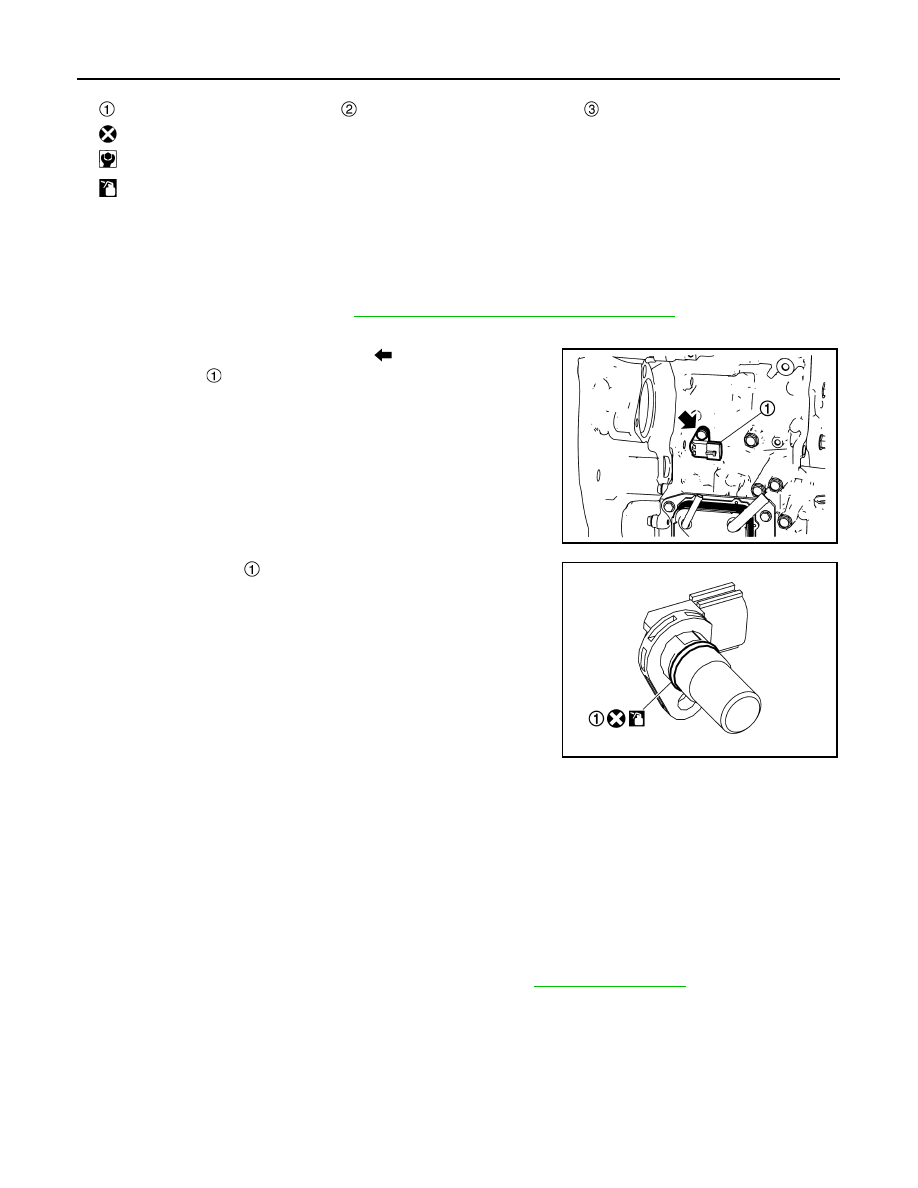

QR25DE : Removal and Installation

INFOID:0000000010622612

REMOVAL

1.

Turn ignition switch OFF.

2.

Remove the starter motor. Refer to

STR-34, "QR25DE : Removal and Installation"

.

3.

Disconnect the input speed sensor harness connector.

4.

Remove the input speed sensor bolt (

) and remove the input

speed sensor

.

5.

Remove the O-ring

 from the input speed sensor.

INSTALLATION

Note the followings and installation is in the reverse order of removal.

CAUTION:

• Never reuse O-ring.
• Apply CVT fluid to the O-ring.

QR25DE : Inspection and Adjustment

INFOID:0000000010622613

INSPECTION AFTER INSTALLATION

Start the engine and check visually that there is no leakage of CVT fluid.

ADJUSTMENT AFTER INSTALLATION

If CVT fluid leaks during work, adjust the CVT fluid level. Refer to

TM-401, "Adjustment"

.

Input speed sensor

O-ring

Transaxle assembly

: Always replace after every disassembly.

: N·m (kg-m, in-lb)

: Apply CVT fluid

JSDIA5427ZZ

JSDIA5199ZZ

PRIMARY SPEED SENSOR

TM-425

< REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

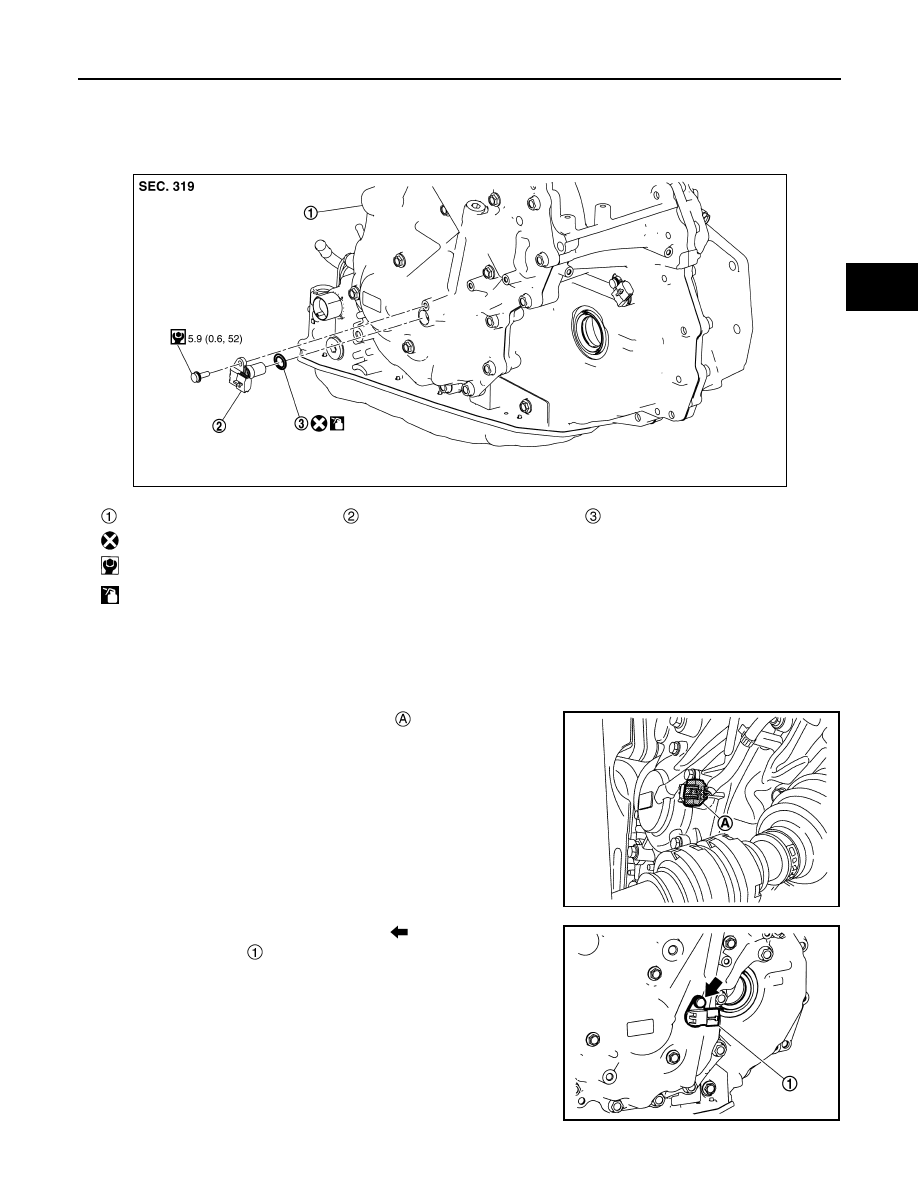

PRIMARY SPEED SENSOR

Exploded View

INFOID:0000000010622614

Removal and Installation

INFOID:0000000010622615

REMOVAL

1.

Turn ignition switch OFF.

2.

Disconnect the primary speed connector

.

3.

Remove the primary speed sensor bolt (

) and remove the pri-

mary speed sensor

.

Transaxle assembly

O-ring

Primary speed sensor

: Always replace after every disassembly.

: N·m (kg-m, in-lb)

: Apply CVT fluid

JSDIA5141GB

JSDIA5197ZZ

JSDIA5198ZZ
