TM-414

< REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

KEY INTERLOCK CABLE

• It must not be possible to turn the ignition switch to LOCK when the selector lever is not in the “P” position.

TCM

TM-415

< REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

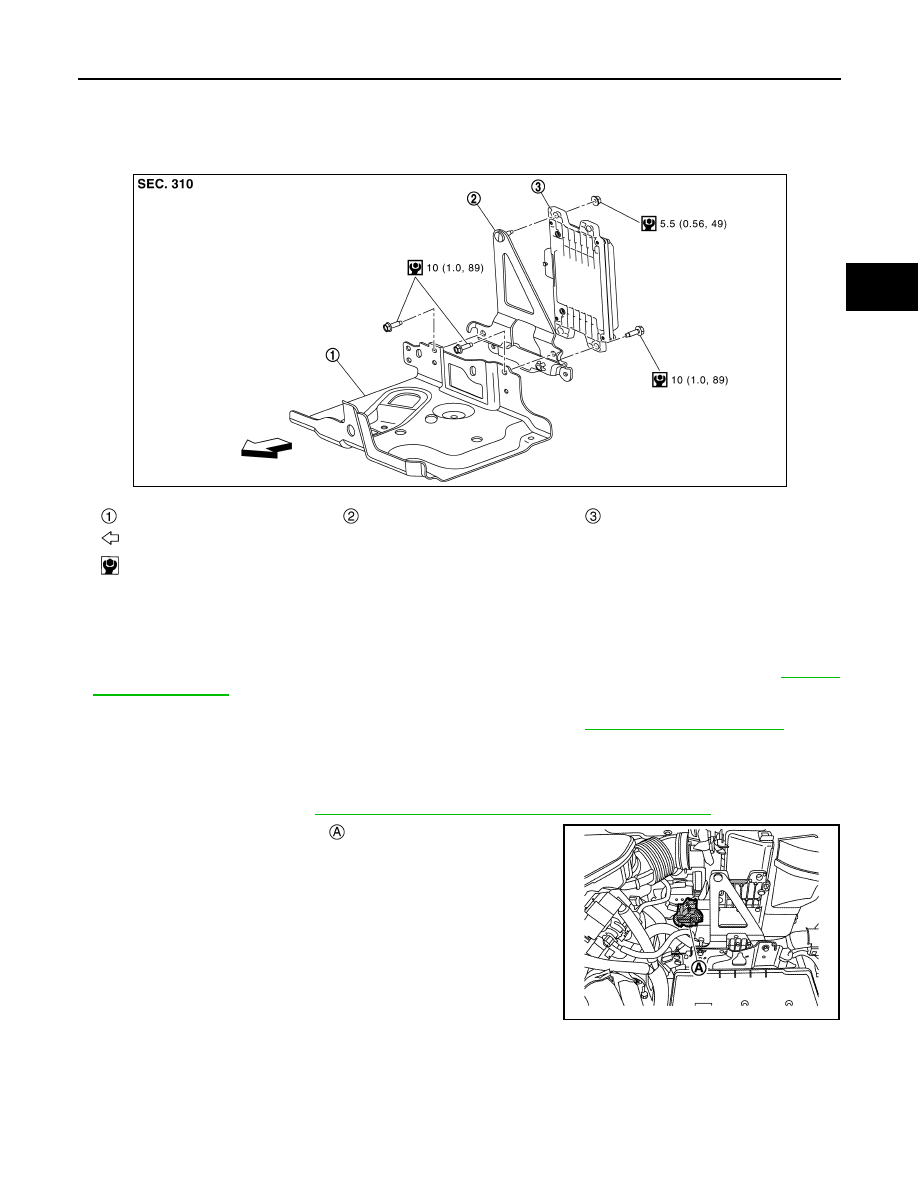

TCM

Exploded View

INFOID:0000000010622598

Removal and Installation

INFOID:0000000010622599

CAUTION:

• Never impact the TCM when removing or installing TCM.
• Before replacing TCM, perform "ADDITIONAL SERVICE WHEN REPLACING TCM". Refer to

TM-301,

"Work Procedure"

.

• When replacing TCM and transaxle assembly simultaneously, perform "ADDITIONAL SERVICE

WHEN REPLACING TCM AND TRANSAXLE ASSEMBLY". Refer to

TM-305, "Work Procedure"

.

• When replacing TCM, note the “CVTF DETERIORATION DATE” value displayed on CONSULT “CON-

FORM CVTF DETERIORTN” in MAINTENANCE BOOKLET, before start the operation.

REMOVAL

1.

Remove the battery. Refer to

PG-142, "EXCEPT FOR R9M : Removal and Installation"

.

2.

Disconnect the TCM connector

.

Bracket

Bracket

TCM

: Vehicle front

: N·m (kg-m, in-lb)

JSDIA5911GB

JSDIA5189ZZ

TM-416

< REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

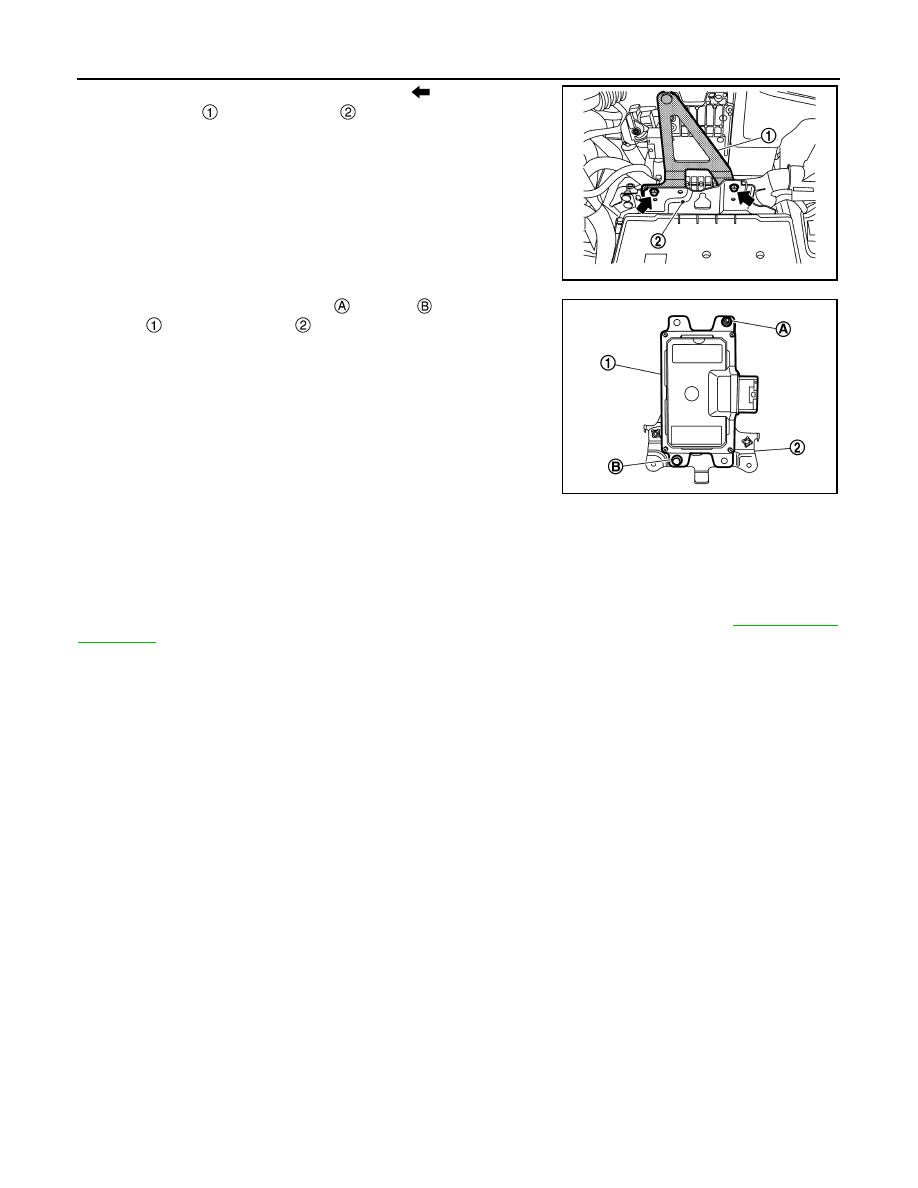

TCM

3.

Remove the TCM bracket mounting bolts (

) and remove the

TCM bracket

 from battery tray

.

4.

Remove the harness clip from TCM bracket.

5.

Remove the TCM mounting nut

 and bolt

, and remove the

TCM

 from TCM bracket

.

INSTALLATION

Installation is in the reverse order of removal.

Adjustment

INFOID:0000000010622600

ADJUSTMENT AFTER INSTALLATION

When replacing TCM, perform "ADDITIONAL SERVICE WHEN REPLACING TCM". Refer to

TM-301, "Work

Procedure"

.

JSDIA5190ZZ

JSDIA5191ZZ

AIR BREATHER

TM-417

< REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

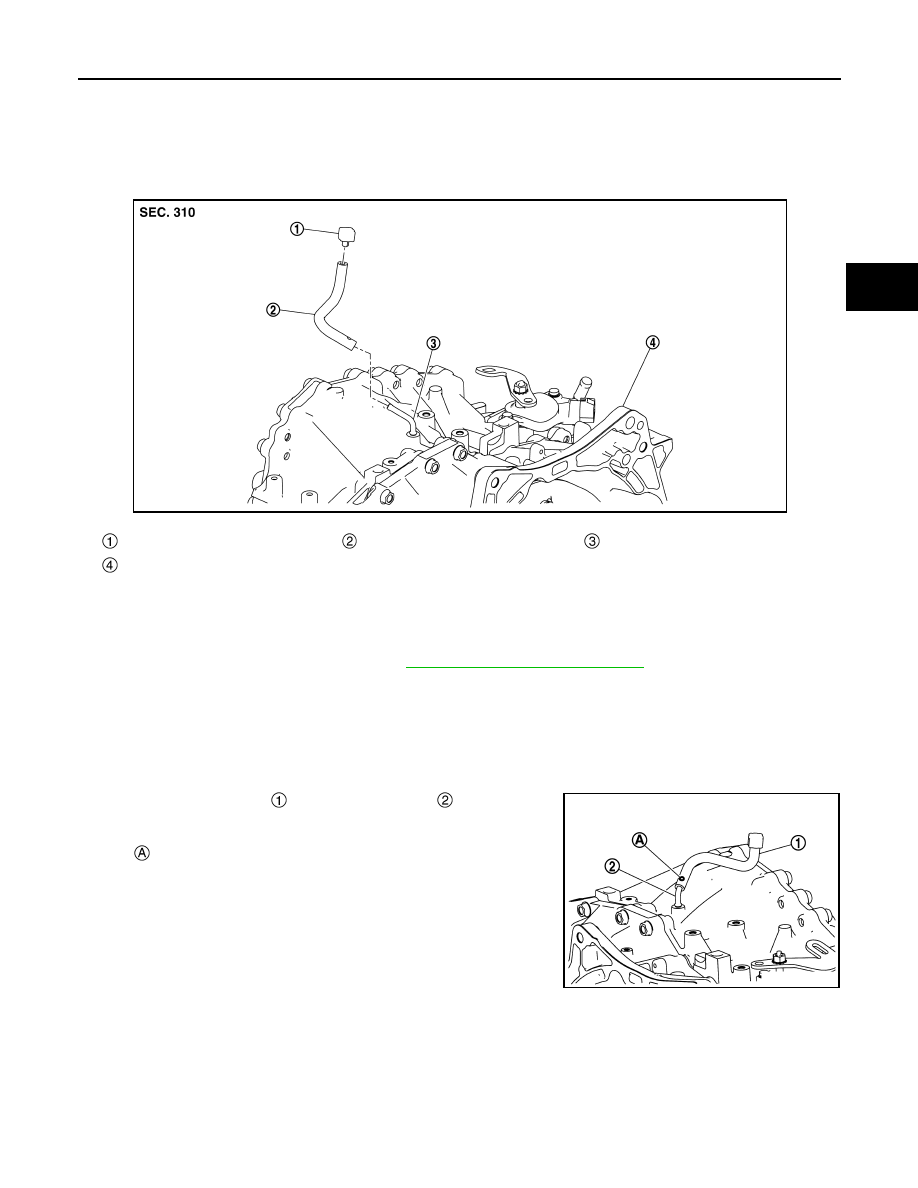

AIR BREATHER

MR20DD

MR20DD : Exploded View

INFOID:0000000010622601

MR20DD : Removal and Installation

INFOID:0000000010622602

REMOVAL

1.

Remove air duct 1 and air duct 2. Refer to

EM-31, "Removal and Installation"

.

2.

Remove air breather hose from transaxle assembly.

INSTALLATION

Note the followings and installation is in the reverse order of removal.

CAUTION:

• Never bend the air breather hose to prevent damage to the hose.
• Insert air breather hose to the end of air breather cap.
• Insert air breather hose

 to air breather tube

 all the way to

the curve of the tube.

• Insert air breather hose to air breather tube so that the paint

mark

 is facing upward.

QR25DE

Air breather cap

Air breather hose

Air breather tube

Transaxle assembly

JSDIA5130ZZ

JSDIA5229ZZ
