Nissan X-Trail 32. Manual - part 2113





TM-410

< REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

CONTROL CABLE

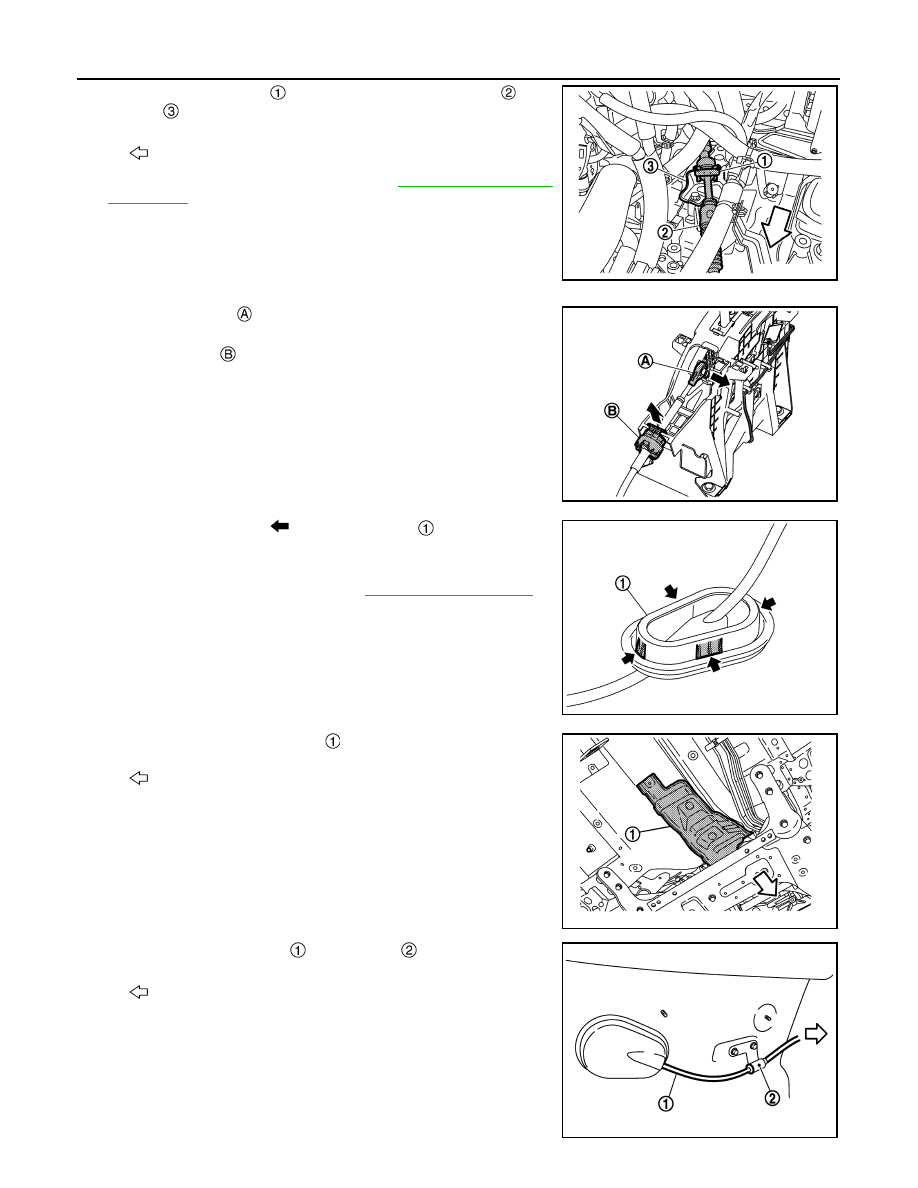

5.

Remove the lock plate

 and remove the control cable

 from

bracket .

6.

Remove the center console. Refer to

IP-25, "Removal and

Installation"

.

7.

Disconnect the tip

 of control cable from the CVT shift selector

assembly.

8.

Remove socket

 from CVT shift selector assembly.

CAUTION:

Never damage pawl of socket.

9.

Disengage the pawls (

) of the grommet

, and pull down-

wards to remove.

10. Lift up the vehicle.
11. Remove exhaust front tube. Refer to

EX-12, "Exploded View"

.

12. Remove the heat plate fixtures

.

13. Remove the control cable

 from bracket

.

14. Remove the control cable from the vehicle.

: Vehicle front

JSDIA5184ZZ

JSDIA5661ZZ

JSDIA5182ZZ

: Vehicle front

JSDIA5214ZZ

: Vehicle front

JPDIA0107ZZ

CONTROL CABLE

TM-411

< REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

INSTALLATION

Note the followings and install in the reverse order of removal.

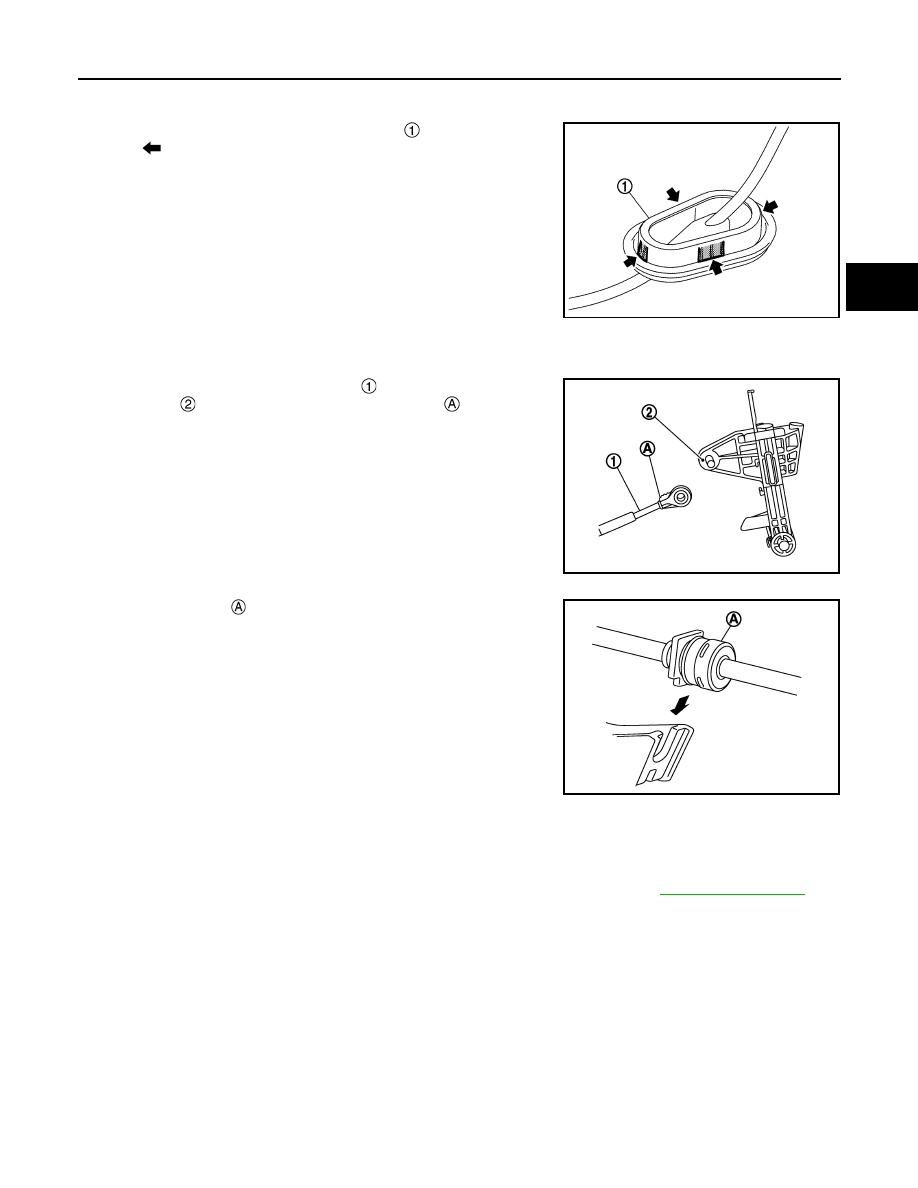

• From below the vehicle, press the grommet

 into place until the

pawls (

) make a click sound.

CAUTION:

• Place the grommet on the floor, then fasten it in place from

below the vehicle.

• Check that pulling down on the grommet does not discon-

nect it.

• Pay attention to the following when connecting the control cable to the CVT shift selector.
1.

Shift the selector lever and Manual lever to “P” position.

2.

When connecting the control cable

 to the CVT shift selector

assembly

, face the grooved surface of the rib

 up and insert

the control cable until it stops.

3.

Install the socket

 onto the CVT shift selector assembly.

CAUTION:

• Place the socket onto the CVT shift selector assembly,

then fasten it in place from above.

• Check that the pulling on the socket does not disconnect

it.

QR25DE : Inspection

INFOID:0000000010622597

INSPECTION AFTER INSTALLATION

Check the CVT position. If a malfunction is found, adjust the CVT position. Refer to

TM-308, "Inspection"

.

JSDIA5182ZZ

JPDIA0609ZZ

JSDIA1810ZZ

TM-412

< REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

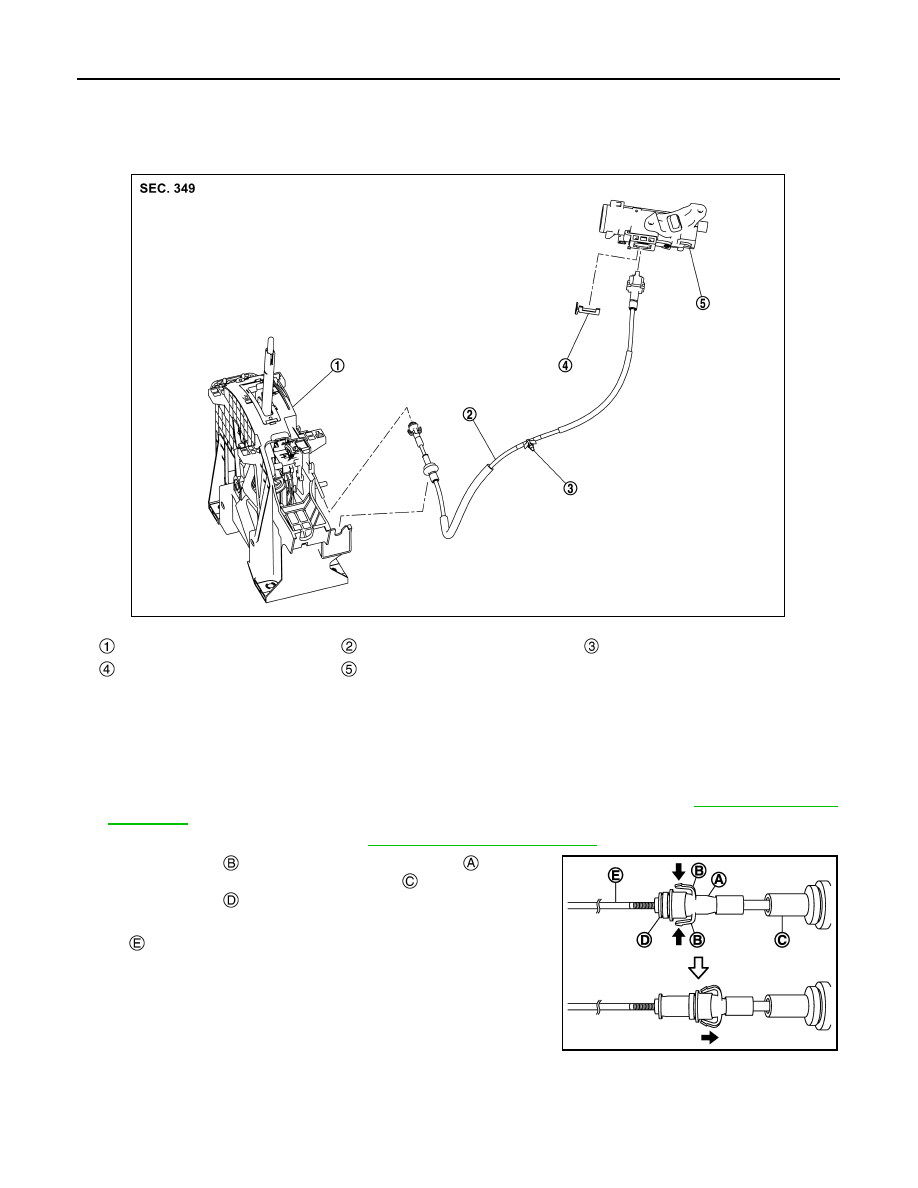

KEY INTERLOCK CABLE

KEY INTERLOCK CABLE

Exploded View

INFOID:0000000011009338

Removal and Installation

INFOID:0000000011009339

REMOVAL

CAUTION:

Always apply the parking brake before performing removal and installation.
1.

Remove the instrument lower panel (driver side) and steering column cover. Refer to

IP-14, "Removal and

Installation"

.

2.

Remove the center console. Refer to

IP-25, "Removal and Installation"

.

3.

Press the pawls

 of the key interlock cable slider

 while slid-

ing it in the direction of the casing cap

, and separate the

adjusting holder

 and slider.

4.

Remove the key interlock cable from the shift selector.

Shift selector assembly

Key interlock cable

Clip

Clip

Key cylinder

JSDIA6482ZZ

:Key interlock rod

JSDIA1797ZZ

KEY INTERLOCK CABLE

TM-413

< REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

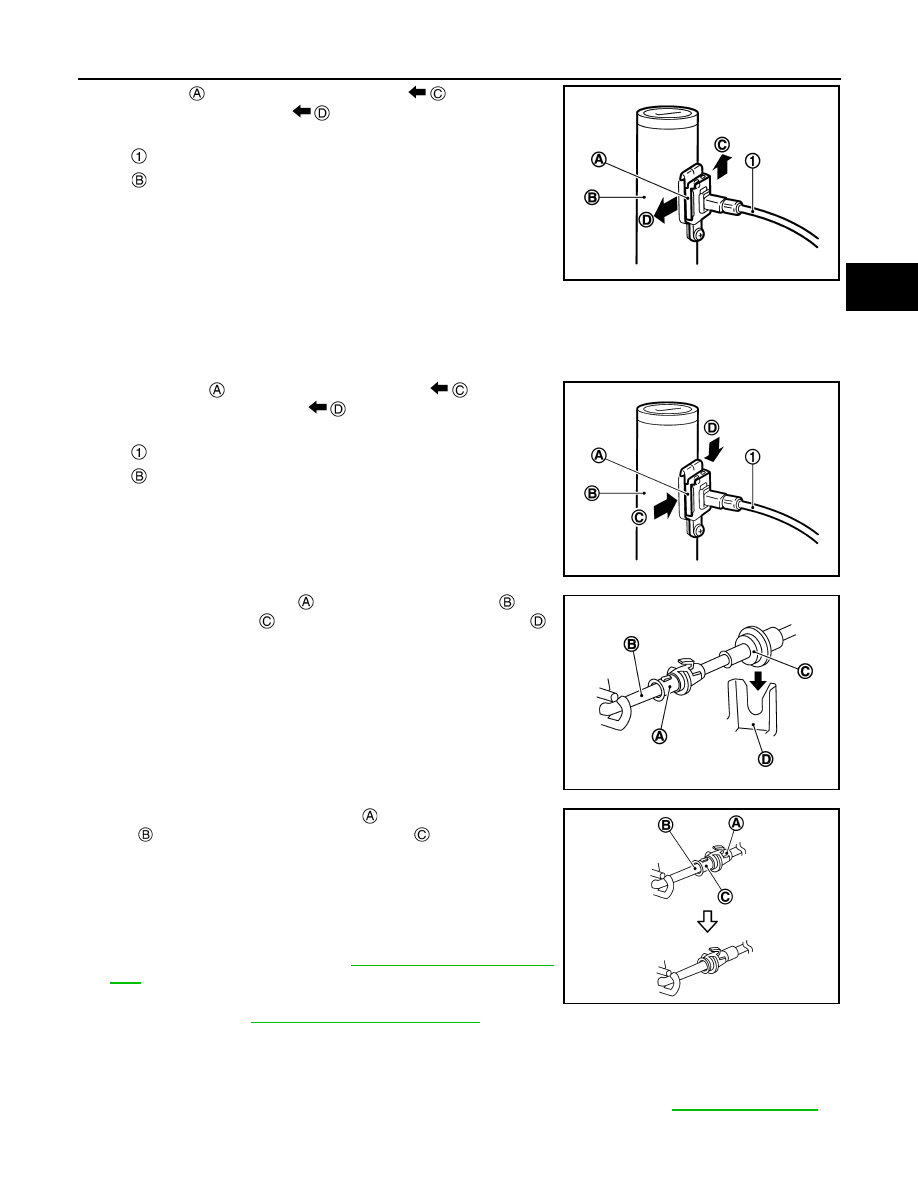

5.

Lift the clip

 in the direction of the arrow (



) and remove in

the direction of the arrow (



).

6.

Remove the key interlock cable from the key cylinder.

7.

Disengage the clip and disconnect the key interlock cable from
the vehicle.

INSTALLATION

1.

Move the shift selector to "P" position.

2.

Turn the ignition switch to ACC or ON position.

3.

Install the holder of key interlock cable to key cylinder.

4.

Install the clip

 in the direction of the arrow (



) and push it

in the direction of the arrow (



).

5.

Turn the ignition switch to LOCK position.

6.

Install the adjusting holder

 onto the key interlock rod

, then

install the casing cap

 onto the shift selector cable bracket

.

CAUTION:

• When installing the key interlock cable, do not bend or

twist the cable forcefully.

• After connecting the key interlock cable to the shift selec-

tor cable bracket, be sure to check that the casing cap is
completely fastened to the cable bracket. If the casing cap
is easily displaced, replace the key interlock cable.

7.

Slide the key interlock cable slider

 toward the key interlock

rod

 side and install the adjusting holder

 and key interlock

rod.

CAUTION:

• Never squeeze the pawls on the key interlock cable slider

when holding the slider.

• Never apply force in a perpendicular direction to the key

interlock rod when sliding the slider.

8.

Install the center console. Refer to

IP-25, "Removal and Installa-

tion"

.

9.

Install the instrument lower panel (driver side) and steering col-
umn cover. Refer to

IP-14, "Removal and Installation"

.

Inspection

INFOID:0000000011009340

INSPECTION AFTER INSTALLATION

• Check the CVT position. If a malfunction is found, adjust the CVT position. Refer to

TM-308, "Inspection"

.

• The key can be removed only when the selector lever is in the “P” position.

: Key interlock cable

: Key cylinder

JSDIA1798ZZ

: Key interlock cable

: Key cylinder

JSDIA3589ZZ

JSDIA1799ZZ

JSDIA2644ZZ
