Nissan X-Trail 32. Manual - part 2111

TM-402

< PERIODIC MAINTENANCE >

[CVT: RE0F10D]

CVT FLUID

15. Stop the engine.

CVT SHIFT SELECTOR

TM-403

< REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

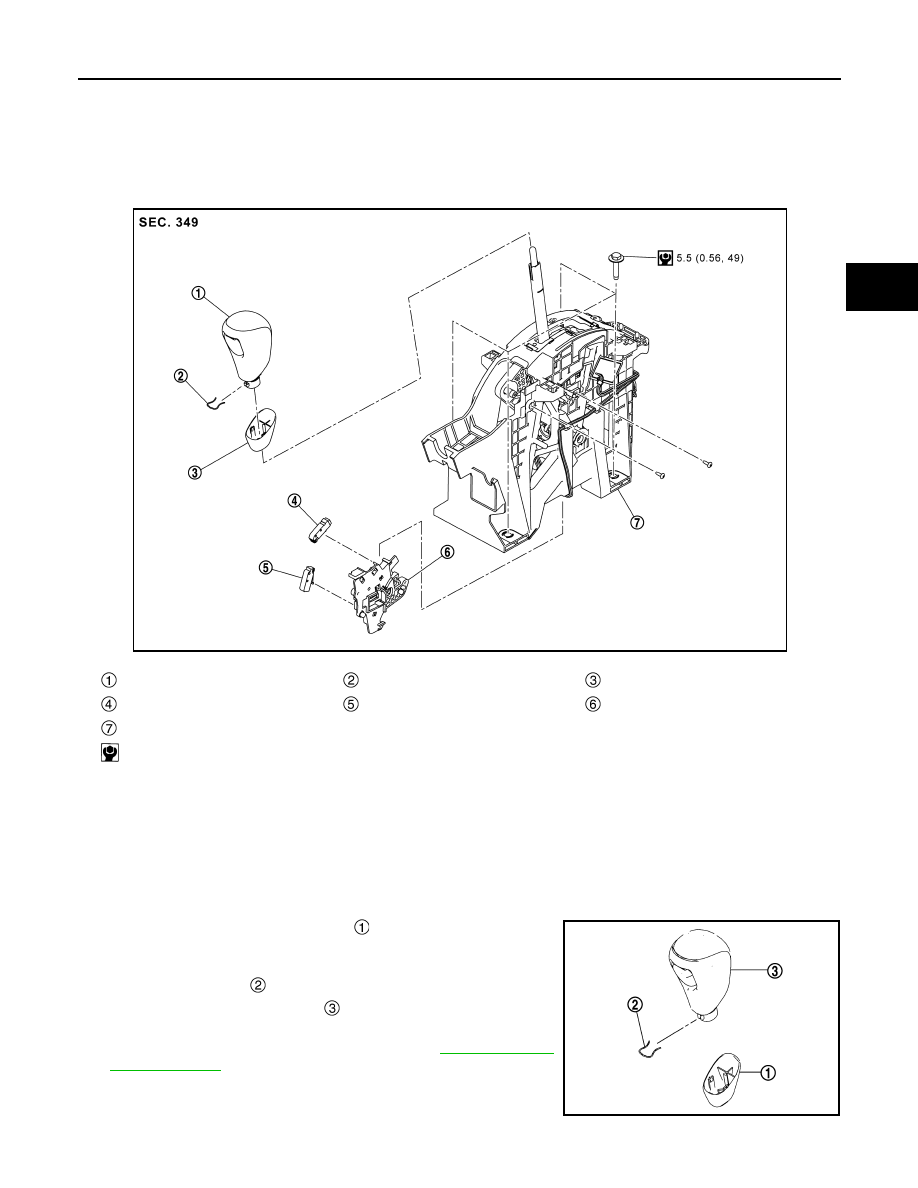

REMOVAL AND INSTALLATION

CVT SHIFT SELECTOR

Exploded View

INFOID:0000000010622588

Removal and Installation

INFOID:0000000010622589

REMOVAL

CAUTION:

Always apply the parking brake before performing removal and installation.

1.

Shift the selector lever to “N” position.

2.

Slide the selector lever knob cover

 down.

CAUTION:

Never damage the knob cover.

3.

Pull out the lock pin

.

4.

Pull the selector lever knob

 and knob cover upwards to

remove them.

5.

Remove the center console assembly. Refer to

IP-25, "Removal

and Installation"

.

6.

Disconnect the CVT shift selector connector.

7.

Shift the selector lever to “P” position.

Selector lever knob

.

Lock pin

Knob cover

Detent switch*

Park position switch

Shift lock unit

CVT shift selector assembly

:N·m (kg-m, in-lb)

*: With intelligent key system

JSDIA6478GB

JSDIA2778ZZ

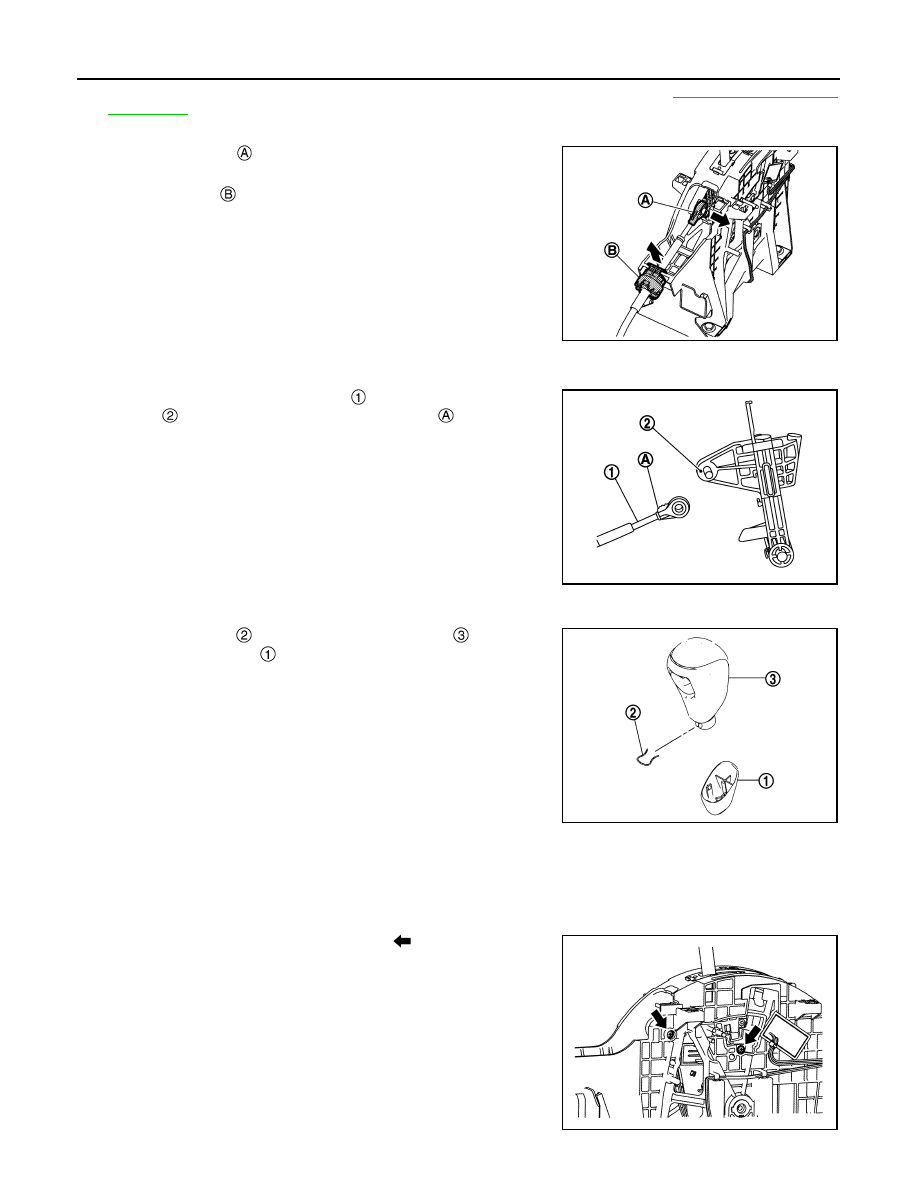

TM-404

< REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

CVT SHIFT SELECTOR

8.

Disconnect the key interlock cable from CVT shift selector assembly. Refer to

TM-412, "Removal and

Installation"

. (Without intelligent key system)

9.

Remove the control cable from the CVT shift selector assembly with the following procedure.

a.

Disconnect the tip

 of control cable from the CVT shift selector

assembly.

b.

Remove socket

 from CVT shift selector assembly.

CAUTION:

Never damage the pawl of socket.

10. Remove harness clips from the CVT shift selector with a clip

remover.

11. Remove CVT shift selector assembly mounting bolts.

12. Remove the CVT shift selector assembly.

INSTALLATION

Note the following, and install in the reverse order of removal.
• When connecting the control cable

 to the CVT shift selector

assembly

, face the grooved surface of the rib

 up and insert

the control cable until it stops.

• Follow the procedure below and place the selector knob onto the CVT shift selector.
1.

Install the lock pin

 onto the selector lever knob

.

2.

Install the knob cover

 onto the selector lever knob.

3.

Press the selector lever knob onto the selector lever until it
clicks.

CAUTION:

• When pressing the selector lever knob onto the selector

lever, never press the selector lever knob button.

• Never strike the selector lever knob to press it into place.

4.

After installing selector lever knob, pull the knob to check that it
does not become disconnected.

Disassembly and Assembly

INFOID:0000000010622590

DISASSEMBLY

CAUTION:

Confirm the installation condition of wiring before disassembly.

1.

Remove shift lock unit mounting screws (

).

JSDIA5661ZZ

JPDIA0609ZZ

JSDIA2778ZZ

JSDIA6479ZZ

CVT SHIFT SELECTOR

TM-405

< REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

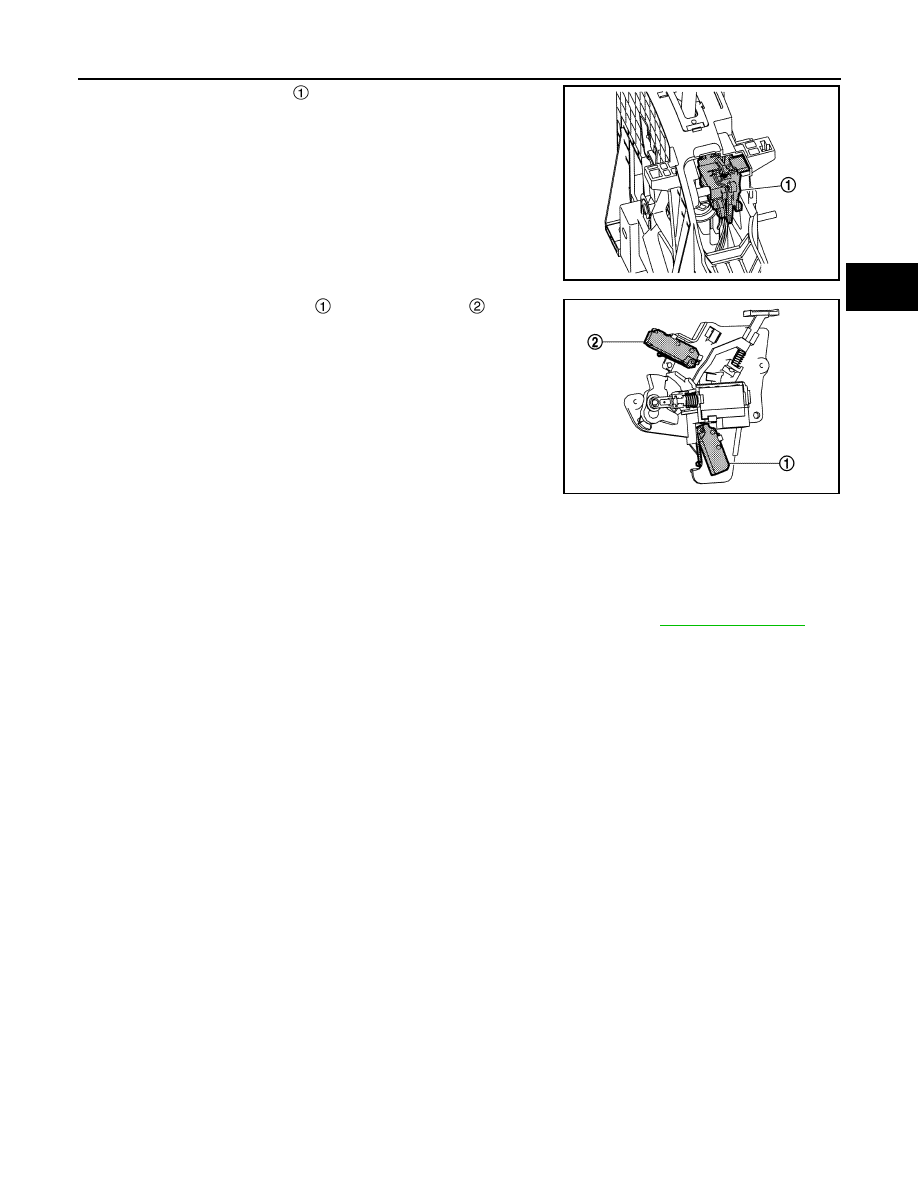

2.

Remove the shift lock unit

 from the CVT shift selector assem-

bly.

3.

Disconnect shift lock solenoid harness connector, park position
switch harness connector, and detent switch harness connec-
tor*.
*: With intelligent key system

4.

Remove park position switch

 and detent switch*

 from shift

lock unit.
*: With intelligent key system

CAUTION:

Never damage pawls.

ASSEMBLY

Assemble in the reverse order of disassembly.

Inspection

INFOID:0000000010622591

INSPECTION AFTER INSTALLATION

Check the CVT position. If a malfunction is found, adjust the CVT position. Refer to

TM-308, "Inspection"

.

JSDIA6480ZZ

JSDIA6481ZZ
