TRANSAXLE ASSEMBLY

a.

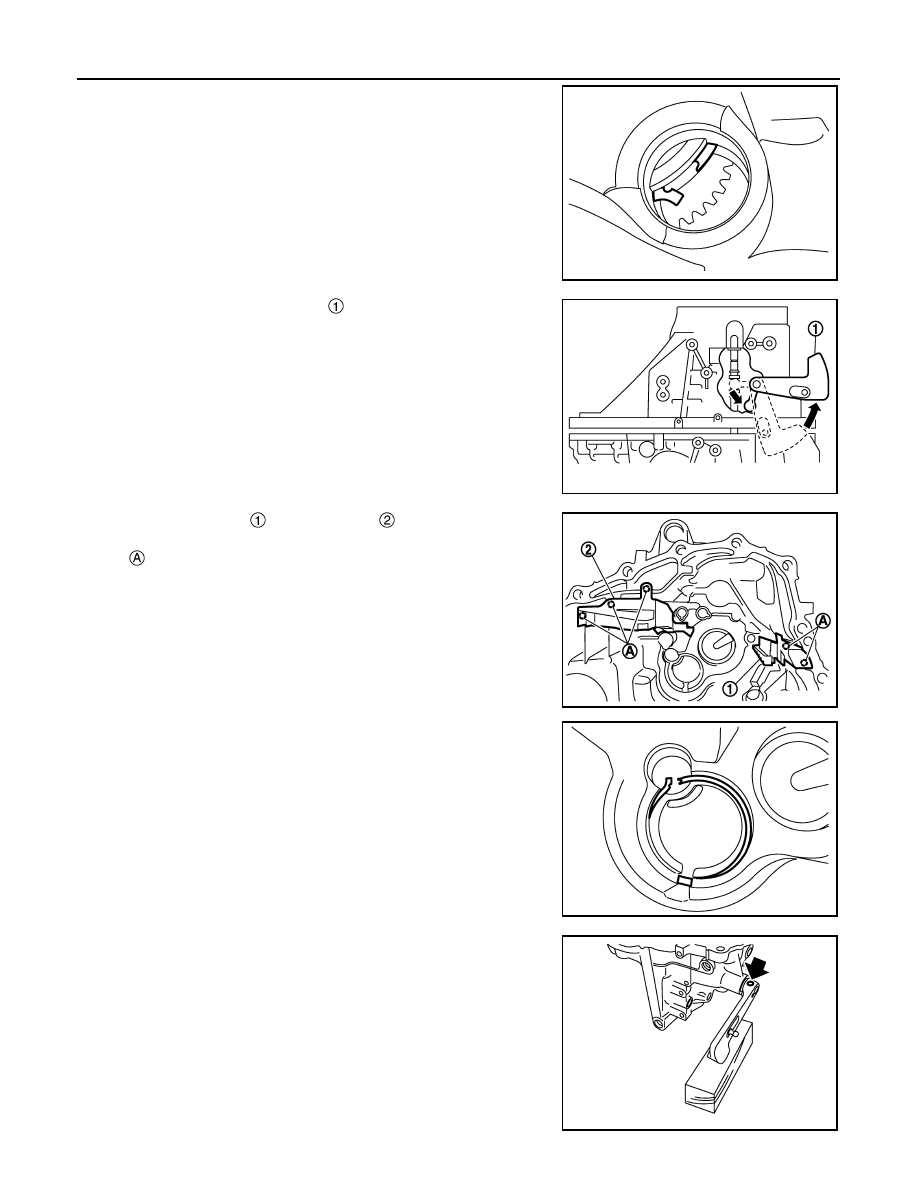

Expand snap ring at mainshaft rear bearing accessing from the
bore plug hole. Then pull up transaxle case from clutch housing
until snap ring comes off.

b.

While rotating shift lever (outer)

 in the direction of the arrow in

the figure, remove transaxle case from clutch housing.

CAUTION:

Never drop each adjusting shim.
NOTE:
Make sure to hold shift lever (outer) in the position shown in the
figure. Otherwise transaxle case cannot be removed from clutch
housing.

12. Remove oil gutter A

 and oil gutter B

 from transaxle case.

13. Remove snap ring from transaxle case.

14. Remove retaining pin using a pin punch (commercial service

tool) and then remove shift lever (outer) and shift lever (inner)
from transaxle case.

PCIB1840E

JPDIC0140ZZ

: Tab of oil gutter

PCIB1841E

PCIB1842E

PCIB1844E

TRANSAXLE ASSEMBLY

TM-163

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

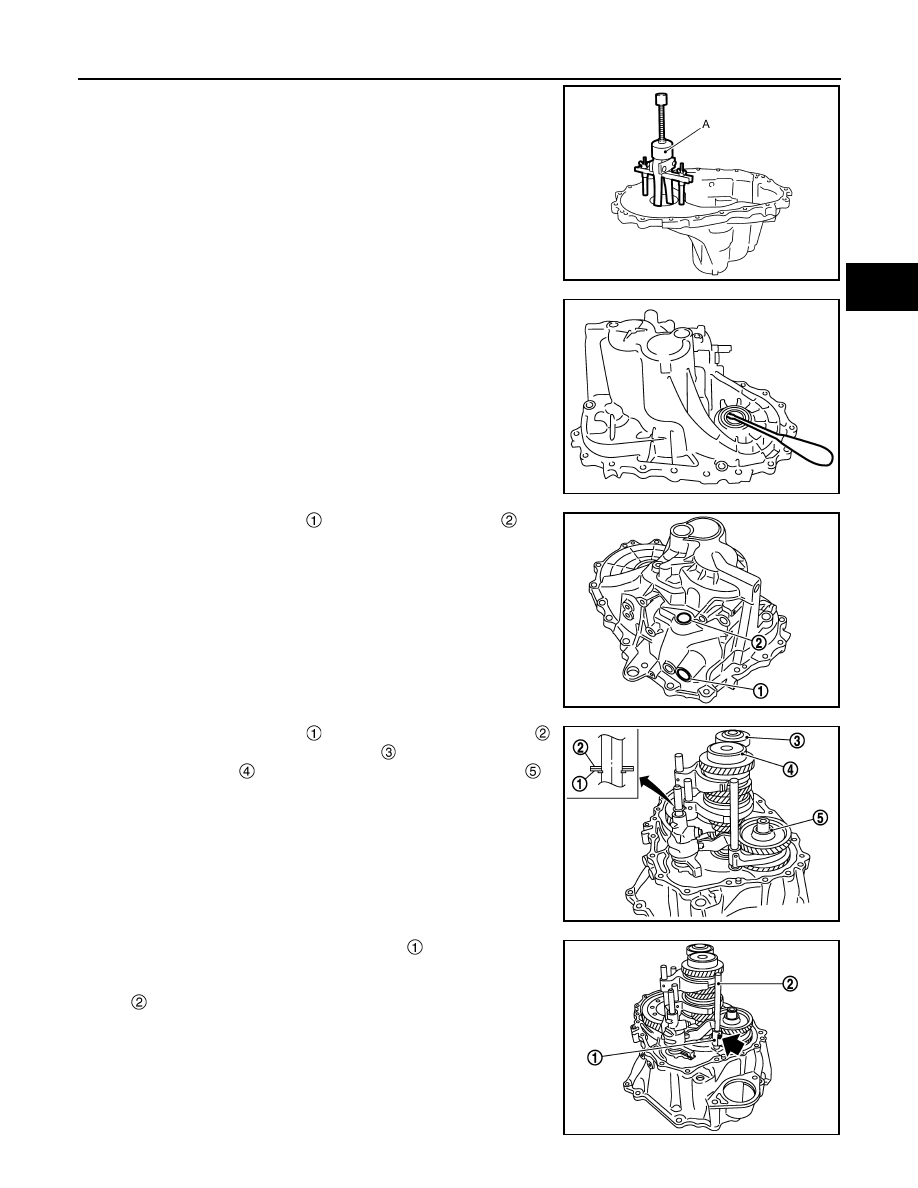

15. Remove differential side bearing outer race (transaxle case

side) from transaxle case using the puller (A) (SST:
KV381054S0) and then remove differential side bearing adjust-
ing shim from transaxle case.

CAUTION:

Never damage transaxle case and differential side bearing
outer race.

16. Remove differential side oil seal from transaxle case, using oil

seal remover (commercial service tool).

CAUTION:

Never damage transaxle case.

17. Remove shift lever oil seal

 and striking rod oil seal

 from

transaxle case, using oil seal remover (commercial service tool).

CAUTION:

Never damage transaxle case.

18. Remove striking rod shim

, striking rod adjusting shim

,

mainshaft rear bearing adjusting shim

, input shaft rear bear-

ing adjusting shim

, and reverse idler gear adjusting shim

.

19. Remove retaining pin of reverse shift fork

 using a pin punch

(commercial service tool).

JSDIA6487ZZ

SCIA0397E

PCIB1846E

PCIB1858E

: Reverse fork rod

PCIB1850E

TM-164

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

TRANSAXLE ASSEMBLY

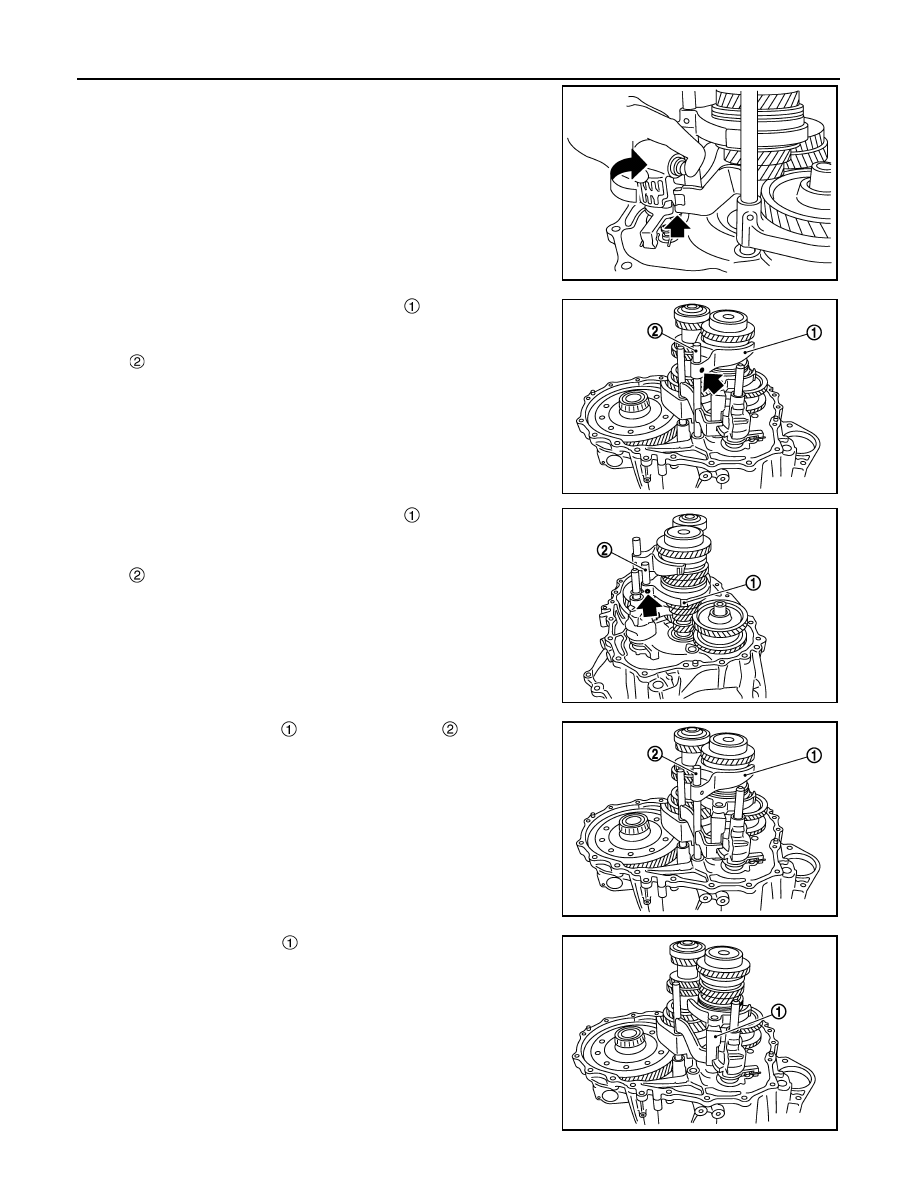

20. Rotate striking lever of striking rod as shown in the figure. Then

rotate reverse fork rod to a position where bracket of reverse
fork rod does not interfere with striking lever of striking rod.

21. Pull out reverse shift fork and reverse fork rod.

22. Remove retaining pin of 5th-6th shift fork

 using a pin punch

(commercial service tool).

23. Remove retaining pin of 3rd-4th shift fork

 using a pin punch

(commercial service tool).

24. Pull out 3rd-4th fork rod.

25. Pull out 5th-6th shift fork

 and 5th-6th fork rod

.

26. Pull out 3rd-4th shift fork

.

PCIB1851E

: 5th-6th fork rod

PCIB1852E

: 3rd-4th fork rod

PCIB1853E

PCIB1854E

PCIB1855E

TRANSAXLE ASSEMBLY

TM-165

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

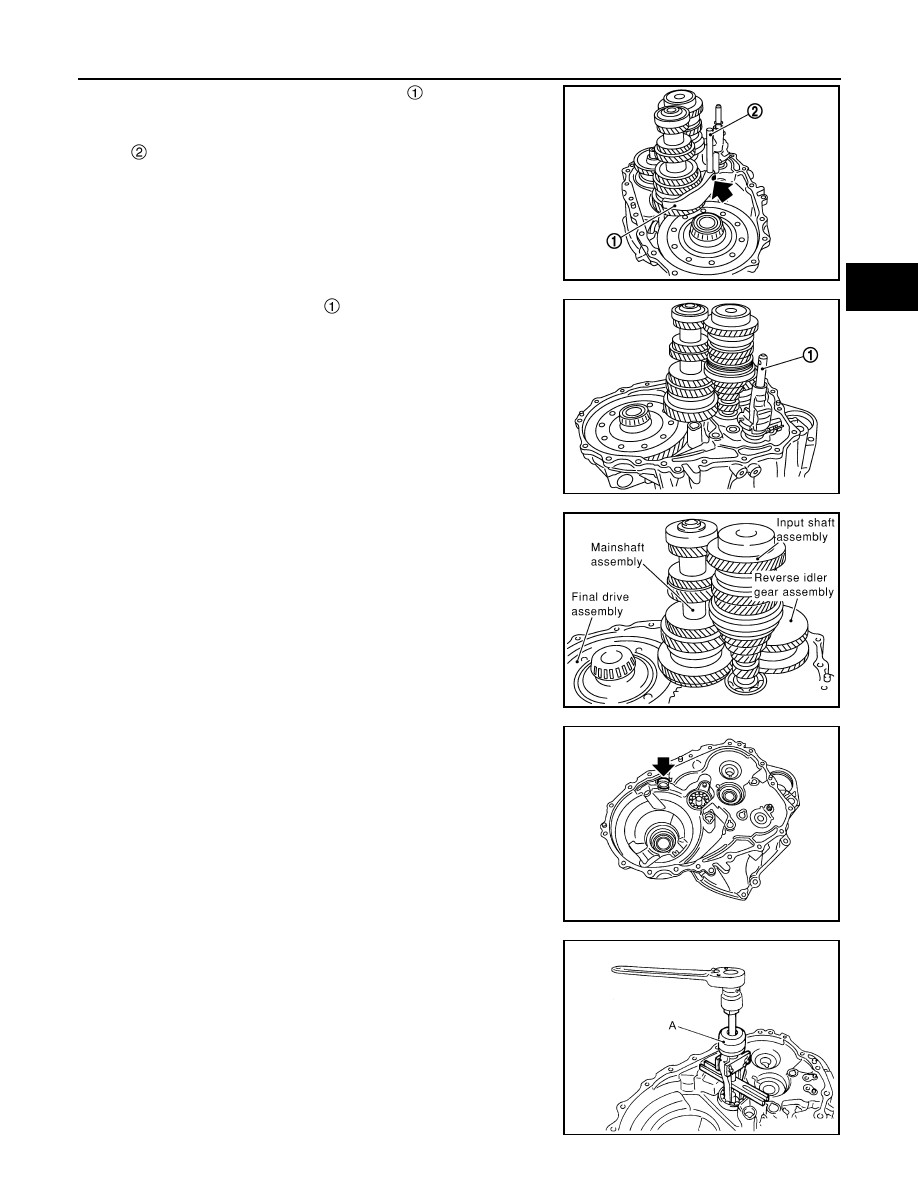

27. Remove retaining pin of 1st-2nd shift fork

 using a pin punch

(commercial service tool).

28. Pull out 1st-2nd shift fork and 1st-2nd fork rod.

29. Remove striking rod assembly

.

30. Remove gear components from clutch housing, as per the fol-

lowing procedure.

a.

Remove a set of input shaft assembly, mainshaft assembly, and
reverse idler gear assembly by tapping the tip of input shaft from
the back of the clutch housing with a plastic hammer.

CAUTION:

Always withdraw mainshaft straight out. Failure to do so
can damage resin oil channel on clutch housing side.

b.

Remove final drive assembly.

31. Remove magnet from clutch housing.

32. Remove mainshaft bearing retainer and then mainshaft front

bearing from clutch housing using the puller (A) (SST:
KV381054S0).

CAUTION:

Never damage clutch housing, mainshaft front bearing, and
oil channel.

33. Remove oil channel from clutch housing.

: 1st-2nd fork rod

PCIB1856E

PCIB1857E

SCIA0964E

PCIB1859E

JSDIA6488ZZ
