< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

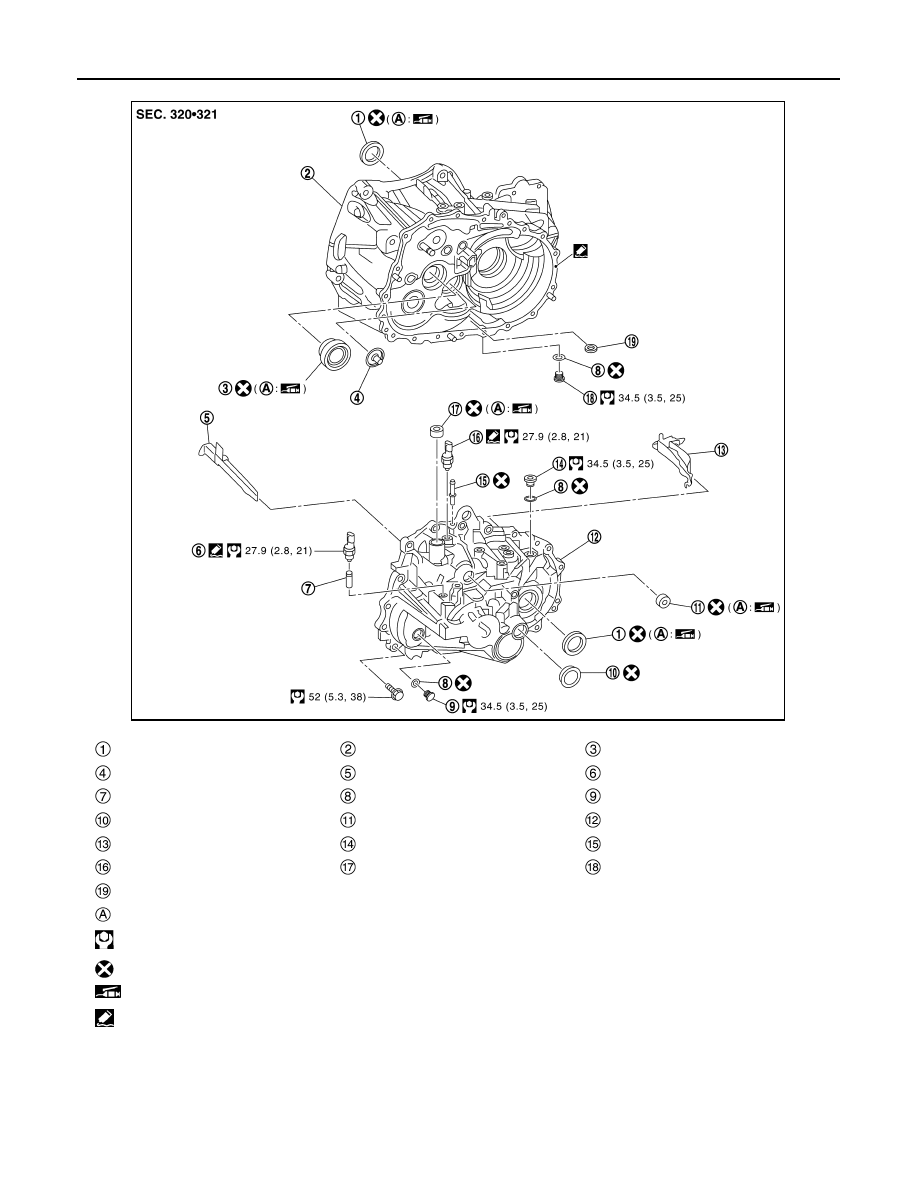

TRANSAXLE ASSEMBLY

SHAFT AND GEAR

Differential side oil seal

Clutch housing

Input shaft oil seal

Oil channel

Oil gutter A

Back-up lamp switch

Plunger

Gasket

Plug

Bore plug

Striking rod oil seal

Transaxle case

Oil gutter B

Filler plug

Air breather tube

Neutral position switch

Shift lever oil seal

Drain plug

Magnet

Oil seal lip

: N·m (kg-m, ft-lb)

: Always replace after every disassembly.

: Apply multi-purpose grease.

: Apply Genuine Liquid Gasket, Three Bond 1215 or an equivalent.

JSDIA6361GB

TRANSAXLE ASSEMBLY

TM-155

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

CAUTION:

Apply gear oil to gears, shafts, synchronizers, and bearings when assembly.

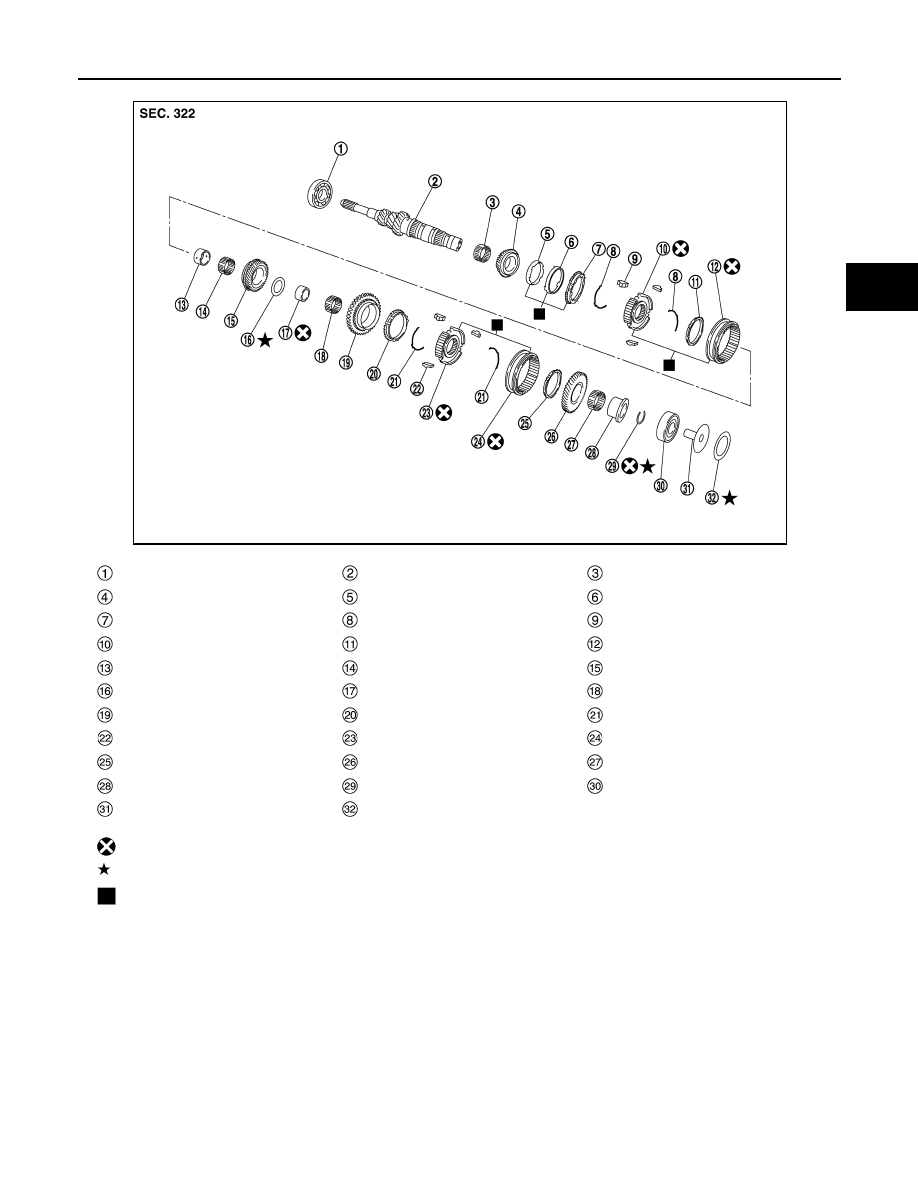

Input shaft front bearing

Input shaft

3rd needle bearing

3rd input gear

3rd inner baulk ring

3rd synchronizer cone

3rd outer baulk ring

3rd-4th spread spring

3rd-4th shifting insert

3rd-4th synchronizer hub

4th baulk ring

3rd-4th coupling sleeve

4th input gear bushing

4th needle bearing

4th input gear

Thrust washer

5th input gear bushing

5th needle bearing

5th input gear

5th baulk ring

5th-6th spread spring

5th-6th shifting insert

5th-6th synchronizer hub

5th-6th coupling sleeve

6th baulk ring

6th input gear

6th needle bearing

6th input gear bushing

Snap ring

Input shaft rear bearing

Oil channel

Input shaft rear bearing adjusting
shim

: Always replace after every disassembly.

: Select with proper thickness.

: Replace the parts as a set.

JSDIA6366ZZ

TM-156

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

TRANSAXLE ASSEMBLY

CAUTION:

Apply gear oil to gears, shafts, synchronizers, and bearings when assembly.

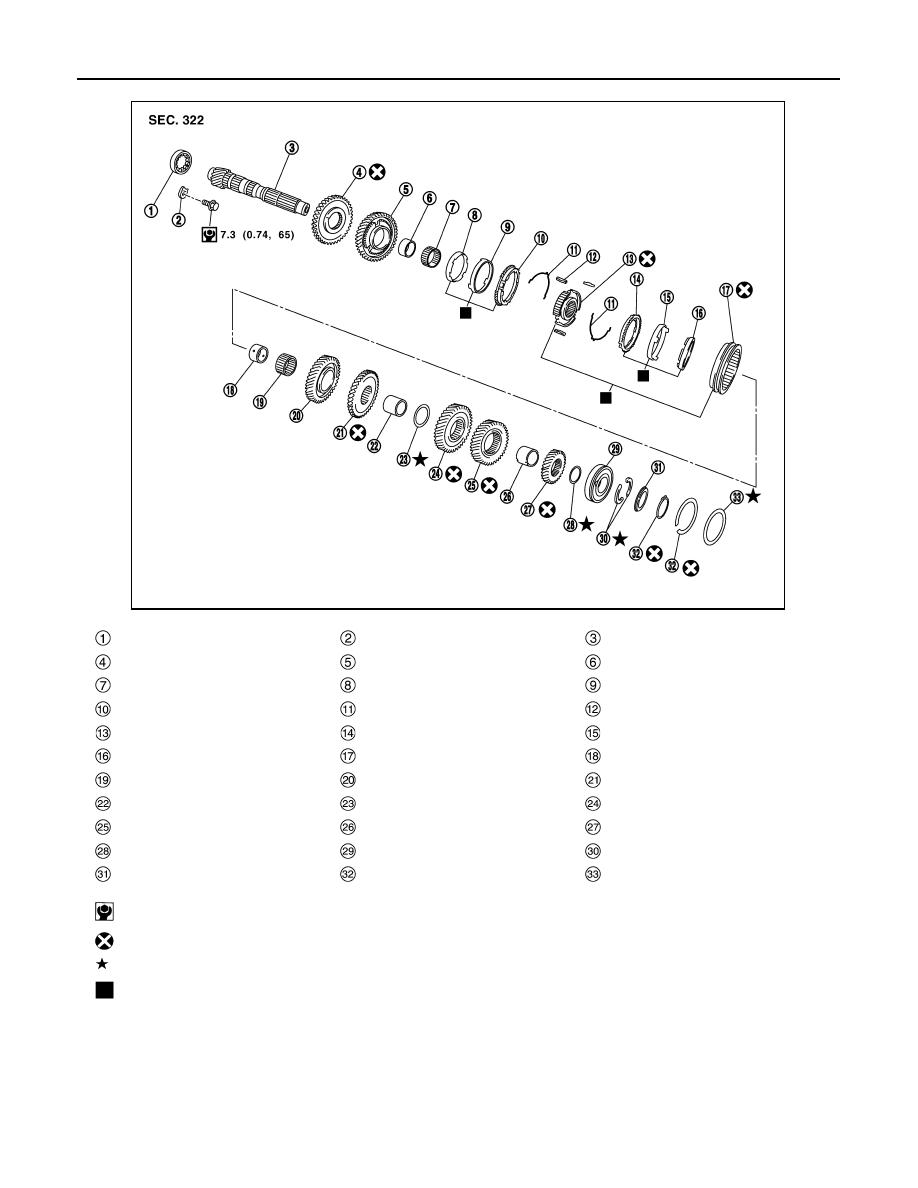

Mainshaft front bearing

Mainshaft bearing retainer

Mainshaft

Reverse main gear

1st main gear

1st main gear bushing

1st needle bearing

1st inner baulk ring

1st synchronizer cone

1st outer baulk ring

1st-2nd spread spring

1st-2nd shifting insert

1st-2nd synchronizer hub

2nd outer baulk ring

2nd synchronizer cone

2nd inner baulk ring

1st-2nd coupling sleeve

2nd main gear bushing

2nd needle bearing

2nd main gear

3rd main gear

3rd-4th mainshaft spacer

4th main gear adjusting shim

4th main gear

5th main gear

5th-6th mainshaft spacer

6th main gear

6th main gear adjusting shim

Mainshaft rear bearing

Mainshaft C-ring

C-ring holder

Snap ring

Mainshaft rear bearing adjusting
shim

: N·m (kg-m, in-lb)

: Always replace after every disassembly.

: Select with proper thickness.

: Replace the parts as a set.

PCIB1889E

TRANSAXLE ASSEMBLY

TM-157

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

CAUTION:

Apply gear oil to gears, shafts, synchronizers, and bearings when assembly.

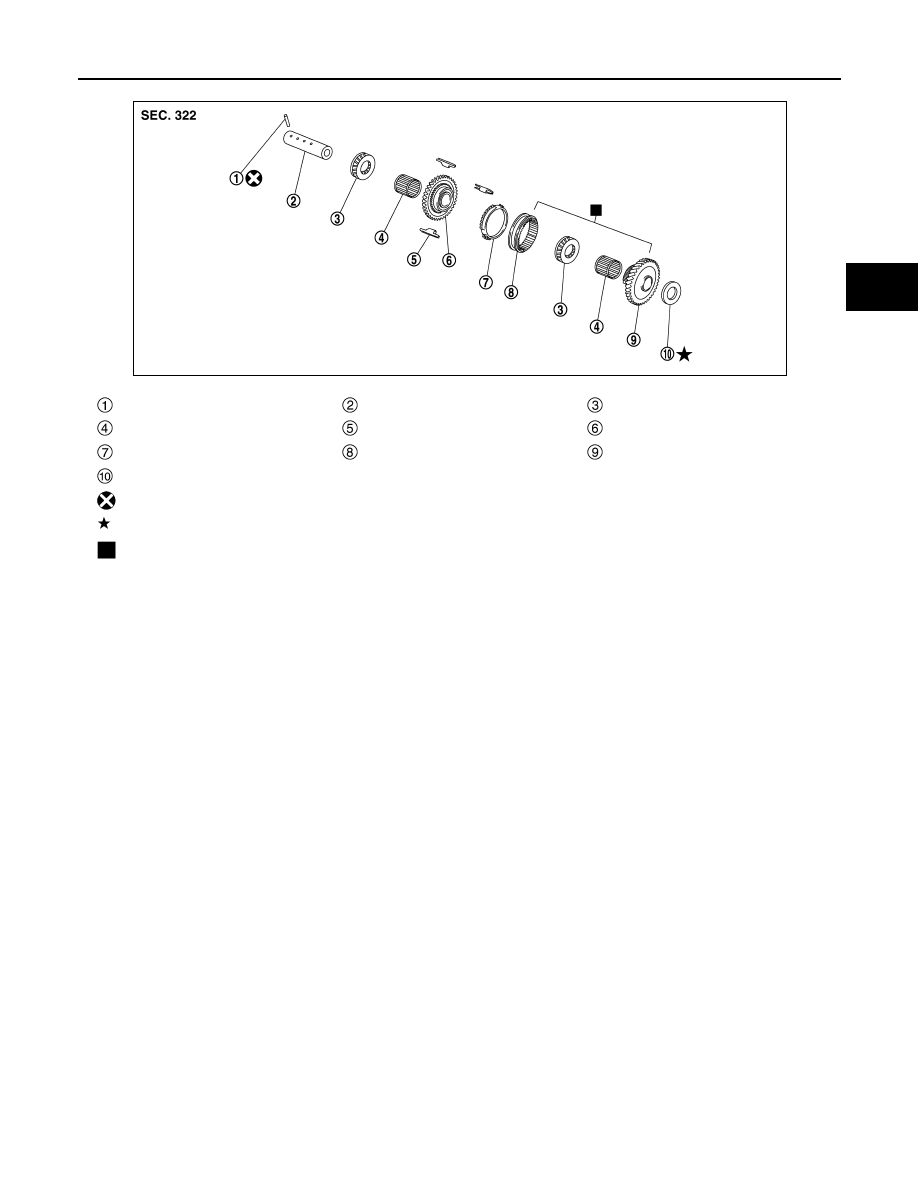

SHIFT FORK AND FORK ROD

Retaining pin

Reverse idler shaft

Thrust needle bearing

Reverse idler gear needle bearing

Reverse insert spring

Reverse idler gear (front)

Reverse baulk ring

Reverse coupling sleeve

Reverse idler gear (rear)

Reverse idler gear adjusting shim

: Always replace after every disassembly.

: Select with proper thickness.

: Replace the parts as a set.

JSDIA6367ZZ
