Nissan X-Trail 32. Manual - part 2050





TM-158

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

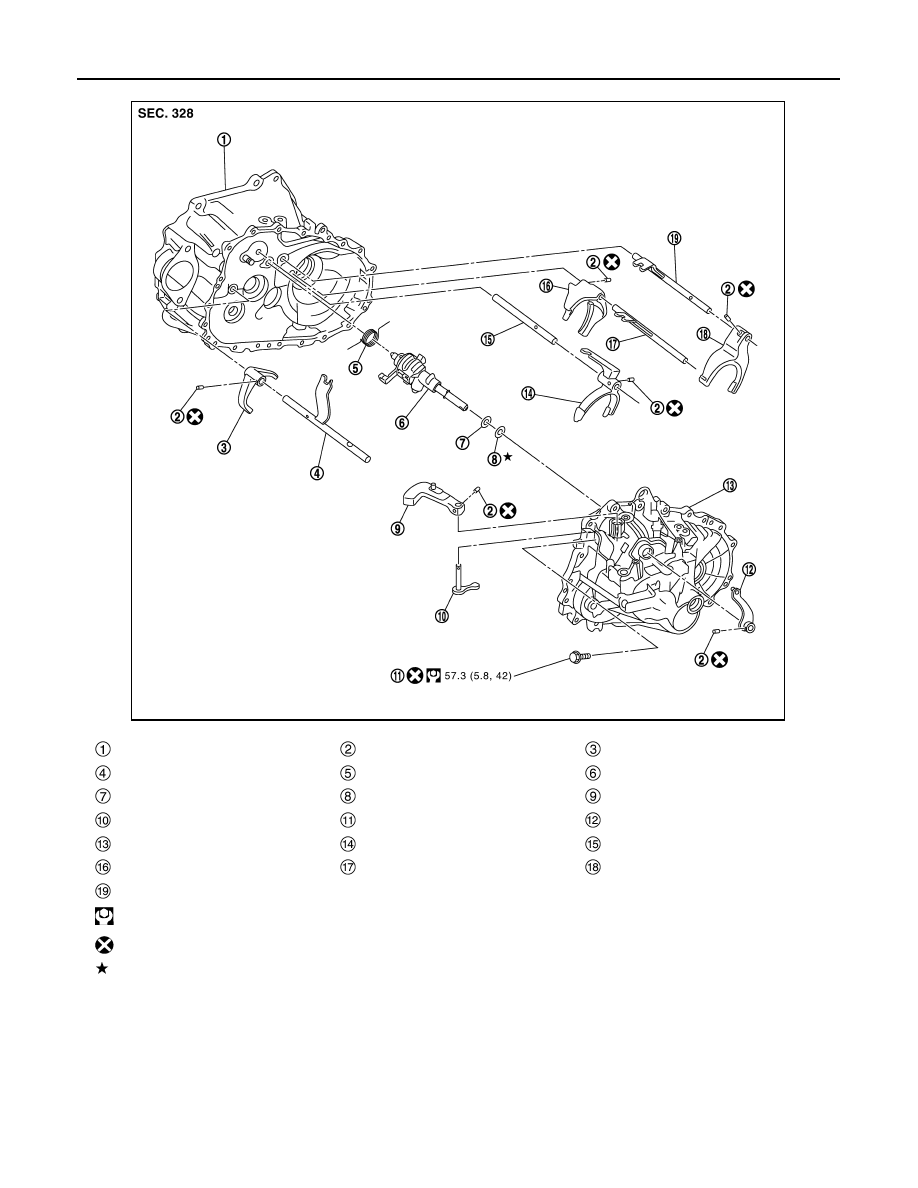

TRANSAXLE ASSEMBLY

FINAL DRIVE

Clutch housing

Retaining pin

Reverse shift fork

Reverse fork rod

Return spring

Striking rod assembly

Striking rod shim

Striking rod adjusting shim

Shift lever (outer)

Shift lever (inner)

Guide bolt

Select lever

Transaxle case

3rd-4th shift fork

3rd-4th fork rod

1st-2nd shift fork

1st-2nd fork rod

5th-6th shift fork

5th-6th fork rod

: N·m (kg-m, ft-lb)

: Always replace after every disassembly.

: Select with proper thickness.

PCIB1806E

TRANSAXLE ASSEMBLY

TM-159

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

CAUTION:

Apply gear oil to gears, shafts, and bearings when assembly.

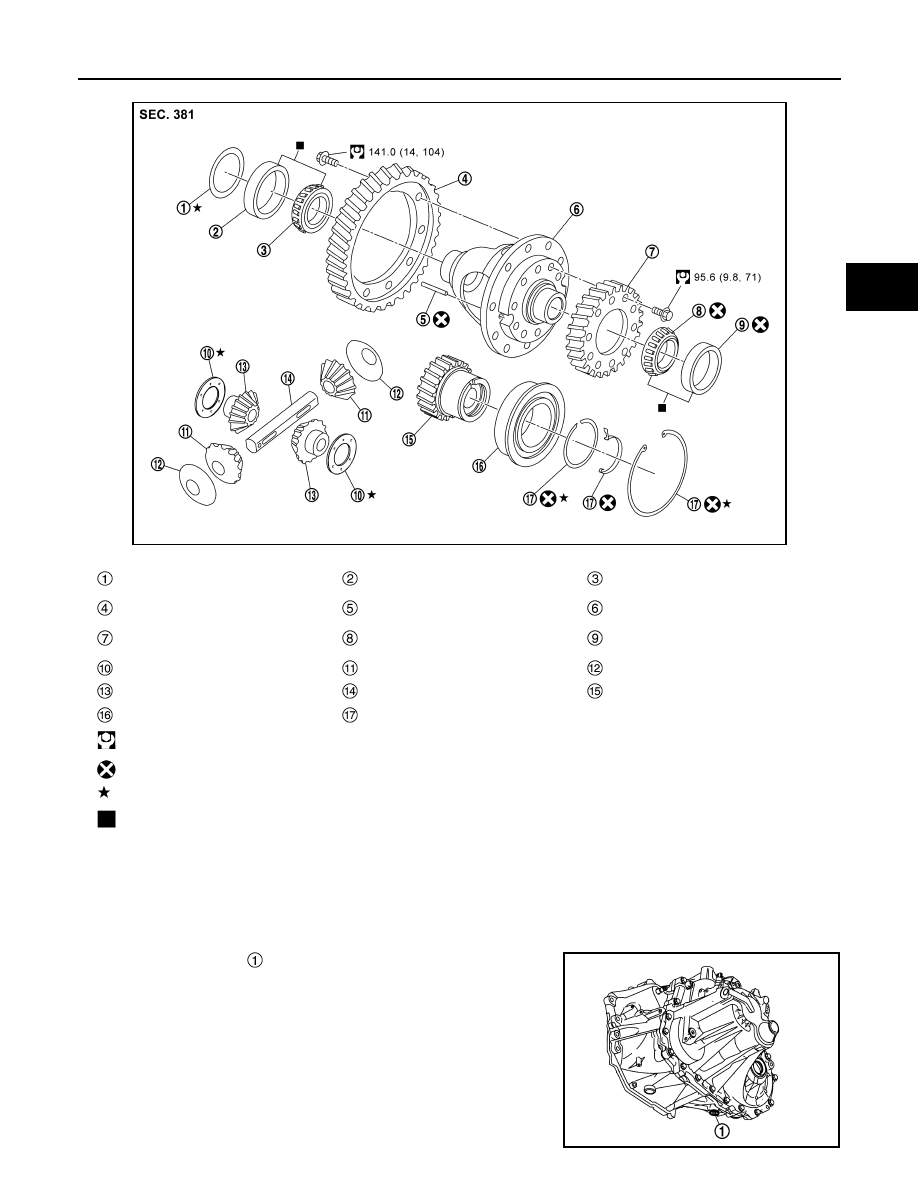

4WD : Disassembly and Assembly

INFOID:0000000010919407

DISASSEMBLY

1.

Remove drain plug

 with gasket from clutch housing and then

drain gear oil.

JSDIA6362GB

Differential side bearing adjusting
shim

Differential side bearing outer race
(transaxle case side)

Differential side bearing (transaxle
case side)

Final gear

Retaining pin

Differential case

Reduction gear

Differential side bearing (clutch hous-
ing side)

Differential side bearing outer race
(clutch housing side)

Side gear thrust washer

Pinion mate gear

Pinion mate thrust washer

Side gear

Pinion mate shaft

Output gear

Output gear bearing

Snap ring

: N·m (kg-m, ft-lb)

: Always replace after every disassembly.

: Select with proper thickness.

: Replace the parts as a set.

JSDIA6154ZZ

TM-160

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

TRANSAXLE ASSEMBLY

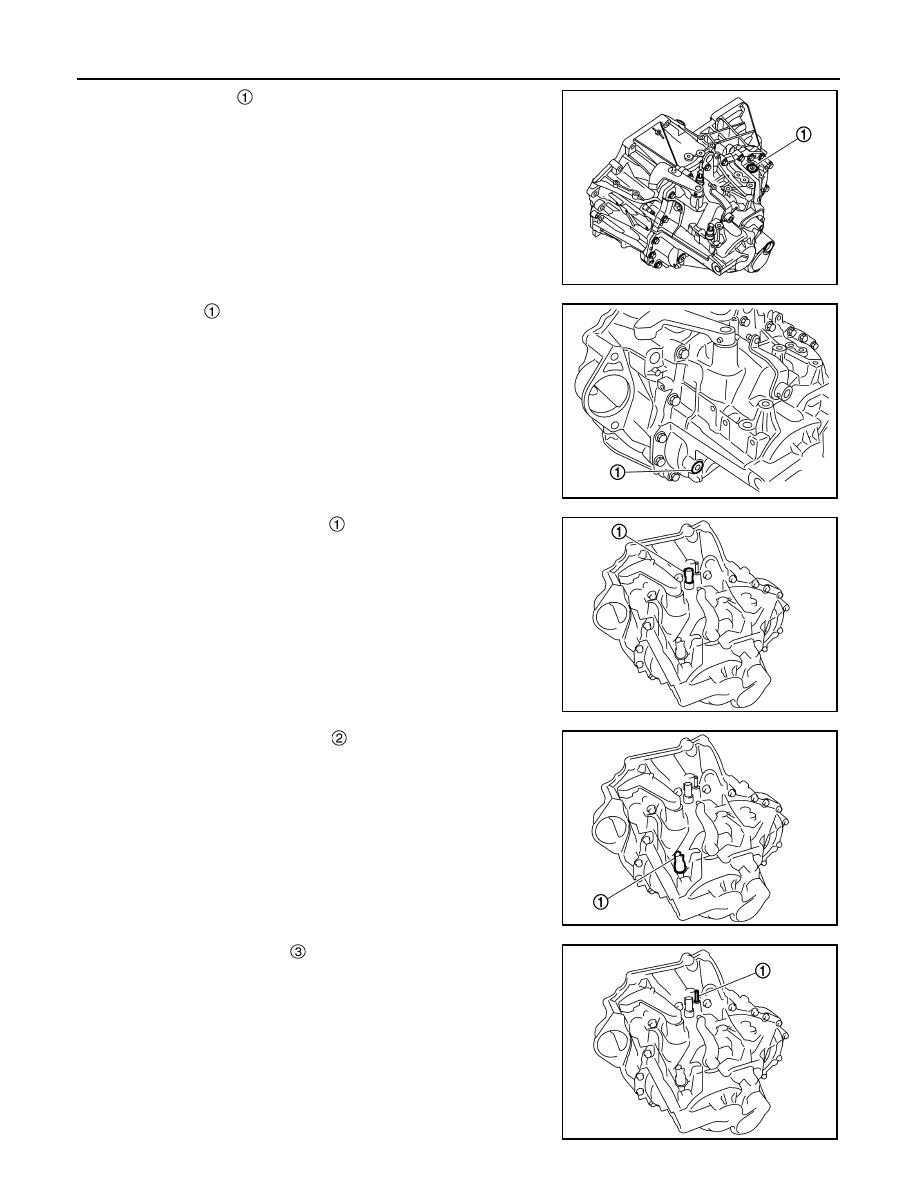

2.

Remove filler plug

 with gasket from transaxle case.

3.

Remove plug

 with gasket from transaxle case.

4.

Remove neutral position switch

 from transaxle case.

5.

Remove back-up lamp switch

 and plunger from transaxle

case.

CAUTION:

Never lose plunger.

6.

Remove air breather tube

 from transaxle case.

JSDIA6155ZZ

JSDIA6483ZZ

JSDIA6484ZZ

JSDIA6485ZZ

JSDIA6486ZZ

TRANSAXLE ASSEMBLY

TM-161

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

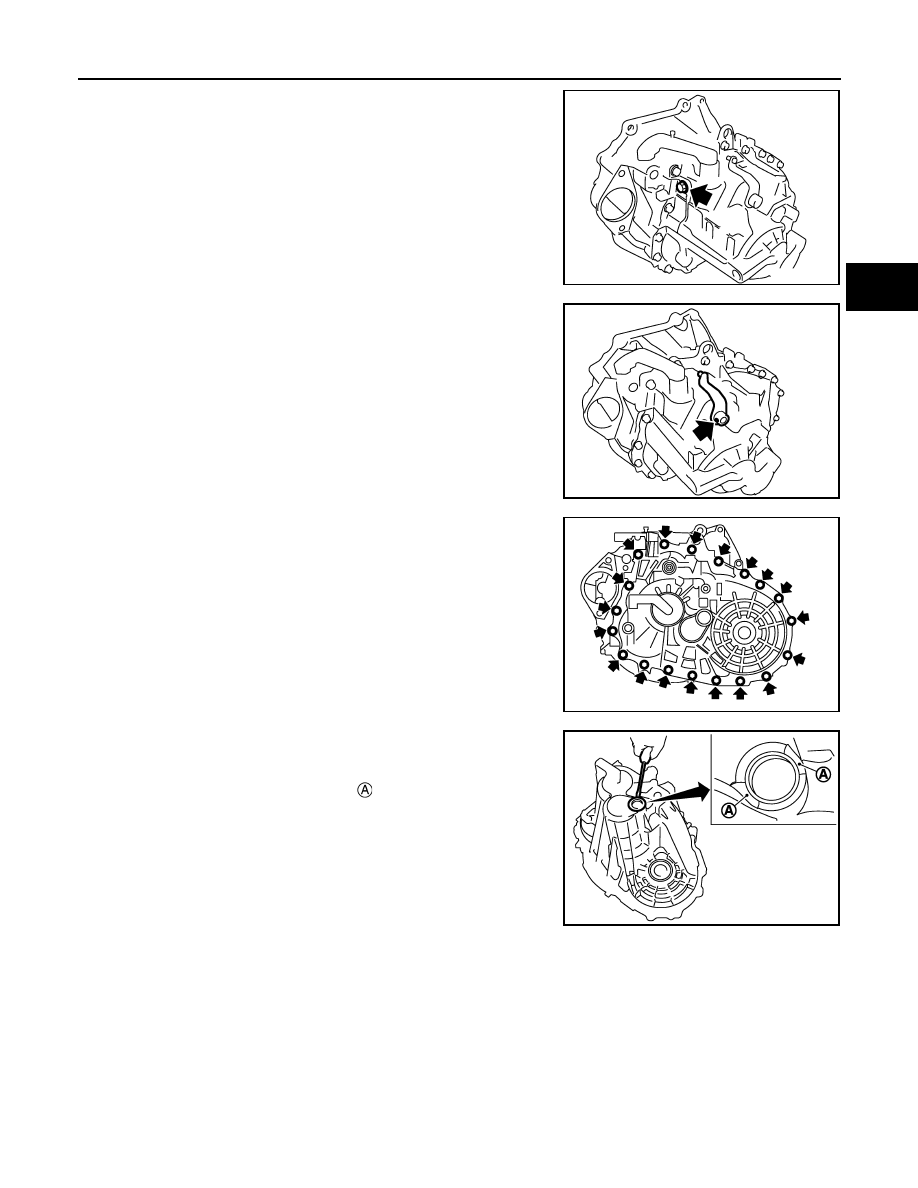

7.

Remove guide bolt from transaxle case.

8.

Remove retaining pin using a pin punch (commercial service
tool) and then remove select lever from transaxle case.

9.

Remove transaxle case mounting bolts.

10. Remove bore plug from transaxle case.

CAUTION:

• Never damage transaxle case.
• Access bore plug from cutout

 of transaxle case when

removing.

11. Remove transaxle case, as per the following procedure.

PCIB1836E

PCIB1837E

PCIB1838E

PCIB1839E
