[6MT: RS6F52A]

TRANSAXLE ASSEMBLY

UNIT REMOVAL AND INSTALLATION

TRANSAXLE ASSEMBLY

Exploded View

INFOID:0000000010921097

Removal and Installation

INFOID:0000000010921098

CAUTION:

Never reuse CSC (Concentric Slave Cylinder). Because CSC slides back to the original position every
time when removing transaxle assembly. At this timing, dust on the sliding parts may damage a seal of
CSC and may cause clutch fluid leakage. Refer to

CL-30, "Removal and Installation"

.

NOTE:
When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spill-
ing.

REMOVAL

1.

Shift the shift lever to the neutral position.

2.

Remove engine assembly together with transaxle assembly from vehicle. Refer to

EM-366, "Removal and

Installation"

.

3.

Remove starter motor. Refer to

STR-39, "R9M : Removal and Installation"

.

4.

Remove clutch tube from CSC (Concentric Slave Cylinder). Refer to

CL-27, "Removal and Installation"

.

CAUTION:

Keep painted surface on the body or other parts free of clutch fluid. If it spills, wipe up immediately
and wash the affected area with water.

5.

Remove air breather hose. Refer to

TM-120, "Removal and Installation"

.

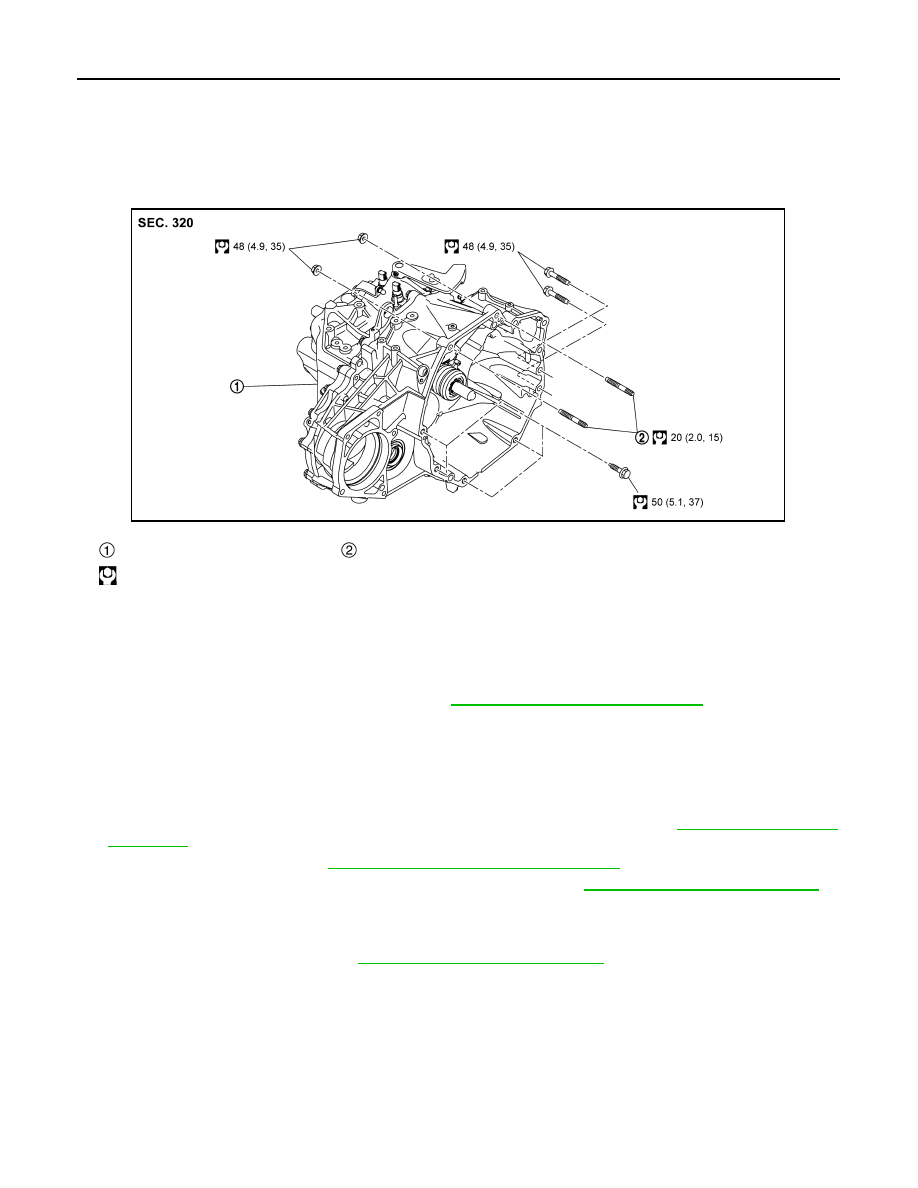

Transaxle assembly

Stud bolt

: N·m (kg-m, ft-lb)

JSDIA6351GB

TRANSAXLE ASSEMBLY

TM-123

< UNIT REMOVAL AND INSTALLATION >

[6MT: RS6F52A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

6.

Remove transfer gusset

. (4WD models only)

7.

Remove the bolts that fasten the transaxle assembly and engine
assembly.

8.

Remove transaxle assembly from the engine assembly.
NOTE:
For 4WD models, remove together with transfer assembly.

9.

Remove transfer assembly. (4WD models only) Refer to

DLN-

181, "Removal and Installation"

.

10. Remove engine mounting bracket (LH). Refer to

EM-365,

"Exploded View"

.

11. Remove CSC. Refer to

CL-30, "Removal and Installation"

.

INSTALLATION

Note the following, and install in the reverse order of removal.

CAUTION:

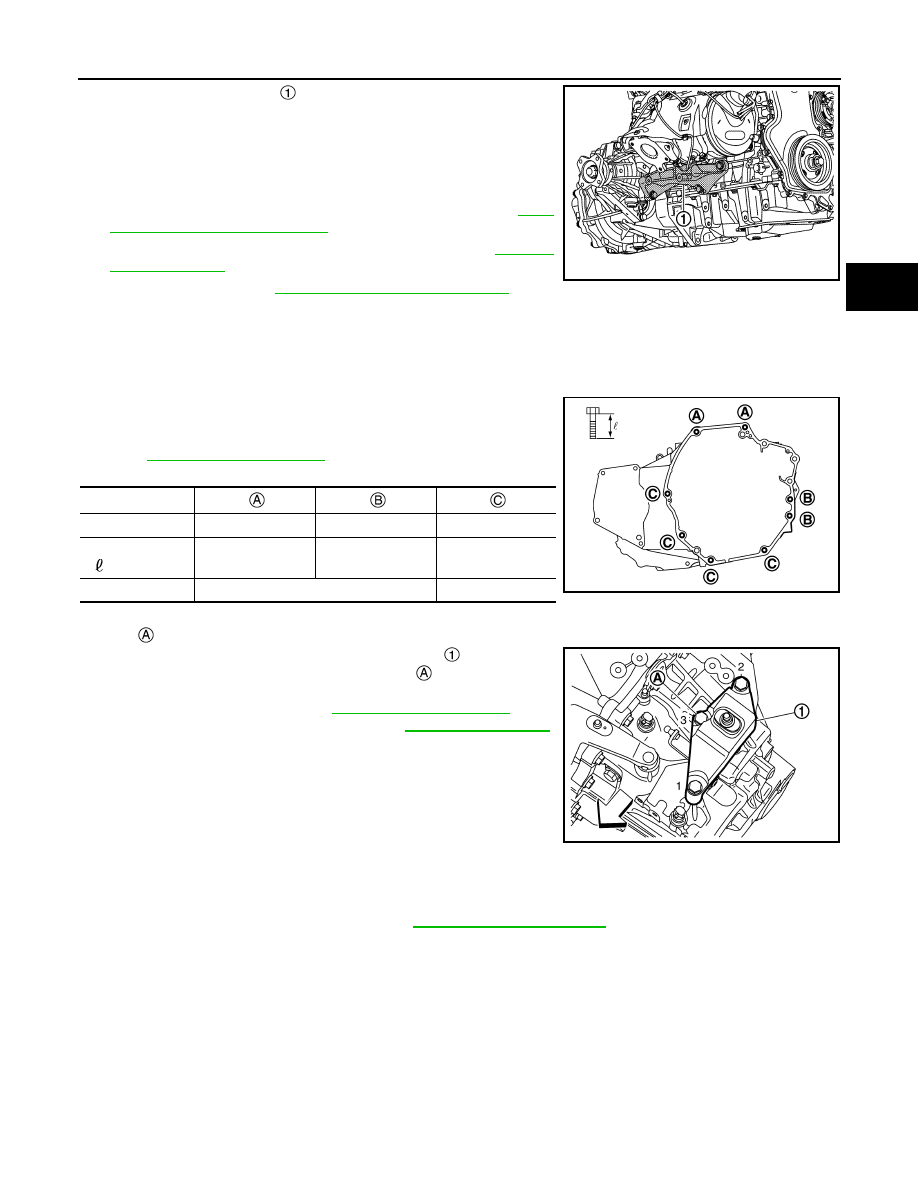

• The transaxle assembly must not interfere with the wire harnesses and clutch tube.
• When installing transaxle assembly, never bring input shaft into contact with clutch cover.
• When installing the transaxle assembly to the engine assembly,

install mounting bolts and nuts following the standard below,
tighten bolts to the specified torque. For each tightening torque,
refer to

TM-122, "Exploded View"

.

NOTE:

Symbol

 is composed a stud bolt and a nut.

• When installing engine mounting bracket (LH)

 to transaxle

assembly, temporarily tighten the short bolt

 then tighten the

mounting bolts to the specified torque in the order shown in the fig-
ure. For tightening torque, refer to

EM-365, "Exploded View"

.

• Perform inspection after installation. Refer to

TM-123, "Inspection"

.

Inspection

INFOID:0000000010921099

INSPECTION AFTER INSTALLATION

Check the oil leakage and the oil level. Refer to

TM-103, "2WD : Inspection"

.

JSDIA6418ZZ

Bolt/Nut symbol

Quantity

2

2

4

Bolt length

“

”  mm  (in)

—

55 (2.17)

55 (2.17)

Insertion direction

Transaxle to engine

Engine to transaxle

JSDIA6357ZZ

JSDIA6364ZZ

TM-124

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

TRANSAXLE ASSEMBLY

UNIT DISASSEMBLY AND ASSEMBLY

TRANSAXLE ASSEMBLY

2WD

2WD : Exploded View

INFOID:0000000010919402

CASE AND HOUSING

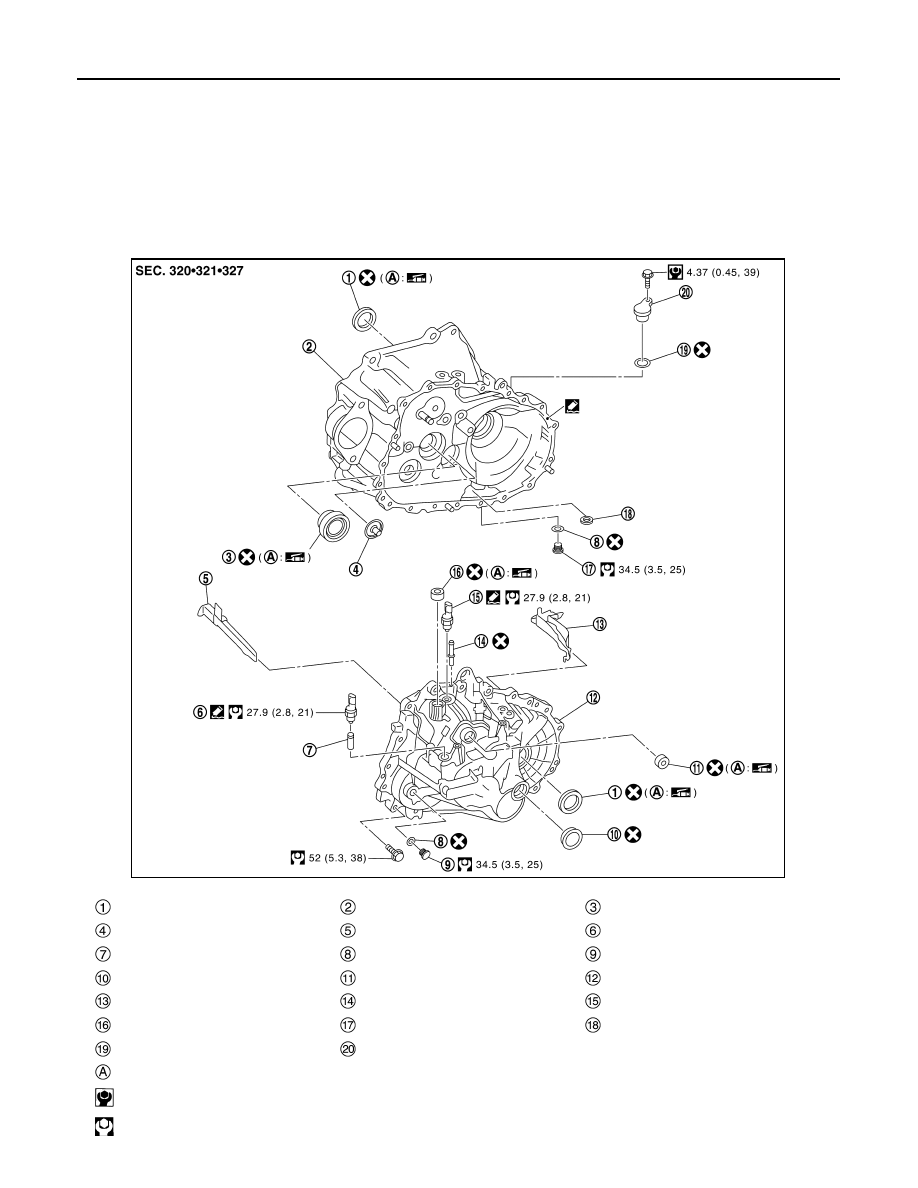

Differential side oil seal

Clutch housing

Input shaft oil seal

Oil channel

Oil gutter A

Back-up lamp switch

Plunger

Gasket

Plug

Bore plug

Striking rod oil seal

Transaxle case

Oil gutter B

Air breather tube

Neutral position switch

Shift lever oil seal

Drain plug

Magnet

O-ring

Plug

Oil seal lip

: N·m (kg-m, in-lb)

: N·m (kg-m, ft-lb)

JSDIA6360GB

TRANSAXLE ASSEMBLY

TM-125

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

SHAFT AND GEAR

CAUTION:

Apply gear oil to gears, shafts, synchronizers, and bearings when assembly.

: Always replace after every disassembly.

: Apply multi-purpose grease.

: Apply Genuine Liquid Gasket, Three Bond 1215 or an equivalent.

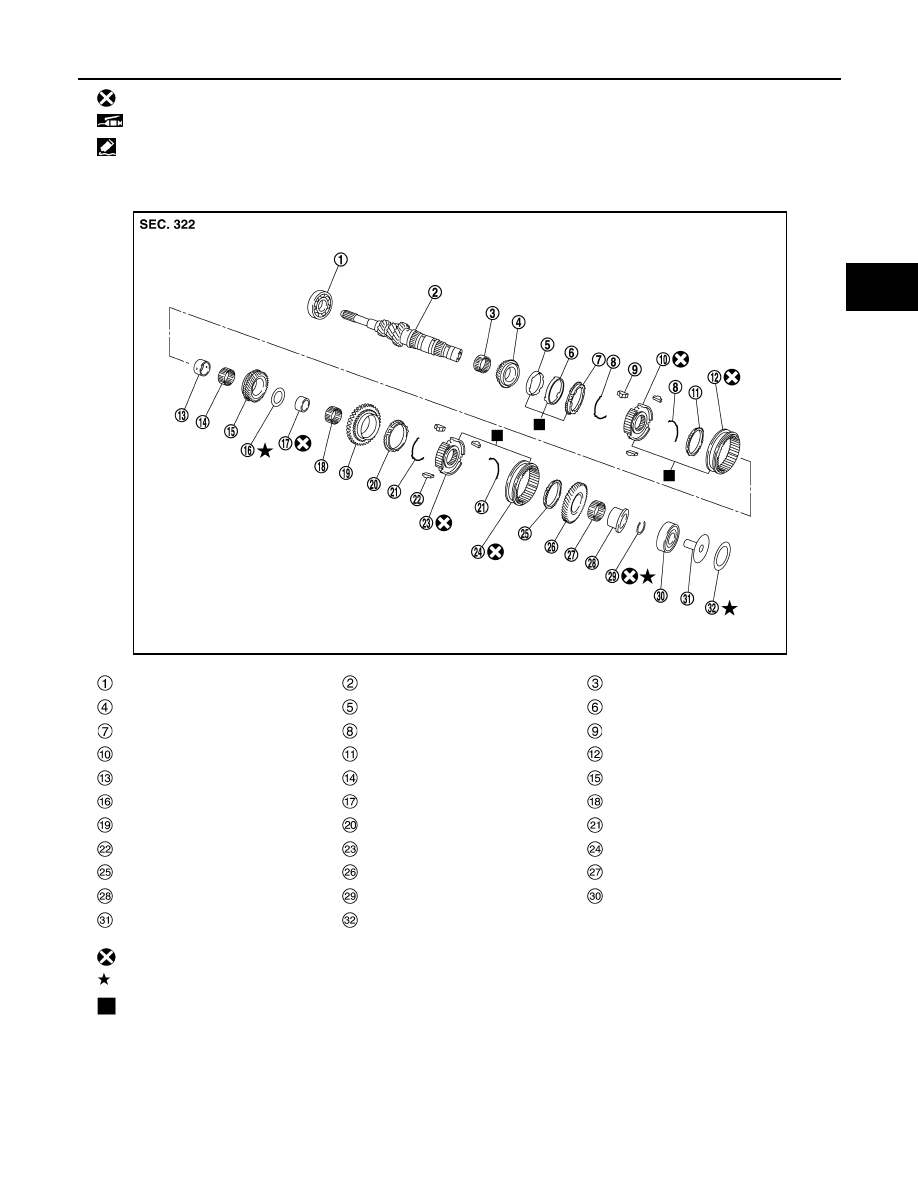

Input shaft front bearing

Input shaft

3rd needle bearing

3rd input gear

3rd inner baulk ring

3rd synchronizer cone

3rd outer baulk ring

3rd-4th spread spring

3rd-4th shifting insert

3rd-4th synchronizer hub

4th baulk ring

3rd-4th coupling sleeve

4th input gear bushing

4th needle bearing

4th input gear

Thrust washer

5th input gear bushing

5th needle bearing

5th input gear

5th baulk ring

5th-6th spread spring

5th-6th shifting insert

5th-6th synchronizer hub

5th-6th coupling sleeve

6th baulk ring

6th input gear

6th needle bearing

6th input gear bushing

Snap ring

Input shaft rear bearing

Oil channel

Input shaft rear bearing adjusting
shim

: Always replace after every disassembly.

: Select with proper thickness.

: Replace the parts as a set.

JSDIA6366ZZ
