Nissan X-Trail 32. Manual - part 2040

TM-118

< REMOVAL AND INSTALLATION >

[6MT: RS6F52A]

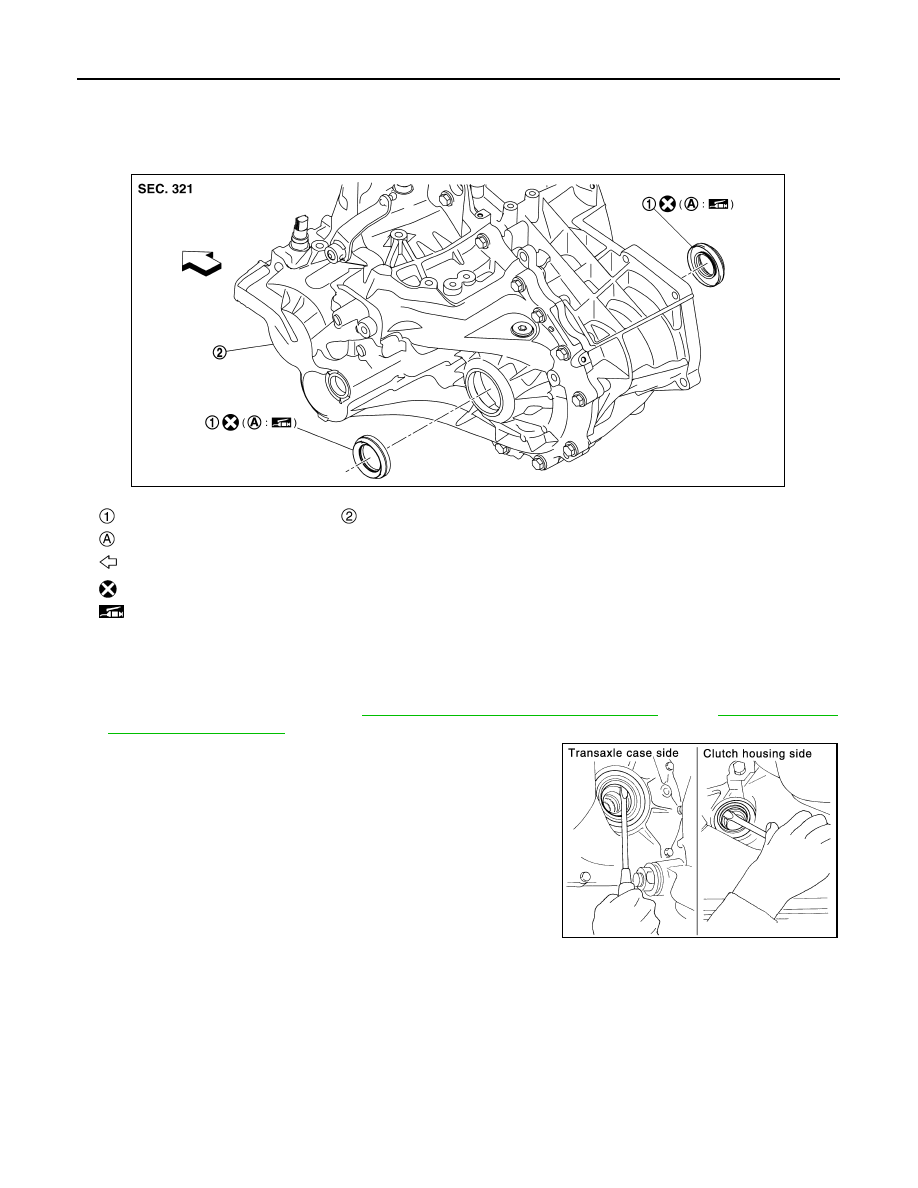

DIFFERENTIAL SIDE OIL SEAL

DIFFERENTIAL SIDE OIL SEAL

Exploded View

INFOID:0000000010921092

Removal and Installation

INFOID:0000000010921093

REMOVAL

1.

Remove front drive shafts. Refer to

FAX-50, "R9M : Removal and Installation"

 (2WD),

FAX-125, "R9M :

Removal and Installation"

 (4WD).

2.

Remove differential side oil seals from clutch housing and tran-
saxle case, using oil seal remover (commercial service tool).

CAUTION:

Never damage transaxle case and clutch housing.

INSTALLATION

Note the following, and install in the reverse order of removal.

Differential side oil seal

Transaxle assembly

Oil seal lip

: Vehicle front

: Always replace after every disassembly.

: Apply multi-purpose grease.

JSDIA6348ZZ

SCIA0824E

DIFFERENTIAL SIDE OIL SEAL

TM-119

< REMOVAL AND INSTALLATION >

[6MT: RS6F52A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

• Install differential side oil seals to clutch housing and transaxle

case, using the tool.

CAUTION:

• Never reuse differential side oil seal.
• Apply multi-purpose grease onto oil seal lip.
• Never incline differential side oil seal.
• Never damage clutch housing and transaxle case.

• Perform inspection after installation. Refer to

TM-119, "Inspection"

.

Inspection

INFOID:0000000010921094

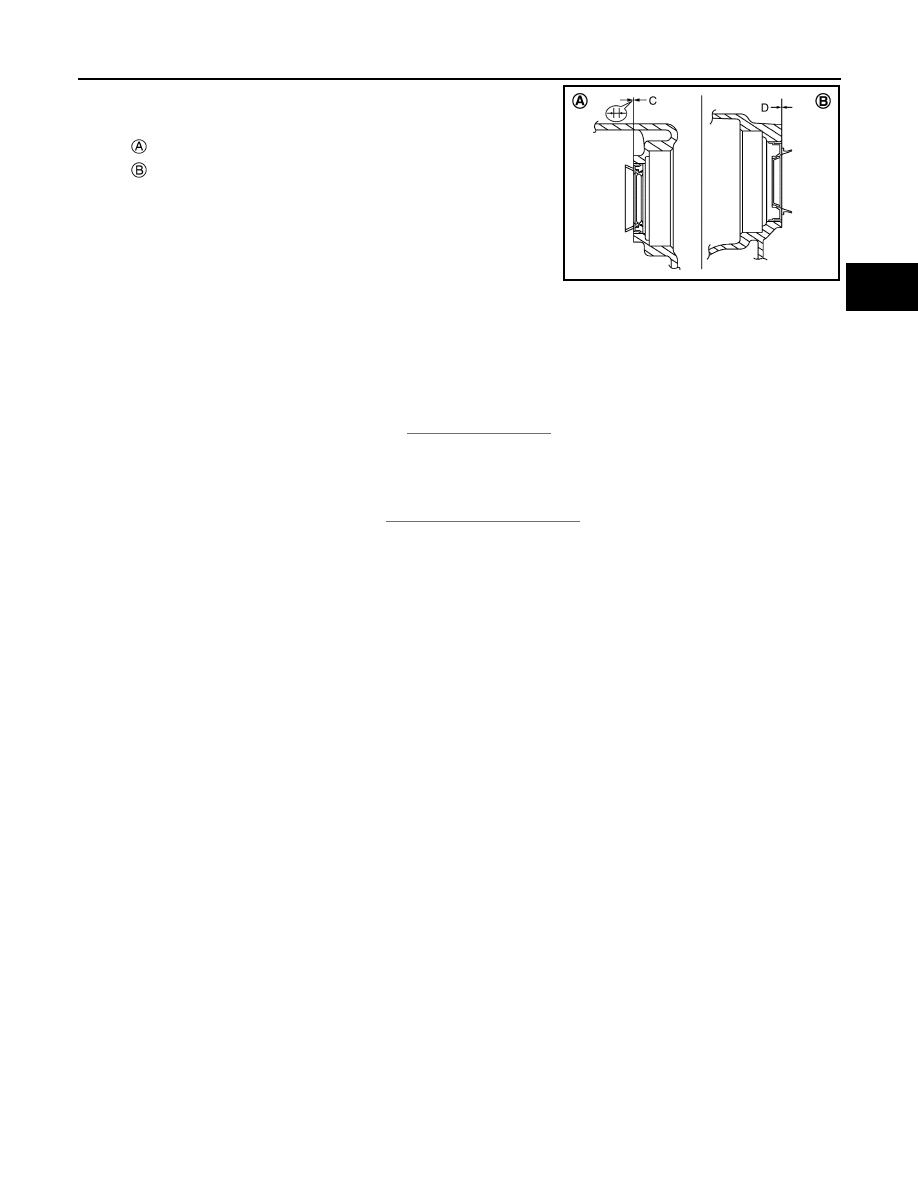

INSPECTION AFTER INSTALLATION

Check the oil level and oil leakage. Refer to

TM-103, "2WD : Inspection"

.

: Transaxle case side

: Clutch housing side

Dimension (C)

: 0

±

0.5 mm (0

±

0.020 in)

Dimension (D)

: 0

±

0.5 mm (0

±

0.020 in)

Tool to use

Transaxle case side

: Drift (SST: ST30720000)

Clutch housing side

: Drift (SST: ST33400001)

JSDIA6349ZZ

TM-120

< REMOVAL AND INSTALLATION >

[6MT: RS6F52A]

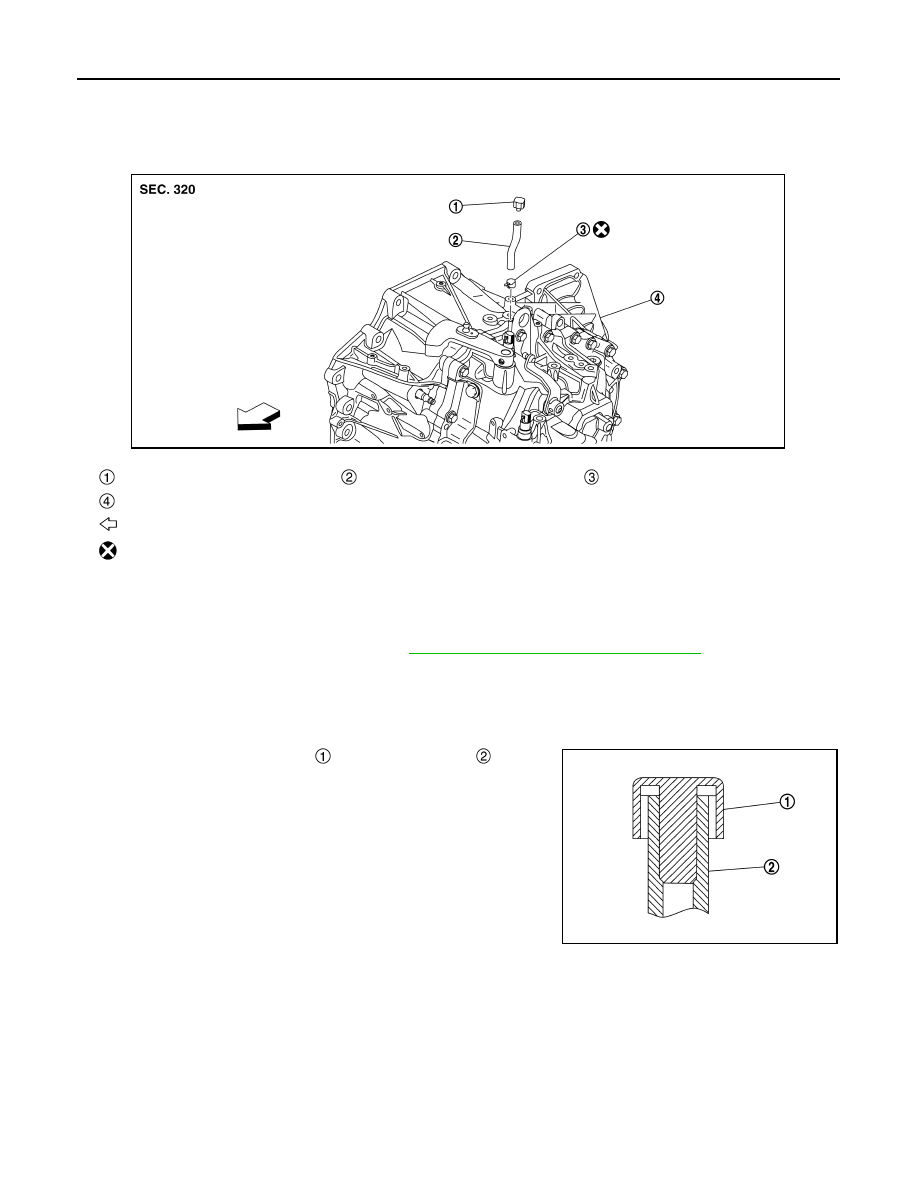

AIR BREATHER

AIR BREATHER

Exploded View

INFOID:0000000010921095

Removal and Installation

INFOID:0000000010921096

REMOVAL

1.

Remove battery and battery trays. Refer to

PG-143, "R9M : Removal and Installation"

.

2.

Loosen hose clamp, and remove air breather hose from transaxle assembly.

3.

Remove air breather cap and hose clamp from air breather hose.

INSTALLATION

Note the following, and install in the reverse order of removal.
• When inserting air breather cap

 to air breather hose

, be sure

to insert the hose until end of the cap.

Air breather cap

Air breather hose

Hose clamp

Transaxle assembly

: Vehicle front

: Always replace after every disassembly.

JSDIA6341ZZ

JSDIA5801ZZ

AIR BREATHER

TM-121

< REMOVAL AND INSTALLATION >

[6MT: RS6F52A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

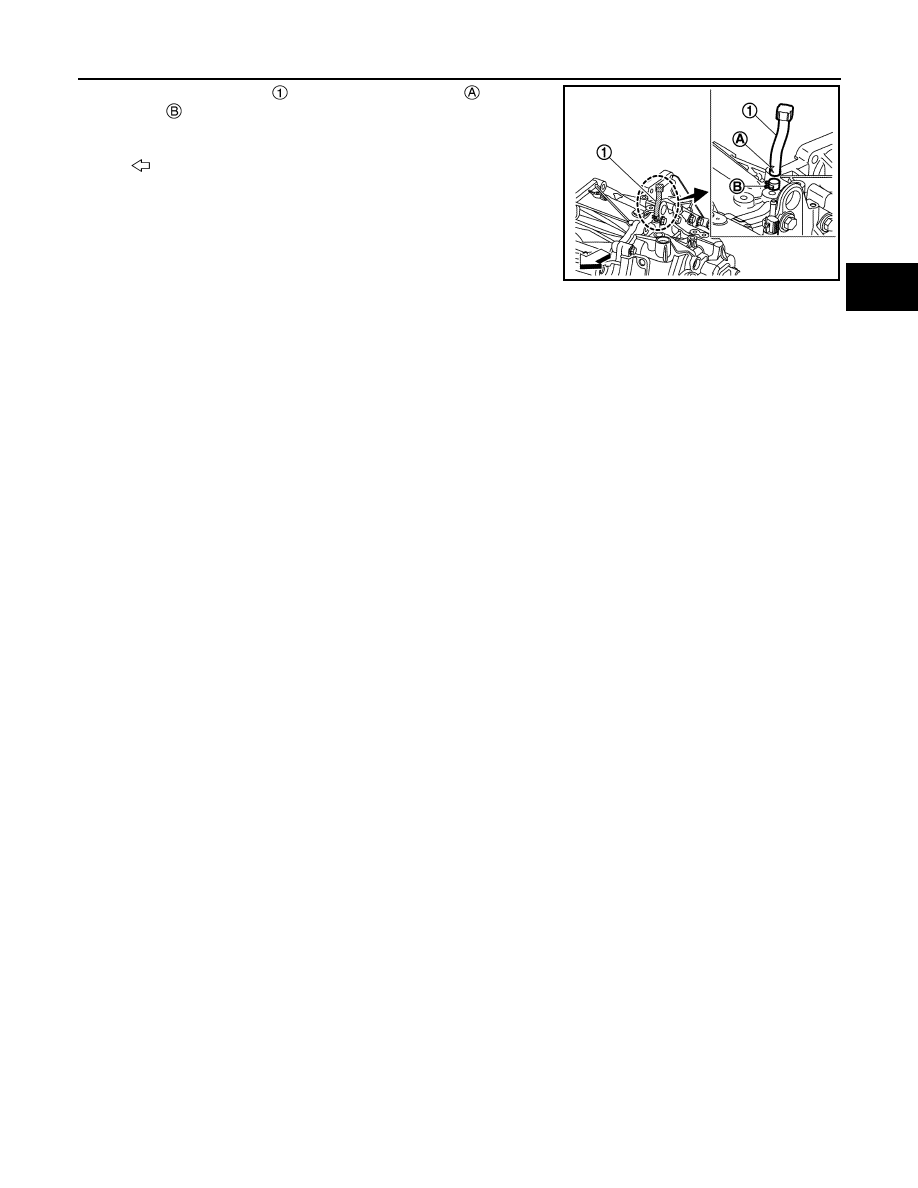

• Install air breather hose

 so that the paint mark

 and hose

clamp tab

 are faced forward of the vehicle as shown in the fig-

ure.

• When inserting air breather hose to transaxle assembly, be sure to

insert it fully until its end reaches the stop.

• When installing air breather hose, make sure there are no pinched

or restricted areas on air breather hose caused by bending or
winding.

: Vehicle front

JSDIA6344ZZ
