Nissan X-Trail 32. Manual - part 2038





TM-110

< REMOVAL AND INSTALLATION >

[6MT: RS6F52A]

CONTROL LINKAGE

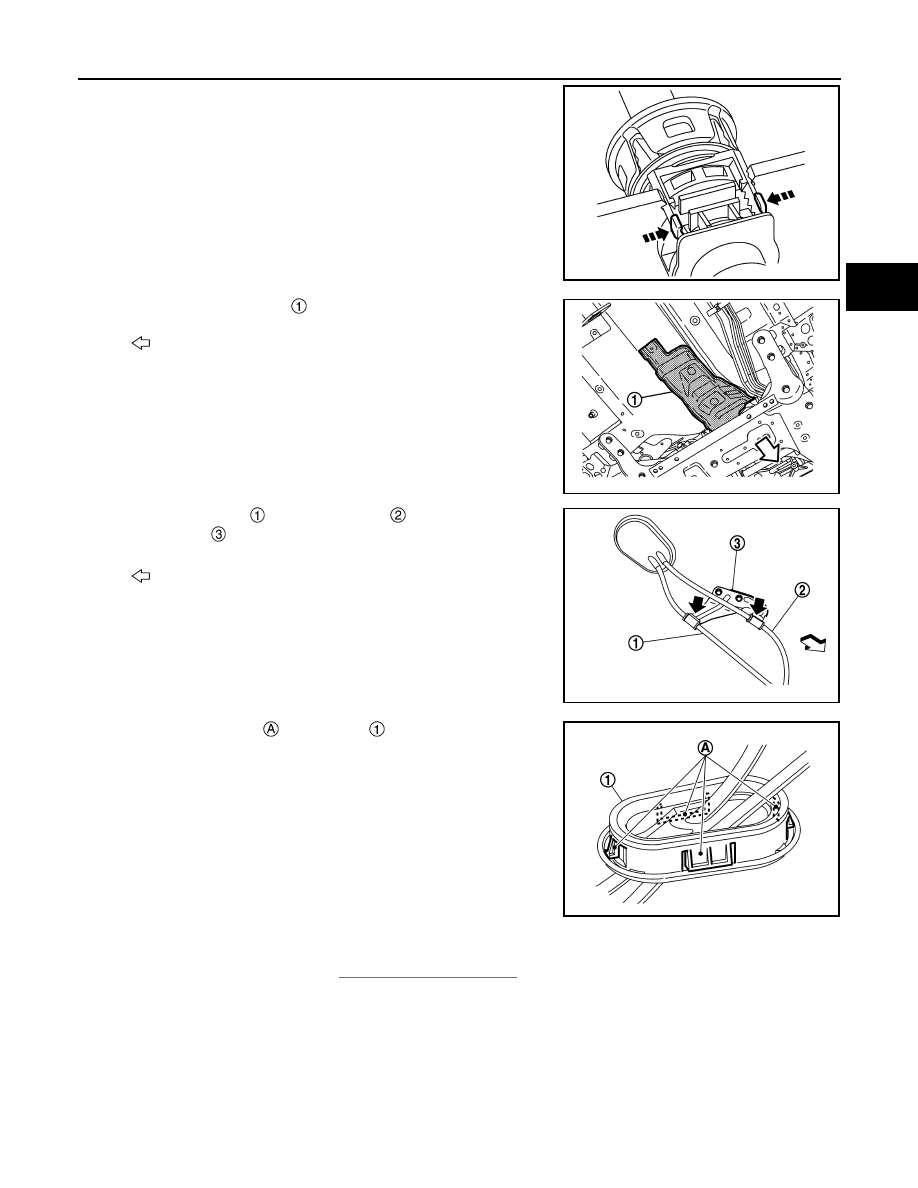

3.

Pull up the stopper

 of the select cable in the direction of the

arrow as shown in the figure.

4.

Pull out and disconnect shift cable

 and select cable

 from

each pin

 of M/T shift selector assembly.

5.

Remove shift cable and select cable from M/T shift selector
assembly, as per the following procedure.

a.

While pressing the lock of the shift cable in the direction of the
arrow shown in the figure, remove shift cable from M/T shift
selector assembly.

b.

While pressing the lock of the select cable in the direction of the
arrow shown in the figure, remove select cable from M/T shift
selector assembly.

6.

Remove battery and battery trays. Refer to

PG-143, "R9M :

Removal and Installation"

.

7.

Remove air duct and air cleaner body. Refer to

EM-308,

"Removal and Installation"

.

8.

Pull out and disconnect the each cable from shift lever

 and

select lever

.

JSDIA5762ZZ

JSDIA5763ZZ

JPDIC0793ZZ

JSDIA6328ZZ

CONTROL LINKAGE

TM-111

< REMOVAL AND INSTALLATION >

[6MT: RS6F52A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

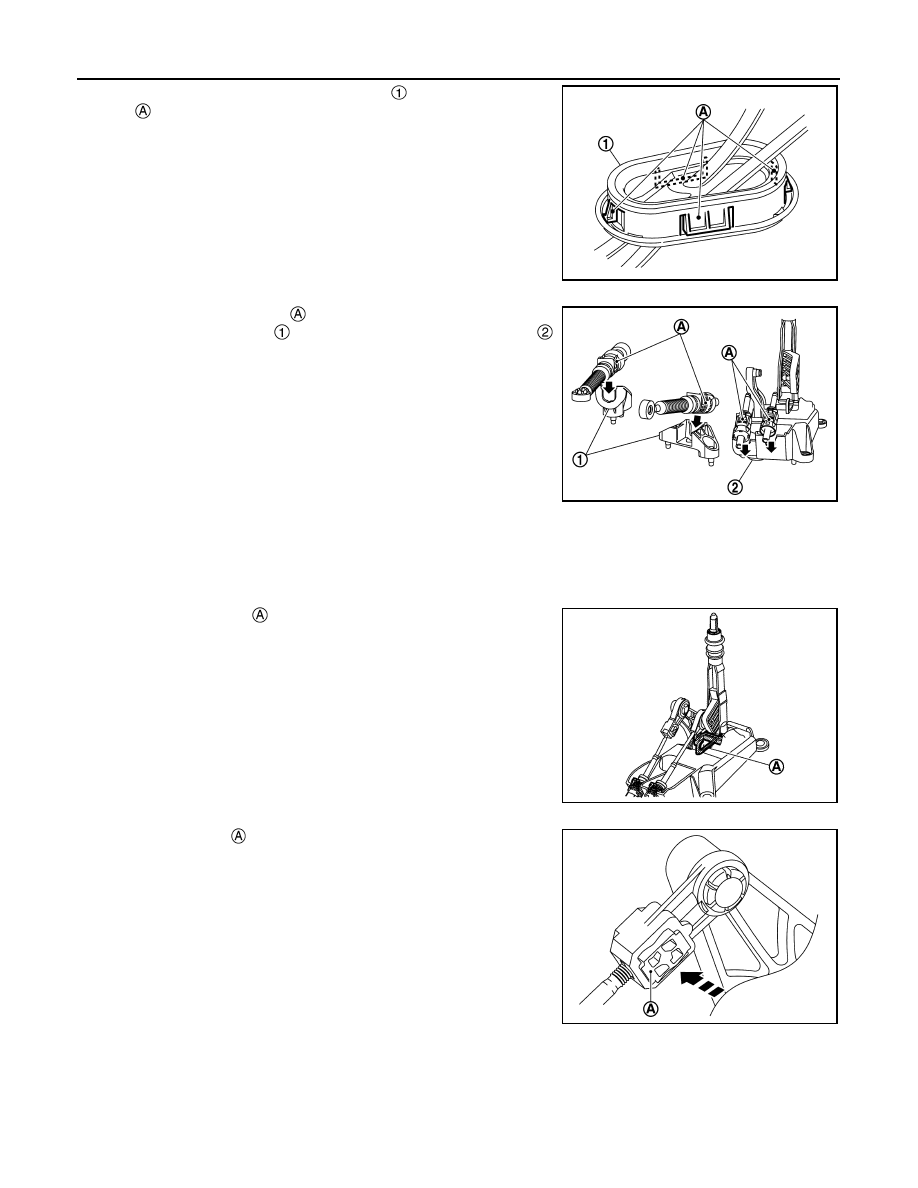

9.

Remove shift cable and select cable from cable mounting
bracket (M/T), as per the following procedure.

a.

While pressing the lock of the shift cable in the direction of the
arrow shown in the figure, remove shift cable from cable mount-
ing bracket (M/T).

b.

While pressing the lock of the select cable in the direction of the
arrow shown in the figure, remove select cable from cable
mounting bracket (M/T).

10. Remove cable mounting brackets (M/T) from transaxle assem-

bly.

11. Remove heat shield plate

. (2WD models)

12. Remove shift cable

 and select cable

 from cable mounting

bracket (floor)

.

13. Remove cable mounting bracket (floor).

14. Disengage the pawls

 of grommet

, and pull downwards to

remove.

15. Remove shift cable and select cable from the vehicle.

INSTALLATION

Note the following, and install in the reverse order of removal.
• For each tightening torque, refer to

TM-109, "Exploded View"

.

• Before working, set transaxle and M/T shift selector assembly to the neutral position.
• No occurrence of interference between cables and other parts, bent with a radius of 120 mm (4.72 in) or

less, and twist of 180 degrees or more.

• Do not damage the boot of each cable and prevent the occurrence of twist of 90 degrees or more.
• Tapping work for tapping bolts is not applied to new transaxle case. Do not perform tapping by other than

screwing tapping bolts because tapping is formed by screwing tapping bolts into transaxle case.

CAUTION:

Never reuse tapping bolt.

JPDIC0793ZZ

: Vehicle front

JSDIA5214ZZ

: Vehicle front

JSDIA6337ZZ

JPDIC0844ZZ

TM-112

< REMOVAL AND INSTALLATION >

[6MT: RS6F52A]

CONTROL LINKAGE

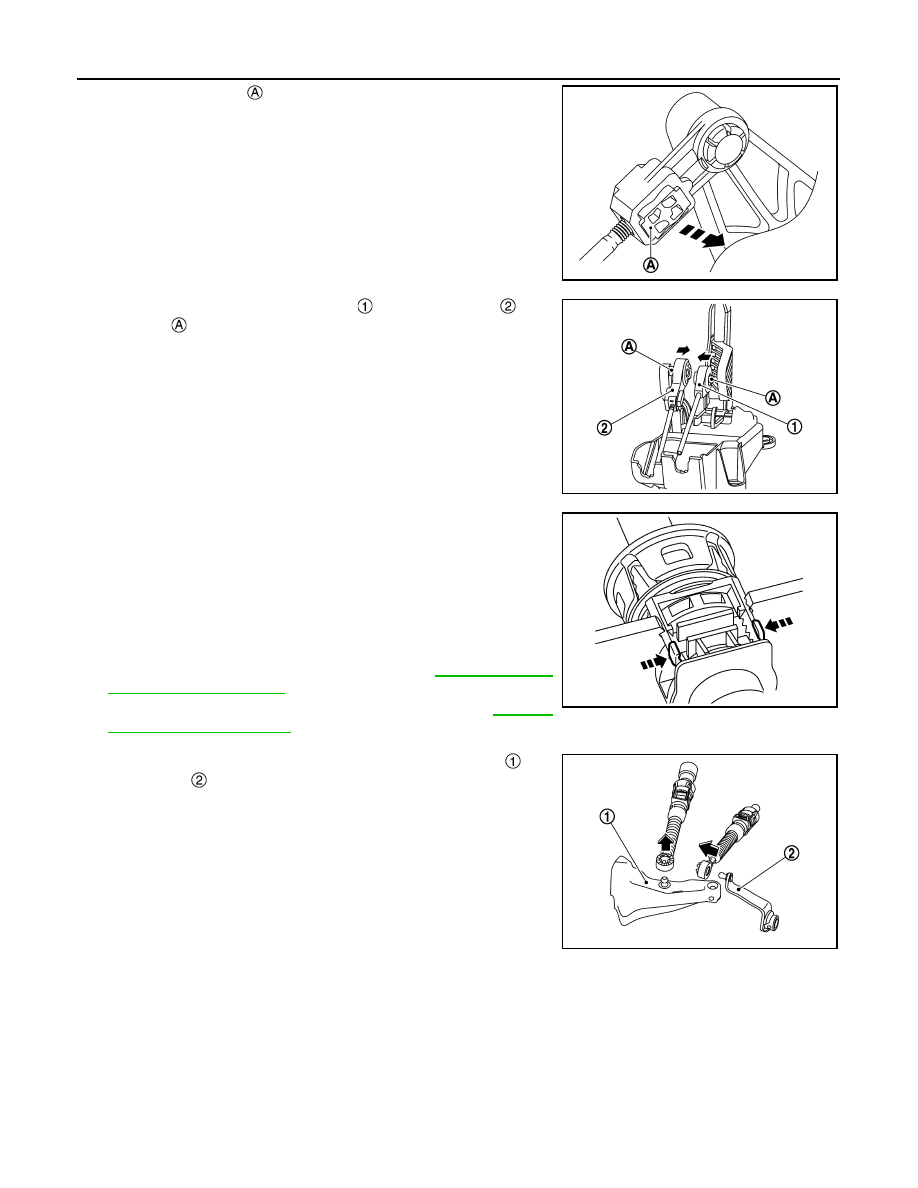

• From under the vehicle, press grommet

 into place until the

pawls

securely.

CAUTION:

Check that pulling down on the grommet does not fall out it.

• Insert the each socket part

 of cable until it reaches the cable

mounting brackets (M/T)

 and M/T shift selector assembly

securely.

CAUTION:

Check that pulling up on the socket does not disconnect it.

• Install select cable (M/T shift selector assembly side), as per the following procedure.

When M/T shift selector assembly is replaced with new one:

1.

Install the select cable to the M/T shift selector assembly.

2.

Shift the shift lever to the neutral position.

3.

Install the lock pin

 to the M/T shift selector assembly as

shown in the figure.

CAUTION:

Select cable cannot be adjusted accurately without using
the lock pin.

4.

Check that shift lever does not move in the direction of the
select. If it moves, re-install lock pin.

5.

Push the stopper

 until it reaches the select cable.

6.

Remove the lock pin from M/T shift selector assembly.

7.

Shift shift lever to each gear position to check that there are no
bindings. If any, re-install select cable with lock pin.

When M/T shift selector assembly is reused or without lock pin:

1.

Install the select cable to the M/T shift selector assembly.

2.

Shift the shift lever to the 4th gear position.

JPDIC0844ZZ

JSDIA6329ZZ

JSDIA5774ZZ

JSDIA5775ZZ

CONTROL LINKAGE

TM-113

< REMOVAL AND INSTALLATION >

[6MT: RS6F52A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

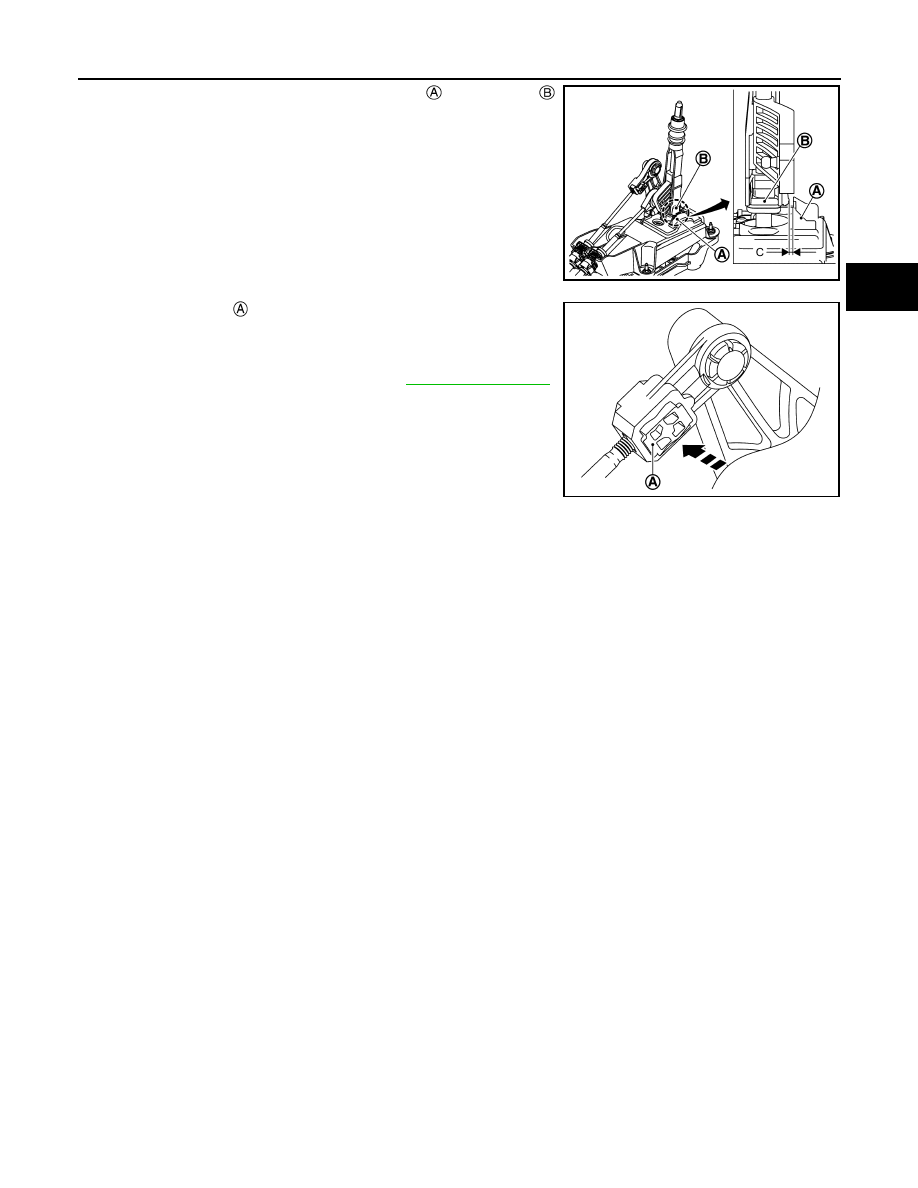

3.

Adjust the clearance (C) between the stopper

 and the lever

to the standard value.

4.

Push the stopper

 until it reaches the select cable.

5.

Shift shift lever to each gear position to check that there are no
bindings. If any, re-install select cable and re-adjust the clear-
ance.

• Perform inspection after installation. Refer to

TM-113, "Inspection"

.

Inspection

INFOID:0000000010921088

INSPECTION AFTER INSTALLATION

• When the shift lever is shifted to each position, check that the shift lever moves smoothly (no-hook up, no-

noise, no-backlash and non-contact to other parts). If any malfunction is detected, repair the malfunctioning
parts or replace cable assembly.

• When the shift lever is shifted to reverse gear side and 5th-6th side, confirm the shift lever returns to neutral

position. When the shift lever does not return to the neutral position smoothly, check M/T shift selector
assembly and select cable condition. If any malfunction is detected, repair or replace the malfunctioning
part.

Clearance

: 3.8 – 4.0 mm (0.150 – 0.157 in)

JSDIA6477ZZ

JSDIA5775ZZ
