RF-58

< REMOVAL AND INSTALLATION >

SUNROOF UNIT ASSEMBLY

1.

Remove sunroof motor assembly. Refer to

RF-53, "Removal and Installation"

.

2.

Remove sunshade motor assembly. Refer to

RF-55, "Removal and Installation"

.

3.

Remove rear sunroof glass. Refer to

RF-50, "Removal and Installation"

.

4.

Remove sunshade. Refer to

RF-60, "Removal and Installation"

.

5.

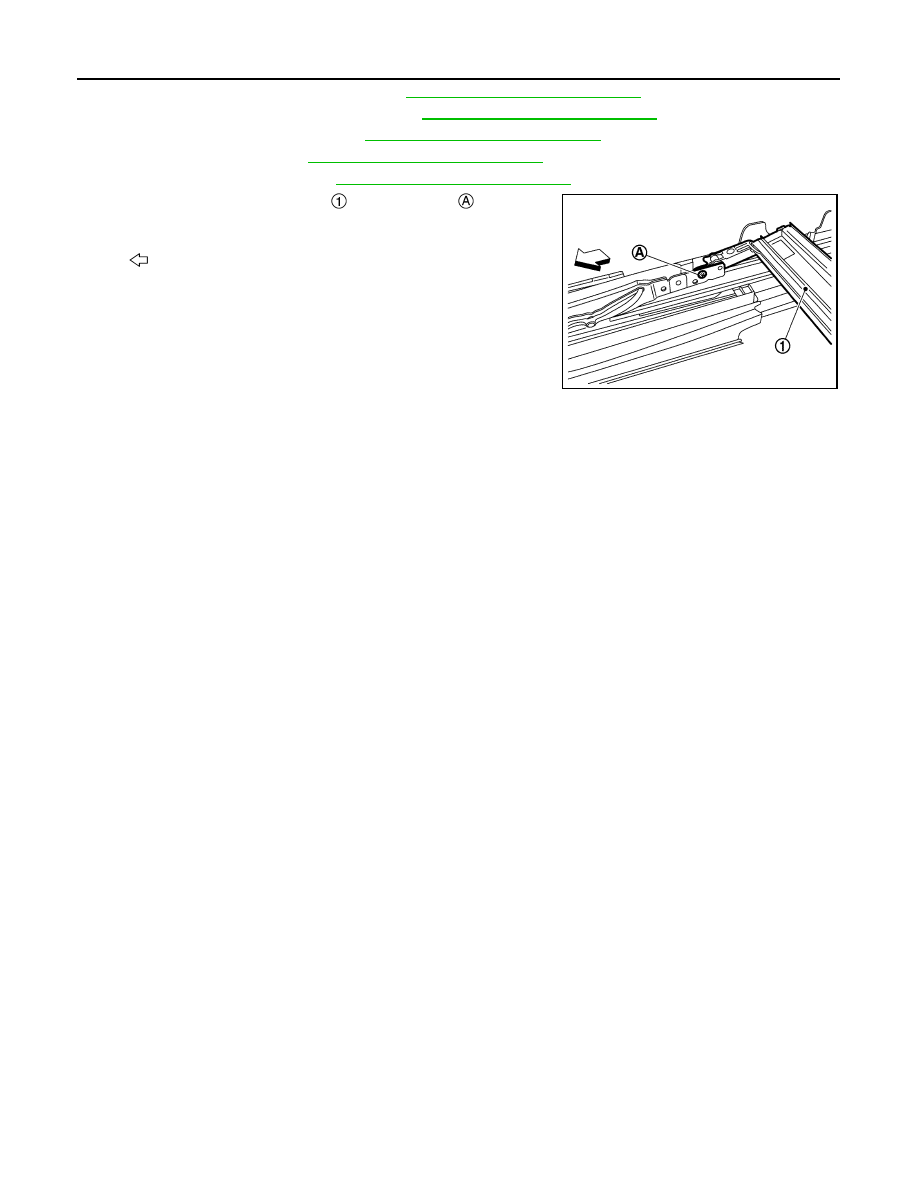

Remove wind deflector. Refer to

RF-63, "Removal and Installation"

.

6.

Remove rear drain assembly

 fixing screws

, and then

remove rear drain assembly.

ASSEMBLY

Assemble in the reverse order of disassembly.

: Vehicle front

JMKIB2809ZZ

SUNSHADE

RF-59

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

SUNSHADE

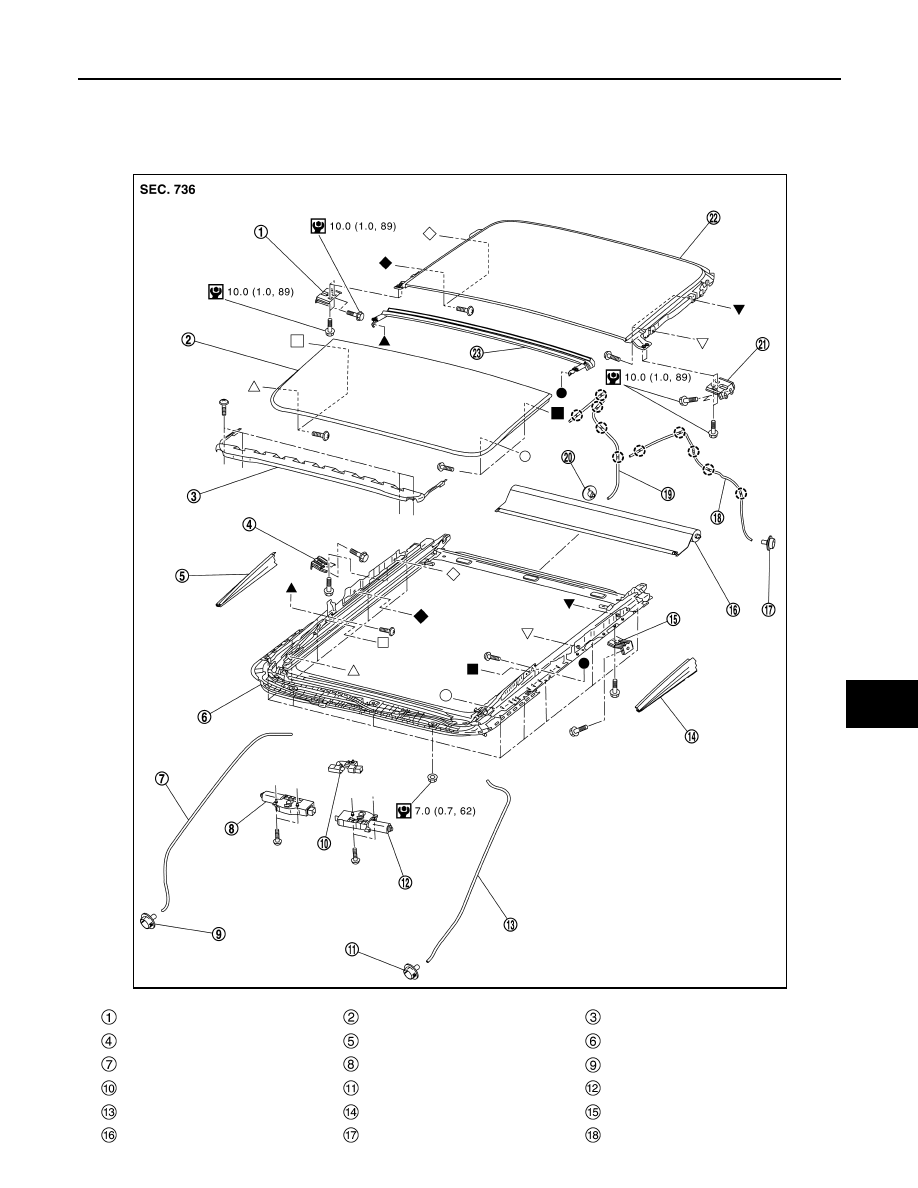

Exploded View

INFOID:0000000010735439

Front sunroof bracket RH

Glass lid

Wind deflector

Rear sunroof bracket RH

Side trim RH

Sunroof unit assembly

Front drain hose RH

Sunroof motor assembly

Front drain connector RH

Harness connector assembly

Front drain connector LH

Sunshade motor assembly

Front drain hose LH

Side trim LH

Rear sunroof bracket LH

Sunshade

Rear drain connector LH

Rear drain hose LH

JMKIB2824GB

RF-60

< REMOVAL AND INSTALLATION >

SUNSHADE

Removal and Installation

INFOID:0000000010735440

REMOVAL

1.

Remove sunroof unit assembly. Refer to

RF-57, "Removal and Installation"

.

2.

Remove rear sunroof glass. Refer to

RF-50, "Removal and Installation"

.

3.

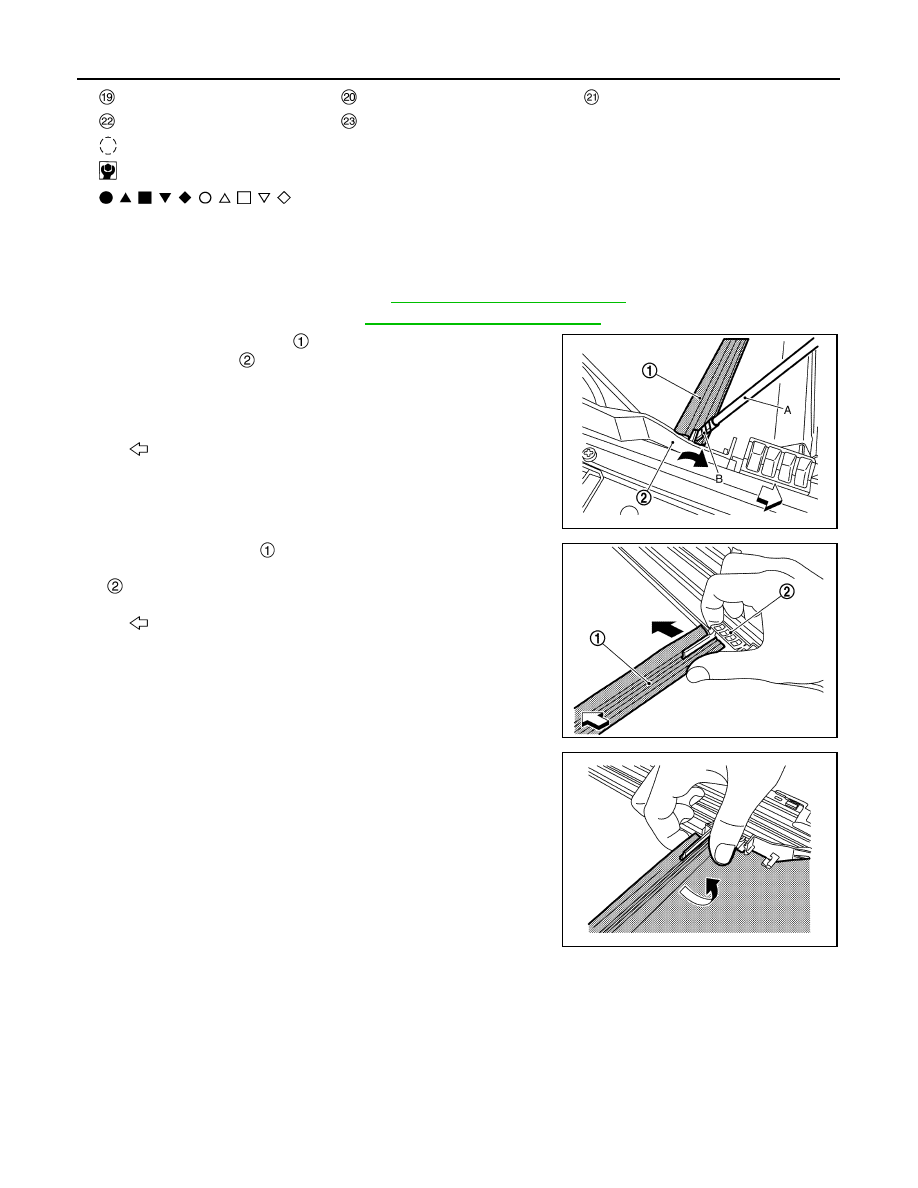

Disengage sunshade stay

 using a remover tool (A) from sun-

roof unit assembly

.

CAUTION:

Apply protective tape (B) on remover tool to protect from
damage.

4.

Push sunshade stay

 as shown by the arrows in the figure,

and then disengage sunshade stay from sunroof unit assembly

.

5.

Rotate sunshade as shown by the arrows in the figure, and then
remove sunshade stay from sunroof unit assembly.

Rear drain hose RH

Rear drain connector RH

Front sunroof bracket LH

Rear sunroof glass

Drain assembly

  : Clip

: N·m (kg-m, in-lb)

,

,

,

,

,

,

,

,

,

: Indicates that the part is connected at points with same symbol in actual vehicle.

: Vehicle front

JMKIB2813ZZ

: Vehicle front

JMKIB2810ZZ

JMKIB2811ZZ

SUNSHADE

RF-61

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

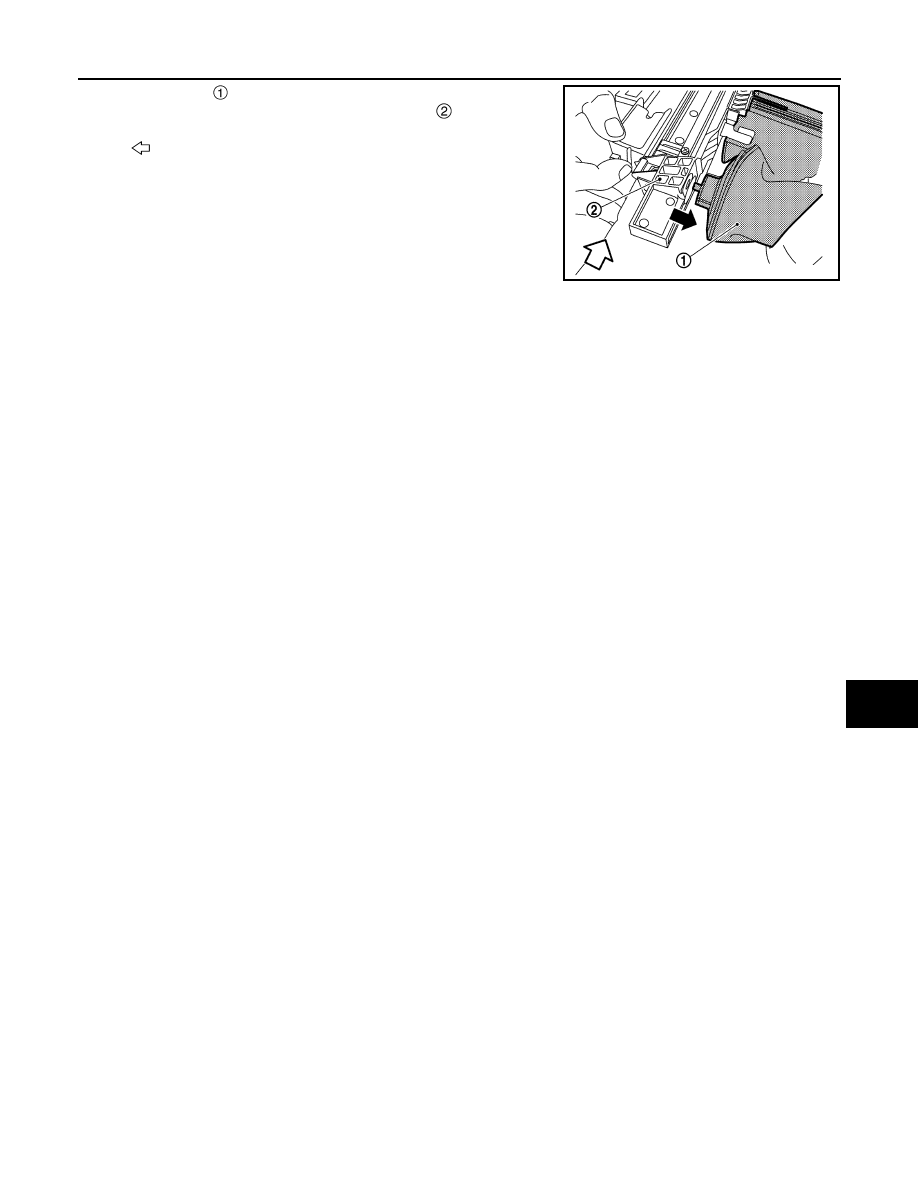

6.

Pull sunshade

 as shown by the arrows in the figure, and then

remove sun shade from sunroof unit assembly

.

INSTALLATION

Install in the reverse order of removal.

: Vehicle front

JMKIB2812ZZ
