RF-62

< REMOVAL AND INSTALLATION >

WIND DEFLECTOR

WIND DEFLECTOR

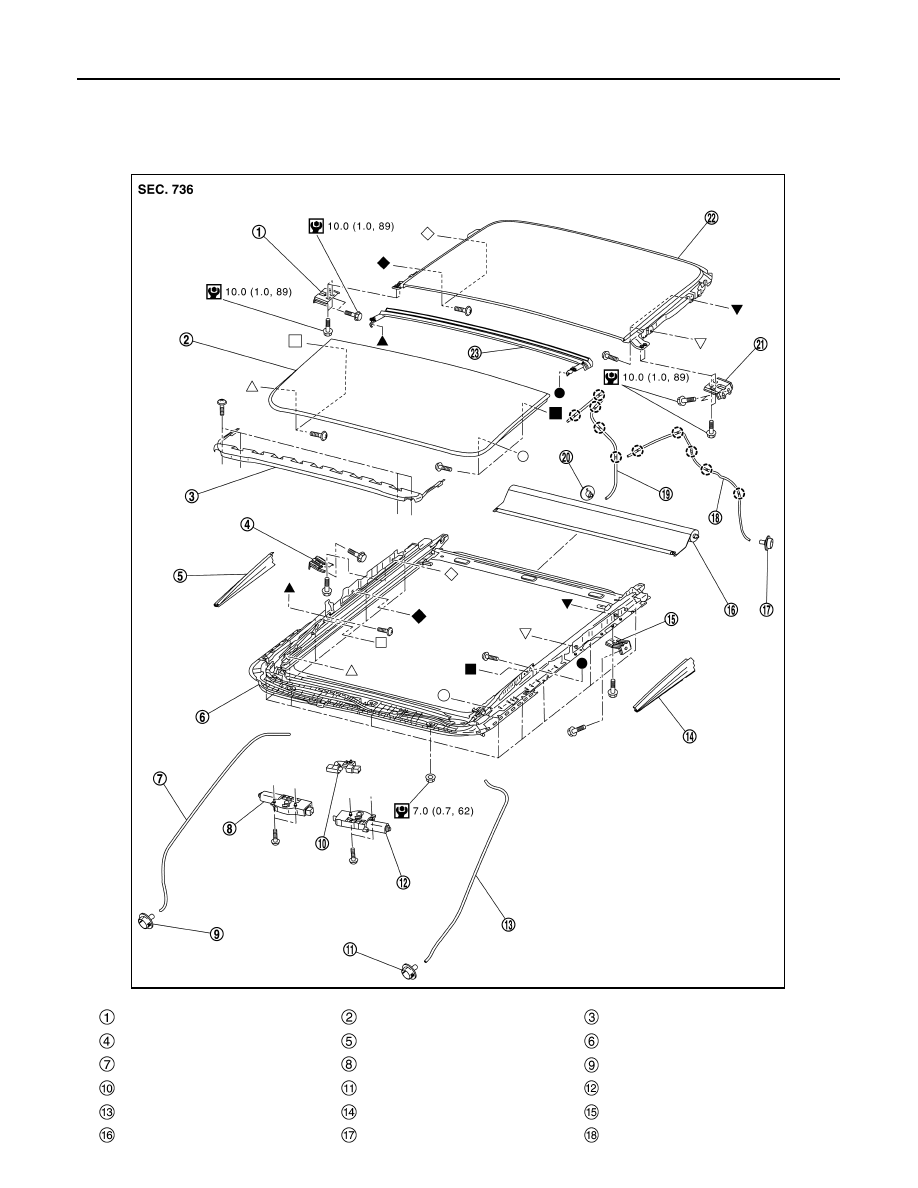

Exploded View

INFOID:0000000010735441

Front sunroof bracket RH

Glass lid

Wind deflector

Rear sunroof bracket RH

Side trim RH

Sunroof unit assembly

Front drain hose RH

Sunroof motor assembly

Front drain connector RH

Harness connector assembly

Front drain connector LH

Sunshade motor assembly

Front drain hose LH

Side trim LH

Rear sunroof bracket LH

Sunshade

Rear drain connector LH

Rear drain hose LH

JMKIB2824GB

WIND DEFLECTOR

RF-63

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

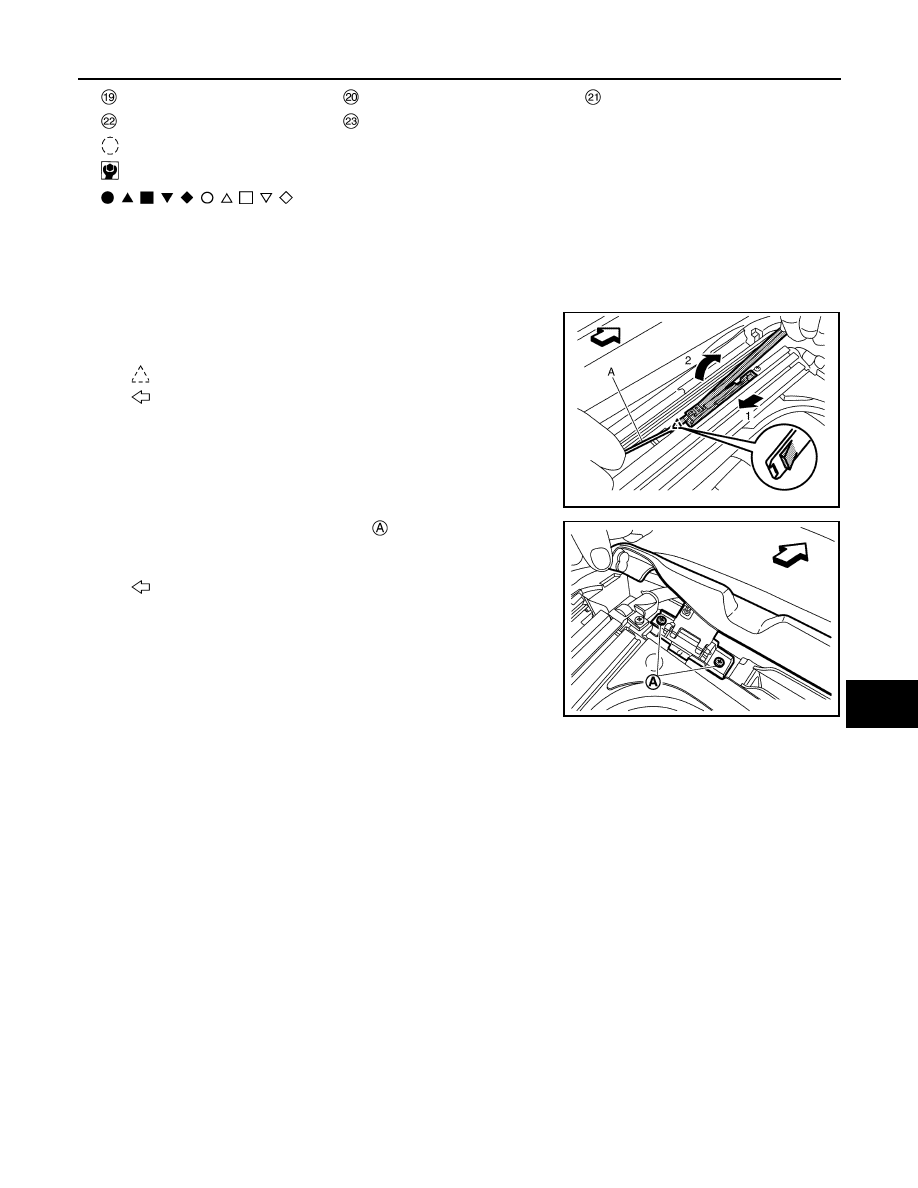

Removal and Installation

INFOID:0000000010735442

REMOVAL

1.

Fully open the glass lid.

2.

Disengage wind deflector fixing pawl using a remover tool (A)
according to the numerical order 1

→

2 as shown in the figure.

3.

Remove wind deflector fixing screws

, and then remove wind

deflector from sunroof unit assembly.

INSTALLATION

Install in the reverse order of removal.

Rear drain hose RH

Rear drain connector RH

Front sunroof bracket LH

Rear sunroof glass

Drain assembly

  : Clip

: N·m (kg-m, in-lb)

,

,

,

,

,

,

,

,

,

: Indicates that the part is connected at points with same symbol in actual vehicle.

: Pawl

: Vehicle front

JMKIB2841ZZ

: Vehicle front

JMKIB2842ZZ

RF-64

< REMOVAL AND INSTALLATION >

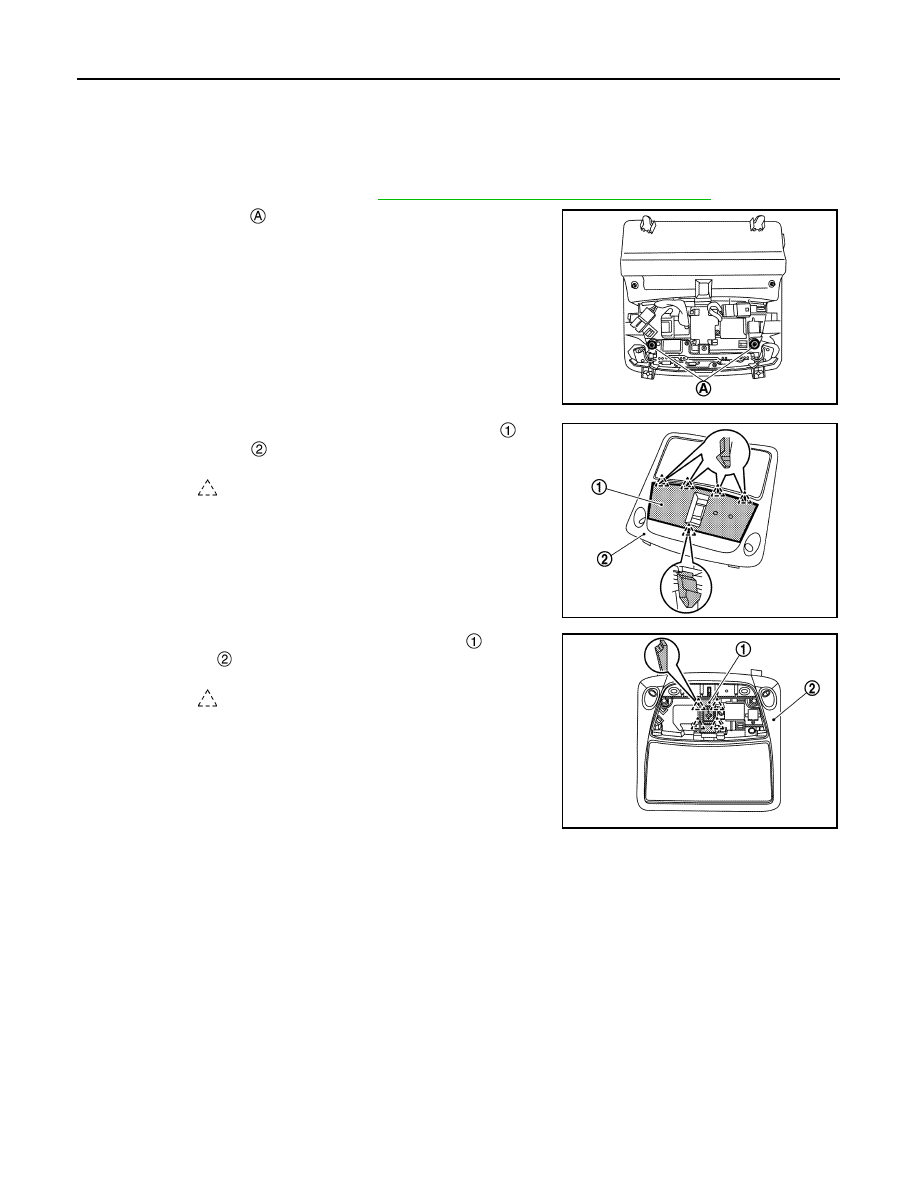

SUNROOF SWITCH

SUNROOF SWITCH

Removal and Installation

INFOID:0000000010735443

Removal

1.

Remove map lamp assembly. Refer to

INL-76, "MAP LAMP : Removal and Installation"

.

2.

Remove the screws

 from map lamp assembly.

3.

Disengage fixing pawls and remove map lamp finisher

 from

map lamp assembly

.

4.

Disengage fixing pawls and remove sunroof switch

 from map

lamp assembly

.

Installation

Install in the reverse order of removal.

JMKIB1632ZZ

:Pawl

JMKIB1633ZZ

:Pawl

JMKIB1634ZZ

RSU-1

SUSPENSION

C

D

F

G

H

I

J

K

L

M

SECTION

RSU

A

B

RSU

N

O

P

CONTENTS

REAR SUSPENSION

PRECAUTION ...............................................

2

PRECAUTIONS ...................................................

2

Precautions for Removing Battery Terminal  .............

2

Precautions for Suspension  ......................................

3

PREPARATION ............................................

4

PREPARATION ...................................................

4

Commercial Service Tools  ........................................

4

SYMPTOM DIAGNOSIS  ...............................

5

NOISE, VIBRATION AND HARSHNESS
(NVH) TROUBLESHOOTING  .............................

5

NVH Troubleshooting Chart  ......................................

5

PERIODIC MAINTENANCE ..........................

6

REAR SUSPENSION ASSEMBLY  .....................

6

Inspection ..................................................................

6

WHEEL ALIGNMENT ..........................................

7

Inspection ..................................................................

7

Adjustment ................................................................

8

REMOVAL AND INSTALLATION ................

9

COIL SPRING ......................................................

9

Exploded View  ..........................................................

9

Removal and Installation ...........................................

9

Inspection ................................................................

10

REAR SHOCK ABSORBER  ..............................

11

Exploded View  ........................................................

11

Removal and Installation .........................................

11

Inspection ................................................................

11

Disposal ...................................................................

12

REAR SUSPENSION ARM ...............................

13

Exploded View .........................................................

13

Removal and Installation  .........................................

13

Inspection ................................................................

14

LOWER LINK  ....................................................

15

Exploded View .........................................................

15

Removal and Installation  .........................................

15

Inspection ................................................................

15

UPPER LINK  .....................................................

17

Exploded View .........................................................

17

Removal and Installation  .........................................

17

Inspection ................................................................

17

REAR STABILIZER  ..........................................

19

Exploded View .........................................................

19

Removal and Installation  .........................................

19

Inspection ................................................................

19

REAR SUSPENSION MEMBER .......................

20

Exploded View .........................................................

20

Removal and Installation  .........................................

20

Inspection ................................................................

21

SERVICE DATA AND SPECIFICATIONS
(SDS) ............................................................

22

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

22

Wheel Alignment  .....................................................

22

Wheelarch Height  ....................................................

22
