RF-54

< REMOVAL AND INSTALLATION >

SUNSHADE MOTOR ASSEMBLY

SUNSHADE MOTOR ASSEMBLY

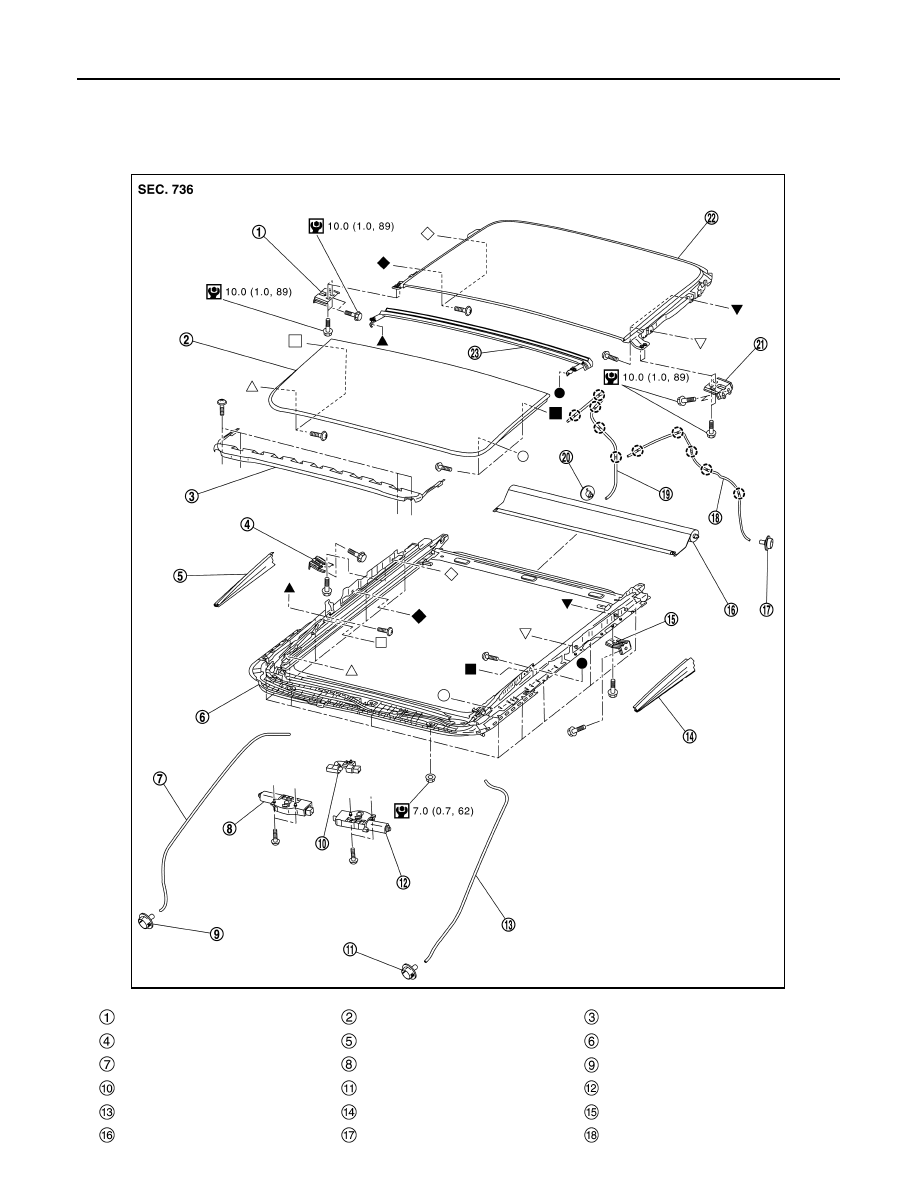

Exploded View

INFOID:0000000010735434

Front sunroof bracket RH

Glass lid

Wind deflector

Rear sunroof bracket RH

Side trim RH

Sunroof unit assembly

Front drain hose RH

Sunroof motor assembly

Front drain connector RH

Harness connector assembly

Front drain connector LH

Sunshade motor assembly

Front drain hose LH

Side trim LH

Rear sunroof bracket LH

Sunshade

Rear drain connector LH

Rear drain hose LH

JMKIB2824GB

SUNSHADE MOTOR ASSEMBLY

RF-55

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

Removal and Installation

INFOID:0000000010735435

REMOVAL

CAUTION:

• Before removing sunshade motor, check that sunshade is fully opened.
• After removing sunshade motor, never attempt to rotate sunshade motor assembly as a single unit.
1.

Disconnect battery cable from negative terminal.

2.

Remove headlining to make work space. Refer to

INT-37, "Removal and Installation"

3.

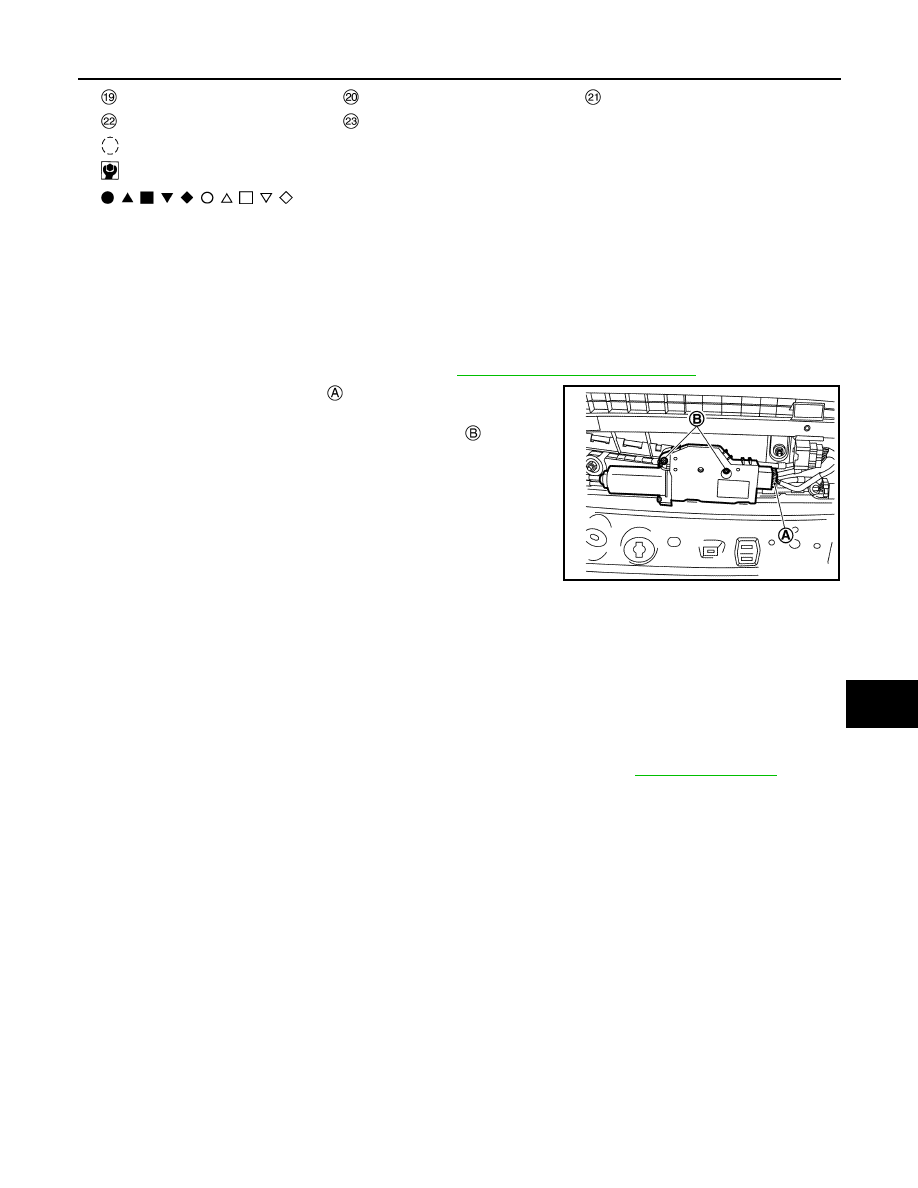

Disconnect harness connector

 from sunshade motor assem-

bly.

4.

Remove sunshade motor assembly fixing screws

, and then

remove sunshade motor assembly.

INSTALLATION

CAUTION:

Before installing the sunshade motor assembly, always place the link and wire assembly in the sym-
metrical and fully opened position.

1.

Move the sunshade motor assembly laterally a little so that the gear is completely engaged into the wire
on the sunroof unit assembly and mounting surface becomes parallel. Then secure the sunshade motor
assembly with screws.

2.

Install headlining.

NOTE:
After installation sunshade motor assembly, perform additional service. Refer to

RF-24, "Description"

Rear drain hose RH

Rear drain connector RH

Front sunroof bracket LH

Rear sunroof glass

Drain assembly

  : Clip

: N·m (kg-m, in-lb)

: Indicates that the part is connected at points with same symbol in actual vehicle.

JMKIB2839ZZ

RF-56

< REMOVAL AND INSTALLATION >

SUNROOF UNIT ASSEMBLY

SUNROOF UNIT ASSEMBLY

Exploded View

INFOID:0000000010735436

Front sunroof bracket RH

Glass lid

Wind deflector

Rear sunroof bracket RH

Side trim RH

Sunroof unit assembly

Front drain hose RH

Sunroof motor assembly

Front drain connector RH

Harness connector assembly

Front drain connector LH

Sunshade motor assembly

Front drain hose LH

Side trim LH

Rear sunroof bracket LH

Sunshade

Rear drain connector LH

Rear drain hose LH

JMKIB2824GB

SUNROOF UNIT ASSEMBLY

RF-57

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

Removal and Installation

INFOID:0000000010735437

REMOVAL

CAUTION:

• Always work with a helper.
• When removing/installing sunroof unit, use cloths to protect the seats and trim from damage.
1.

Remove glass lid. Refer to

RF-47, "Removal and Installation"

.

2.

Remove headlining. Refer to

INT-37, "Removal and Installation"

3.

Disconnect harness connector.

4.

Disconnect front drain hoses

 and rear drain hoses

 from sunroof unit assembly

.

5.

Remove front sunroof bracket mounting bolts, and then remove front sunroof brackets.

6.

Remove rear sunroof bracket mounting bolts, and then remove rear sunroof brackets.

7.

Remove sunroof unit assembly mounting nuts and bolts.

8.

Remove sunroof unit assembly from back door opening.

INSTALLATION

1.

Temporarily tighten the mounting nuts to the front end and side rail of sunroof unit assembly.

2.

Temporarily tighten the mounting bolts to the front sunroof brackets and rear sunroof brackets.

3.

Tighten the front end and side rail mounting nuts diagonally in order.

CAUTION:

Install sunroof unit assembly evenly without any distortion on sunroof unit assembly.

4.

Tighten the mounting bolts to the rear sunroof brackets sunroof unit side, and then tighten the mounting
bolts to the rear sunroof brackets vehicle side.

5.

Tighten the mounting bolts to the front sunroof brackets.

6.

Connect front drain hoses and rear drain hoses.

7.

Connect harness connector.

8.

Install headlining. Refer to

INT-37, "Removal and Installation"

.

9.

Install glass lid. Refer to

RF-47, "Removal and Installation"

.

NOTE:
• After installation, perform fitting adjustment. Refer to

RF-47, "Adjustment"

.

• After installation of sunroof unit assembly, perform additional service. Refer to

RF-24, "Description"

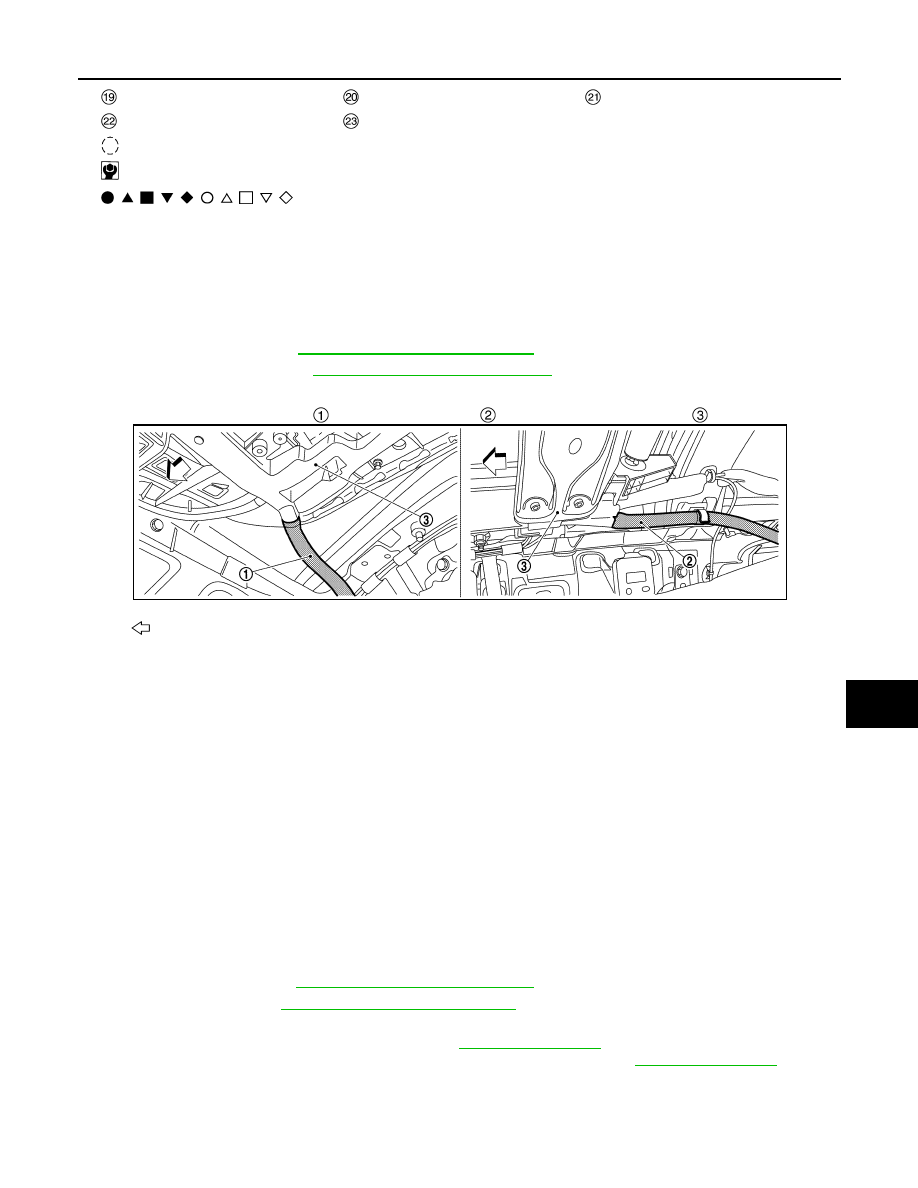

Disassembly and Assembly

INFOID:0000000010735438

DISASSEMBLY

Rear drain hose RH

Rear drain connector RH

Front sunroof bracket LH

Rear sunroof glass

Drain assembly

  : Clip

: N·m (kg-m, in-lb)

: Indicates that the part is connected at points with same symbol in actual vehicle.

: Vehicle front

JMKIB2806ZZ
