Nissan X-Trail 32. Manual - part 1765

RF-46

< REMOVAL AND INSTALLATION >

GLASS LID

REMOVAL AND INSTALLATION

GLASS LID

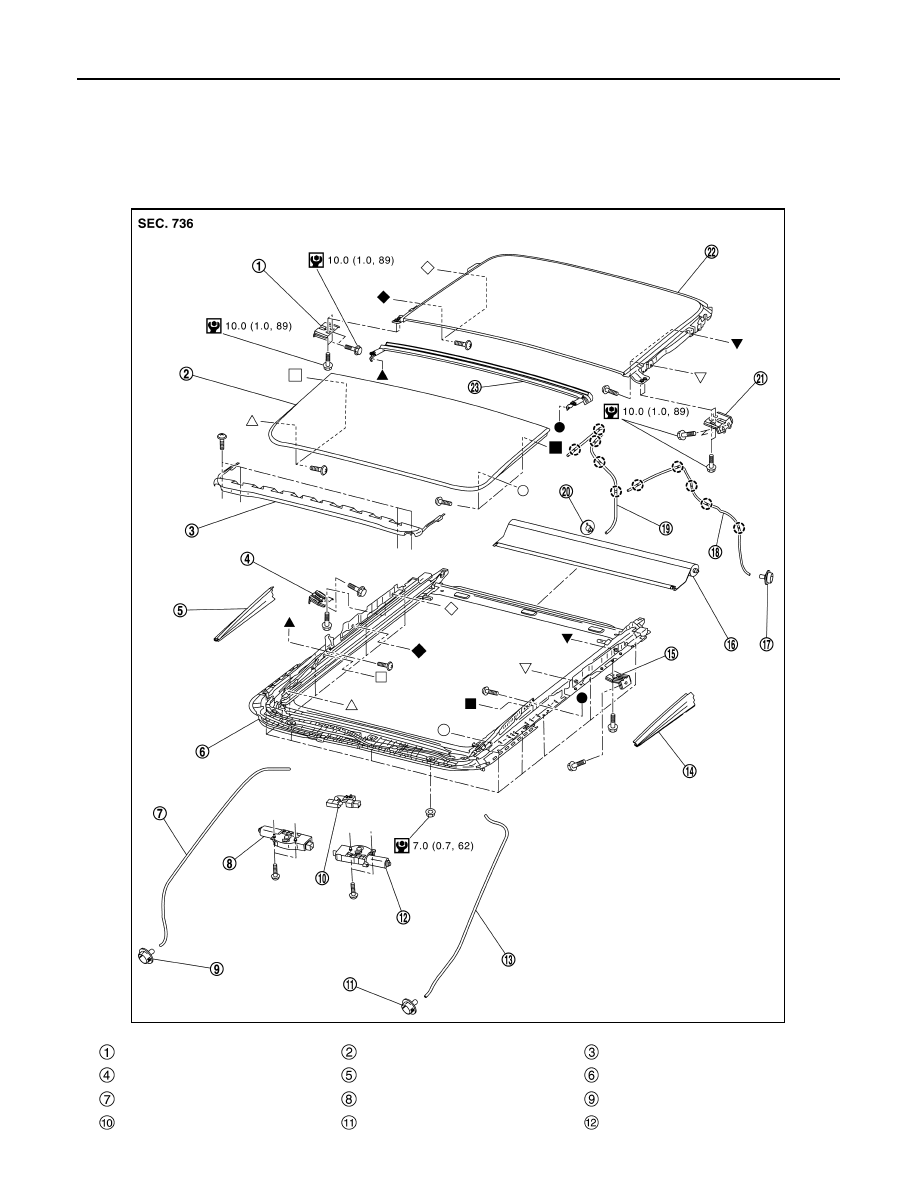

Exploded View

INFOID:0000000010735426

Front sunroof bracket RH

Glass lid

Wind deflector

Rear sunroof bracket RH

Side trim RH

Sunroof unit assembly

Front drain hose RH

Sunroof motor assembly

Front drain connector RH

Harness connector assembly

Front drain connector LH

Sunshade motor assembly

JMKIB2824GB

GLASS LID

RF-47

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

Removal and Installation

INFOID:0000000010735427

REMOVAL

CAUTION:

Always work with a helper.

1.

Remove side trim (LH/RH).

2.

Remove glass lid fixing screws

, and then remove glass lid.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

After installing the glass lid, perform the leak test and check that there is no malfunction.
NOTE:
After installation, carry out fitting adjustment. Refer to

RF-47, "Adjustment"

.

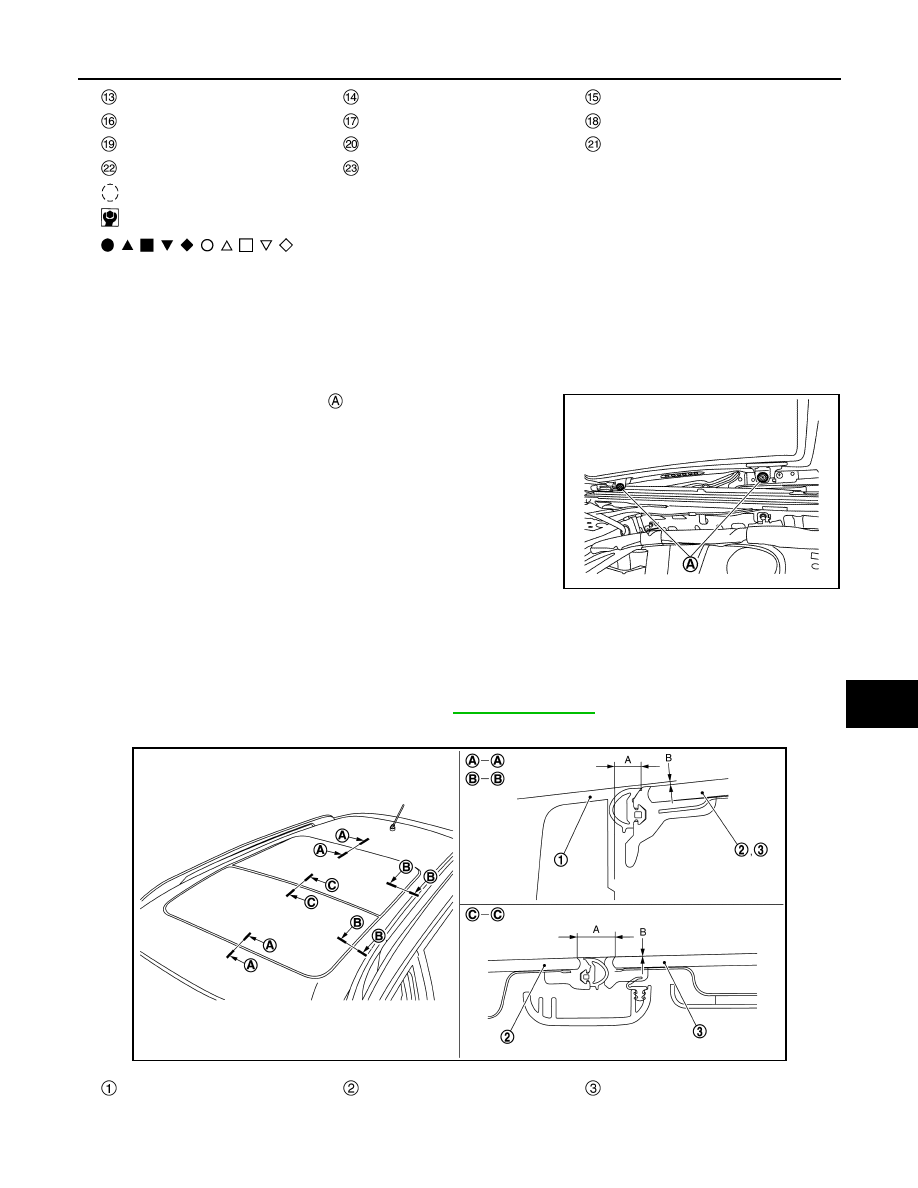

Adjustment

INFOID:0000000010735428

If the clearance and the surface height are out of specification, adjust them according to the procedures
shown below.

Front drain hose LH

Side trim LH

Rear sunroof bracket LH

Sunshade

Rear drain connector LH

Rear drain hose LH

Rear drain hose RH

Rear drain connector RH

Front sunroof bracket LH

Rear sunroof glass

Drain assembly

  : Clip

: N·m (kg-m, in-lb)

,

,

,

,

,

,

,

,

,

: Indicates that the part is connected at points with same symbol in actual vehicle.

JMKIB2807ZZ

JMKIB2827GB

Roof panel

Glass lid

Rear sunroof glass

RF-48

< REMOVAL AND INSTALLATION >

GLASS LID

NOTE:
Dimension (B) is given assuming that the glass upper side status is (+), and the glass lower side status is (

−

)

relative to the roof panel.

1.

Loosen glass lid mounting fixing screws.

2.

Adjust the clearance of glass lid and roof panel according to the fitting standard dimension.

3.

To prevent glass lid from moving after adjustment, first tighten the fixing screws of front left, and then
tighten the screws of rear right.

4.

Tilt glass lid up and down several times to check that it moves smoothly.

NOTE:
After adjustment the sunroof unit assembly, perform additional service. Refer to

RF-24, "Work Procedure"

.

Portion

A

B



−



6.5 – 8.1 mm

(0.256 – 0.319 in)

(

−

2.2) – (+0.8) mm

[(

−

0.087) – (+0.031) in]



−



6.5 – 8.1 mm

(0.256 – 0.319 in)

(

−

2.2) – (+0.8) mm

[(

−

0.087) – (+0.031) in]



−



6.5 – 8.1 mm

(0.256 – 0.319 in)

(

−

1.5) – (+1.5) mm

[(

−

0.059) – (+0.059) in]

REAR SUNROOF GLASS

RF-49

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

REAR SUNROOF GLASS

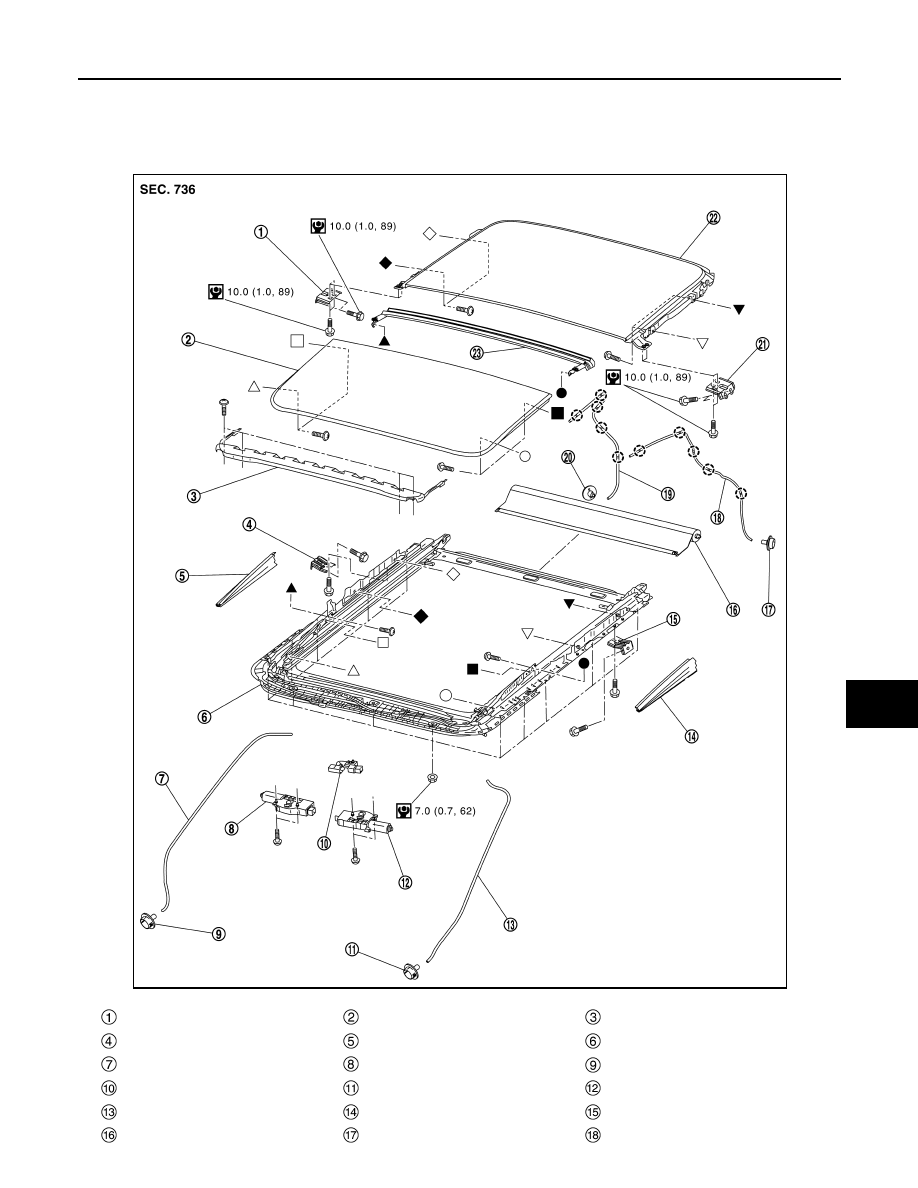

Exploded View

INFOID:0000000010735429

Front sunroof bracket RH

Glass lid

Wind deflector

Rear sunroof bracket RH

Side trim RH

Sunroof unit assembly

Front drain hose RH

Sunroof motor assembly

Front drain connector RH

Harness connector assembly

Front drain connector LH

Sunshade motor assembly

Front drain hose LH

Side trim LH

Rear sunroof bracket LH

Sunshade

Rear drain connector LH

Rear drain hose LH

JMKIB2824GB
