RF-38

< SYMPTOM DIAGNOSIS >

AUTO OPERATION DOES NOT OPERATE

• Sunshade stops halfway.
• Anti-pinch function operates.

SUNSHADE : Diagnosis Procedure

INFOID:0000000010735420

1.

CHECK SUNSHADE

Check sunshade for damage, deformation, of interference with other parts.
Refer to

RF-60, "Removal and Installation"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace the malfunctioning parts.

2.

PERFORM INITIALIZATION PROCEDURE

Initialization procedure is executed and operation is confirmed.
Refer to

RF-24, "Description"

.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> GO TO 3.

3.

CHECK COMMUNICATION CIRCUIT

Check communication circuit.
Refer to

RF-30, "Component Function Check"

.

Is the inspection result normal?

YES

>> Replace sunshade motor assembly. Refer to

RF-55, "Removal and Installation"

.

NO

>> Repair or replace the malfunctioning parts.

ANTI-PINCH FUNCTION DOES NOT OPERATE

RF-39

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

ANTI-PINCH FUNCTION DOES NOT OPERATE

SUNROOF

SUNROOF : Diagnosis Procedure

INFOID:0000000010735421

1.

PERFORM INITIALIZATION PROCEDURE

Perform initialization procedure.
Refer to

RF-24, "Description"

.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace sunroof motor assembly. Refer to

RF-53, "Removal and Installation"

.

SUNSHADE

SUNSHADE : Diagnosis Procedure

INFOID:0000000010735422

1.

PERFORM INITIALIZATION PROCEDURE

Perform initialization procedure.
Refer to

RF-24, "Description"

.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace sunshade motor assembly. Refer to

RF-55, "Removal and Installation"

.

RF-40

< SYMPTOM DIAGNOSIS >

SQUEAK AND RATTLE TROUBLE DIAGNOSES

SQUEAK AND RATTLE TROUBLE DIAGNOSES

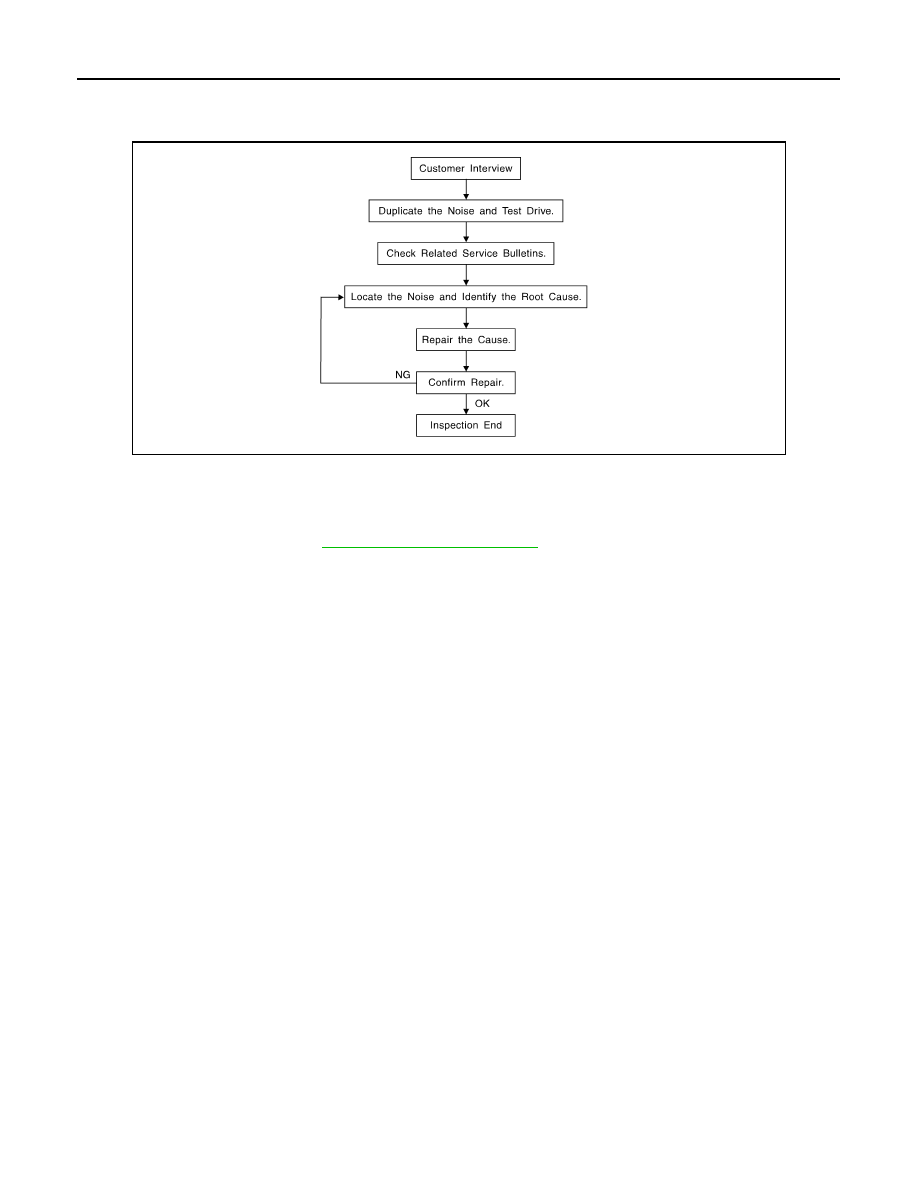

Work Flow

INFOID:0000000010735423

CUSTOMER INTERVIEW

Interview the customer if possible, to determine the conditions that exist when the noise occurs. Use the Diag-
nostic Worksheet during the interview to document the facts and conditions when the noise occurs and any of
the customer's comments; refer to

RF-44, "Diagnostic Worksheet"

. This information is necessary to duplicate

the conditions that exist when the noise occurs.
• The customer may not be able to provide a detailed description or the location of the noise. Attempt to obtain

all the facts and conditions that exist when the noise occurs (or does not occur).

• If there is more than one noise in the vehicle, be sure to diagnose and repair the noise that the customer is

concerned about. This can be accomplished by a test drive with the customer.

• After identifying the type of noise, isolate the noise in terms of its characteristics. The noise characteristics

are provided so the customer, service adviser and technician are all speaking the same language when
defining the noise.

• Squeak – (Like tennis shoes on a clean floor)

Squeak characteristics include the light contact/fast movement/brought on by road conditions/hard surfaces
= higher pitch noise/softer surfaces = lower pitch noises/edge to surface = chirping

• Creak – (Like walking on an old wooden floor)

Creak characteristics include firm contact/slow movement/twisting with a rotational movement/pitch depen-
dent on materials/often brought on by activity.

• Rattle – (Like shaking a baby rattle)

Rattle characteristics include the fast repeated contact/vibration or similar movement/loose parts/missing
clip or fastener/incorrect clearance.

• Knock – (Like a knock on a door)

Knock characteristics include hollow sounding/sometimes repeating/often brought on by driver action.

• Tick – (Like a clock second hand)

Tick characteristics include gentle contacting of light materials/loose components/can be caused by driver
action or road conditions.

• Thump – (Heavy, muffled knock noise)

Thump characteristics include softer knock/dead sound often brought on by activity.

• Buzz – (Like a bumble bee)

Buzz characteristics include high frequency rattle/firm contact.

• Often the degree of acceptable noise level will vary depending upon the person. A noise that a technician

may judge as acceptable may be very irritating to the customer.

• Weather conditions, especially humidity and temperature, may have a great effect on noise level.

DUPLICATE THE NOISE AND TEST DRIVE

If possible, drive the vehicle with the customer until the noise is duplicated. Note any additional information on
the Diagnostic Worksheet regarding the conditions or location of the noise. This information can be used to
duplicate the same conditions when the repair is reconfirmed.

SBT842

SQUEAK AND RATTLE TROUBLE DIAGNOSES

RF-41

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

If the noise can be duplicated easily during the test drive, to help identify the source of the noise, try to dupli-
cate the noise with the vehicle stopped by doing one or all of the following:
1) Close a door.
2) Tap or push/pull around the area where the noise appears to be coming from.
3) Rev the engine.
4) Use a floor jack to recreate vehicle “twist”.
5) At idle, apply engine load (electrical load, half-clutch on M/T model, drive position on A/T model).
6) Raise the vehicle on a hoist and hit a tire with a rubber hammer.
• Drive the vehicle and attempt to duplicate the conditions the customer states exist when the noise occurs.
• If it is difficult to duplicate the noise, drive the vehicle slowly on an undulating or rough road to stress the

vehicle body.

LOCATE THE NOISE AND IDENTIFY THE ROOT CAUSE

1.

Narrow down the noise to a general area. To help pinpoint the source of the noise, use a listening tool
(Engine ear or mechanics stethoscope).

2.

Narrow down the noise to a more specific area and identify the cause of the noise by:

• Removing the components in the area that is are suspected to be the cause of the noise.

Do not use too much force when removing clips and fasteners, otherwise clips and fastener can be broken
or lost during the repair, resulting in the creation of new noise.

• Tapping or pushing/pulling the component that is are suspected to be the cause of the noise.

Do not tap or push/pull the component with excessive force, otherwise the noise will be eliminated only tem-
porarily.

• Feeling for a vibration by hand by touching the component(s) that is are suspected to be the cause of the

noise.

• Placing a piece of paper between components that are suspected to be the cause of the noise.
• Looking for loose components and contact marks.

Refer to

RF-42, "Inspection Procedure"

.

REPAIR THE CAUSE

• If the cause is a loose component, tighten the component securely.
• If the cause is insufficient clearance between components:
- separate components by repositioning or loosening and retightening the component, if possible.
- insulate components with a suitable insulator such as urethane pads, foam blocks, felt cloth tape or urethane

tape. These insulators are available through the authorized Nissan Parts Department.

CAUTION:

Never use excessive force as many components are constructed of plastic and may be damaged.
NOTE:
• URETHANE PADS

Insulates connectors, harness, etc.

• INSULATOR (Foam blocks)

Insulates components from contact. Can be used to fill space behind a panel.

• INSULATOR (Light foam block)
• FELT CLOTHTAPE

Used to insulate where movement does not occur. Ideal for instrument panel applications.
The following materials, not available through NISSAN Parts Department, can also be used to repair
squeaks and rattles.

• UHMW(TEFLON) TAPE

Insulates where slight movement is present. Ideal for instrument panel applications.

• SILICONE GREASE

Used in place of UHMW tape that is be visible or does not fit.
Note: Will only last a few months.

• SILICONE SPRAY

Used when grease cannot be applied.

• DUCT TAPE

Used to eliminate movement.

CONFIRM THE REPAIR

Confirm that the cause of a noise is repaired by test driving the vehicle. Operate the vehicle under the same
conditions as when the noise originally occurred. Refer to the notes on the Diagnostic Worksheet.
