MWI-150

< SYMPTOM DIAGNOSIS >

NORMAL OPERATING CONDITION

NORMAL OPERATING CONDITION

INFORMATION DISPLAY

INFORMATION DISPLAY : Description

INFOID:0000000010715042

DISTANCE TO EMPTY

The calculated distance to empty may differ from the actual distance to empty if the refueling amount is
approximately 5   (1-1/8 Imp gal) or less. This is because the refuel control (moves the fuel gauge needle
quicker than normal judging that the driver is refueling the vehicle) is not performing.

AMBIENT TEMPERATURE

The displayed ambient temperature on the information display may differ from the actual temperature because
it is a corrected value calculated from the ambient sensor signal by the combination meter. Refer to

MWI-71,

"INFORMATION DISPLAY : System Description"

 for details on the correction process.

MWI

COMBINATION METER

MWI-151

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

REMOVAL AND INSTALLATION

COMBINATION METER

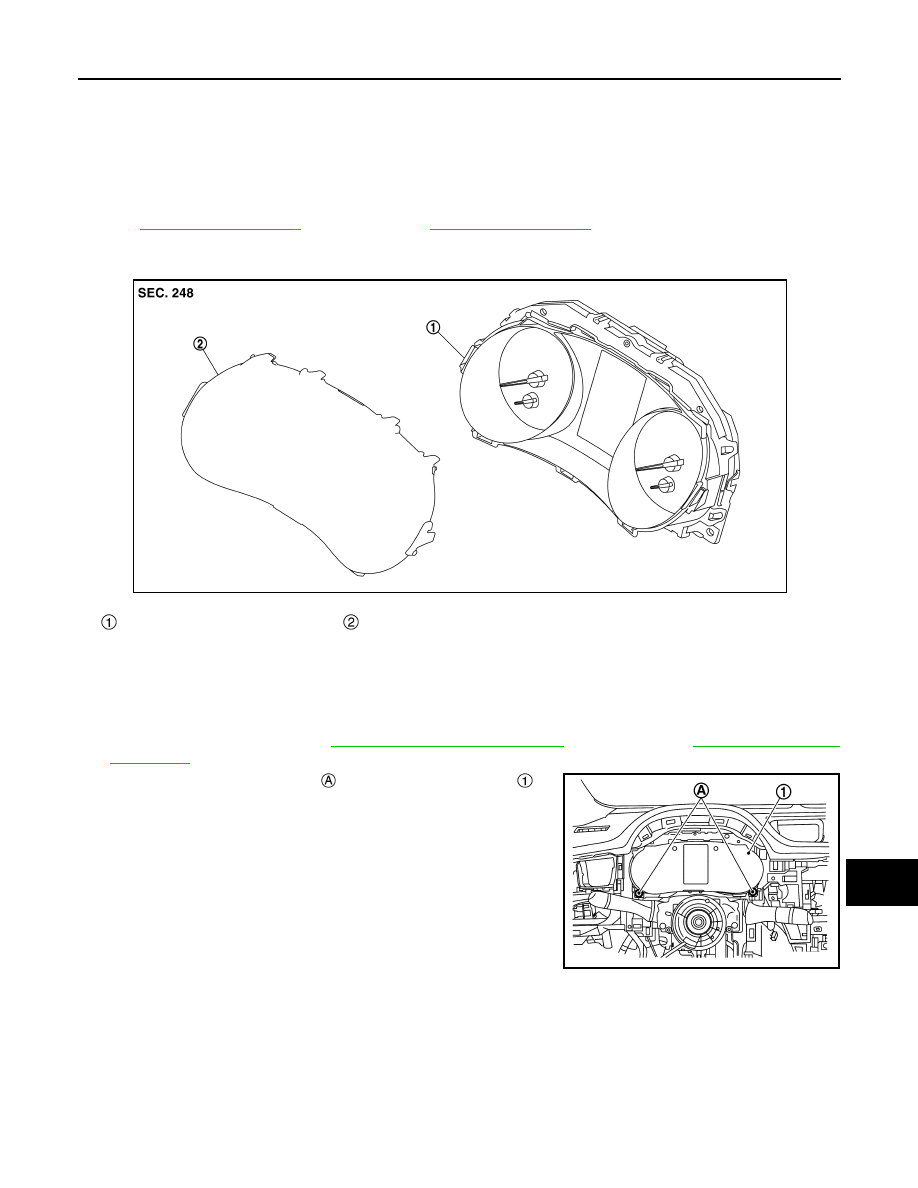

Exploded View

INFOID:0000000010715043

REMOVAL

Refer to

IP-13, "Exploded View"

 (LHD models), or

IP-40, "Exploded View"

 (RHD models).

DISASSEMBLY

Removal and Installation

INFOID:0000000010715044

REMOVAL

1.

Disconnect the battery cable from the negative terminal..

2.

Remove cluster lid A. Refer to

IP-14, "Removal and Installation"

 (LHD models) or

IP-41, "Removal and

Installation"

 (RHD models).

3.

Remove the mounting screws

 of the combination meter

.

Unified meter control unit

Front cover

JSNIA6660ZZ

JSNIA7202ZZ

MWI-152

< REMOVAL AND INSTALLATION >

COMBINATION METER

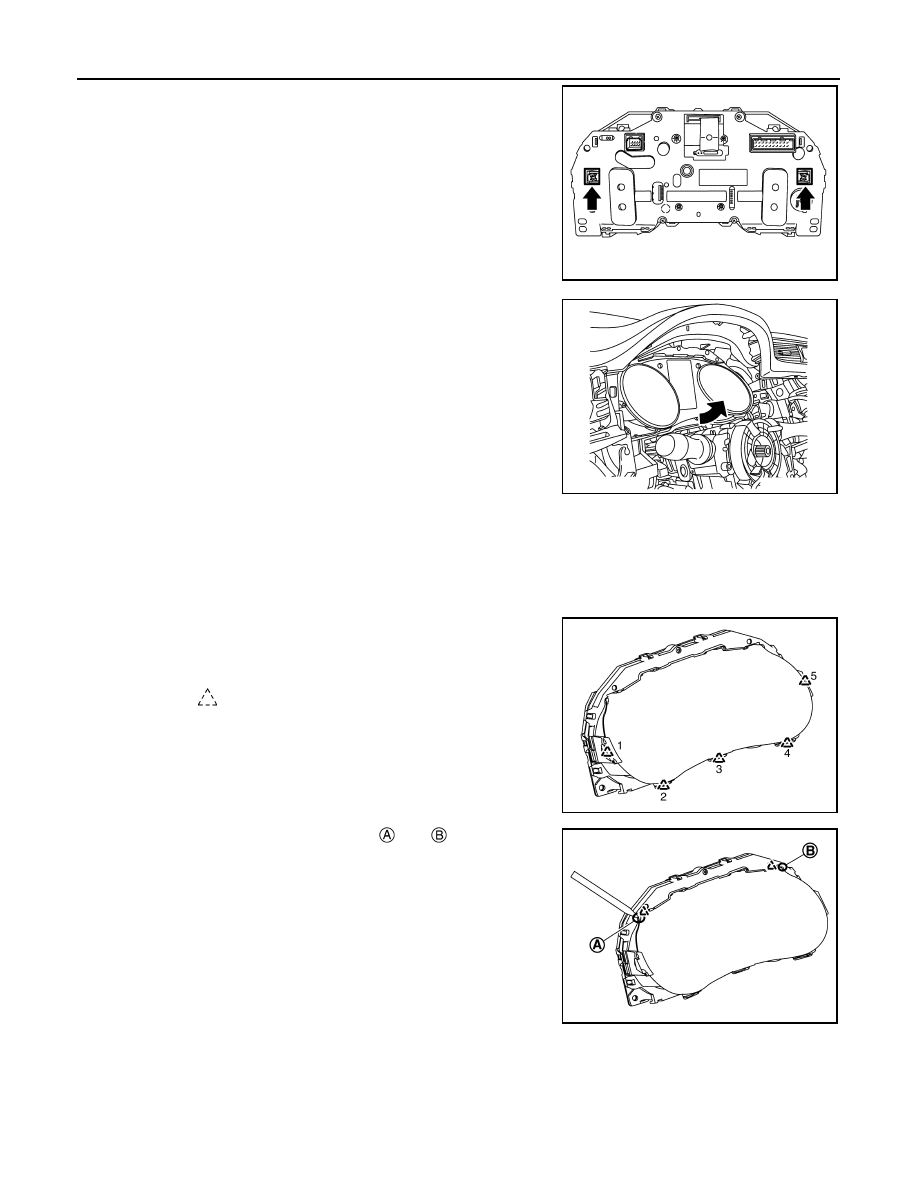

4.

Pull out the combination meter straight to desengage resin clips.
(The figure shows the clip positions on the back of the combina-
tion meter.)

CAUTION:

Never damage the front cover.

5.

Turn combination meter in the direction shown by arrow and dis-
connect the connector to remove combination meter from vehi-
cle.

CAUTION:

Never damage the front cover.

INSTALLATION

Installation is in the reverse order of removal.

Disassembly and Assembly

INFOID:0000000010715045

DISASSEMBLY

1.

Unlatch the pawls on the side (2 pawls) and the bottom (3 pawls)
of combination meter to allow the front cover to become slightly
released.

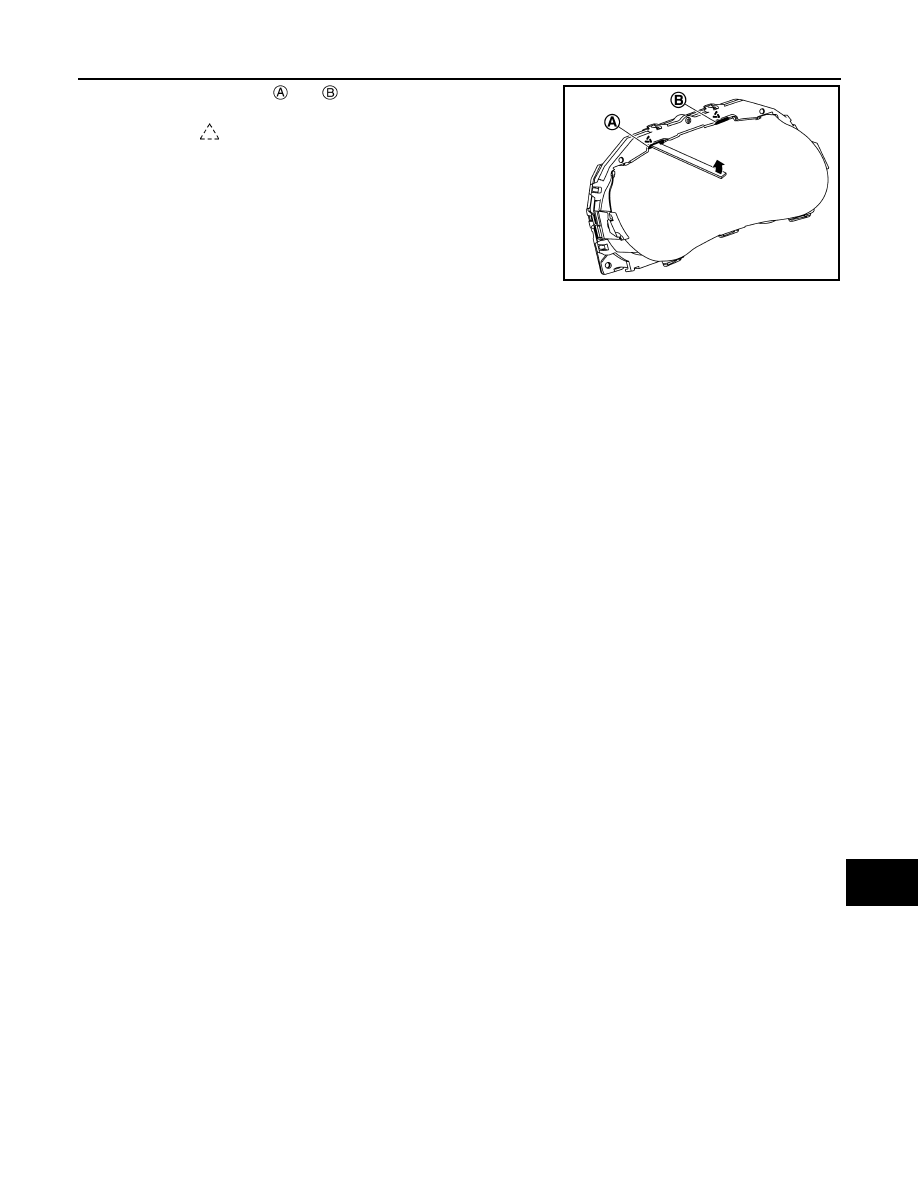

2.

Insert removal tool into the clearance (

 and

) between front

cover and meter control unit assembly and unlatch pawls by
turning the tool in the way of widening the clearance.

CAUTION:

Wrap the removal tools with protective tape to prevent
scratches.

JSNIA6662ZZ

JSNIA7203ZZ

: Pawl

JSNIA6664ZZ

JSNIA6665ZZ

MWI

COMBINATION METER

MWI-153

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

3.

Insert removal tool into

 and

 to unlatch the pawls.

CAUTION:

• Wrap the removal tools with protective tape to prevent

scratches.

• Never damage the front cover.

4.

Pull the front cover straight to remove it from the unified meter control unit.

CAUTION:

• Never damage the front cover.
• Never touch the inside of front cover, pointer, the display and the printed area of the dial during

the work.

• Keep away from magnetic sources.

ASSEMBLY

Install the front cover straight to the unified meter control unit and engage all the pawl.

CAUTION:

• Never damage the front cover.
• Never touch the inside of front cover, pointer, the display and the printed area of the dial during the

work.

• Keep away from magnetic sources.

: Pawl

JSNIA6666ZZ
