Nissan X-Trail 32. Manual - part 1618

MWI-154

< REMOVAL AND INSTALLATION >

STEERING SWITCH

STEERING SWITCH

Removal and Installation

INFOID:0000000010715046

REMOVAL

Refer to

ST-12, "Removal and Installation"

.

NOTE:
Always remove steering switch together with steering wheel.

INSTALLATION

Installation is in the reverse order of removal.

MWI

METER CONTROL SWITCH

MWI-155

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

METER CONTROL SWITCH

Exploded View

INFOID:0000000010715047

Refer to

IP-13, "Exploded View"

 (LHD models), or

IP-40, "Exploded View"

 (RHD models).

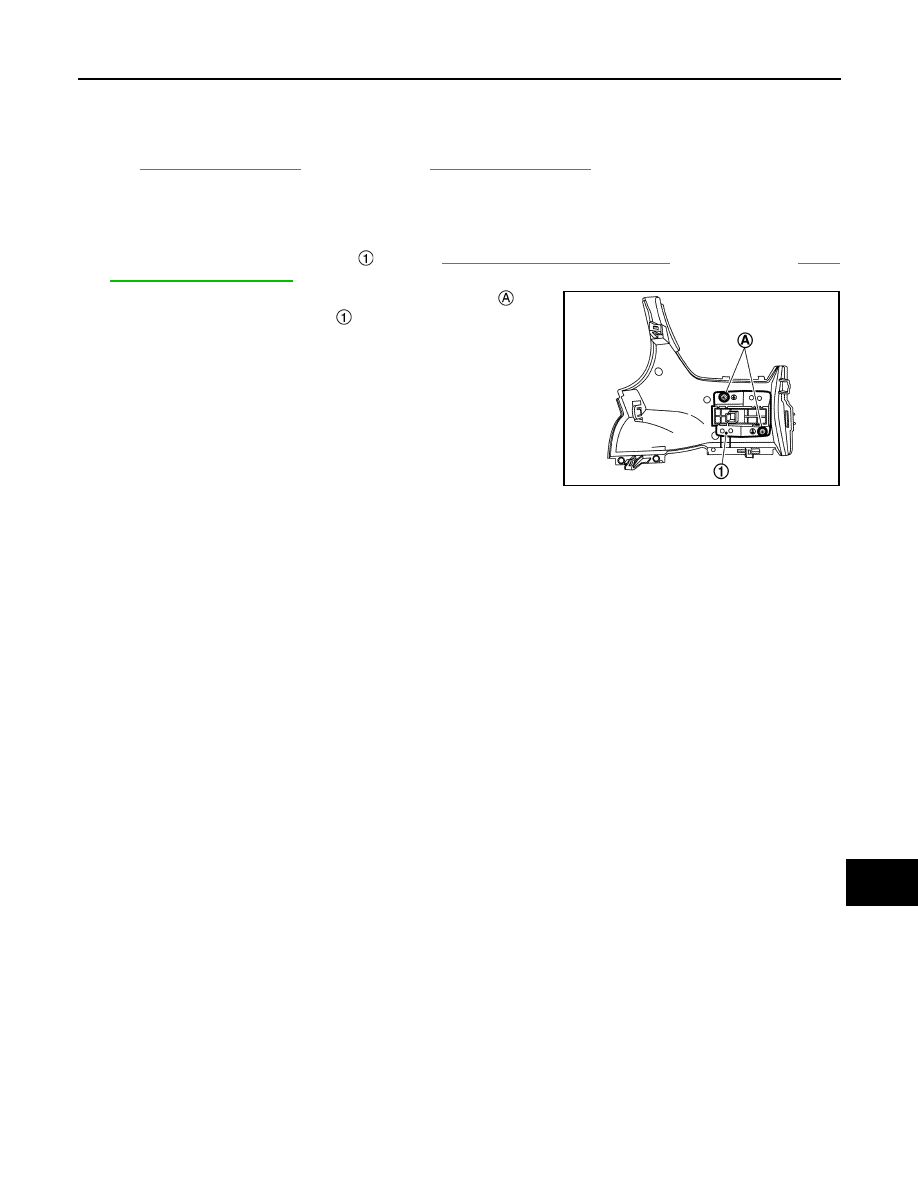

Removal and Installation

INFOID:0000000010715048

REMOVAL

1.

Remove instrument lower panel LH

. Refer to

IP-14, "Removal and Installation"

 (LHD models), or

IP-41,

"Removal and Installation"

 (RHD models).

2.

Remove the meter control switch mounting screws

, and

remove the meter control switch

.

INSTALLATION

Install in the reverse order of removal.

JSNIA7204ZZ

MWI-156

< REMOVAL AND INSTALLATION >

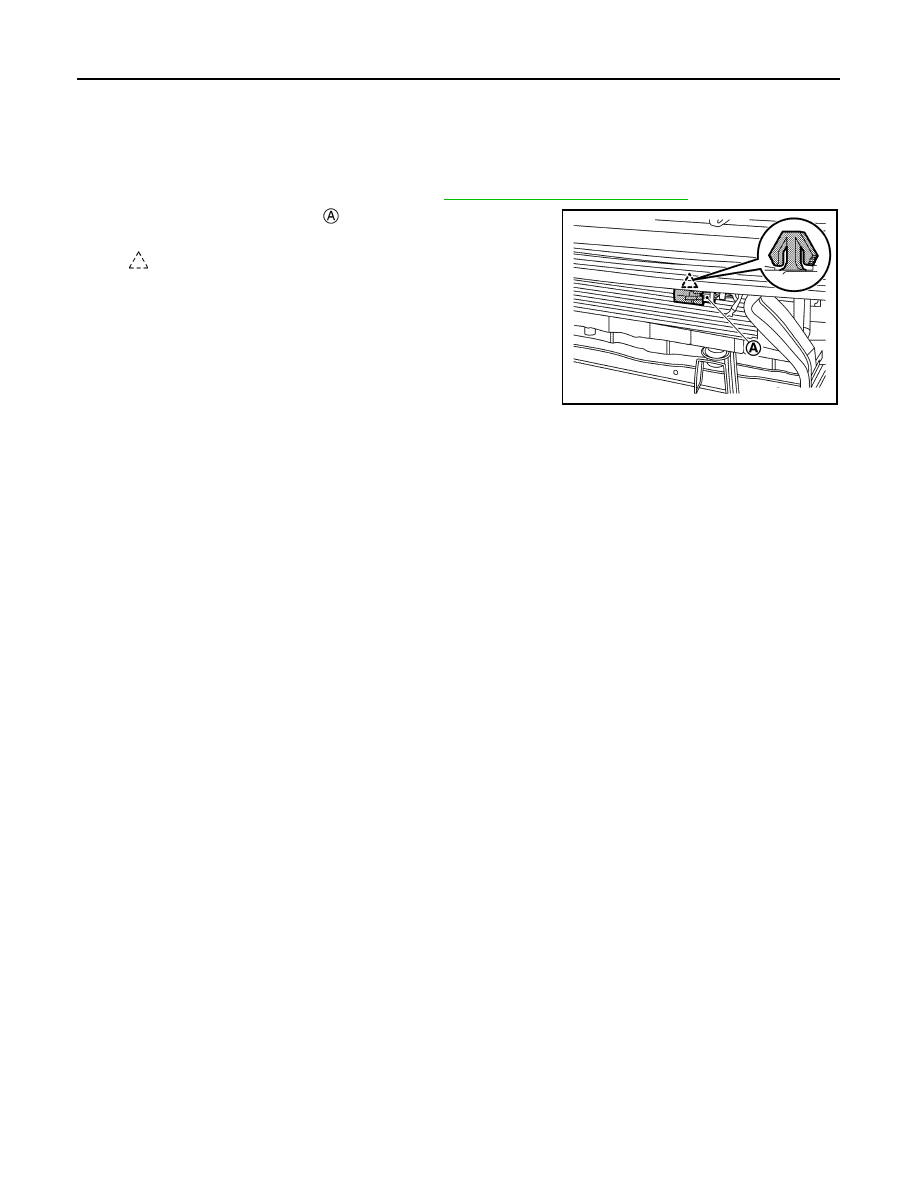

AMBIENT SENSOR

AMBIENT SENSOR

Removal and Installation

INFOID:0000000010715049

REMOVAL

1.

Remove front bumper fascia assembly. Refer to

EXT-15, "Removal and Installation"

.

2.

Disconnect harness connector

.

3.

Disengage fixing pawl, and then remove ambient sensor.

INSTALLATION

Install in the reverse order of removal.

: Pawl

JMIIA3393ZZ

PB-1

BRAKES

C

D

E

G

H

I

J

K

L

M

SECTION

PB

A

B

PB

N

O

P

CONTENTS

PARKING BRAKE SYSTEM

HOW TO USE THIS MANUAL ......................

4

HOW TO USE THIS SECTION ............................

4

Information ................................................................

4

PRECAUTION ...............................................

5

PRECAUTIONS ...................................................

5

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

5

Precautions for Removing Battery Terminal  .............

5

Precaution for Stop/Start System Service .................

6

Precautions for Harness Repair  ................................

6

Precaution for Parking Brake System  .......................

7

SYSTEM DESCRIPTION  ..............................

8

COMPONENT PARTS  ........................................

8

Component Parts Location ........................................

8

Electric Parking Brake Control Module  ...................

12

Parking Brake Switch  ..............................................

12

Parking Brake Actuator  ...........................................

12

Clutch Pedal Stroke Sensor  ....................................

12

SYSTEM .............................................................

13

System Description  .................................................

13

Circuit Diagram  .......................................................

21

Fail-Safe ..................................................................

21

WARNING/INDICATOR/CHIME LIST  .......................

23

WARNING/INDICATOR/CHIME LIST : Warning
Lamp/Indicator Lamp  ..............................................

23

INFORMATION DISPLAY (COMBINATION
METER) .....................................................................

24

INFORMATION DISPLAY (COMBINATION
METER) : Parking Brake Warning  ..........................

24

DIAGNOSIS SYSTEM (ELECTRIC PARKING
BRAKE CONTROL MODULE) ...........................

25

CONSULT Function  ................................................

25

ECU DIAGNOSIS INFORMATION ..............

29

ELECTRIC PARKING BRAKE CONTROL
MODULE ...........................................................

29

Reference Value ......................................................

29

Fail-Safe ..................................................................

34

DTC Inspection Priority Chart ..................................

35

DTC Index  ...............................................................

36

WIRING DIAGRAM  ......................................

39

ELECTRIC PARKING BRAKE SYSTEM ..........

39

Wiring Diagram ........................................................

39

BASIC INSPECTION  ...................................

43

DIAGNOSIS AND REPAIR WORK FLOW  .......

43

Work Flow ................................................................

43

Diagnostic Work Sheet  ............................................

44

CONFIGURATION (ELECTRIC PARKING
BRAKE CONTROL MODULE)  .........................

47

Work Procedure .......................................................

47

INSTRUCTIONS FOR RELEASING PARK-
ING BRAKE WHERE PARKING BRAKE
SWITCH CANNOT BE USED  ...........................

50

Description ...............................................................

50

Work Procedure .......................................................

50

ADDITIONAL SERVICE WHEN REPLACING
ELECTRIC PARKING BRAKE CONTROL
MODULE ...........................................................

51

Work Procedure .......................................................

51

REPLACEMENT OF REAR BRAKE PAD  ........

52

Description ...............................................................

52

Work Procedure .......................................................

52

ADJUSTMENT OF REAR BRAKE CALIPER
INITIAL POSITION  ............................................

55

Description ...............................................................

55
