MA-70

< PERIODIC MAINTENANCE >

CHASSIS MAINTENANCE

DISC BRAKE (RHD) : Rear Disc Brake

INFOID:0000000010953495

Unit: mm (in)

STEERING GEAR AND LINKAGE

STEERING GEAR AND LINKAGE : Inspection

INFOID:0000000010735346

STEERING GEAR

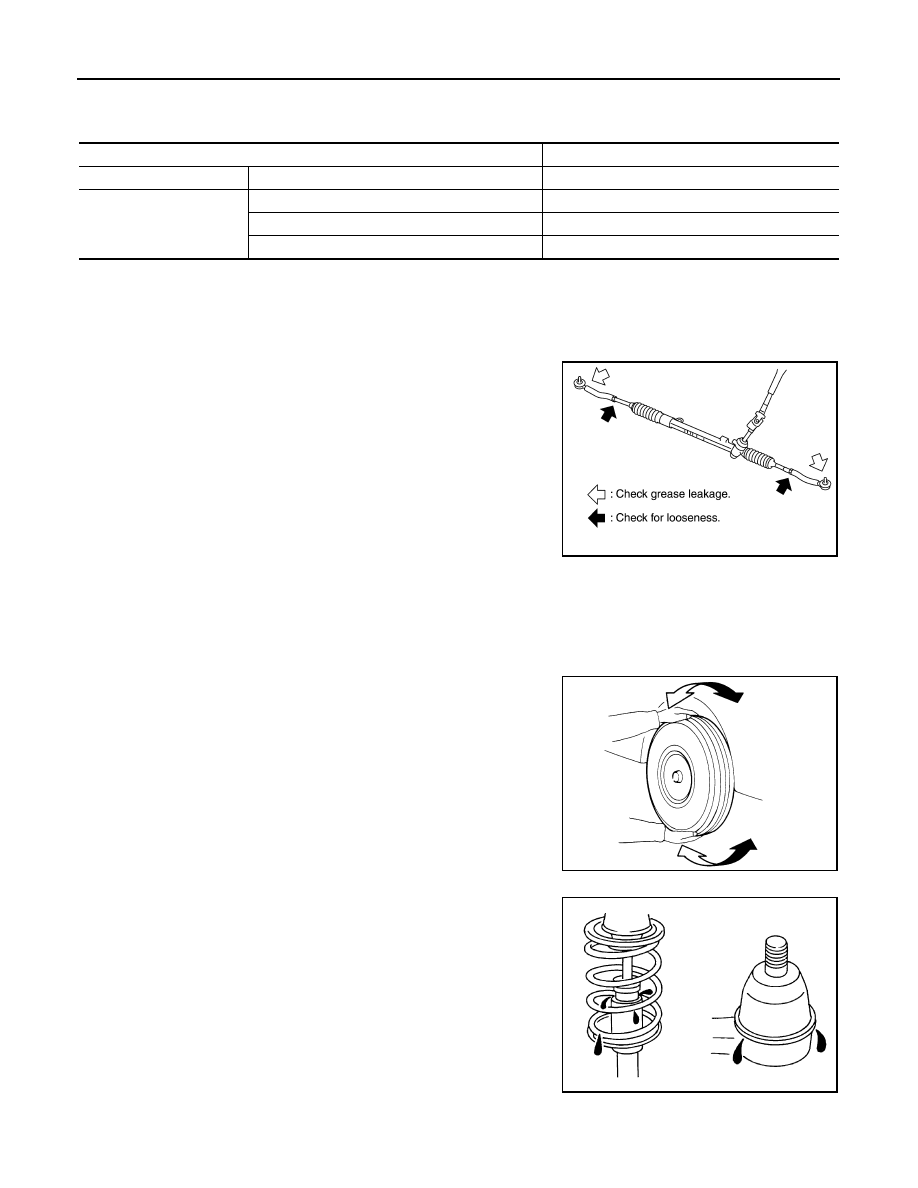

• Check gear housing and boots for looseness, damage and grease

leakage.

• Check connection with steering column for looseness.

STEERING LINKAGE

Check ball joint, dust cover and other component parts for looseness, wear, damage and grease leakage.

AXLE AND SUSPENSION PARTS

AXLE AND SUSPENSION PARTS : Inspection

INFOID:0000000010735347

Check front and rear axle and suspension parts for excessive play,
cracks, wear or other damage.
• Shake each wheel to check for excessive play.
• Check wheel bearings for smooth operation.
• Check axle and suspension nuts and bolts for looseness.
• Check strut (shock absorber) for oil leakage or other damage.
• Check suspension ball joint for grease leakage and ball joint dust

cover for cracks or other damage.

DRIVE SHAFT

Item

Limit

Brake pad

Wear thickness

2.0 (0.079)

Disc rotor

Wear thickness

14.0 (0.551)

Thickness variation (measured at 8 positions)

0.020 (0.0008)

Runout (with it attached to the vehicle)

0.070 (0.0028)

JPPIA0013GB

SMA525A

JPPIA0011ZZ

CHASSIS MAINTENANCE

MA-71

< PERIODIC MAINTENANCE >

DRIVE SHAFT : Inspection

INFOID:0000000010735348

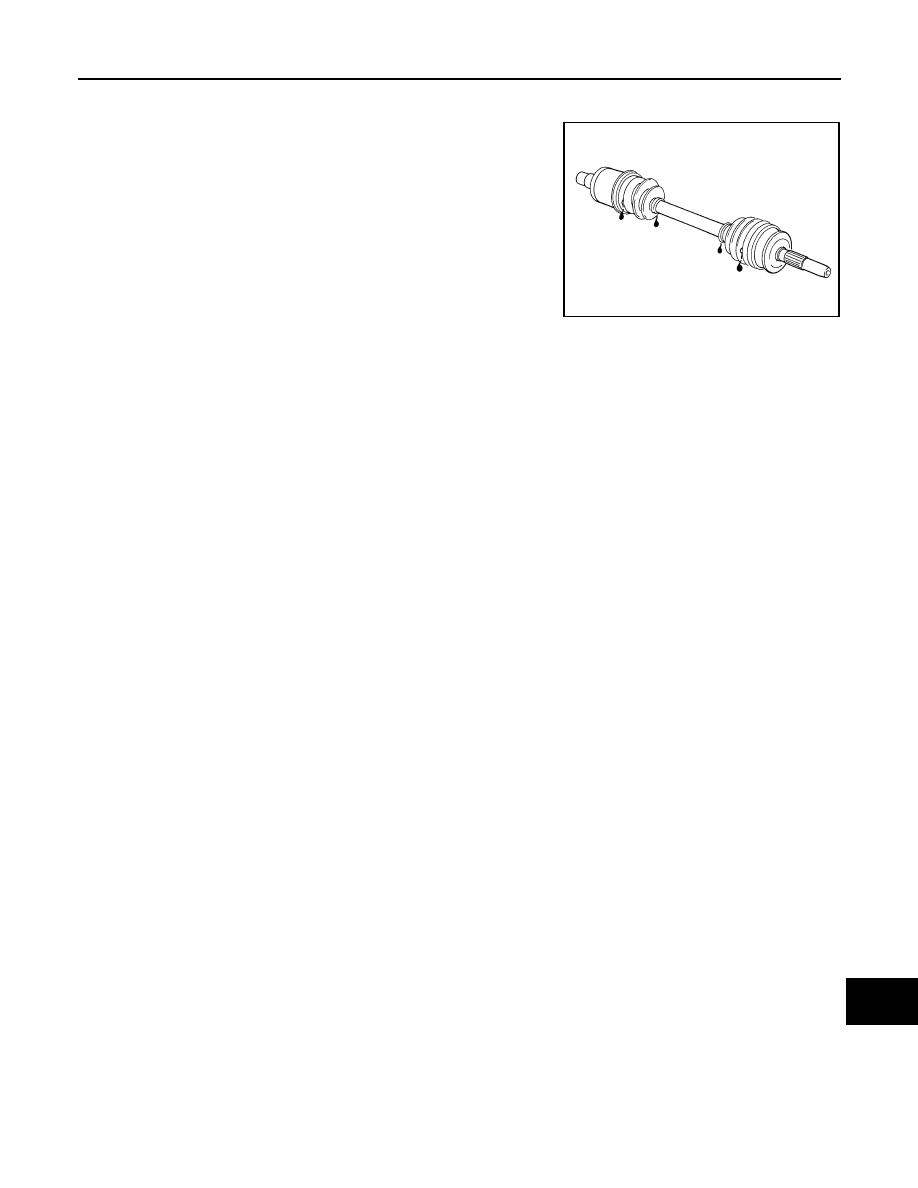

• Check boot and drive shaft for cracks, wear, damage and grease

leakage.

SFA108A

MA-72

< PERIODIC MAINTENANCE >

BODY MAINTENANCE

BODY MAINTENANCE

LOCKS, HINGES AND HOOD LATCH

LOCKS, HINGES AND HOOD LATCH : Lubricating

INFOID:0000000010735349

Check the vehicle type to use the service information in DLK section. Refer to

DLK-22, "Information"

SEAT BELT, BUCKLES, RETRACTORS, ANCHORS AND ADJUSTERS

SEAT BELT, BUCKLES, RETRACTORS, ANCHORS AND ADJUSTERS : Inspection

INFOID:0000000010735350

For front seat belt illustration. Refer to

SB-9, "Exploded View"

For second seat belt illustration. Refer to

SB-16, "Exploded View"

For third seat belt illustration. Refer to

SB-21, "Exploded View"

CAUTION:

• After any collision, inspect all seat belt assemblies, including retractors and other attached hard-

wares (I.e. anchor bolt, guide rail set). Nissan recommends to replace all seat belt assemblies in use
during a collision, unless not damaged and properly operating after minor collision.
Also inspect seat belt assemblies not in use during a collision, and replace if damaged or improperly
operating.
Seat belt pre-tensioner should be replaced even if the seat belts are not in use during a frontal colli-
sion where the driver and passenger air bags are deployed.

• If any component of seat belt assembly is questionable, do not repair.

Replace as seat belt assembly.

• If webbing is cut, frayed, or damaged, replace belt assembly.
• Never oil tongue and buckle.
• Use a genuine NISSAN seat belt assembly.
For details, refer to

SB-13, "SEAT BELT RETRACTOR : Inspection"

SB-18, "SEAT BELT RETRACTOR :

Inspection"

SB-22, "SEAT BELT RETRACTOR : Inspection"

in SB section.

• Check anchors for loose mounting
• Check belts for damage
• Check retractor for smooth operation
• Check function of buckles and tongues when buckled and released

PART

TYPE 1

TYPE 2

Hood

Refer to

DLK-262, "Exploded View"

Refer to

DLK-566, "Exploded View"

Hood lock

Refer to

DLK-297, "Exploded View"

Refer to
