SIDE WINDOW GLASS

SIDE WINDOW GLASS

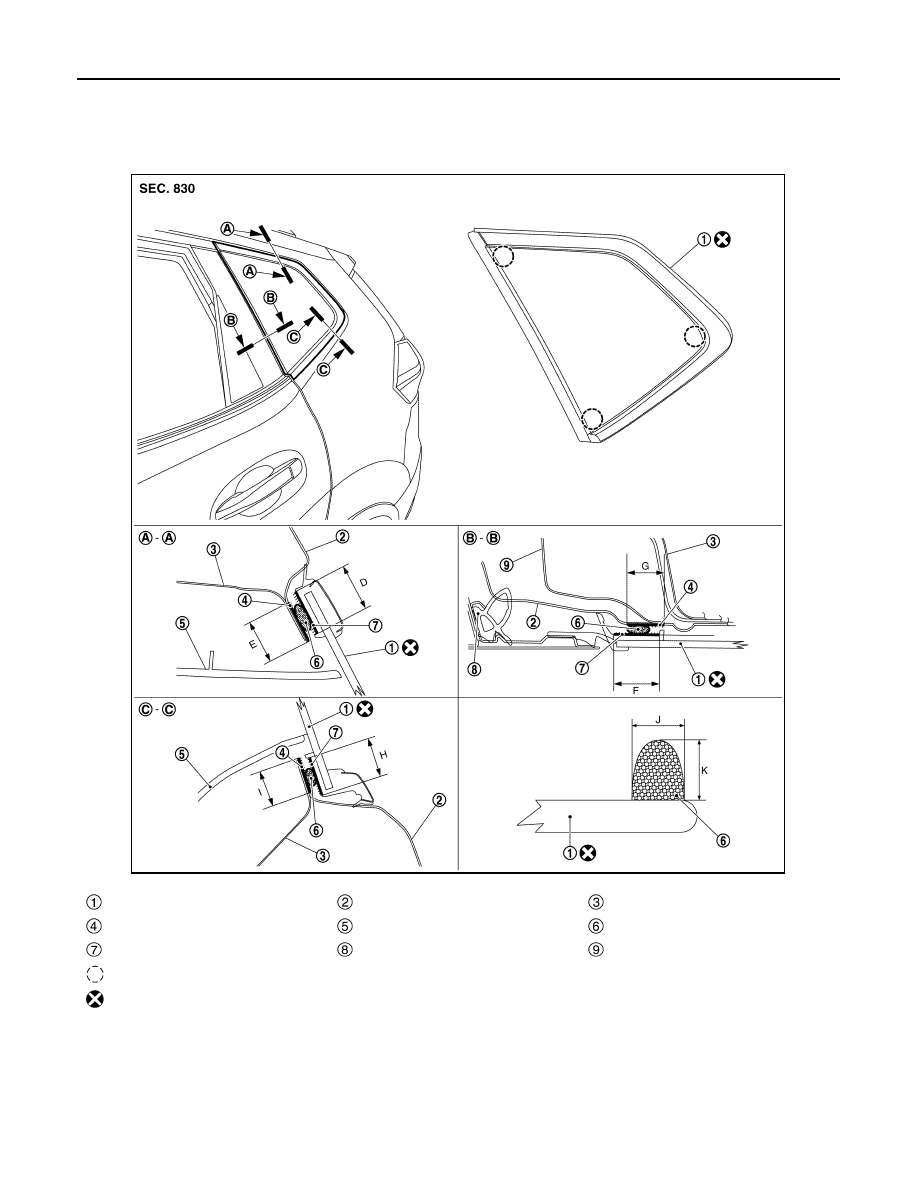

Exploded View

INFOID:0000000010755100

Side window glass

Body side outer panel

Rear pillar inner panel

Painted surface primer

Luggage side upper finisher

Adhesive

Glass primer

Rear door weather-strip

Rear pillar inner reinforcement

: Clip

: Always replace after every disassembly.

JMKIB3569ZZ

SIDE WINDOW GLASS

GW-27

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

Unit: mm (in)

Removal and Installation

INFOID:0000000010755101

REMOVAL

CAUTION:

Never damage body side outer panel.
1.

Remove luggage side upper finisher. Refer to

INT-45, "LUGGAGE SIDE UPPER FINISHER : Removal

and Installation"

.

2.

Disconnect harness connector

.

3.

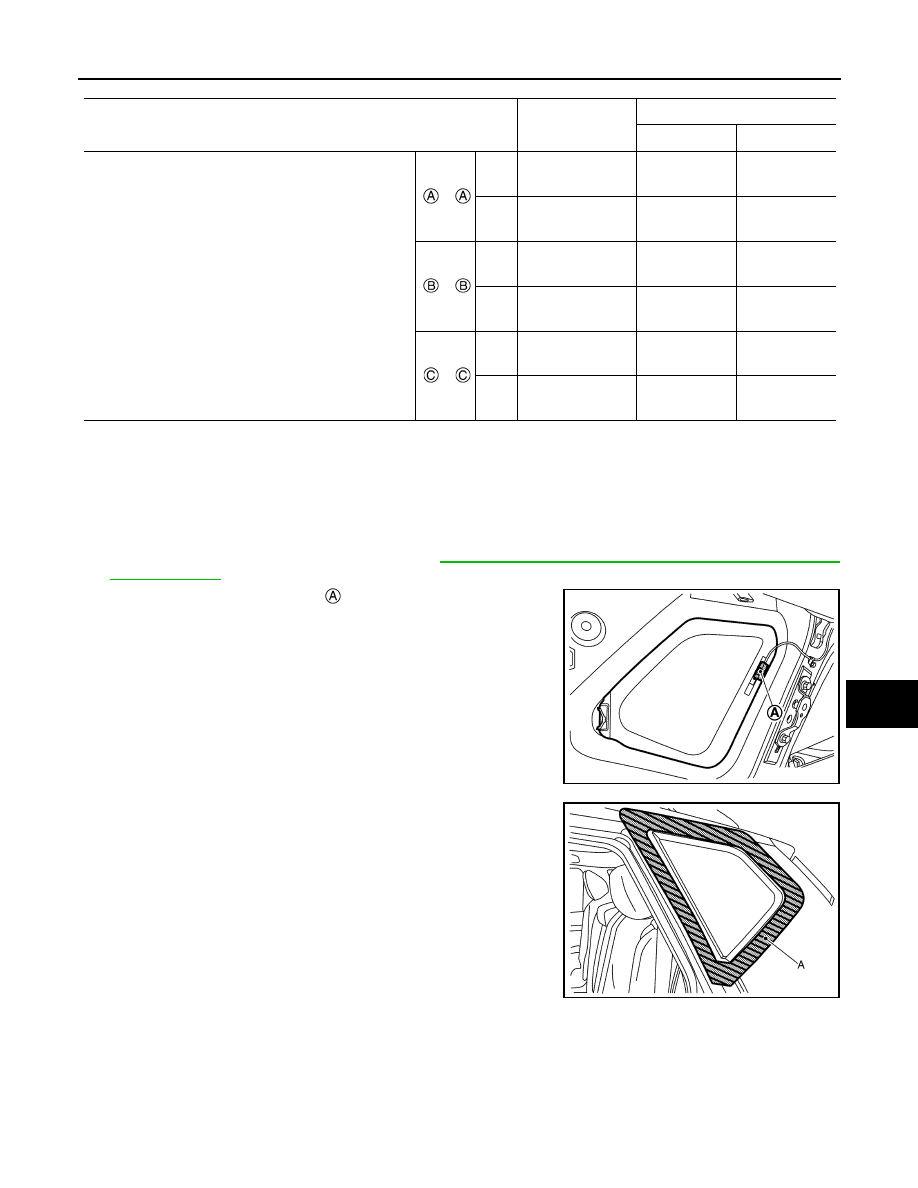

Apply protective tape (A) on body side outer panel around side
window glass to protect painted surface from damage.

Portion

Primer range

Adhesive range

J

K

Side window glass – Body side outer panel

 –

D

17.0

(0.669)

7.0

(0.276)

12.0

(0.472)

E

16.0

(0.630)

—

—

 –

F

17.0

(0.669)

7.0

(0.276)

12.0

(0.472)

G

16.0

(0.630)

—

—

 –

H

17.0

(0.669)

7.0

(0.276)

12.0

(0.472)

I

16.0

(0.630)

—

—

JMKIB3125ZZ

JMKIB3126ZZ

GW-28

< REMOVAL AND INSTALLATION >

SIDE WINDOW GLASS

4.

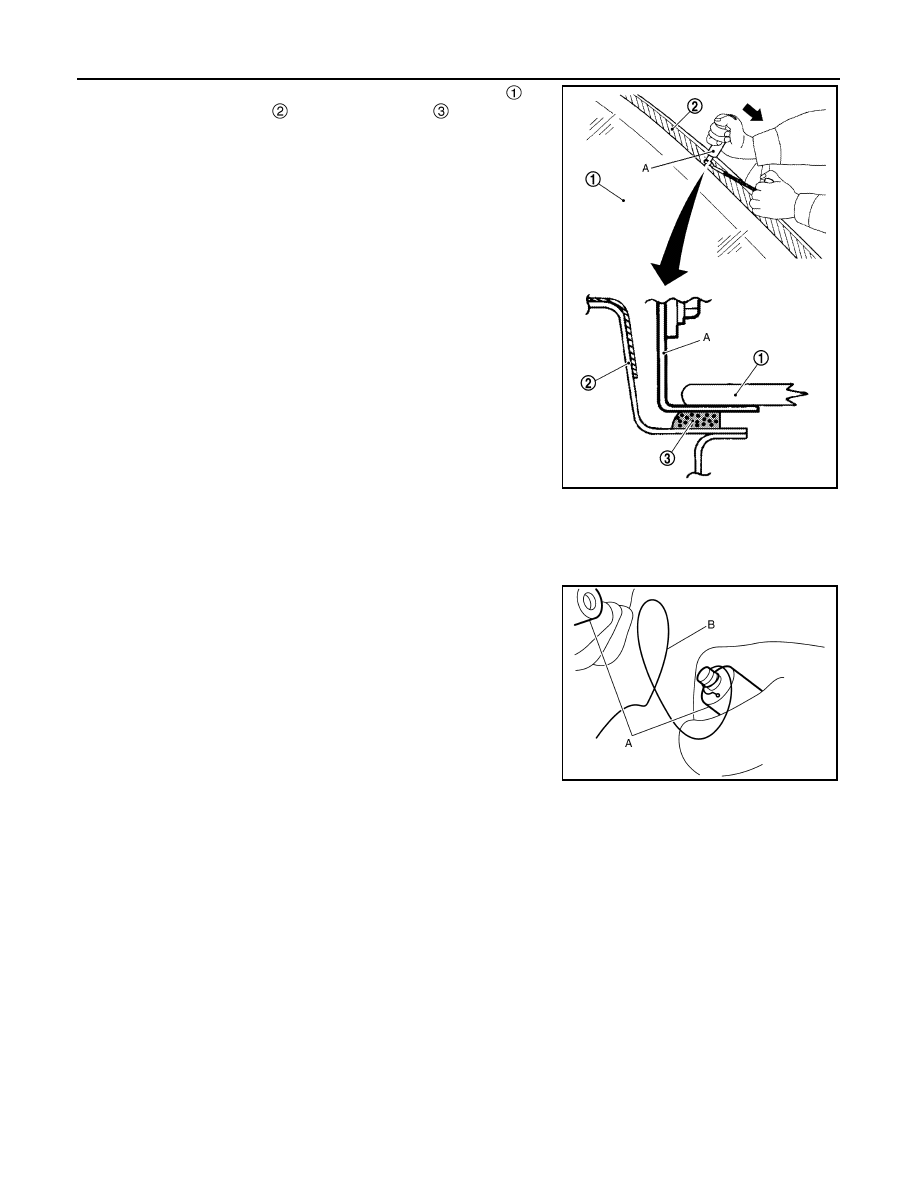

Insert a windshield cutter (A) between side window glass

 and

body side outer panel

. Remove adhesive

 by pulling the

windshield cutter, keeping the tip parallel to the edge of side win-
dow glass.

CAUTION:

Use piano wire to cut sealant if its difficult to use wind-
shield cutter.

5.

Remove adhesive using a piano wire.

a.

Pass the piano wire from passenger room to bonded area of side window glass using a wire pierce.

CAUTION:

Never damage surrounding parts.

b.

Tie both ends of the piano wire (B) to wire grip (A), etc..

c.

Remove adhesive by using piano wire alongside of side window glass and body side outer panel.

CAUTION:

Remove adhesive, 2 workers are required by all means.

6.

Remove side window glass.

INSTALLATION

CAUTION:

• Replace side window glass with a new part after removal. Never reuse side window glass.
• Never damage body side outer panel.

JMKIB3121ZZ

JMKIA9832ZZ

SIDE WINDOW GLASS

GW-29

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

1.

Use a cutter knife or scraper, and leave the of adhesive on the
body side approximately 2 mm (0.079 in) (A) to make adhesive
surface smooth.

CAUTION:

If the bonded area on the body is scratched, repair it using
a 2 liquid types urethane paint. Never use lacquer type
paint.

2.

Clean the bonded area on side window glass and body side outer panel using a white gasoline or
degreasing agent.

3.

Apply glass primer along the entire circumference of side window glass.

CAUTION:

• There are 2 types of primer. Never confuse the application methods.
-  Painted surfaces primer
-  Glass primer
• Use the sealing kit for glass application and the special holder for cartridge or similar tools.
• Dry glass primer according to the specification of adhesive kit.
NOTE:
The essential function of primers is to strengthen adhesion between the glass and the painted surface.

4.

Apply painted surface primer to the body side bonding surface.

CAUTION:

• If the body side bonding surface is repaired with 2 liquid types urethane paint, always apply the

primer after drying the paint.

• If painted surfaces primer adheres to a painted surface other than the bonding area, or if it over-

flows, quickly remove it with white gasoline or degreasing agent.

• Dry painted surface primer according to the specification of adhesive kit.

5.

Apply adhesive to entire circumference of side window glass by using a sealant gun.
NOTE:
Open adhesive by cutting off the nozzle tip and set it in a sealant gun.

6.

Press entire surface of side window glass lightly to fit it completely.

7.

Correct any adhesive overflow or shortage using a spatula to make the surface smooth.

CAUTION:

• After installing side window glass, keep the all door glass open until the adhesive is completely

cured.

• Never drive the vehicle before the adhesive is completely cured.

8.

Remove protective tape.

9.

Install removed parts.

CAUTION:

Check the mating area with surrounding parts. Adjust if necessary.

Inspection

INFOID:0000000010755102

WATER LEAKAGE INSPECTION

CAUTION:

• Dry adhesive according to the specification of adhesive kit, do the leaking check when adhesive is

stiffen.

• If leakage was found, start over from the beginning as side window glass removal, install and leaking

check.

JMKIB1454ZZ
