PRECAUTIONS

FL-27

< PRECAUTION >

[DIESEL ENGINE MODEL]

C

D

E

F

G

H

I

J

K

L

M

A

FL

N

P

O

PRECAUTION

PRECAUTIONS

Precautions for Removing Battery Terminal

INFOID:0000000010779472

• With the adoption of Auto ACC function, ACC power is automatically supplied by operating the intelligent key

or remote keyless entry or by opening/closing the driver side door. In addition, ACC power is supplied even
after the ignition switch is turned to the OFF position, i.e. ACC power is supplied for a certain fixed time.

• When disconnecting the 12V battery terminal, turn off the ACC

power before disconnecting the 12V battery terminal, observing
“How to disconnect 12V battery terminal” described below.
NOTE:
Some ECUs operate for a certain fixed time even after ignition
switch is turned OFF and ignition power supply is stopped. If the
battery terminal is disconnected before ECU stops, accidental DTC
detection or ECU data damage may occur.

•  For vehicles with the 2-batteries, be sure to connect the main bat-

tery and the sub battery before turning ON the ignition switch.
NOTE:
If the ignition switch is turned ON with any one of the terminals of
main battery and sub battery disconnected, then DTC may be detected.

•  After installing the 12V battery, always check "Self Diagnosis Result" of all ECUs and erase DTC.

NOTE:
The removal of 12V battery may cause a DTC detection error.

HOW TO DISCONNECT 12V BATTERY TERMINAL

Disconnect 12V battery terminal according to Instruction 1 or Instruction 2 described below.
For vehicles parked by ignition switch OFF, refer to Instruction 2.

INSTRUCTION 1

1.

Open the hood.

2.

Turn key switch to the OFF position with the driver side door opened.

3.

Get out of the vehicle and close the driver side door.

4.

Wait at least 3 minutes. For vehicle with the engine listed below, remove the battery terminal after a lapse
of the specified time.

CAUTION:

While waiting, never operate the vehicle such as locking, opening, and closing doors. Violation of
this caution results in the activation of ACC power supply according to the Auto ACC function.

5.

Remove 12V battery terminal.

CAUTION:

After installing 12V battery, always check self-diagnosis results of all ECUs and erase DTC.

INSTRUCTION 2 (FOR VEHICLES PARKED BY IGNITION SWITCH OFF)

1.

Unlock the door with intelligent key or remote keyless entry.
NOTE:
At this moment, ACC power is supplied.

2.

Open the driver side door.

3.

Open the hood.

4.

Close the driver side door.

5.

Wait at least 3 minutes.

SEF289H

D4D engine

: 20 minutes

HRA2DDT

: 12 minutes

K9K engine

: 4 minutes

M9R engine

: 4 minutes

R9M engine

: 4 minutes

V9X engine

: 4 minutes

FL-28

< PRECAUTION >

[DIESEL ENGINE MODEL]

PRECAUTIONS

CAUTION:

While waiting, never operate the vehicle such as locking, opening, and closing doors. Violation of
this caution results in the activation of ACC power supply according to the Auto ACC function.

6.

Remove 12V battery terminal.

CAUTION:

After installing 12V battery, always check self-diagnosis results of all ECUs and erase DTC.

General Precautions

INFOID:0000000010779537

WARNING:

When replacing fuel line parts, be sure to observe the following.
• Put a “CAUTION: FLAMMABLE” sign in the workshop.
• Be sure to work in a well ventilated area and furnish workshop with a CO

2

 fire extinguisher.

• Never smoke while servicing fuel system. Keep open flames and sparks away from the work area.

CAUTION:

• Use diesel fuel required by the regulations for cetane number. Refer to

GI-30, "Fuel"

.

• Before removing fuel line parts, perform out the following procedures:
- Put drained fuel in an explosion-proof container and put the lid on securely. Keep the container in

safe area.

- Disconnect the battery cable from the negative terminal.
• Always replace O-ring and clamps with new ones.
• Never kink or twist tubes when they are being installed.
• Never tighten hose clamps excessively to avoid damaging hoses.
• After installing tubes, check there is no fuel leakage at connections in the following steps.
- Apply fuel pressure to fuel lines with turning ignition switch “ON” (with engine stopped). Then check

for fuel leakage at connections.

- Start engine and rev it up and check for fuel leakage at connections.
• Drain water from fuel filter, when the water-in-fuel-filter warn-

ing lamp turns ON (with fuel filter warning). Refer to

FL-38,

"Draining Water from Fuel Filter"

.

JPNIA1924ZZ

PREPARATION

FL-29

< PREPARATION >

[DIESEL ENGINE MODEL]

C

D

E

F

G

H

I

J

K

L

M

A

FL

N

P

O

PREPARATION

PREPARATION

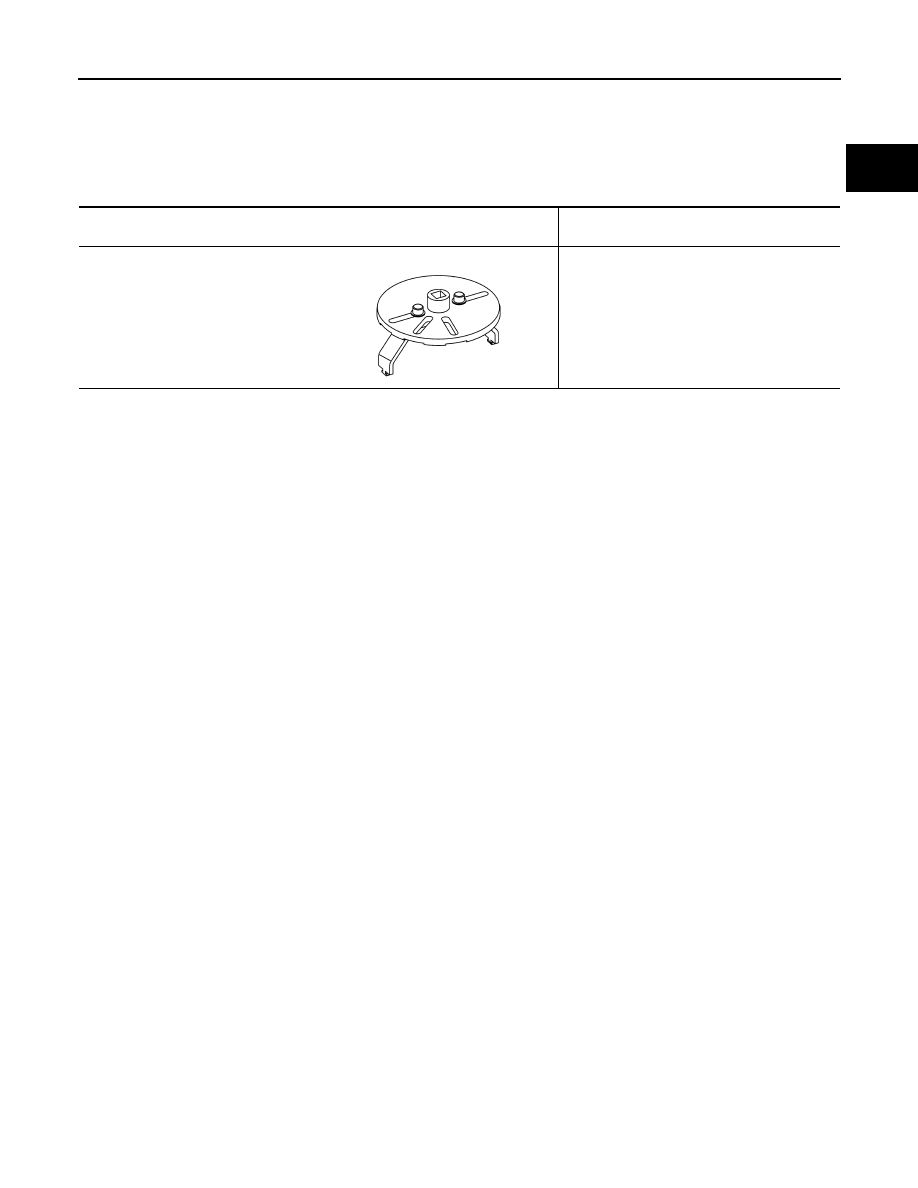

Special Service Tools

INFOID:0000000010778239

Tool number
Tool name

Description

KV101207S0
Unified fuel lock ring wrench

Removing and installing lock ring

JPBIA6384ZZ

FL-30

< SYSTEM DESCRIPTION >

[DIESEL ENGINE MODEL]

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

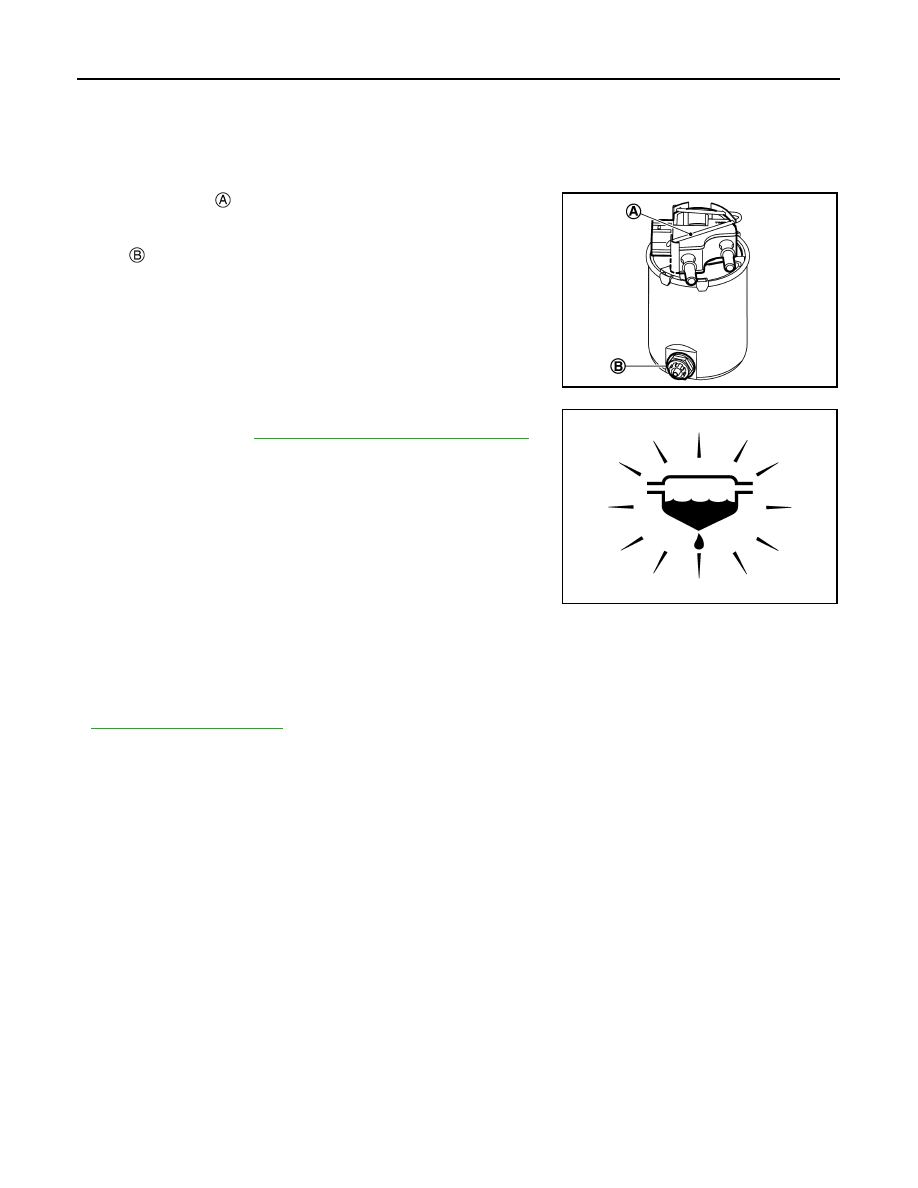

Fuel Filter Sensor

INFOID:0000000010778446

• Fuel filter sensor

 is integrated in the fuel filter and detects the

water in the fuel filter.

• When the water-in-fuel-filter warning lamp turns ON, drain water

from fuel filter. Refer to

FL-38, "Draining Water from Fuel Filter"

.

NOTE:
If the fuel filter warning lamp turns ON after draining water from fuel filter, perform the following.
• Disconnect fuel filter sensor connector.
• Check condition of the water-in-fuel-filter warning lamp.
- If the warning lamp is ON, check the harness between combination meter and fuel filter sensor. Refer to

MWI-106, "Wiring Diagram"

.

- If the warning lamp is OFF, replace the fuel filter sensor.

: Drain plug

JSBIA5150ZZ

PBIC2664E
