STRUCTURE AND OPERATION

FL-31

< SYSTEM DESCRIPTION >

[DIESEL ENGINE MODEL]

C

D

E

F

G

H

I

J

K

L

M

A

FL

N

P

O

STRUCTURE AND OPERATION

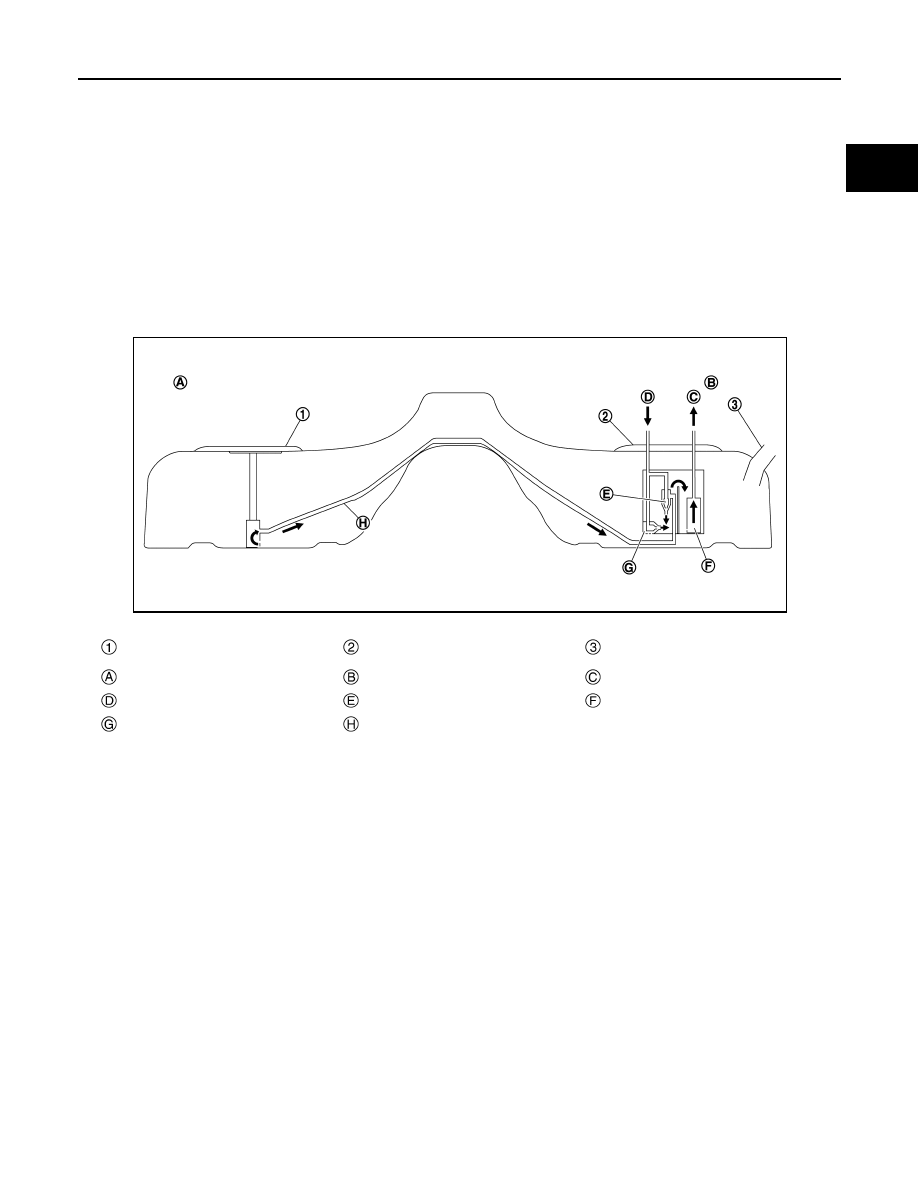

FUEL TRANSPORTATION IN FUEL TANK

FUEL TRANSPORTATION IN FUEL TANK : System Description

INFOID:0000000010838271

The electric fuel pump and the transfer jet pump are integrated with the main fuel level sensor unit, fuel filter
and fuel pump assembly. This is installed to the fuel tank.
The transfer jet pumps draw up fuel using a flow of return fuel. The transfer jet pump (sub side) transfers fuel
from the sub side to inside of the fuel pump assembly. The transfer jet pump (main side) transfers fuel from the
main side to inside of the fuel pump assembly. The fuel sent to fuel pump assembly is supplied to the engine
by an electric fuel pump.
NOTE:
Fuel on the sub side is consumed first.

Sub fuel level sensor unit

Main fuel level sensor unit, fuel filter
and fuel pump assembly

Fuel filler hose

Sub side

Main side

Feed line

Return line

Transfer jet pump (sub side)

Electric fuel pump

Transfer jet pump (main side)

Transfer tube

JSBIA5151ZZ

FL-32

< SYSTEM DESCRIPTION >

[DIESEL ENGINE MODEL]

SYSTEM

SYSTEM

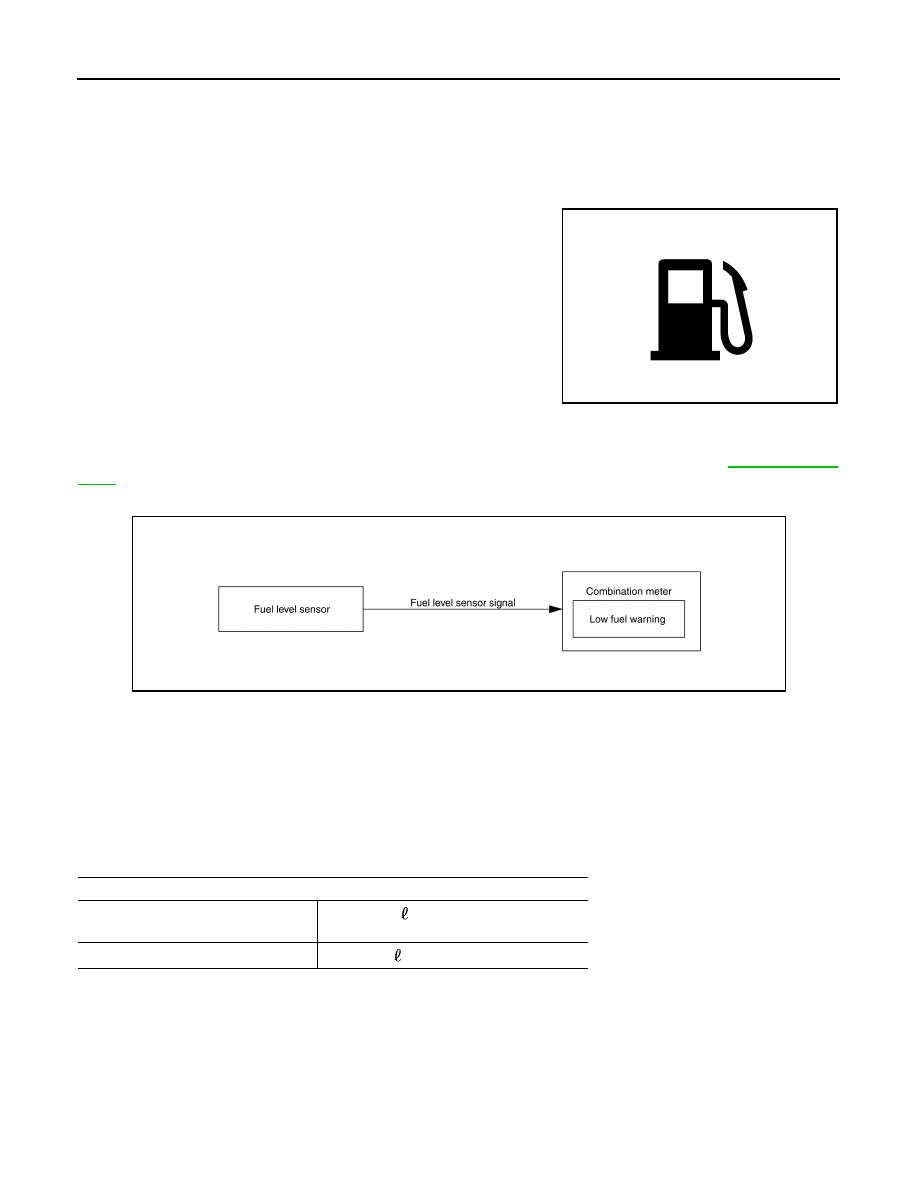

WARNING/INDICATOR (ON INFORMATION DISPLAY)

WARNING/INDICATOR (ON INFORMATION DISPLAY) : Low fuel warning

INFOID:0000000010778240

DESIGN/PURPOSE

This warns the driver that the fuel level is low.

OPERATION AT COMBINATION METER CAN COMMUNICATION CUT-OFF OR UNUSUAL SIG-
NAL

For the operation for CAN communications blackout or abnormal signal reception, refer to

MWI-103, "Fail-

Safe"

.

SYSTEM DIAGRAM

SIGNAL PATH

The combination meter receives fuel level sensor signal (resistance value) from the fuel level sensor unit and
indicates low fuel level warning on the vehicle information display when fuel level sensor signal (resistance
value) is less than the specified value.

LIGHTING CONDITION

When all of the following conditions are satisfied:
• After a lapse of 15 seconds after the ignition switch is turned ON.
• Fuel level is lower than the specified level.

SHUTOFF CONDITION

When any of the following conditions was satisfied:
• Ignition switch is OFF.
• Fuel level is the specified level or more.

WARNING/INDICATOR/CHIME LIST

JPNIA1905ZZ

JPBIA6242GB

Fuel level warning indication timing (Vehicle: Parked on the level)

Fuel level

Approx. 10.8

 (2-3/8 lmp gal) or less

(fuel tank dead amount included)

Fuel tank dead amount

Approx. 2.8

(2-4/8 lmp qt)

SYSTEM

FL-33

< SYSTEM DESCRIPTION >

[DIESEL ENGINE MODEL]

C

D

E

F

G

H

I

J

K

L

M

A

FL

N

P

O

WARNING/INDICATOR/CHIME LIST : Warning lamps/Indicator lamps

INFOID:0000000010778445

WARNING/INDICATOR/CHIME LIST : Warning/Indicator (On Information Display)

INFOID:0000000010778241

Name

Design

Arrangement/Function

Fuel filter warning lamp

Regarding the arrangement. Refer to

MWI-10, "METER SYSTEM :

Design"

.

Regarding the function. Refer to

MWI-63, "WARNING LAMPS/INDI-

CATOR LAMPS : Water-in-fuel-filter warning lamp"

.

Name

Design

Arrangement/Function

Low fuel warning

Regarding the arrangement. Refer to

MWI-10, "METER SYSTEM :

Design"

.

Regarding the function. Refer to

FL-32, "WARNING/INDICATOR (ON

INFORMATION DISPLAY) : Low fuel warning"

.

FL-34

< PERIODIC MAINTENANCE >

[DIESEL ENGINE MODEL]

FUEL SYSTEM

PERIODIC MAINTENANCE

FUEL SYSTEM

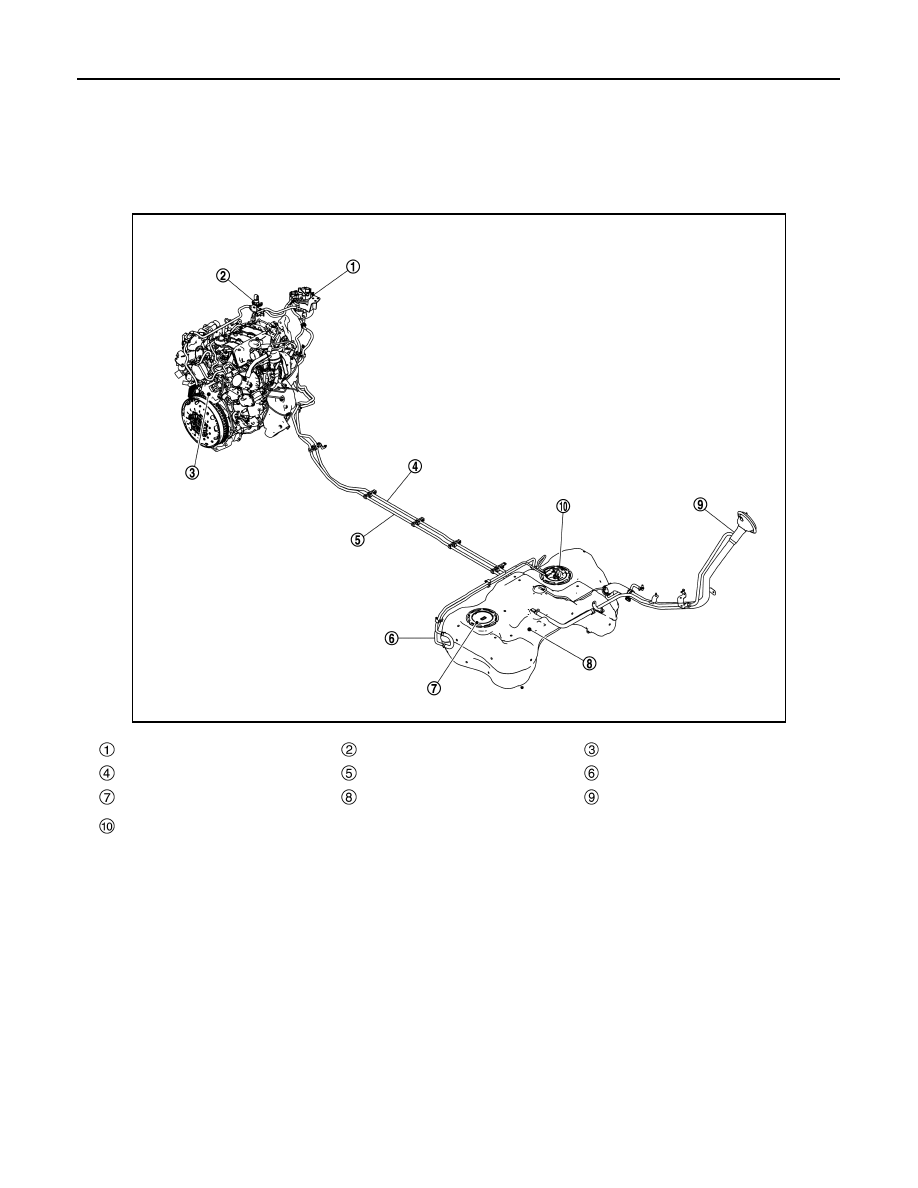

Hydraulic Layout

INFOID:0000000010778294

M/T models

JSBIA5152ZZ

Fuel filter

Fuel pressure sensor

Fuel pump

Fuel feed tube

Fuel return tube

Fuel cooling tube

Sub fuel level sensor assembly

Fuel tank

Fuel filler tube

Main fuel level sensor, fuel filter and
fuel pump assembly
