EVAP CANISTER

FL-23

< REMOVAL AND INSTALLATION >

[GASOLINE ENGINE MODEL]

C

D

E

F

G

H

I

J

K

L

M

A

FL

N

P

O

EVAP CANISTER

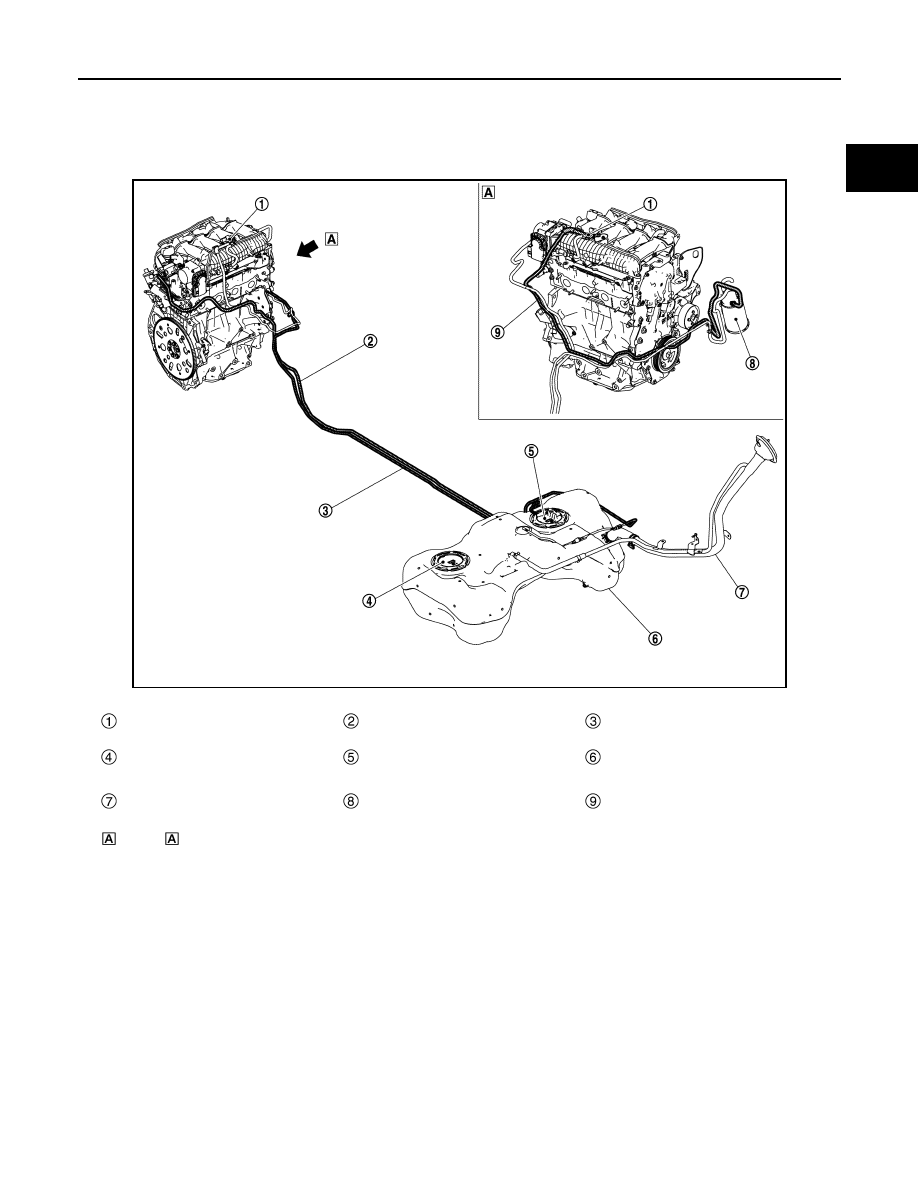

Hydraulic Layout

INFOID:0000000010778231

MR20DD models

CAUTION:

Do not use soapy water or any type of solvent while installing vacuum hose or purge hoses.

JPBIA6849ZZ

EVAP canister purge volume control
solenoid valve

Fuel feed line

EVAP line (Fuel tank to EVAP canis-
ter)

Sub fuel level sensor assembly

Fuel level sensor unit, fuel filter and
fuel pump assembly

Fuel tank

Fuel filler tube

EVAP canister

EVAP line (EVAP canister to EVAP
canister purge volume control sole-
noid valve)

: View

FL-24

< REMOVAL AND INSTALLATION >

[GASOLINE ENGINE MODEL]

EVAP CANISTER

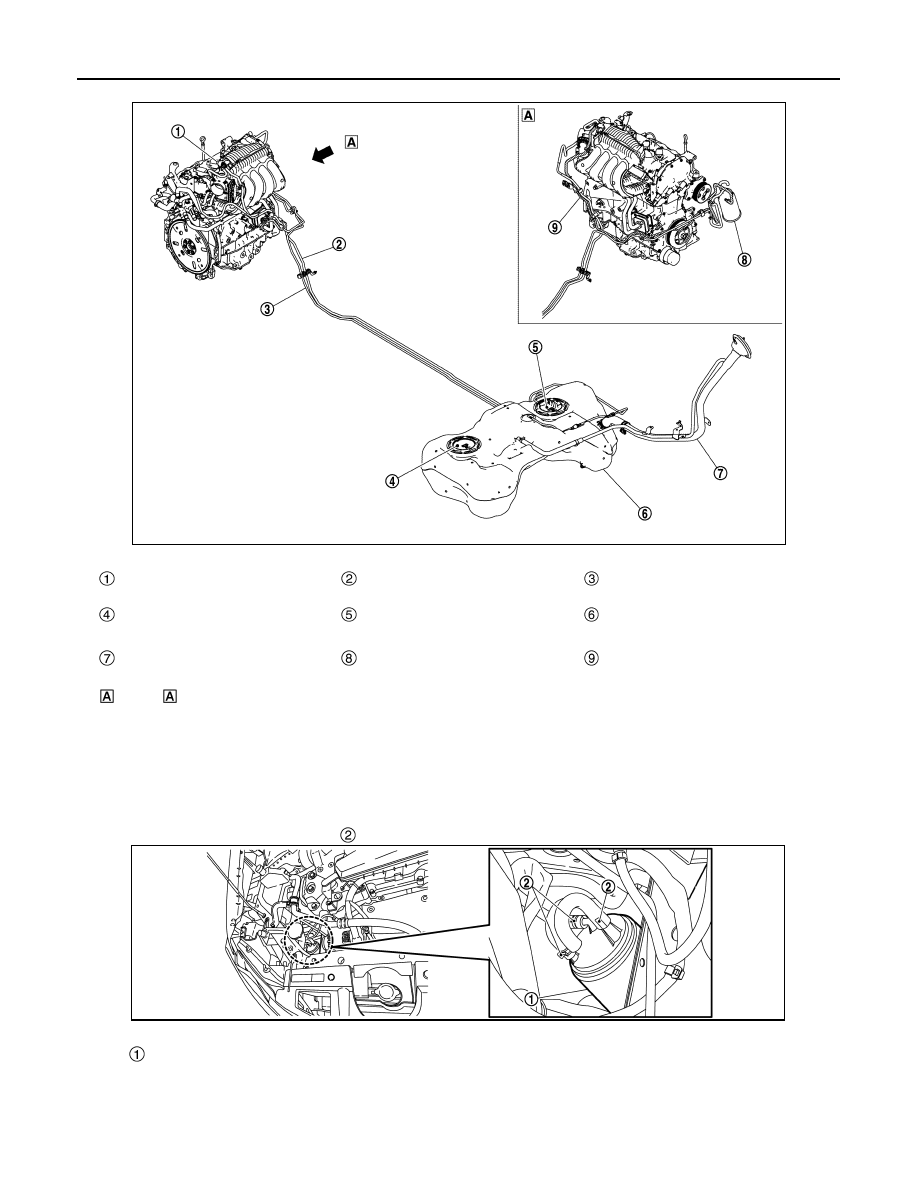

QR25DE models

CAUTION:

Do not use soapy water or any type of solvent while installing vacuum hose or purge hoses.

Removal and Installation

INFOID:0000000010778232

REMOVAL

1.

Disconnect EVAP canister hoses

.

2.

Remove EVAP canister, slide it upward.

INSTALLATION

Install in the reverse order of removal.

JSBIA5039ZZ

EVAP canister purge volume control
solenoid valve

Fuel feed line

EVAP line (Fuel tank to EVAP canis-
ter)

Sub fuel level sensor assembly

Fuel level sensor unit, fuel filter and
fuel pump assembly

Fuel tank

Fuel filler tube

EVAP canister

EVAP line (EVAP canister to EVAP
canister purge volume control sole-
noid valve)

: View

: EVAP canister

JPBIA6868ZZ

EVAP CANISTER

FL-25

< REMOVAL AND INSTALLATION >

[GASOLINE ENGINE MODEL]

C

D

E

F

G

H

I

J

K

L

M

A

FL

N

P

O

CAUTION:

Do not use soapy water or any type of solvent while installing vacuum hose or purge hoses.

Inspection

INFOID:0000000010778233

Check EVAP canister. Refer to

EC-428, "Inspection"

 (MR20DD) or

EC-804, "Inspection"

 (QR25DE).

FL-26

< SERVICE DATA AND SPECIFICATIONS (SDS)

[GASOLINE ENGINE MODEL]

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Fuel Tank

INFOID:0000000010778234

Standard and Limit

Fuel tank capacity

Approx. 60   (13-2/8 Imp gal)

Fuel recommendation

Refer to

GI-30, "Fuel"
