SIDE GUARD MOLDING

EXT-59

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

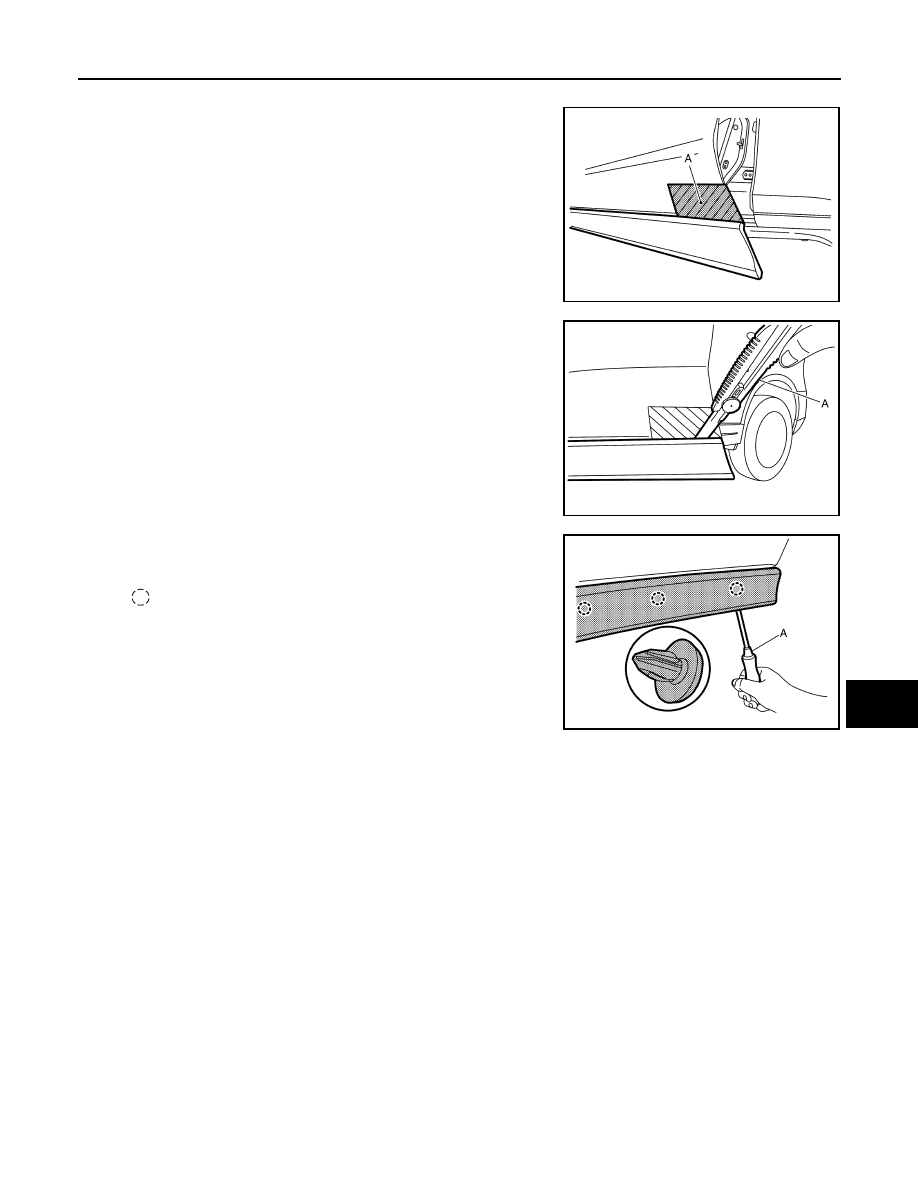

Never damage the front door panel.

1.

Apply a protective tape (A) on the door panel to protect the
painted surface from damage.

2.

Cut double-sided tape using a cutter (A).

3.

Disengage front side guard molding fixing clips using a remover
tool (A), and then remove front side guard molding.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Always replace double-sided tape with a new one, if front side guard molding is reused.
• Remove double-sided tape remaining on front door panel and back of front side guard molding with

a double-sided tape remover, after removing front side guard molding.

• When installing front side guard molding, visually check the clips, then replace them with new parts

if they are damaged.

• When installing front side guard molding, check that clips are securely in door panel holes, and

press them in.

• Never wash the vehicle within 24 hours after installing so as to keep adhesive.

REAR SIDE GUARD MOLDING

REAR SIDE GUARD MOLDING : Removal and Installation

INFOID:0000000010787473

REMOVAL

CAUTION:

Never damage the rear door panel.

JMKIB3035ZZ

JMKIB3036ZZ

: Clip

JMKIB3037ZZ

EXT-60

< REMOVAL AND INSTALLATION >

SIDE GUARD MOLDING

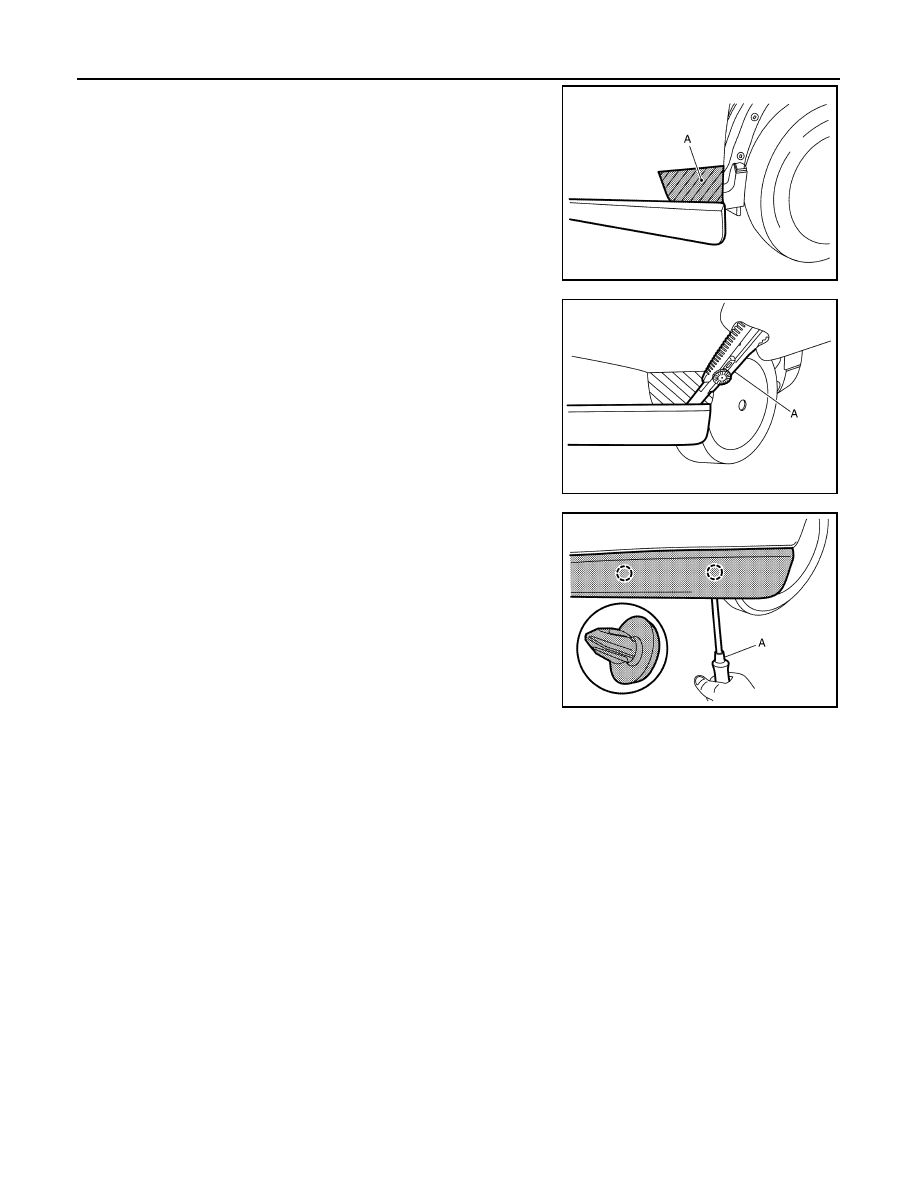

1.

Apply a protective tape (A) on the door panel to protect the
painted surface from damage.

2.

Cut double-sided tape using a cutter (A).

3.

Disengage rear side guard molding fixing clips using a remover
tool (A), and then remove rear side guard molding.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Always replace double-sided tape with a new one, if rear side guard molding is reused.
• Remove double-sided tape remaining on rear door panel and back of rear side guard molding with a

double-sided tape remover, after removing rear side guard molding.

• When installing rear side guard molding, visually check the clips, then replace them with new parts if

they are damaged.

• When installing rear side guard molding, check that clips are securely in door panel holes, and press

them in.

• Never wash the vehicle within 24 hours after installing so as to keep adhesive.

JMKIB3038ZZ

JMKIB3039ZZ

JMKIB3040ZZ

SILL COVER

EXT-61

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

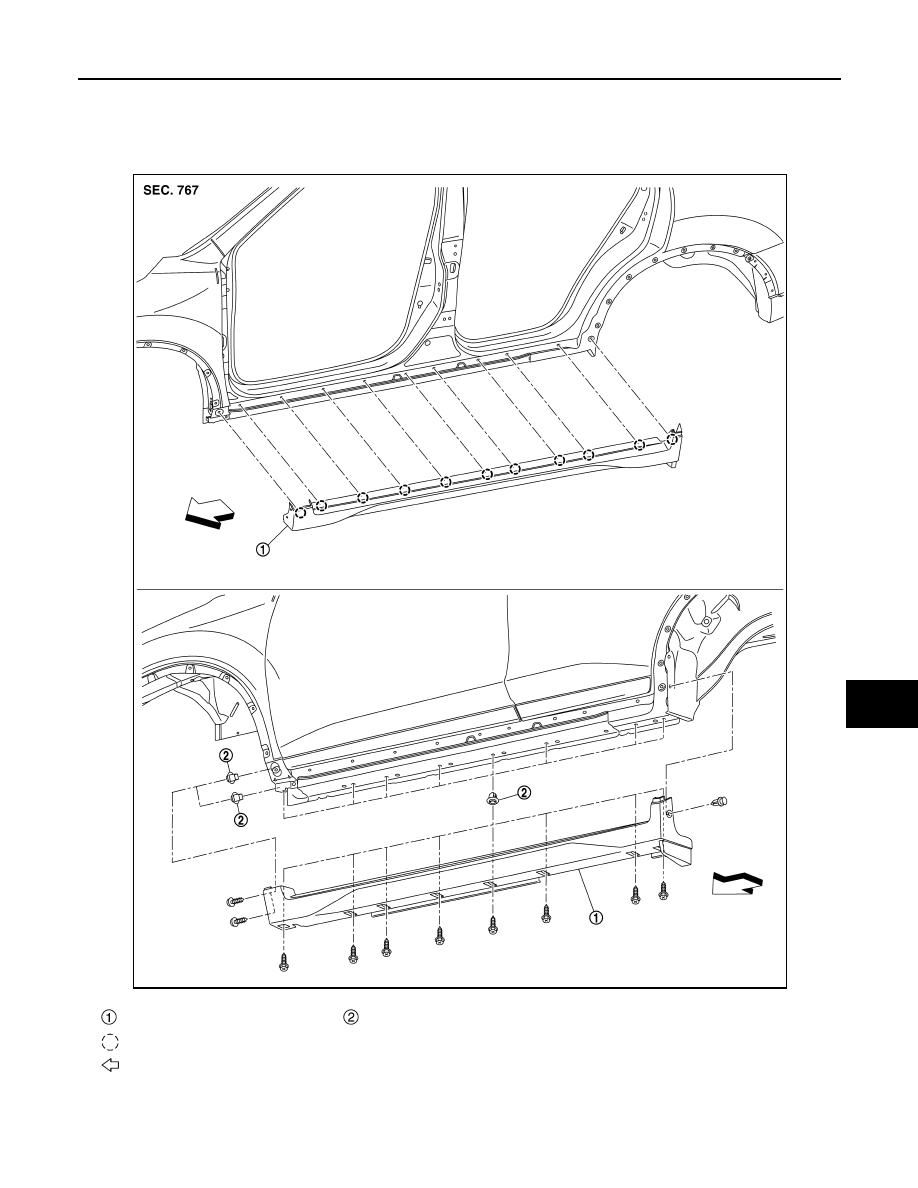

SILL COVER

Exploded View

INFOID:0000000010787474

Sill cover

Grommet

: Clip

: Vehicle front

JMKIB3027ZZ

EXT-62

< REMOVAL AND INSTALLATION >

SILL COVER

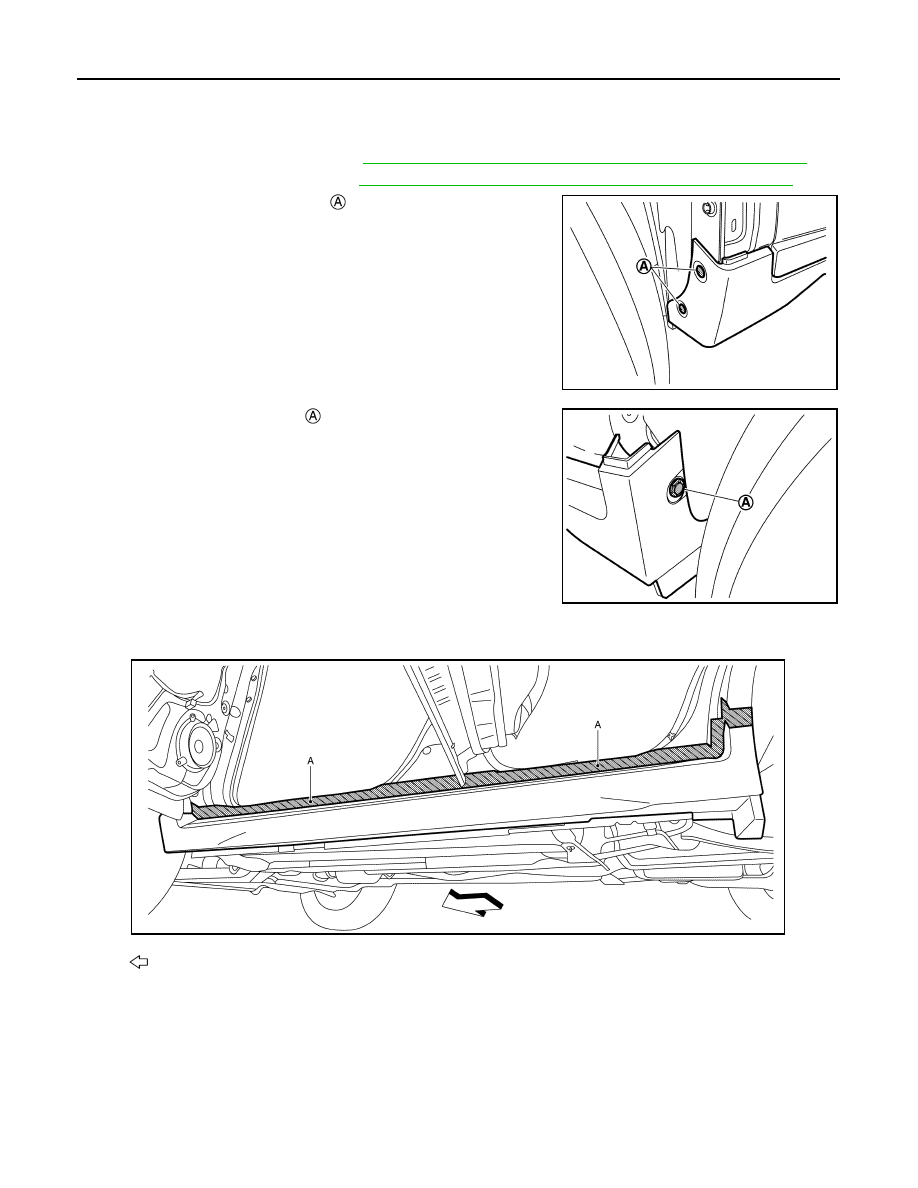

Removal and Installation

INFOID:0000000010787475

REMOVAL

1.

Remove front fillet molding. Refer to

EXT-32, "FRONT FILLET MOLDING : Removal and Installation"

.

2.

Remove rear fillet molding. Refer to

EXT-33, "REAR FILLET MOLDING : Removal and Installation"

.

3.

Remove sill cover fixing screws

 of sill cover front side.

4.

Remove sill cover fixing clip

 of sill cover back side.

5.

Remove sill cover mounting bolts of sill cover lower side.

6.

Apply protective tape (A) on body to protect the painted surface from damage.

JMKIB3048ZZ

JMKIB3049ZZ

: Vehicle front

JMKIB3050ZZ
