Nissan X-Trail 32. Manual - part 1251

SILL COVER

EXT-63

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

7.

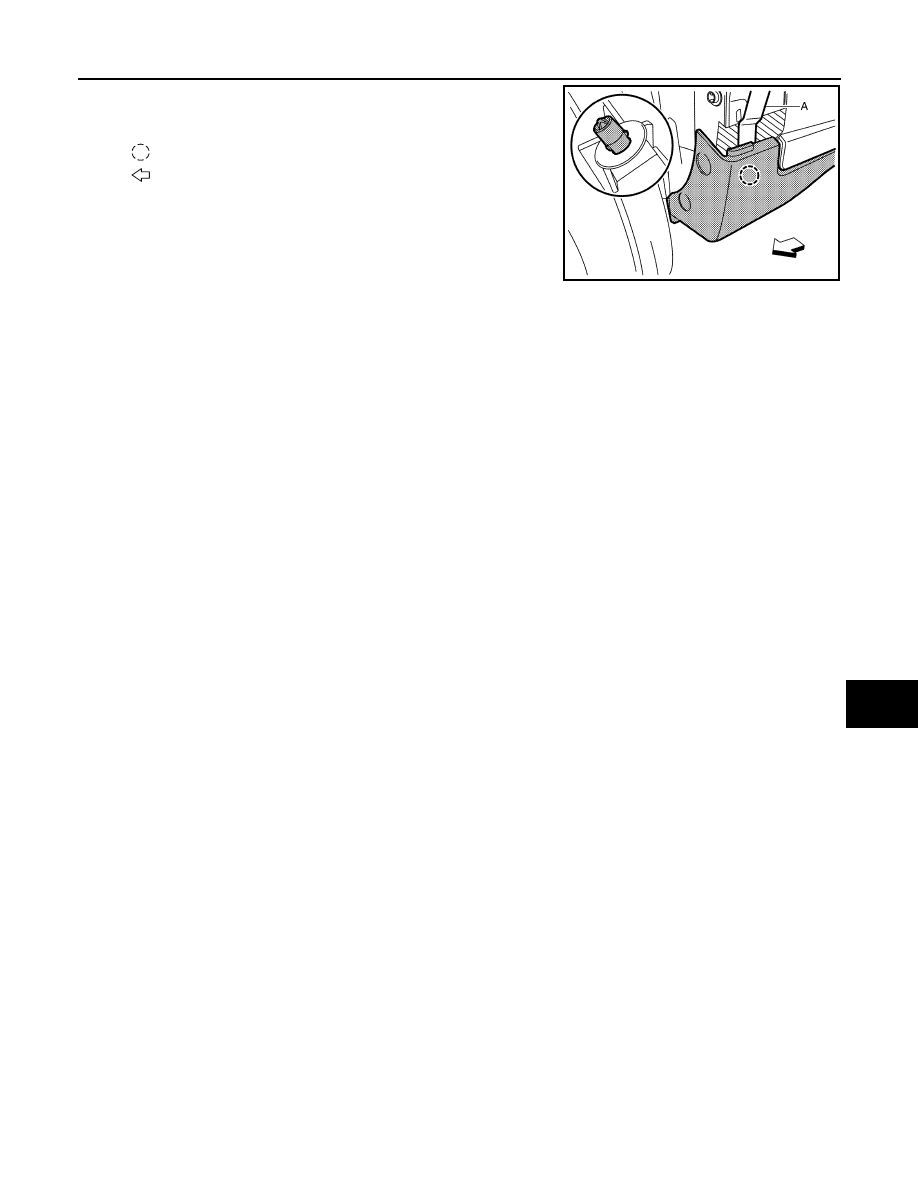

Disengage sill cover fixing clips, using a remover tool (A), and
then remove sill cover.

INSTALLATION

Note the following items, install in the reverse order of removal.

CAUTION:

• When installing sill cover, visually check the clips, then replace them with new parts if they are dam-

aged.

• When installing sill cover, check that clips are securely in door panel holes, and press them in.

: Clip

: Vehicle front

JMKIB3051ZZ

EXT-64

< REMOVAL AND INSTALLATION >

REAR SPOILER

REAR SPOILER

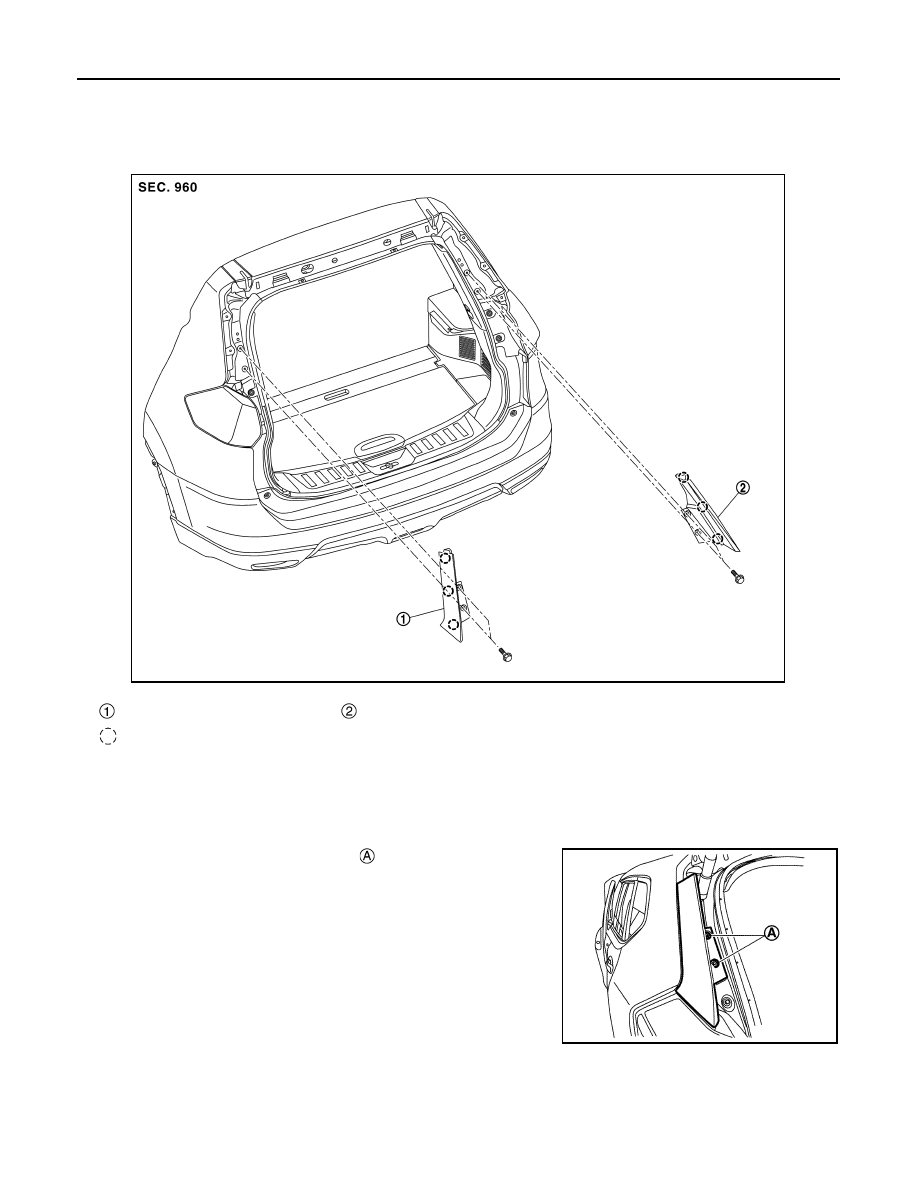

Exploded View

INFOID:0000000010787476

Removal and Installation

INFOID:0000000010787477

REMOVAL

1.

Fully open back door.

2.

Remove rear spoiler mounting bolts

.

Rear spoiler LH

Rear spoiler RH

: Clip

JMKIB3028ZZ

JMKIB3041ZZ

REAR SPOILER

EXT-65

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

3.

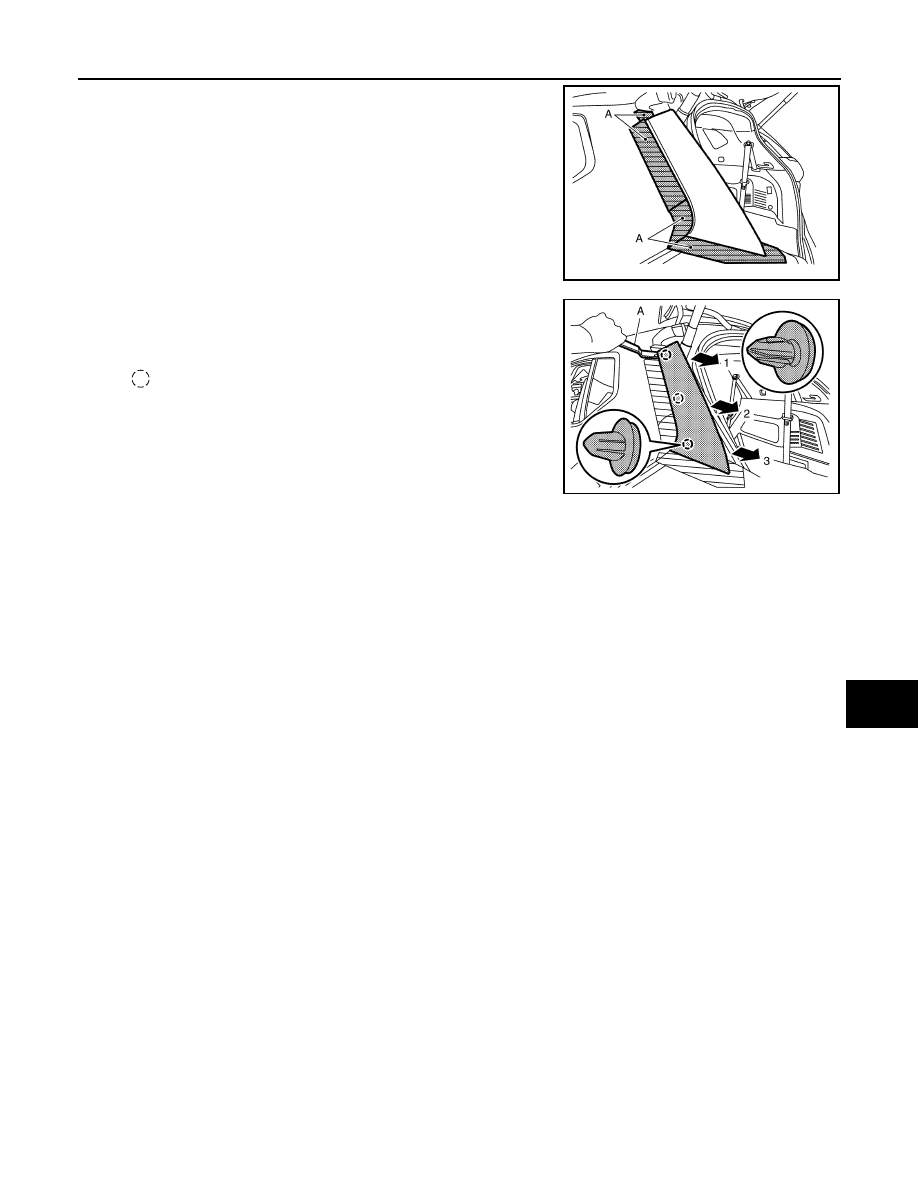

Apply protective tapes (A) on body to protect the painted surface
from damage.

4.

Disengage rear spoiler fixing clips using a remover tool (A)
according to the numerical order 1

→

3 as shown in the figure,

and then remove rear spoiler.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Never damage the body panel.
• When installing rear spoiler, visually check the rear spoiler and the clips, then replace them with new

parts if they are damaged.

• When installing rear spoiler, check that clips are securely in body panel holes, and press them in.

JMKIB3042ZZ

: Clip

JMKIB3043ZZ

EXT-66

< REMOVAL AND INSTALLATION >

BACK DOOR FINISHER

BACK DOOR FINISHER

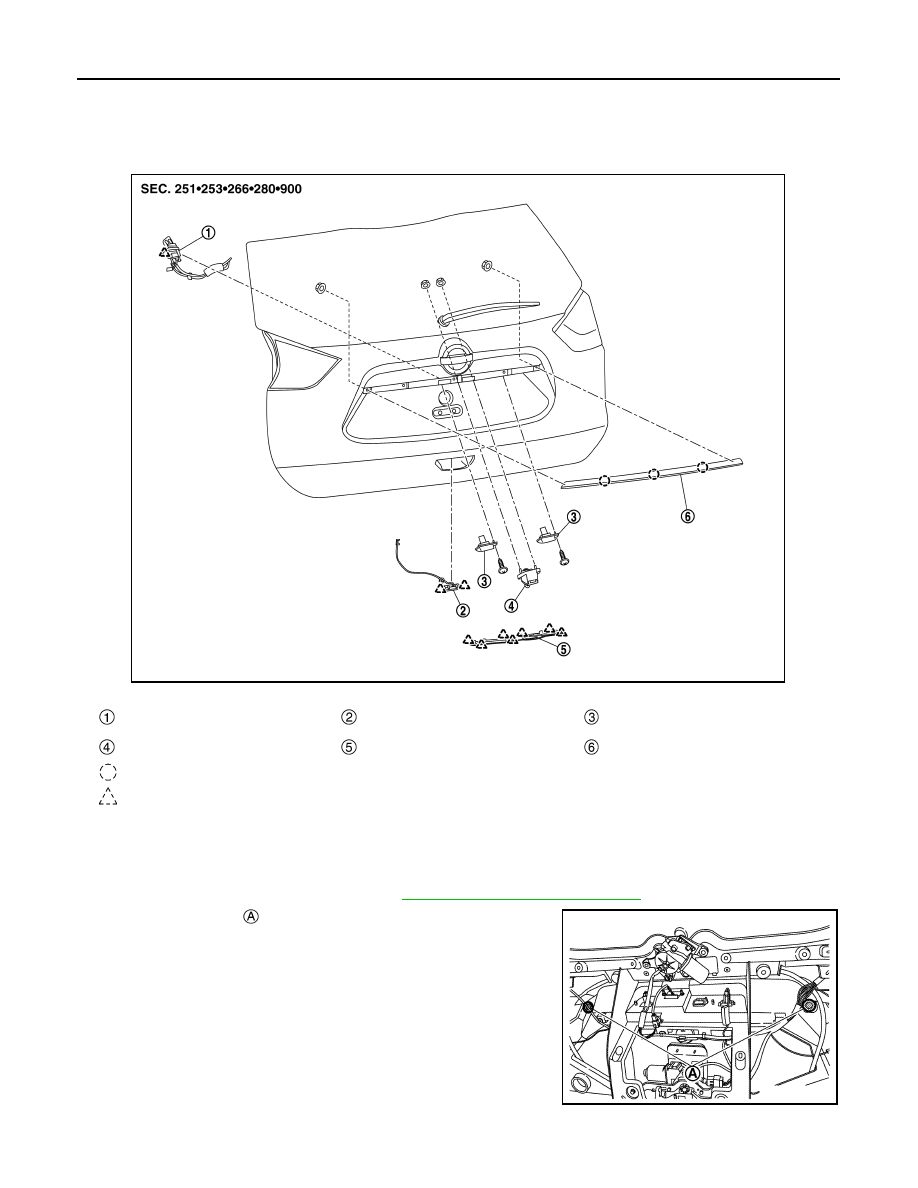

Exploded View

INFOID:0000000010787478

Removal and Installation

INFOID:0000000010787479

REMOVAL

1.

Remove back door inner finisher. Refer to

INT-47, "Removal and Installation"

.

2.

Remove cap cover

.

Rear camera/Rear view camera
(if equipped)

Back door opener switch assembly

License plate lamp

Hands free sensor

Back door finisher cap

Back door finisher

: Clip

: Pawl

JMKIB3029ZZ

JMKIB3044ZZ
