DOOR OUTSIDE MOLDING

EXT-55

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

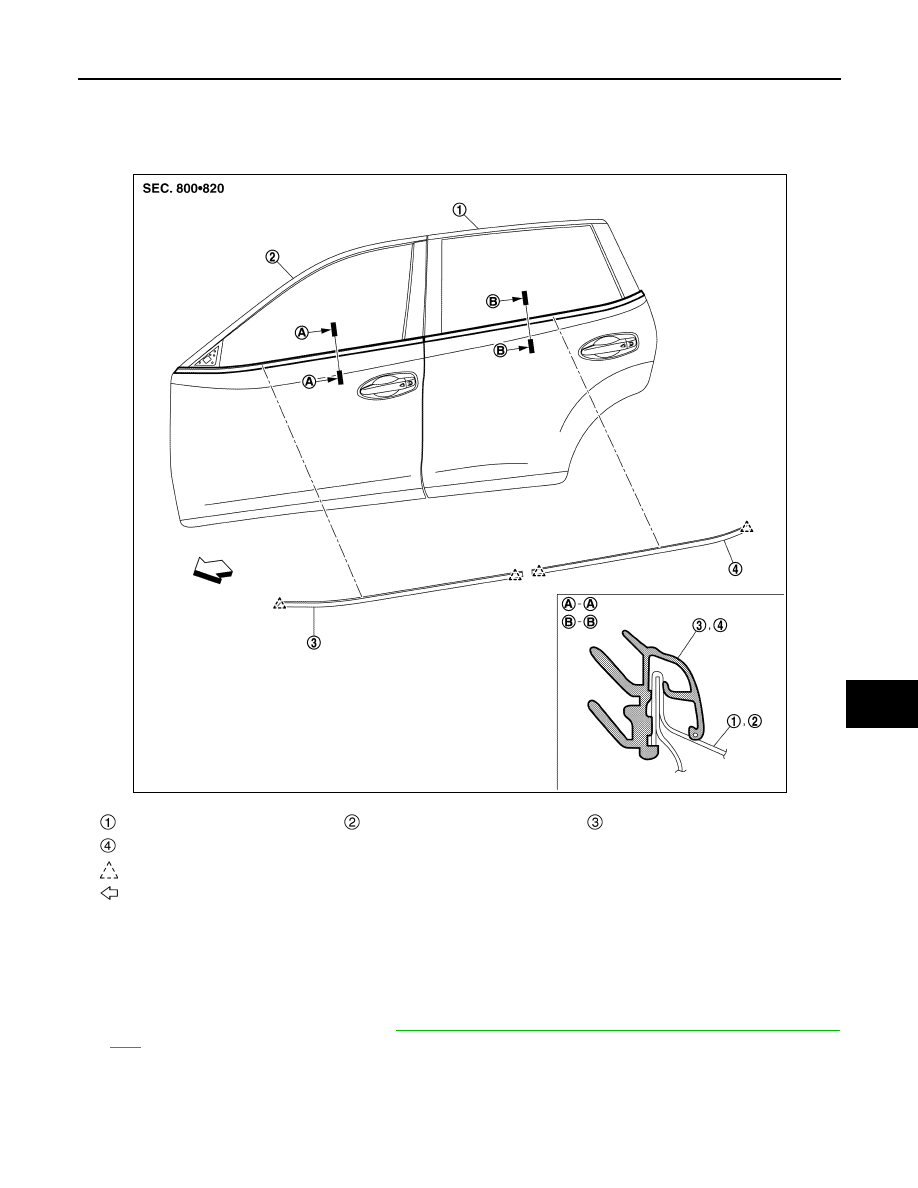

DOOR OUTSIDE MOLDING

Exploded View

INFOID:0000000010787468

FRONT DOOR OUTSIDE MOLDING

FRONT DOOR OUTSIDE MOLDING : Removal and Installation

INFOID:0000000010787469

REMOVAL

1.

Remove door mirror assembly. Refer to

MIR-27, "DOOR MIRROR ASSEMBLY : Removal and Installa-

tion"

.

Rear door panel

Front door panel

Front door outside molding

Rear door outside molding

: Pawl

: Vehicle front

JMKIB3003GB

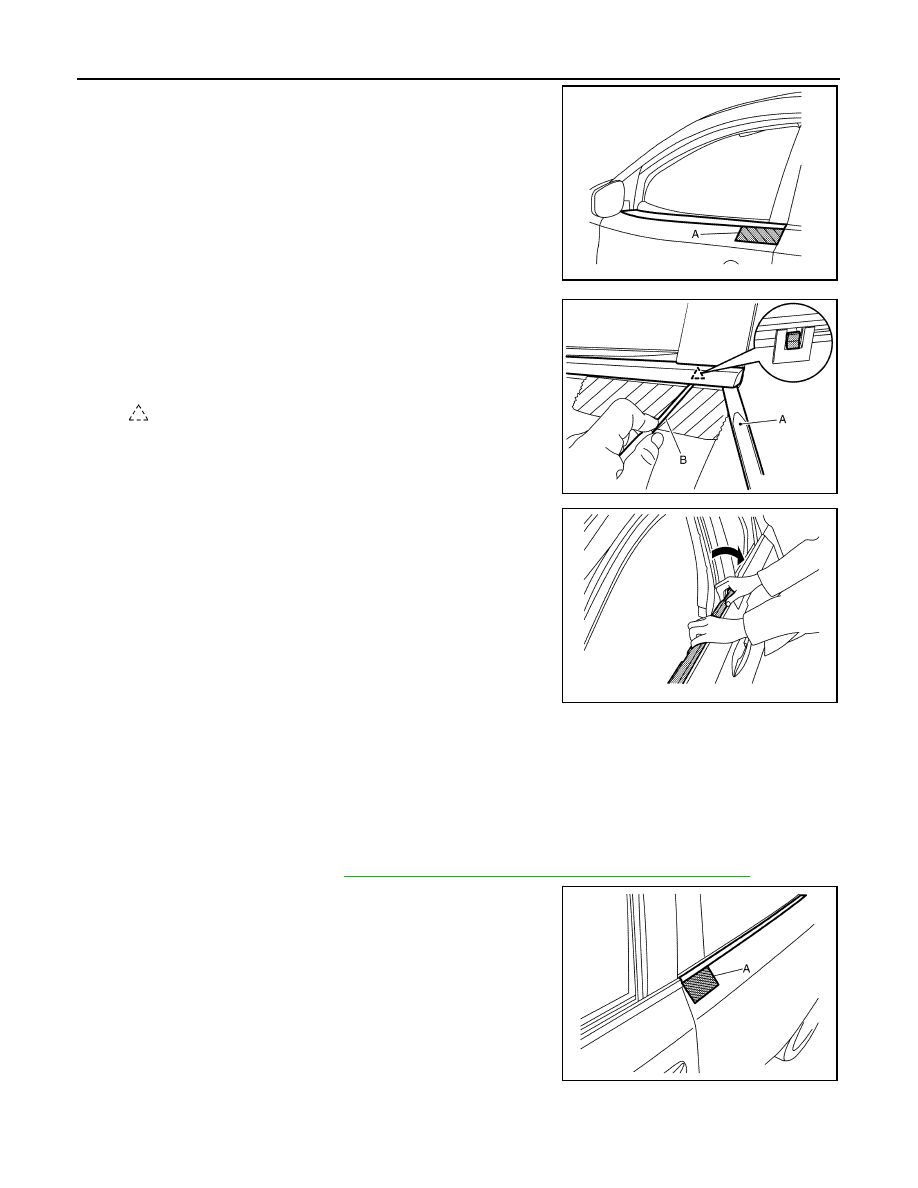

EXT-56

< REMOVAL AND INSTALLATION >

DOOR OUTSIDE MOLDING

2.

Apply protective tape (A) on the part to protect it from damage.

3.

Disengage rear end of front door outside molding fixing pawl
using remover tool (A) and (B).

CAUTION:

Never lift front door outside molding with excessive force to
prevent damage to the part.

4.

Twist front door outside molding toward the direction of the
arrow in the figure, and then lift up and remove it.

INSTALLATION

Install in the reverse order of removal.

REAR DOOR OUTSIDE MOLDING

REAR DOOR OUTSIDE MOLDING : Removal and Installation

INFOID:0000000010787470

REMOVAL

1.

Remove rear door glass. Refer to

GW-51, "REAR DOOR GLASS : Removal and Installation"

.

2.

Apply protective tape (A) on the part to protect it from damage.

JMKIB2625ZZ

: Pawl

JMKIB2626ZZ

JMKIB0257ZZ

JMKIB2627ZZ

DOOR OUTSIDE MOLDING

EXT-57

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

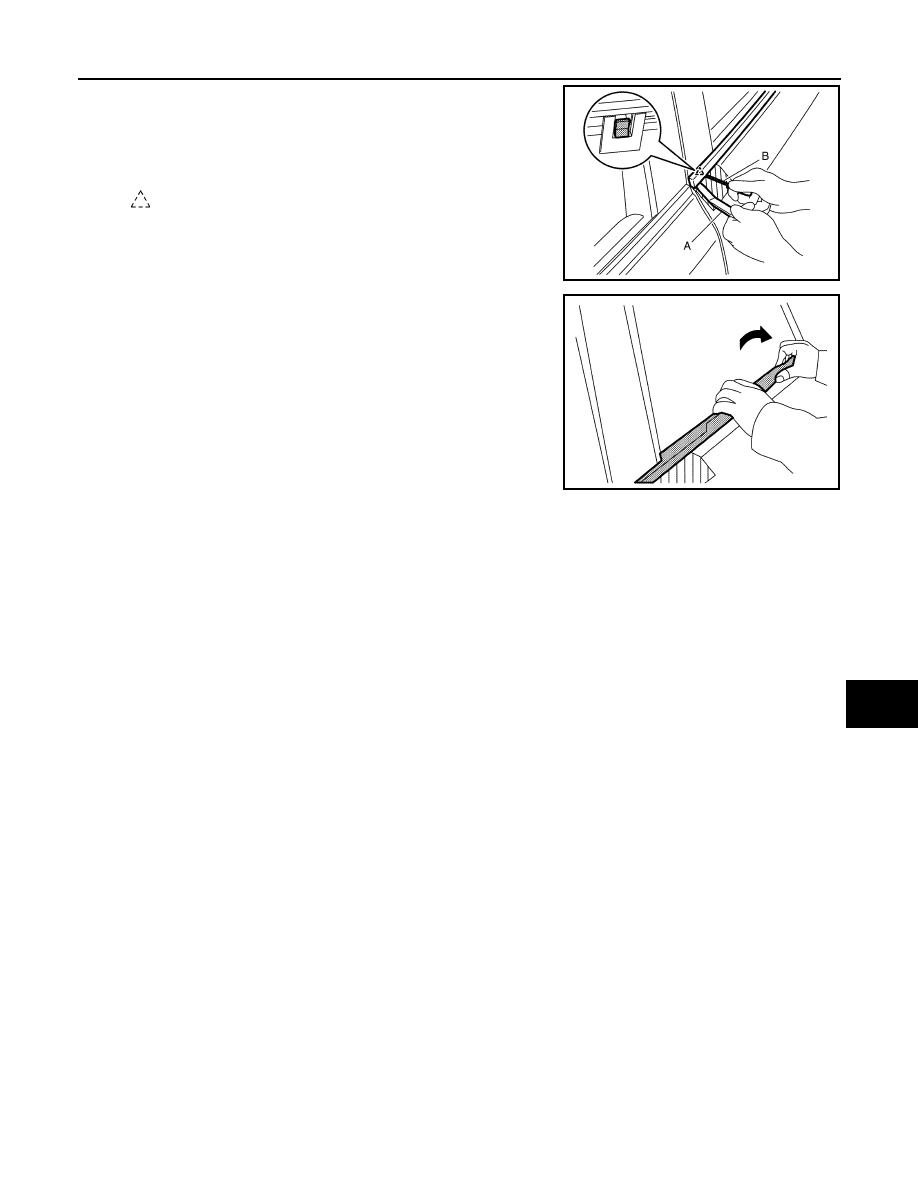

3.

Disengage fixing pawl of rear door outside molding front and
rear end, using remover tool (A) and (B).

CAUTION:

Never lift rear door outside molding with excessive force to
prevent damage to the part.

4.

Twist rear door outside molding toward the direction of the arrow
in the figure, and then lift up and remove it.

INSTALLATION

Install in the reverse order of removal.

: Pawl

JMKIB2628ZZ

JMKIB3629ZZ

EXT-58

< REMOVAL AND INSTALLATION >

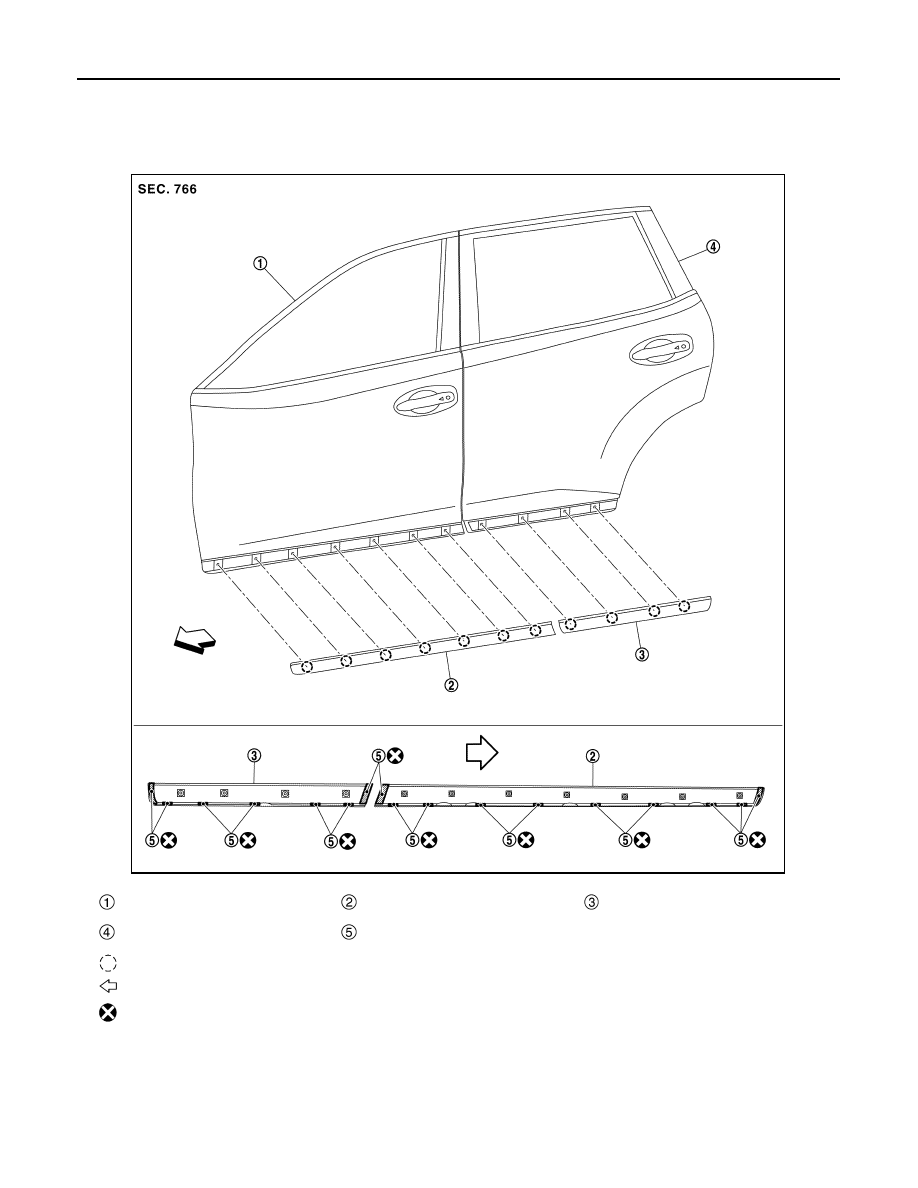

SIDE GUARD MOLDING

SIDE GUARD MOLDING

Exploded View

INFOID:0000000010787471

FRONT SIDE GUARD MOLDING

FRONT SIDE GUARD MOLDING : Removal and Installation

INFOID:0000000010787472

REMOVAL

CAUTION:

Front door panel

Front side guard molding

Rear side guard molding

Rear door panel

Double-sided tape
[t: 1.2 mm (0.047 in)]

: Clip

: Vehicle front

: Always replace after every disassembly.

JMKIB3004ZZ
