Nissan X-Trail 32. Manual - part 1246

ROOF RAIL

EXT-43

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

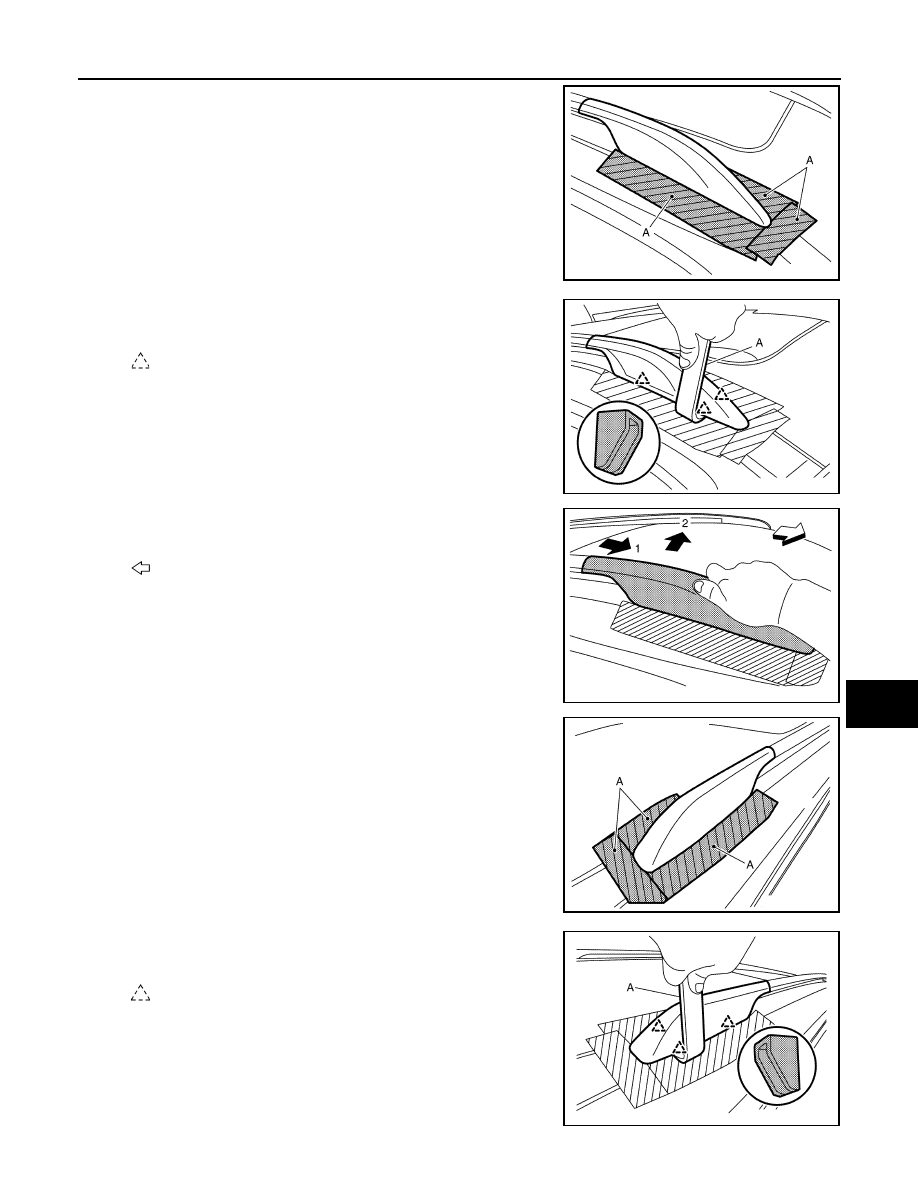

1.

Apply protective tapes (A) on body to protect the painted surface
from damage.

2.

Disengage front roof rail cover fixing pawls using a remover tool
(A).

3.

Remove front roof rail cover according to the numerical order
1

→

2 as shown in the figure.

4.

Apply protective tapes (A) on body to protect the painted surface
from damage.

5.

Disengage rear roof rail cover fixing pawls using a remover tool
(A).

JMKIB3052ZZ

: Pawl

JMKIB3053ZZ

: Vehicle front

JMKIB3054ZZ

JMKIB3055ZZ

: Pawl

JMKIB3056ZZ

EXT-44

< REMOVAL AND INSTALLATION >

ROOF RAIL

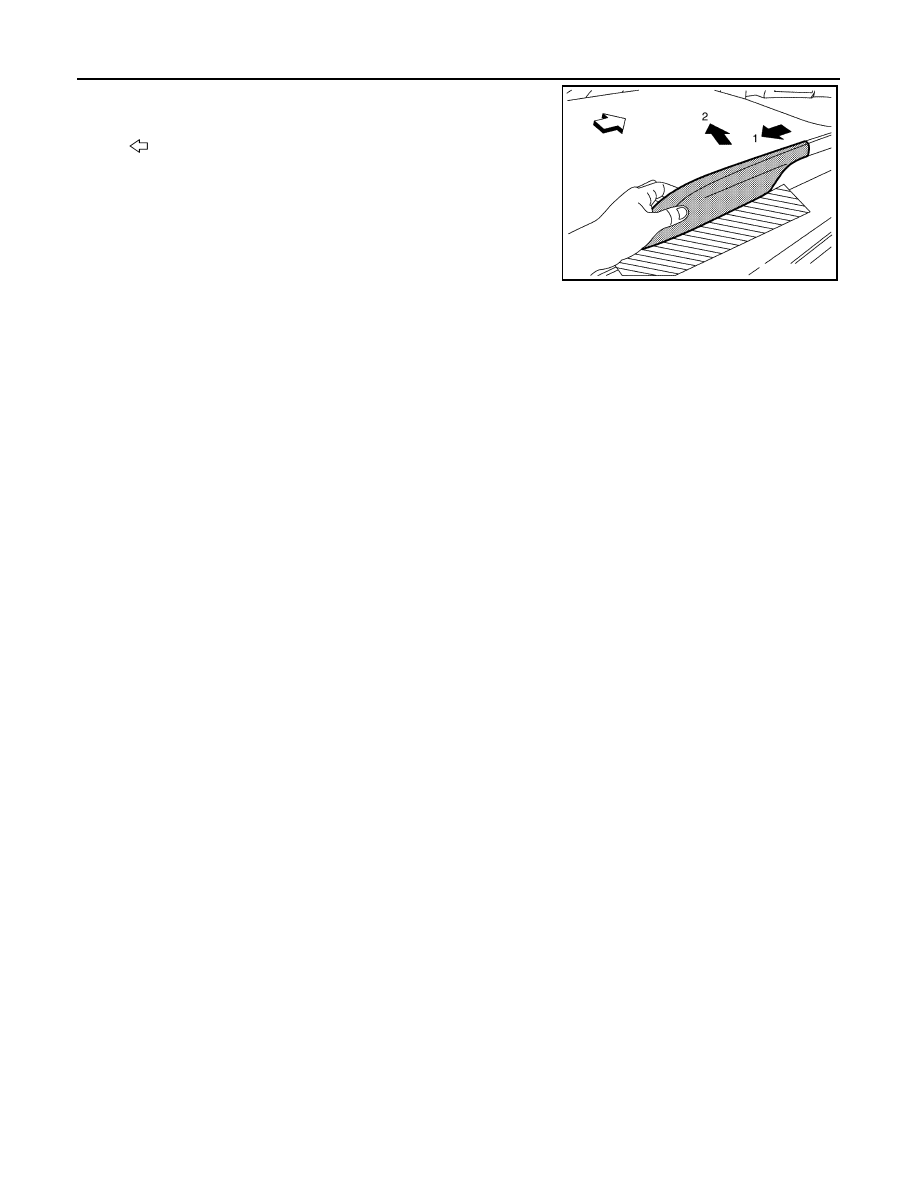

6.

Remove rear roof rail cover according to the numerical order
1

→

2 as shown in the figure.

7.

Remove roof rail mounting bolts, and then remove roof rail.

INSTALLATION

Install in the reverse order of removal.

: Vehicle front

JMKIB3057ZZ

ROOF SIDE MOLDING

EXT-45

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

ROOF SIDE MOLDING

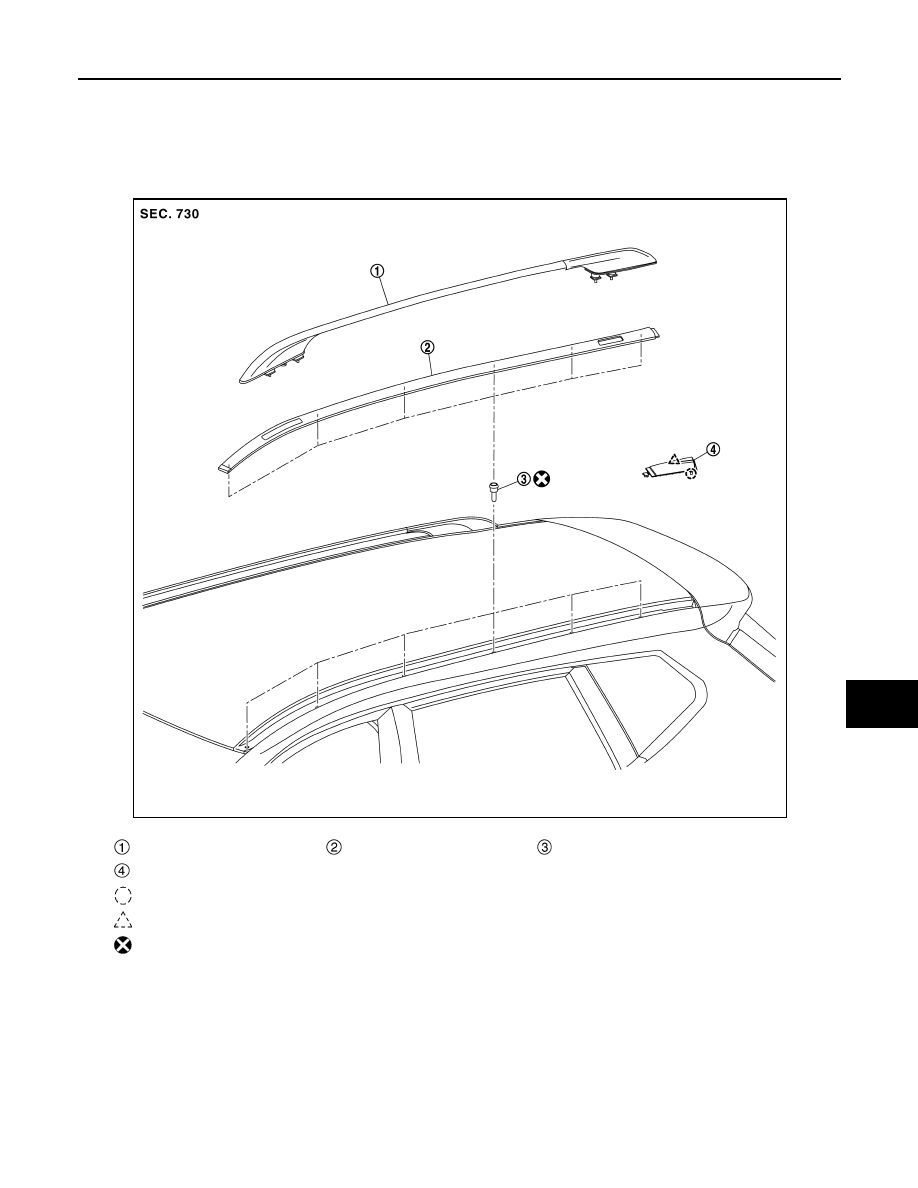

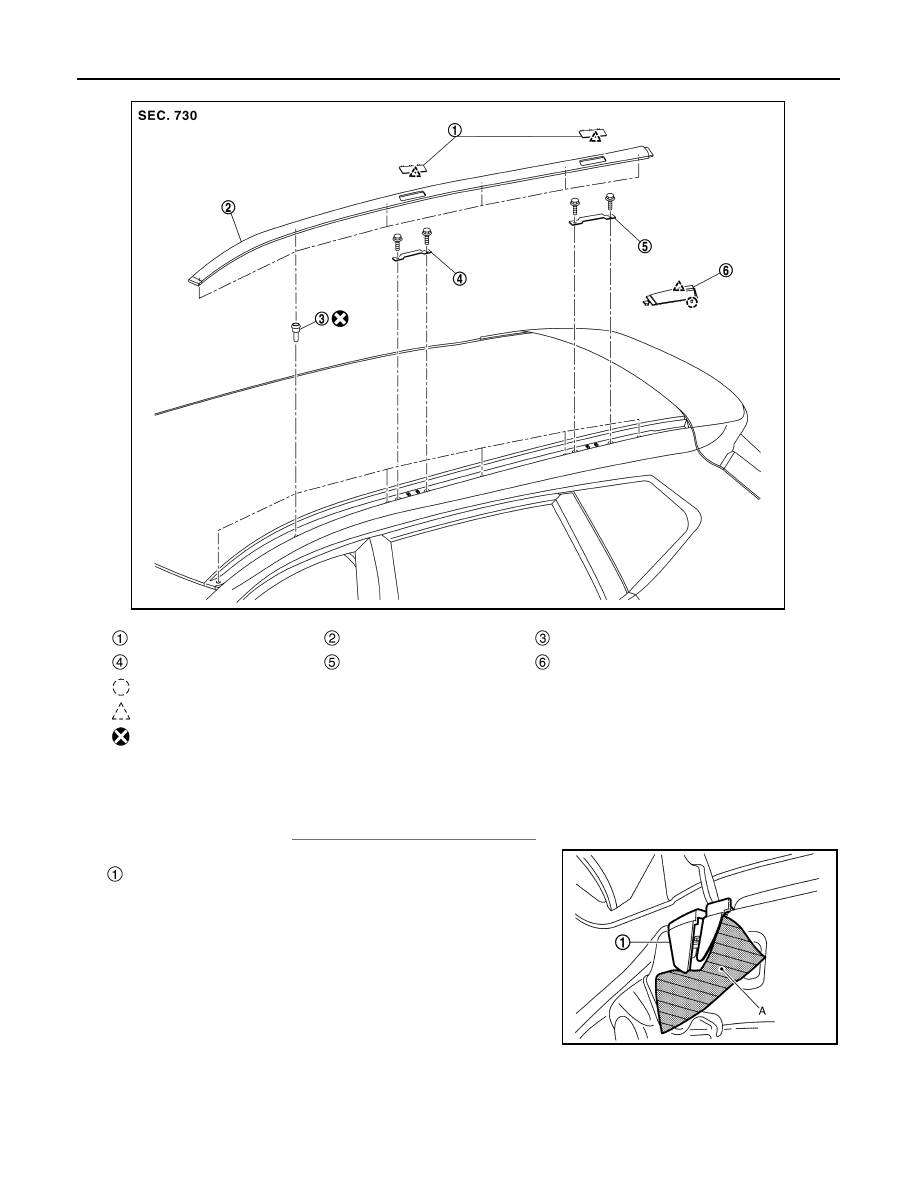

Exploded View

INFOID:0000000010787460

WITH ROOF RAIL

WITHOUT ROOF RAIL

Roof rail assembly

Roof side molding

Roof side molding clip

Back door hinge cover

: Clip

: Pawl

: Always replace after every disassembly.

JMKIB2985ZZ

EXT-46

< REMOVAL AND INSTALLATION >

ROOF SIDE MOLDING

Removal and Installation

INFOID:0000000010787461

REMOVAL

1.

Remove roof rail. Refer to

EXT-42, "Removal and Installation"

. (with roof rail)

2.

Apply protective tape (A) on around the back door hinge cover

 to protect it from damage.

Roof side molding cover

Roof side molding

Roof side molding clip

Front roof side bracket

Rear roof side bracket

Back door hinge cover

: Clip

: Pawl

: Always replace after every disassembly.

JMKIB2984ZZ

JMKIB2967ZZ
