FLOOR SIDE FAIRING

EXT-39

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

FLOOR SIDE FAIRING

ENGINE UNDER COVER

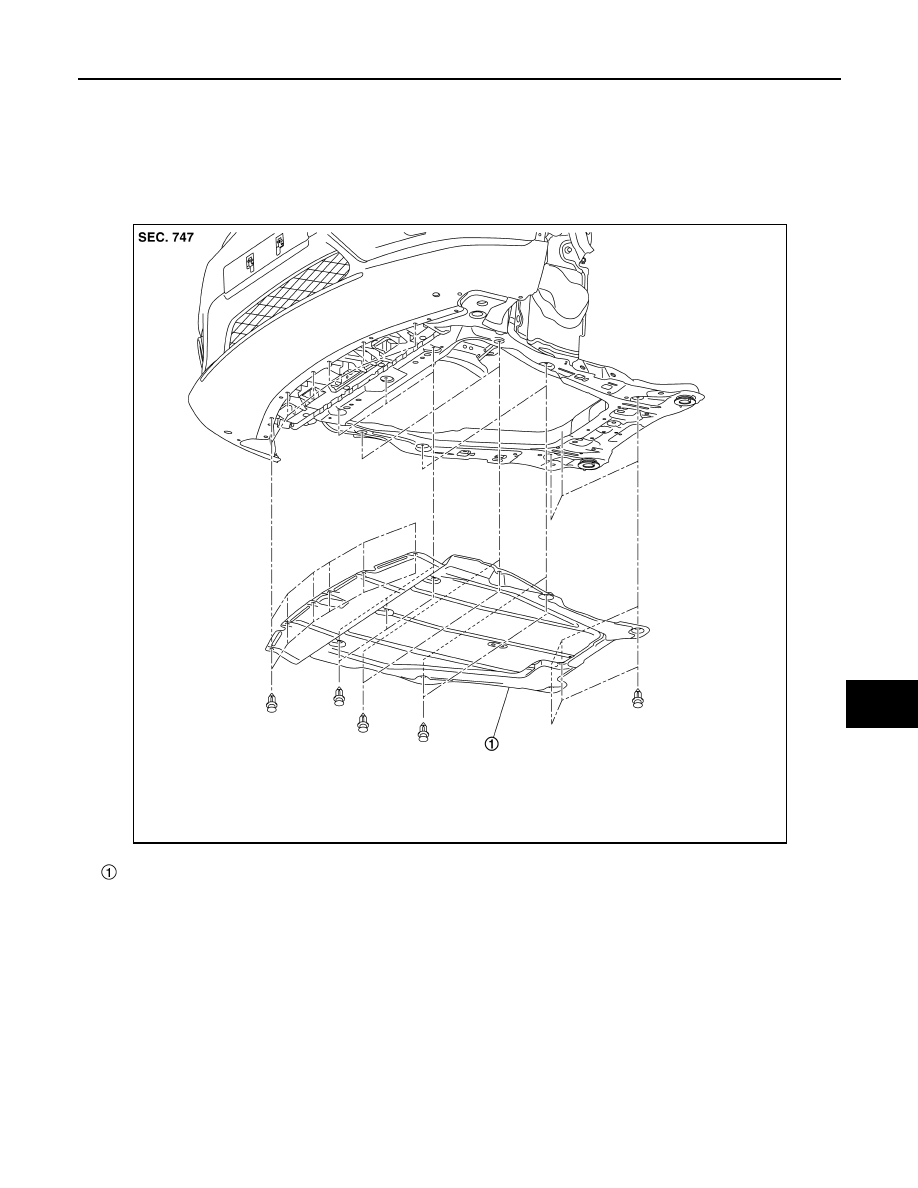

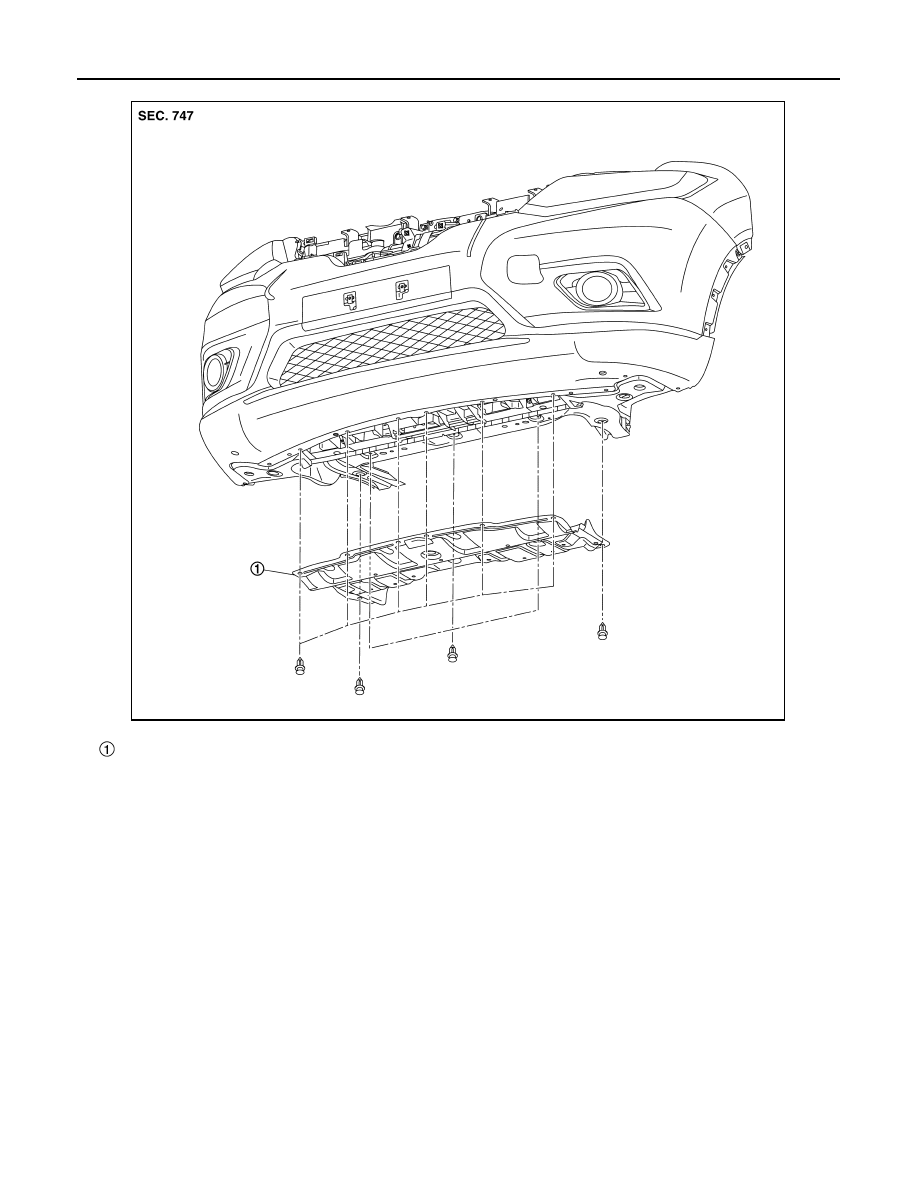

ENGINE UNDER COVER : Exploded View

INFOID:0000000010787454

WITH R9M ENGINE MODELS

WITHOUT R9M ENGINE MODELS

Engine under cover

JMKIB3756ZZ

EXT-40

< REMOVAL AND INSTALLATION >

FLOOR SIDE FAIRING

ENGINE UNDER COVER : Removal and Installation

INFOID:0000000010787455

REMOVAL

Remove engine under cover fixing clips, and then remove engine under cover.

INSTALLATION

Install in the reverse order of removal.

FLOOR UNDER COVER

Engine under cover

JMKIB2965ZZ

FLOOR SIDE FAIRING

EXT-41

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

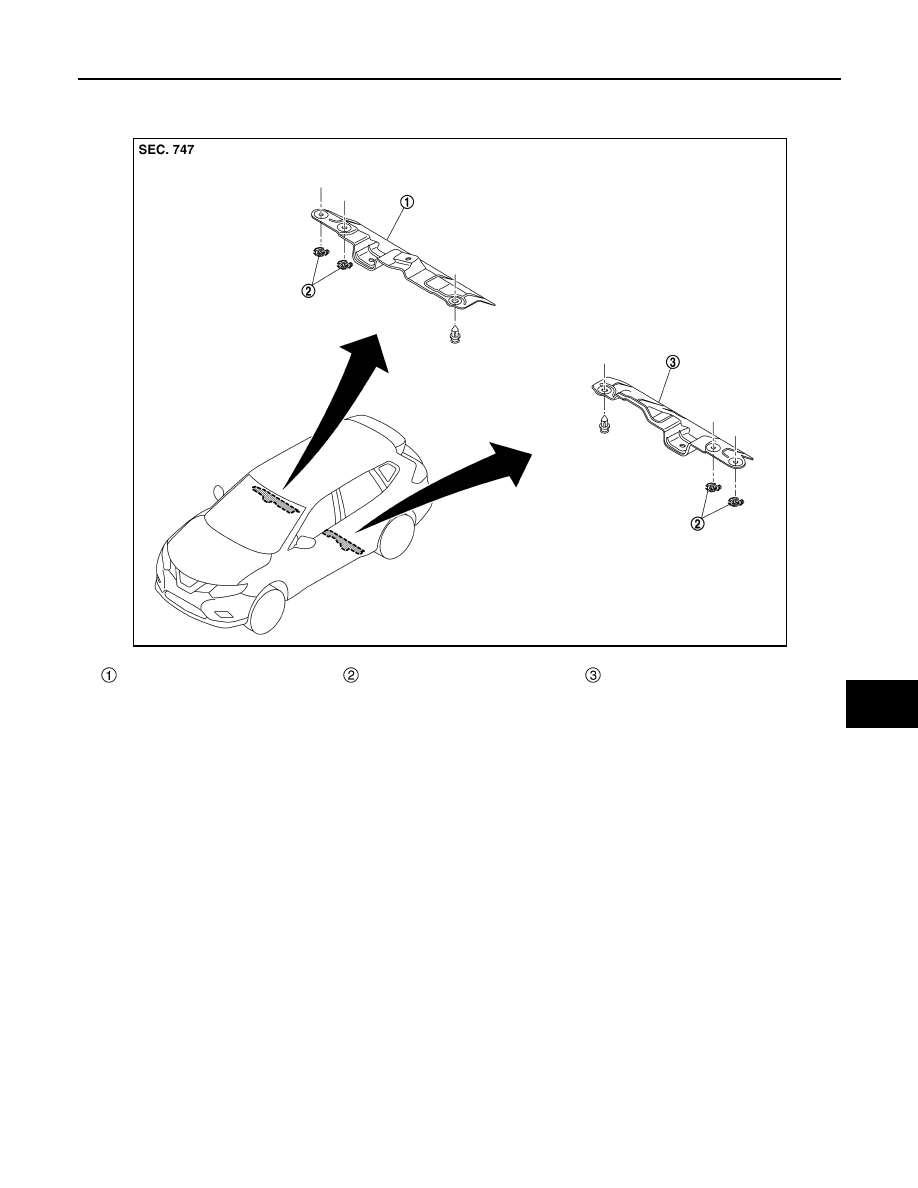

FLOOR UNDER COVER : Exploded View

INFOID:0000000010787456

FLOOR UNDER COVER : Removal and Installation

INFOID:0000000010787457

REMOVAL

Remove floor under cover fixing clips and spring push nut, and then remove floor under cover.

INSTALLATION

Install in the reverse order of removal.

Floor under cover RH

Spring push nut

Floor under cover LH

JMKIB2966ZZ

EXT-42

< REMOVAL AND INSTALLATION >

ROOF RAIL

ROOF RAIL

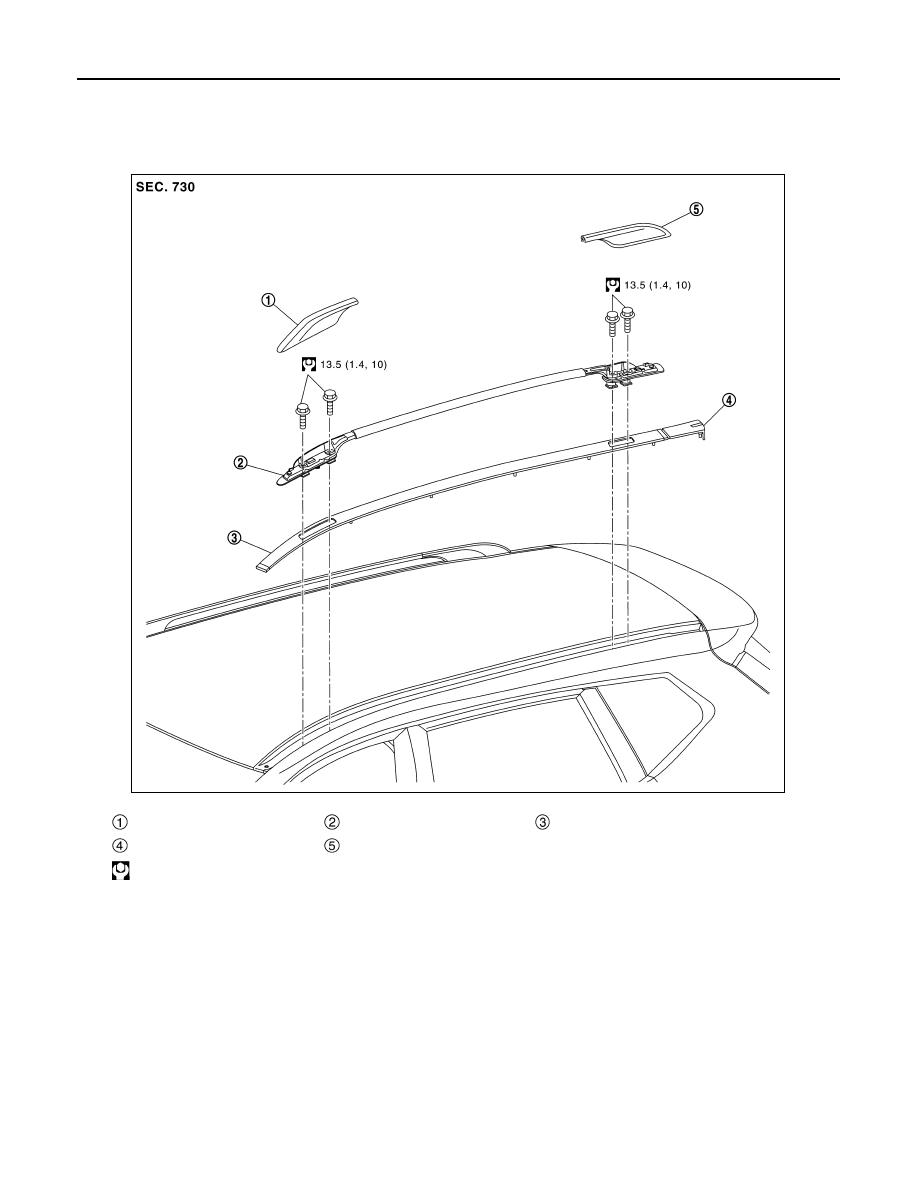

Exploded View

INFOID:0000000010787458

Removal and Installation

INFOID:0000000010787459

REMOVAL

Front roof rail cover

Roof rail

Roof side molding

Back door hinge cover

Rear roof rail cover

: N·m (kg-m, ft-lb)

JMKIB2983GB
