Nissan X-Trail 32. Manual - part 1244

FENDER PROTECTOR

EXT-35

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

FENDER PROTECTOR

FENDER PROTECTOR

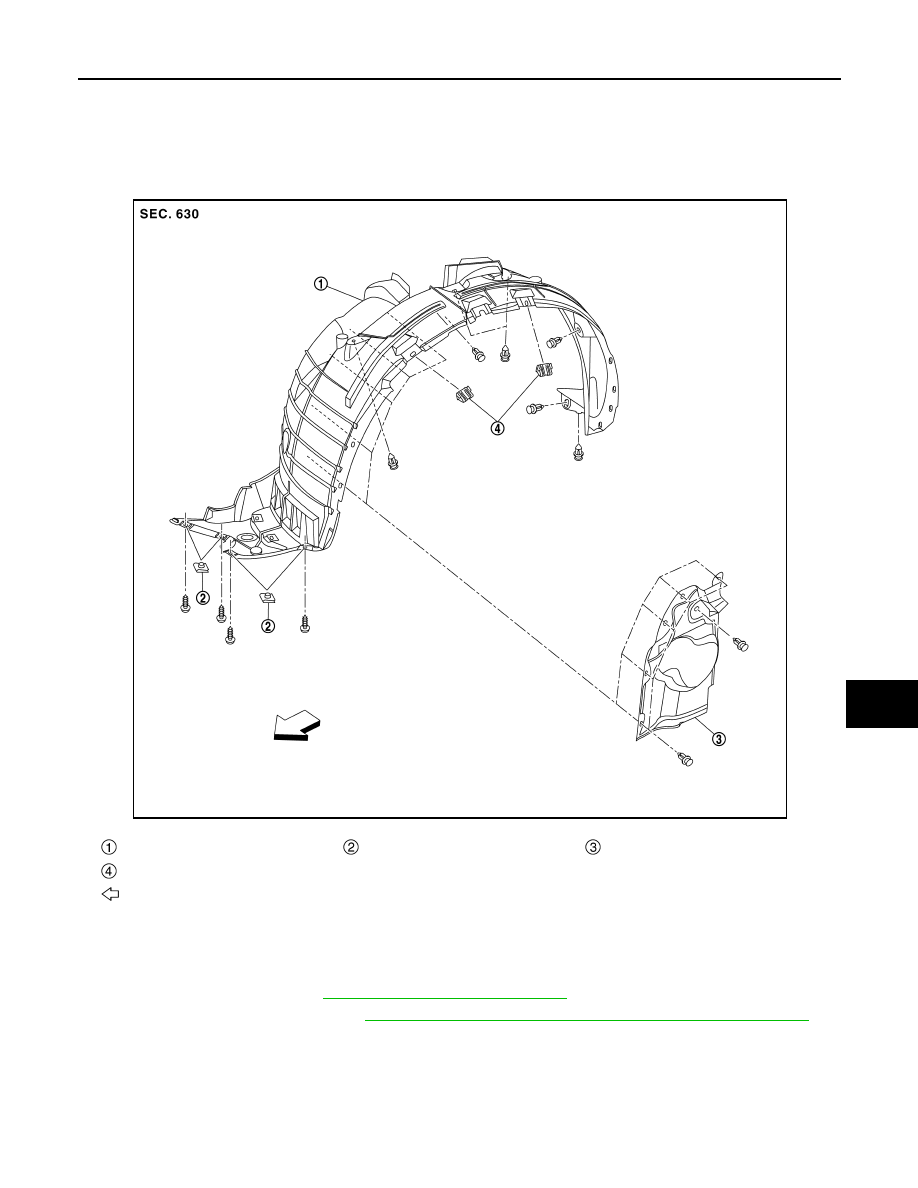

FENDER PROTECTOR : Exploded View

INFOID:0000000010787450

FENDER PROTECTOR : Removal and Installation

INFOID:0000000010787451

REMOVAL

1.

Remove front spoiler. Refer to

EXT-28, "Removal and Installation"

.

2.

Remove front fillet molding. Refer to

EXT-32, "FRONT FILLET MOLDING : Removal and Installation"

.

3.

Remove splash guard fixing clips and then remove splash guard.

Front fender protector

Clip nut

Splash guard

Fender clip

: Vehicle front

JMKIB2963ZZ

EXT-36

< REMOVAL AND INSTALLATION >

FENDER PROTECTOR

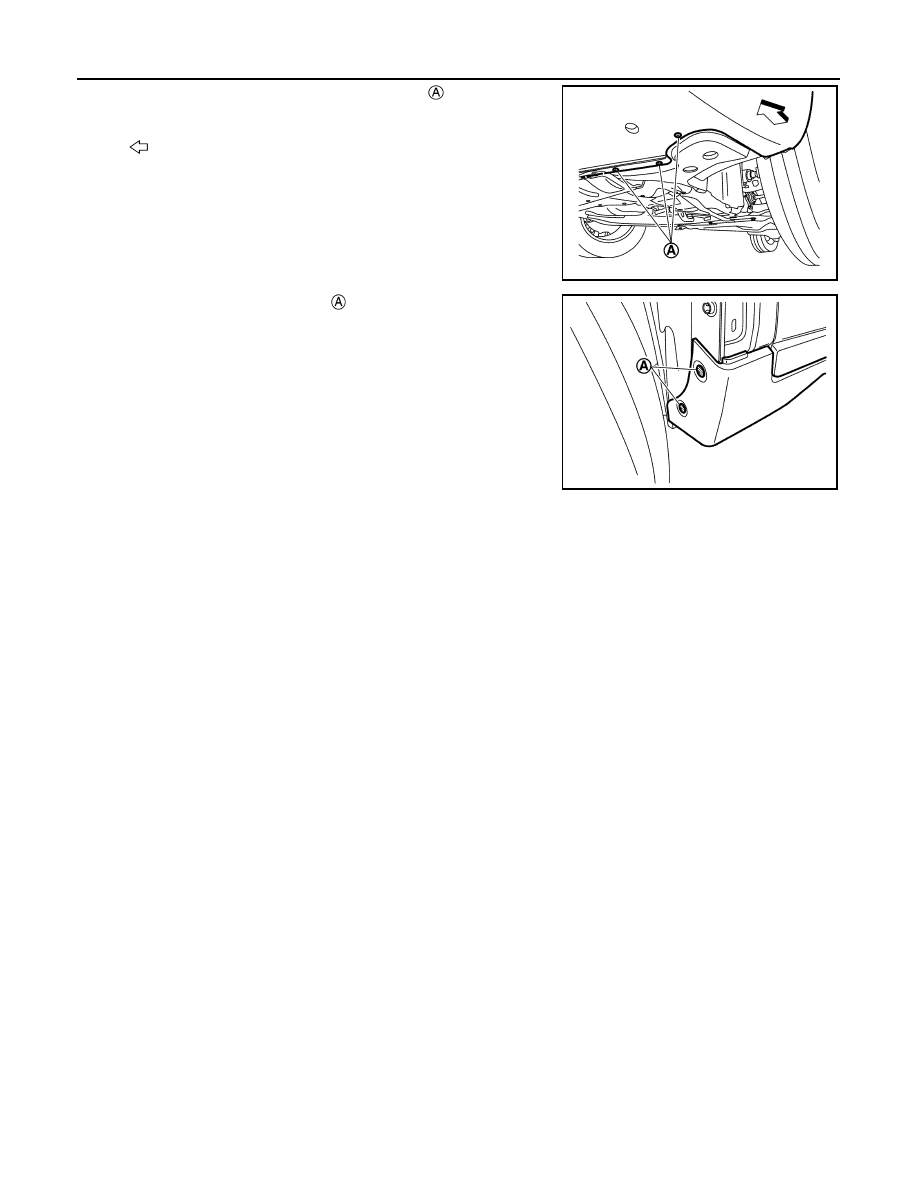

4.

Remove front fender protector fixing screws

 of front fender

protector front side.

5.

Remove sill cover fixing screws

 of front fender protector back

side.

6.

Remove sill cover mounting bolts of sill cover lower side, and then remove front side of sill cover.

7.

Remove front fender protector fixing screws and clips, and then remove front fender protector.

INSTALLATION

Install in the reverse order of removal.

REAR WHEEL HOUSE PROTECTOR

: Vehicle front

JMKIB3778ZZ

JMKIB3048ZZ

FENDER PROTECTOR

EXT-37

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

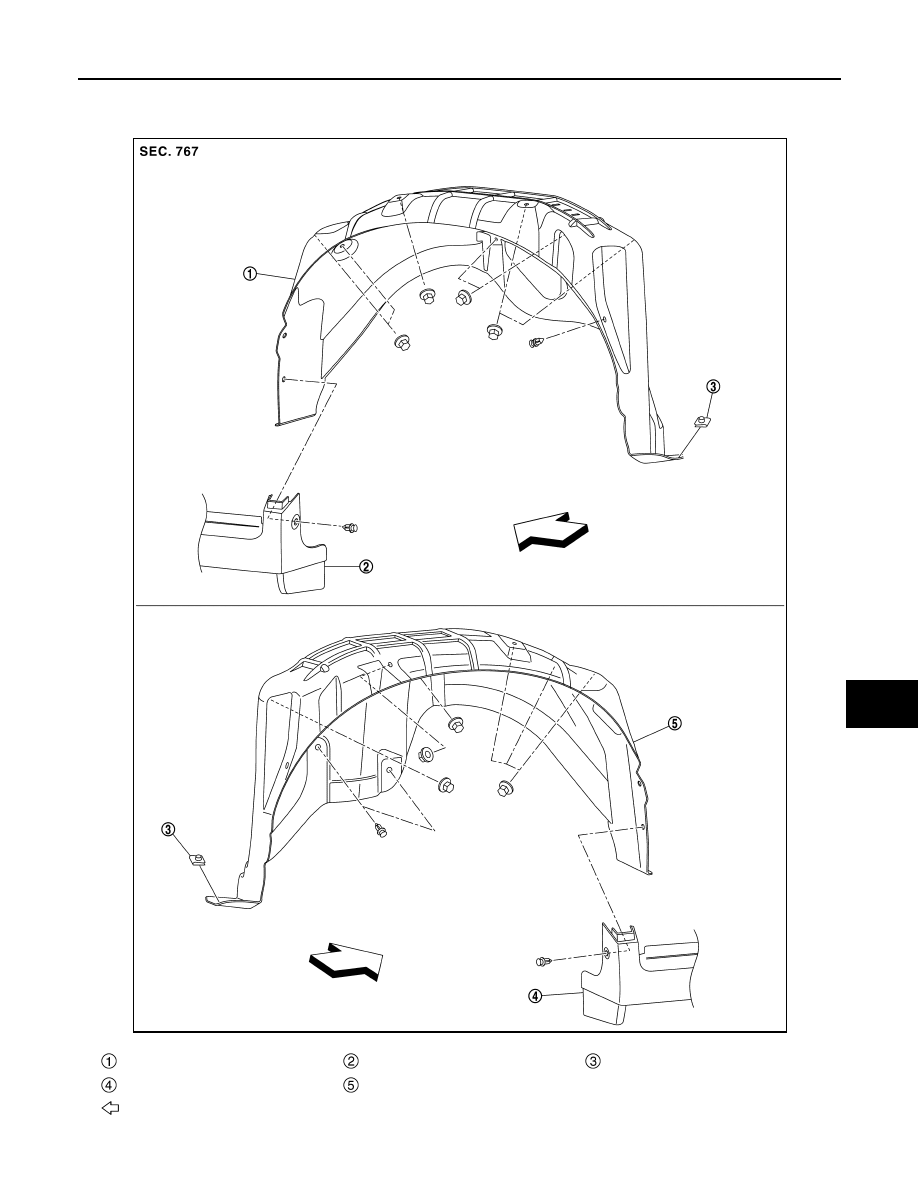

REAR WHEEL HOUSE PROTECTOR : Exploded View

INFOID:0000000010787452

Rear wheel house protector LH

Sill cover LH

Spring nut

Sill cover RH

Rear wheel house protector RH

: Vehicle front

JMKIB3627ZZ

EXT-38

< REMOVAL AND INSTALLATION >

FENDER PROTECTOR

REAR WHEEL HOUSE PROTECTOR : Removal and Installation

INFOID:0000000010787453

REMOVAL

1.

Remove rear fillet molding. Refer to

EXT-33, "REAR FILLET MOLDING : Removal and Installation"

.

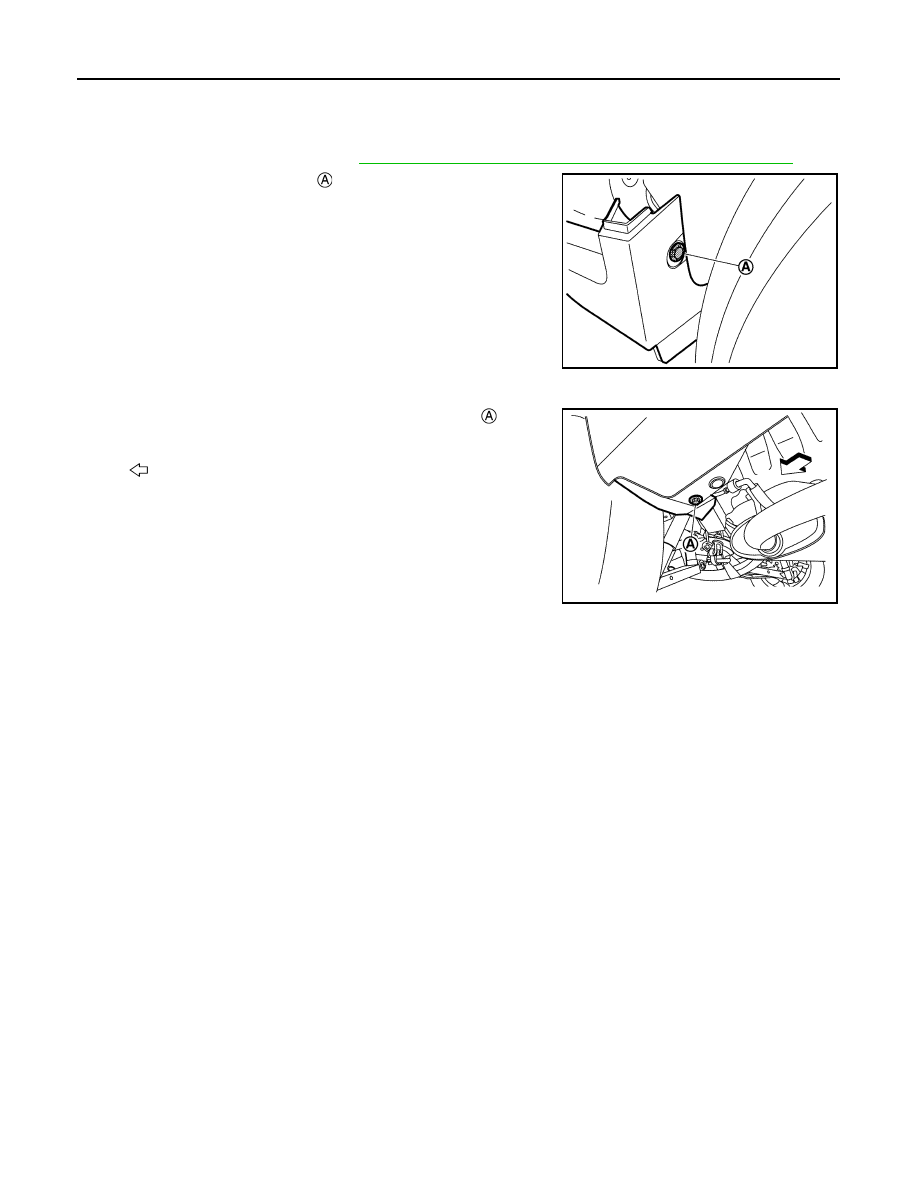

2.

Remove sill cover fixing clip

 of rear wheel house protector

front side.

3.

Remove rear wheel house protector fixing clips of rear wheel house protector back side.

4.

Remove rear wheel house protector mounting bolt

 of rear

bumper fascia lower side.

5.

Remove rear wheel house protector fixing clips, and then remove rear wheel house protector.

INSTALLATION

Install in the reverse order of removal.

JMKIB3049ZZ

: Vehicle front

JMKIB3030ZZ
