HIGH-MOUNTED STOP LAMP

EXL-393

< REMOVAL AND INSTALLATION >

[HALOGEN HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

3.

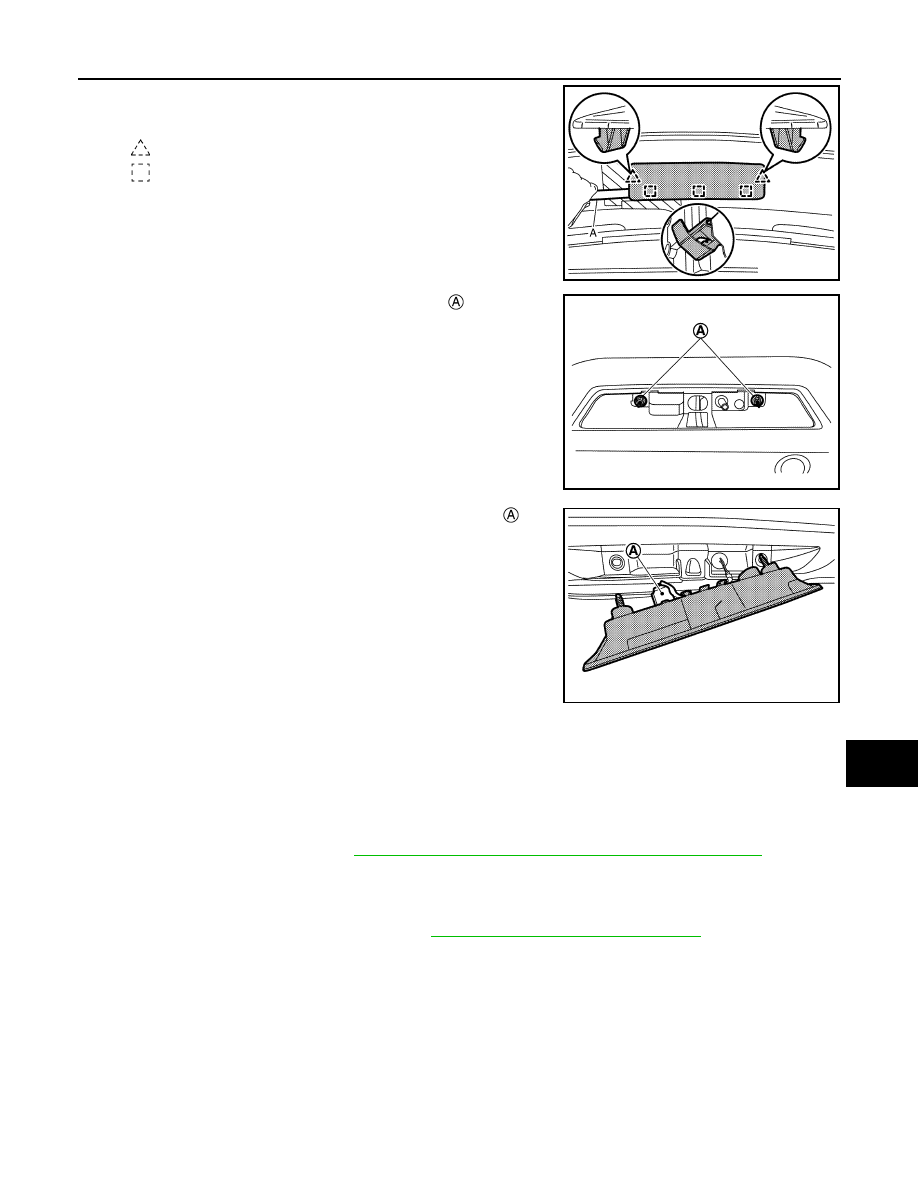

Disengage back door cover fixing metal clips and pawls using a
remover tool (A), and then remove back door cover.

4.

Remove high-mounted stop lamp mounting nuts

.

5.

Disconnect high-mounted stop lamp harness connector

, and

then remove high-mounted stop lamp.

INSTALLATION

Install in the reverse order of removal.

Replacement

INFOID:0000000010789919

CAUTION:

Disconnect battery negative terminal or remove power circuit fuse when performing the operation for
preventing electric leakage. Refer to

EXL-214, "Precautions for Removing Battery Terminal"

.

HIGH-MOUNTED STOP LAMP BULB

CAUTION:

Replacement of a single part is not possible due to the adoption of LED bulb. For replacement, replace
high-mounted stop lamp unit as a set. Refer to

EXL-392, "Removal and Installation"

.

: Pawl

: Metal clip

JMLIA4975ZZ

JMLIA4976ZZ

JMLIA4977ZZ

EXL-394

< REMOVAL AND INSTALLATION >

[HALOGEN HEADLAMP]

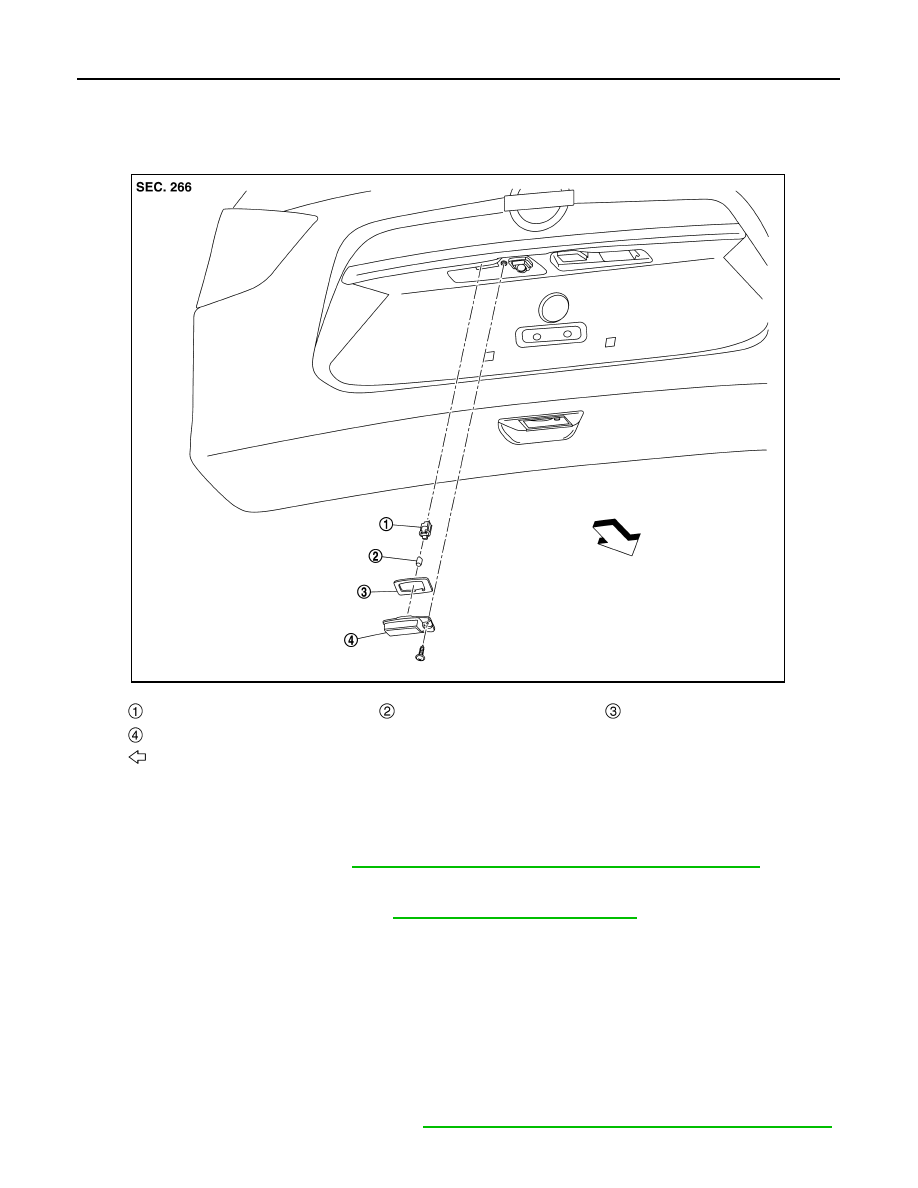

LICENSE PLATE LAMP

LICENSE PLATE LAMP

Exploded View

INFOID:0000000010789920

Removal and Installation

INFOID:0000000010789921

CAUTION:

Disconnect battery negative terminal or remove power circuit fuse when performing the operation for
preventing electric leakage. Refer to

EXL-214, "Precautions for Removing Battery Terminal"

.

REMOVAL

1.

Remove back door finisher cap. Refer to

EXT-66, "Removal and Installation"

.

2.

Remove license plate lamp fixing screw.

3.

Disengage license plate lamp housing fixing portion from back door.

4.

Disconnect license plate lamp harness connector, and then remove license plate lamp.

INSTALLATION

Install in the reverse order of removal.

Replacement

INFOID:0000000010789922

CAUTION:

• Disconnect the battery negative terminal or remove power circuit fuse when performing the opera-

tion for preventing electric leakage. Refer to

EXL-214, "Precautions for Removing Battery Terminal"

.

License plate lamp bulb socket

License plate lamp bulb

Seal packing

License plate lamp housing

: Vehicle front

JMLIA4964ZZ

LICENSE PLATE LAMP

EXL-395

< REMOVAL AND INSTALLATION >

[HALOGEN HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
• Never touch bulb by hand while it is lit or right after being turned OFF.
• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

LICENSE PLATE LAMP BULB

1.

Remove license plate lamp. Refer to

EXL-394, "Removal and Installation"

.

2.

Rotate license plate lamp bulb socket counterclockwise and unlock it.

3.

Remove license plate lamp bulb from license plate lamp bulb socket.

EXL-396

< REMOVAL AND INSTALLATION >

[HALOGEN HEADLAMP]

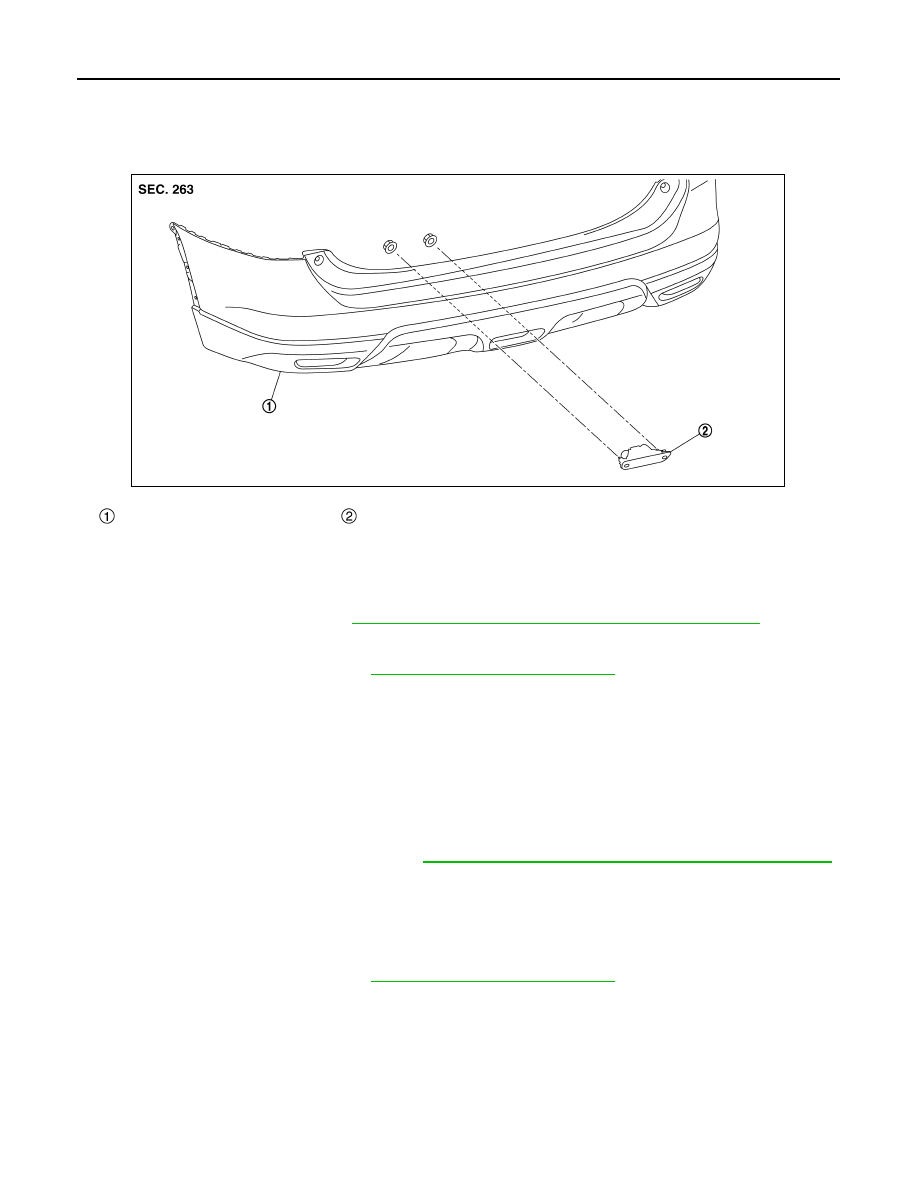

REAR FOG LAMP

REAR FOG LAMP

Exploded View

INFOID:0000000010789923

Removal and Installation

INFOID:0000000010789924

CAUTION:

Disconnect battery negative terminal or remove power circuit fuse when performing the operation for
preventing electric leakage. Refer to

EXL-214, "Precautions for Removing Battery Terminal"

.

REMOVAL

1.

Remove rear bumper fascia. Refer to

EXT-18, "Removal and Installation"

.

2.

Remove rear fog lamp mounting nuts.

3.

Remove rear fog lamp from rear bumper fascia.

INSTALLATION

Install in the reverse order of removal.

Replacement

INFOID:0000000010789925

CAUTION:

• Disconnect the battery negative terminal or remove power circuit fuse when performing the opera-

tion for preventing electric leakage. Refer to

EXL-214, "Precautions for Removing Battery Terminal"

.

• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
• Never touch bulb by hand while it is lit or right after being turned OFF.
• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

REAR FOG LAMP BULB

1.

Remove rear bumper fascia. Refer to

EXT-18, "Removal and Installation"

.

2.

Disconnect rear fog lamp bulb harness connector.

3.

Rotate rear fog lamp bulb socket counterclockwise and unlock it.

4.

Remove rear fog lamp bulb from rear fog lamp bulb socket.

Rear bumper fascia

Rear fog lamp

JMLIA5377ZZ
