SIDE TURN SIGNAL LAMP

EXL-385

< REMOVAL AND INSTALLATION >

[HALOGEN HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

SIDE TURN SIGNAL LAMP

Exploded View

INFOID:0000000010789909

Refer to

MIR-27, "Exploded View"

.

Removal and Installation

INFOID:0000000010789910

CAUTION:

Disconnect the battery negative terminal or remove power circuit fuse when performing the operation
for preventing electric leakage. Refer to

EXL-214, "Precautions for Removing Battery Terminal"

.

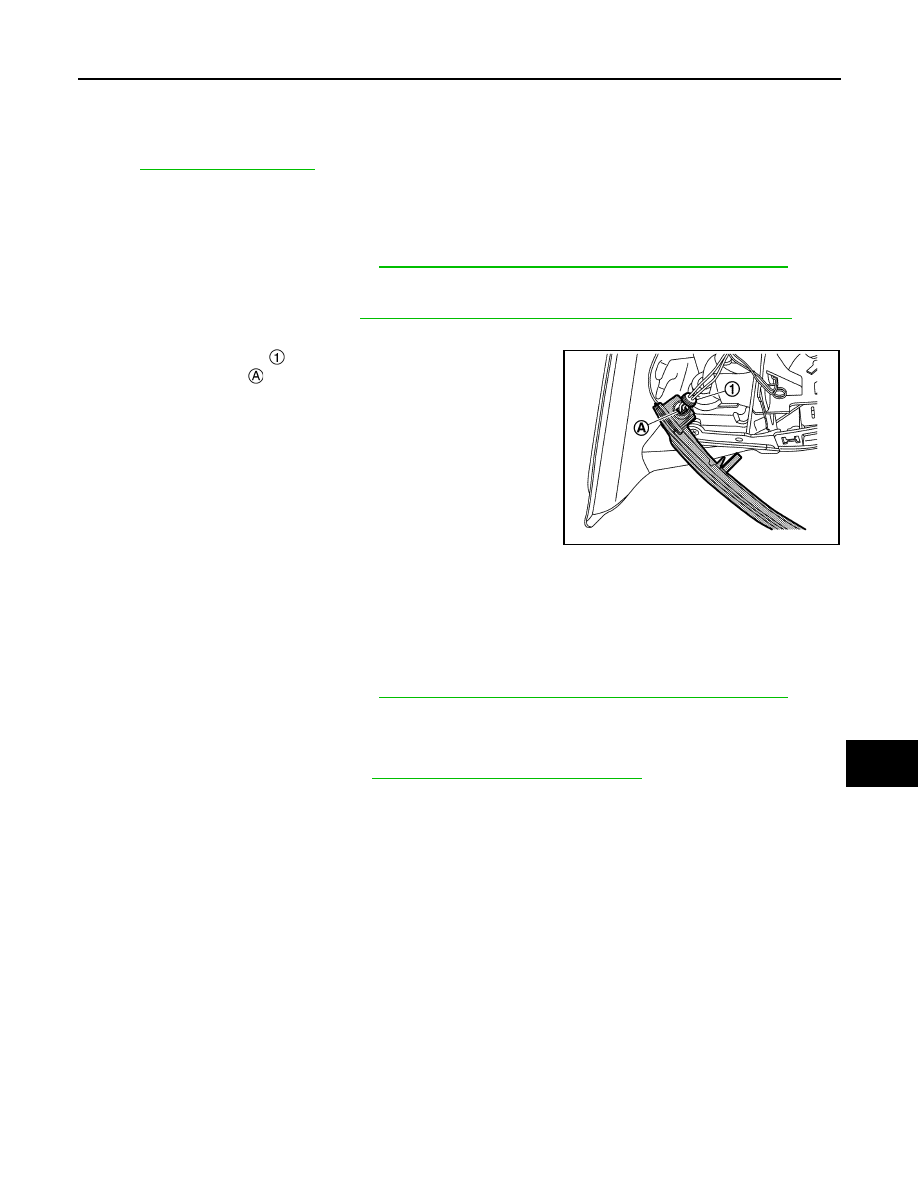

REMOVAL

1.

Remove door mirror cover. Refer to

MIR-30, "DOOR MIRROR COVER : Removal and Installation"

.

2.

Remove side turn signal lamp fixing screws.

3.

Remove seal packing

 and disconnect side turn signal lamp

harness connector

, and then remove side turn signal lamp

from door mirror housing.

INSTALLATION

Install in the reverse order of removal.

Replacement

INFOID:0000000010789911

CAUTION:

Disconnect the battery negative terminal or remove power circuit fuse when performing the operation
for preventing electric leakage. Refer to

EXL-214, "Precautions for Removing Battery Terminal"

.

SIDE TURN SIGNAL LAMP BULB

CAUTION:

Replacement of a single part is not possible due to the adoption of LED bulb. For replacement, replace
side turn signal lamp as a set. Refer to

EXL-385, "Removal and Installation"

.

JMLIA4978ZZ

EXL-386

< REMOVAL AND INSTALLATION >

[HALOGEN HEADLAMP]

REAR COMBINATION LAMP

REAR COMBINATION LAMP

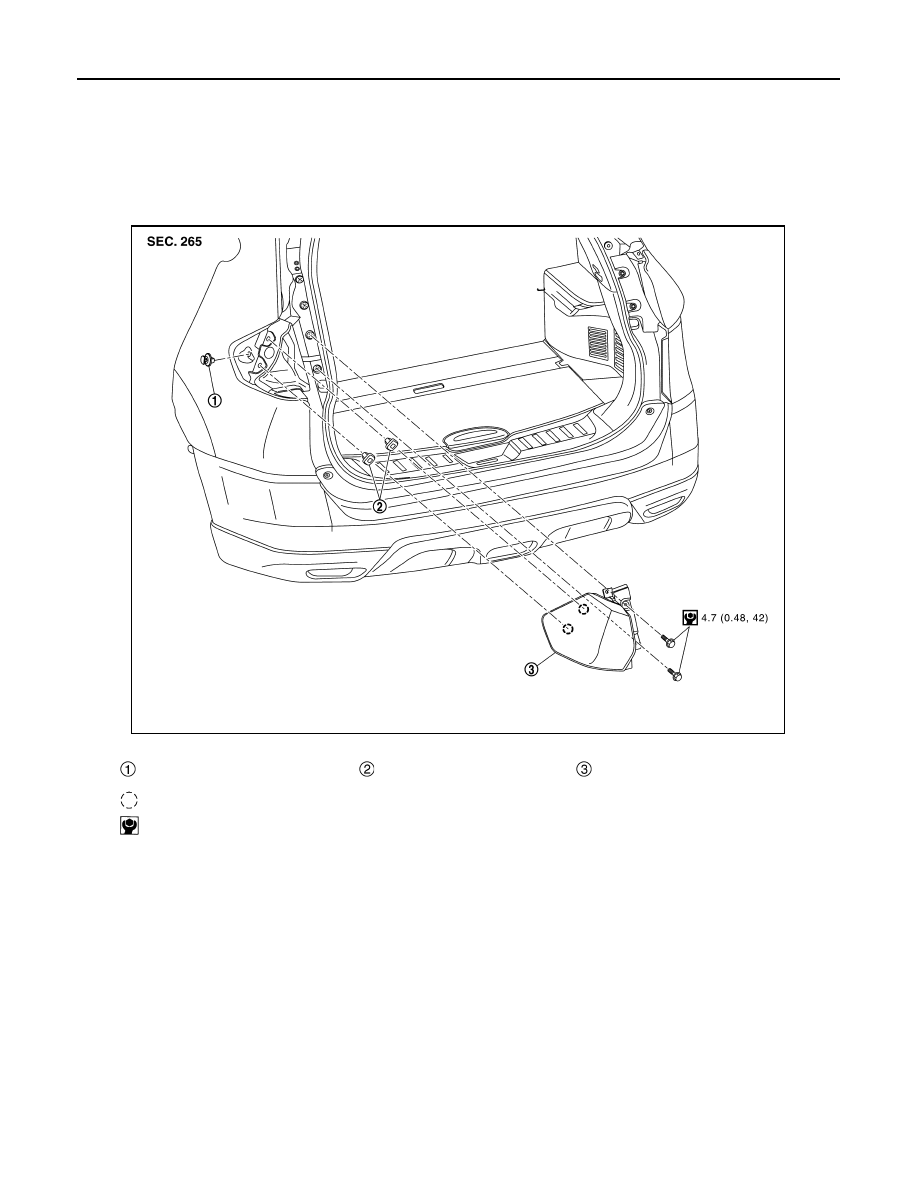

Exploded View

INFOID:0000000010789912

REMOVAL

Body Side

Back Door Side

Clip

Grommet

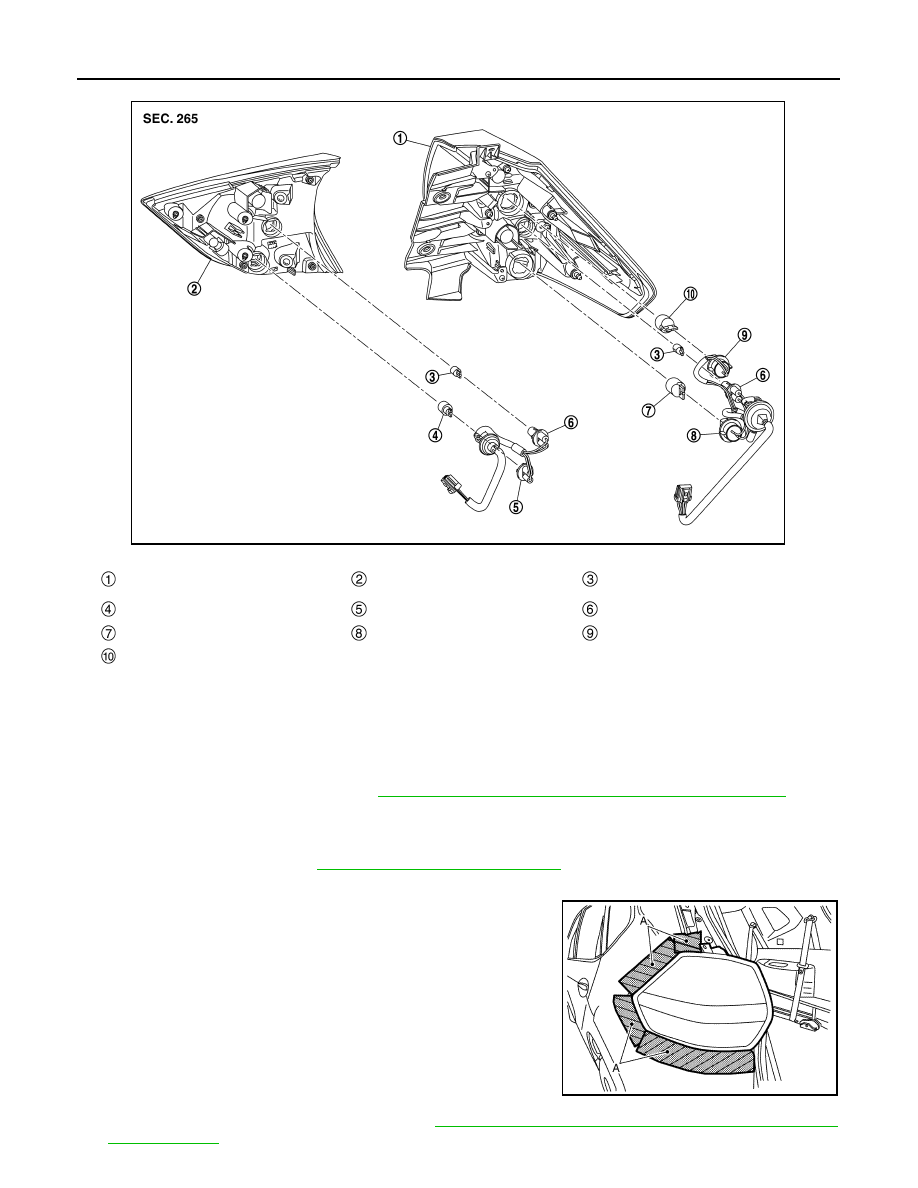

Rear combination lamp
(body side)

: Clip

: N·m (kg-m, in-lb)

JMLIA4960GB

REAR COMBINATION LAMP

EXL-387

< REMOVAL AND INSTALLATION >

[HALOGEN HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

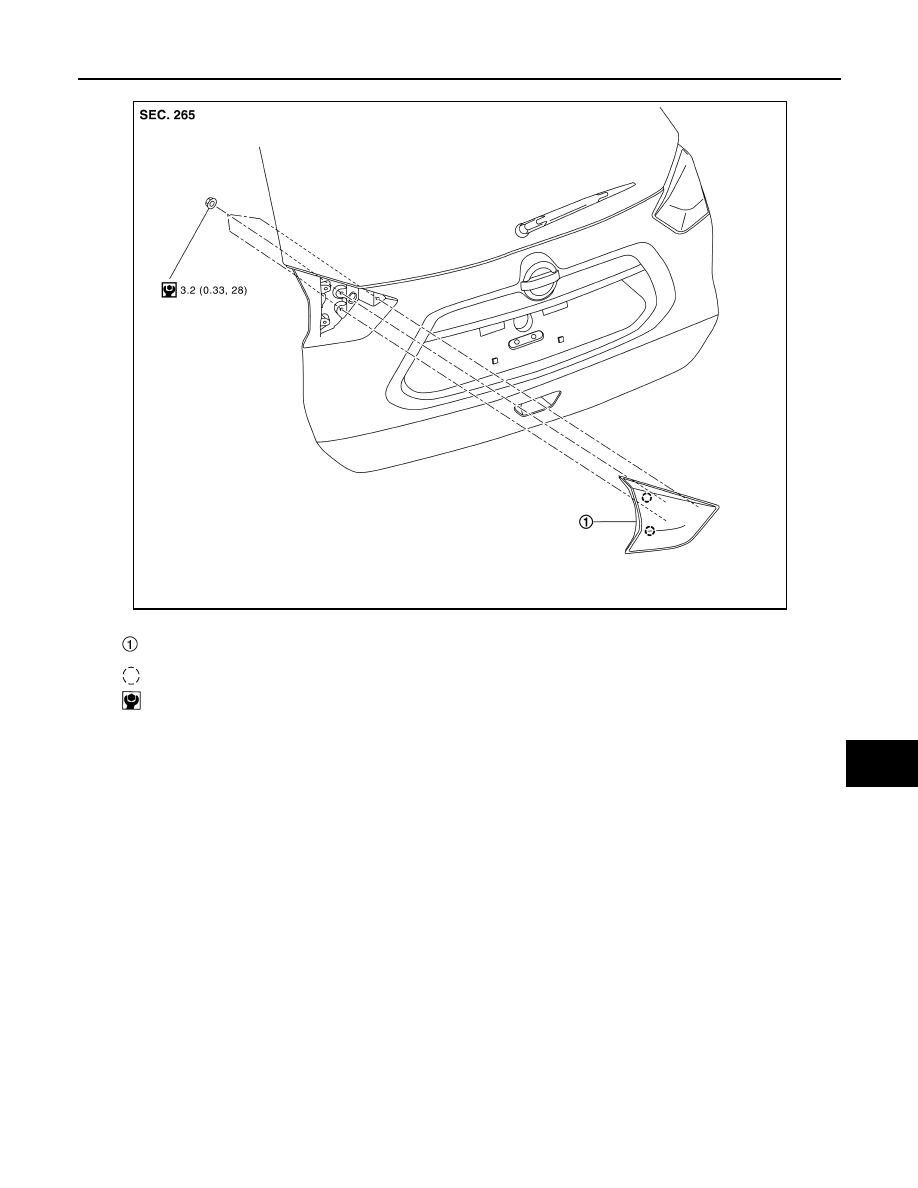

DISASSEMBLY

Rear combination lamp
(back door side)

: Clip

: N·m (kg-m, in-lb)

JMLIA4961GB

EXL-388

< REMOVAL AND INSTALLATION >

[HALOGEN HEADLAMP]

REAR COMBINATION LAMP

REAR COMBINATION LAMP (BODY SIDE)

REAR COMBINATION LAMP (BODY SIDE) : Removal and Installation

INFOID:0000000010789913

CAUTION:

Disconnect the battery negative terminal or remove power circuit fuse when performing the operation
for preventing electric leakage. Refer to

EXL-214, "Precautions for Removing Battery Terminal"

.

REMOVAL

1.

Fully open back door.

2.

Remove rear spoiler. Refer to

EXT-64, "Removal and Installation"

.

3.

Remove rear combination lamp (body side) mounting bolts.

4.

Apply protective tapes (A) on the part to protect it from damage.

5.

Remove luggage side lower finisher. Refer to

INT-43, "LUGGAGE SIDE LOWER FINISHER : Removal

and Installation"

.

Rear combination lamp
(body side)

Rear combination lamp
(back door side)

Tail lamp bulb

Back-up lamp bulb

Back-up lamp bulb socket

Tail lamp bulb socket

Rear turn signal lamp bulb

Rear turn signal lamp bulb socket

Stop lamp bulb socket

Stop lamp bulb

JMLIA4962ZZ

JMLIA4967ZZ
