FRONT COMBINATION LAMP

EXL-377

< REMOVAL AND INSTALLATION >

[HALOGEN HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

• Disconnect the battery negative terminal or remove power circuit fuse when performing the opera-

tion for preventing electric leakage. Refer to

EXL-214, "Precautions for Removing Battery Terminal"

.

• After installing the bulb, install the socket cover, back cover, and bulb socket securely for watertight-

ness.

• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
• Never touch bulb by hand while it is lit or right after being turned OFF.
• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

HEADLAMP BULB (HI)

LH side

1.

Remove air duct 1. Refer to the following.
• MR20DD: Refer to

EM-31, "Removal and Installation"

.

• QR25DE: Refer to

EM-175, "Removal and Installation"

.

• R9M: Refer to

EM-308, "Removal and Installation"

.

2.

Remove back cover.

3.

Disconnect headlamp bulb harness connector.

4.

Rotate headlamp bulb counterclockwise and unlock it, and then remove headlamp bulb.

RH side

1.

Remove back cover.

2.

Disconnect headlamp bulb harness connector.

3.

Rotate headlamp bulb counterclockwise and unlock it, and then remove headlamp bulb.

HEADLAMP BULB (LO)

LH side

1.

Remove air duct 1. Refer to the following.
• MR20DD: Refer to

EM-31, "Removal and Installation"

.

• QR25DE: Refer to

EM-175, "Removal and Installation"

.

• R9M: Refer to

EM-308, "Removal and Installation"

.

2.

Remove back cover.

3.

Disconnect headlamp bulb harness connector.

4.

Rotate headlamp bulb counterclockwise and unlock it, and then remove headlamp bulb.

RH side

1.

Remove back cover.

2.

Disconnect headlamp bulb harness connector.

3.

Rotate headlamp bulb counterclockwise and unlock it, and then remove headlamp bulb.

DAYTIME RUNNING LIGHT/ PARKING LAMP BULB

CAUTION:

Replacement of a single part is not possible due to the adoption of LED bulb. For replacement, replace
front combination lamp as a set. Refer to

EXL-376, "Removal and Installation"

.

FRONT TURN SIGNAL LAMP BULB

LH side

1.

Remove air duct 1. Refer to the following.
• MR20DD: Refer to

EM-31, "Removal and Installation"

.

• QR25DE: Refer to

EM-175, "Removal and Installation"

.

• R9M: Refer to

EM-308, "Removal and Installation"

.

2.

Rotate front turn signal lamp bulb socket counterclockwise and unlock it.

3.

Remove front turn signal lamp bulb from turn signal lamp bulb socket.

RH side

1.

Rotate front turn signal lamp bulb socket counterclockwise and unlock it.

2.

Remove front turn signal lamp bulb from turn signal lamp bulb socket.

EXL-378

< REMOVAL AND INSTALLATION >

[HALOGEN HEADLAMP]

FRONT COMBINATION LAMP

Disassembly and Assembly

INFOID:0000000010789901

DISASSEMBLY

1.

Remove front combination lamp bracket fixing screws, and then remove front combination lamp bracket.

2.

Disconnect front combination lamp harness.

3.

Rotate front turn signal lamp bulb socket counterclockwise and unlock it.

4.

Remove front turn signal lamp bulb from front turn signal lamp bulb socket.

5.

Remove back cover.

6.

Remove headlamp bulb (Hi)

7.

Remove socket cover.

8.

Remove headlamp bulb (Lo).

ASSEMBLY

Note the following items, and then install in the reverse order of removal.

CAUTION:

• After installing the bulb, install the socket cover, back cover, and bulb socket securely watertight-

ness.

• After installation, perform aiming adjustment. Refer to following.
- LHD MODELS: Refer to

EXL-369, "LHD MODELS : Description"

.

- RHD MODELS: Refer to

EXL-371, "RHD MODELS : Description"

.

FRONT FOG LAMP

EXL-379

< REMOVAL AND INSTALLATION >

[HALOGEN HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

FRONT FOG LAMP

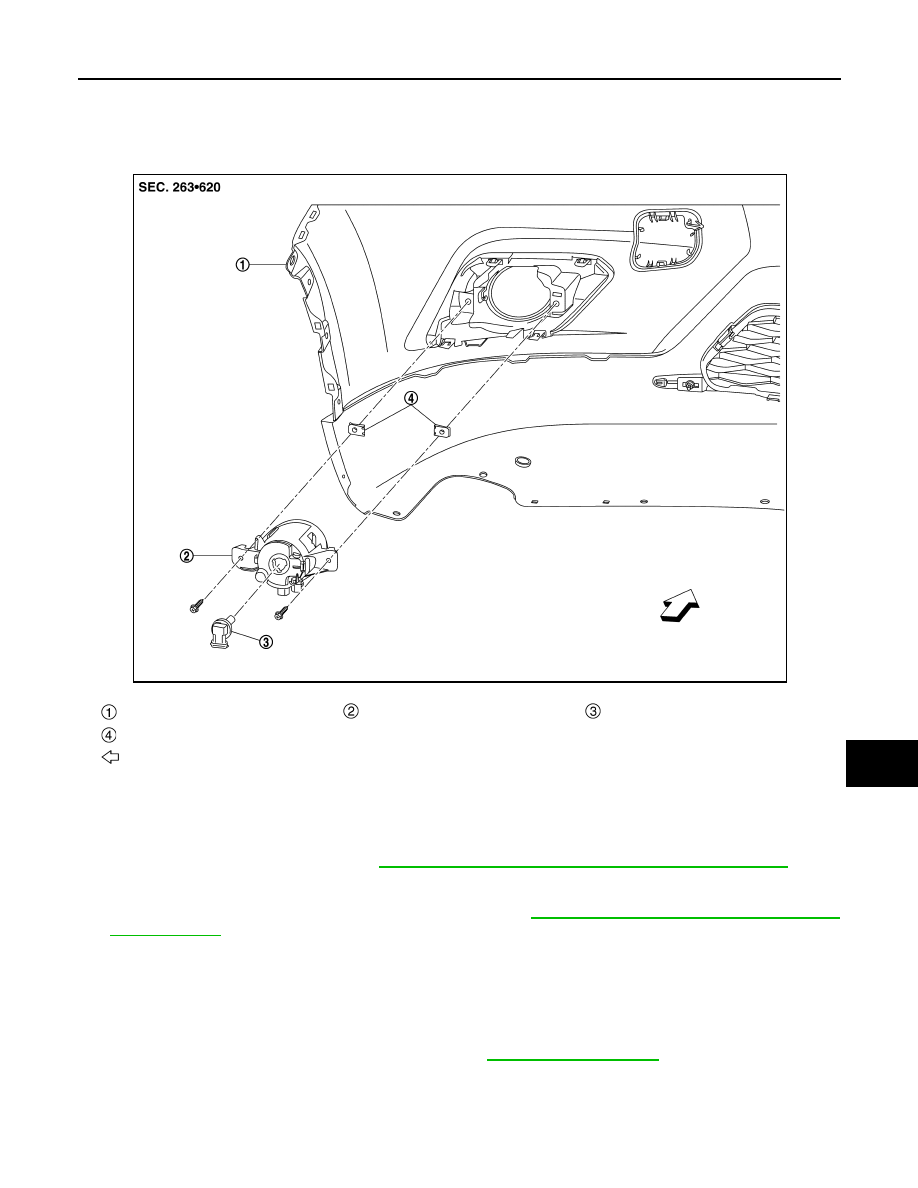

Exploded View

INFOID:0000000010789902

Removal and Installation

INFOID:0000000010789903

CAUTION:

Disconnect the battery negative terminal or remove power circuit fuse when performing the operation
for preventing electric leakage. Refer to

EXL-214, "Precautions for Removing Battery Terminal"

.

REMOVAL

1.

Remove front fender protector to make work space. Refer to

EXT-35, "FENDER PROTECTOR : Removal

and Installation"

.

2.

Disconnect front fog lamp harness connector.

3.

Remove front fog lamp fixing screws, and then remove front fog lamp.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

After installation, perform aiming adjustment. Refer to

EXL-374, "Description"

.

Replacement

INFOID:0000000010789904

CAUTION:

Front bumper fascia

Front fog lamp

Front fog lamp bulb

Spring nut

: Vehicle front

JMLIA4947ZZ

EXL-380

< REMOVAL AND INSTALLATION >

[HALOGEN HEADLAMP]

FRONT FOG LAMP

• Disconnect the battery negative terminal or remove power circuit fuse when performing the opera-

tion for preventing electric leakage. Refer to

EXL-214, "Precautions for Removing Battery Terminal"

.

• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
• Never touch bulb by hand while it is lit or right after being turned OFF.
• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

FRONT FOG LAMP BULB

1.

Remove fender protector to make work space. Refer to

EXT-35, "FENDER PROTECTOR : Removal and

Installation"

.

2.

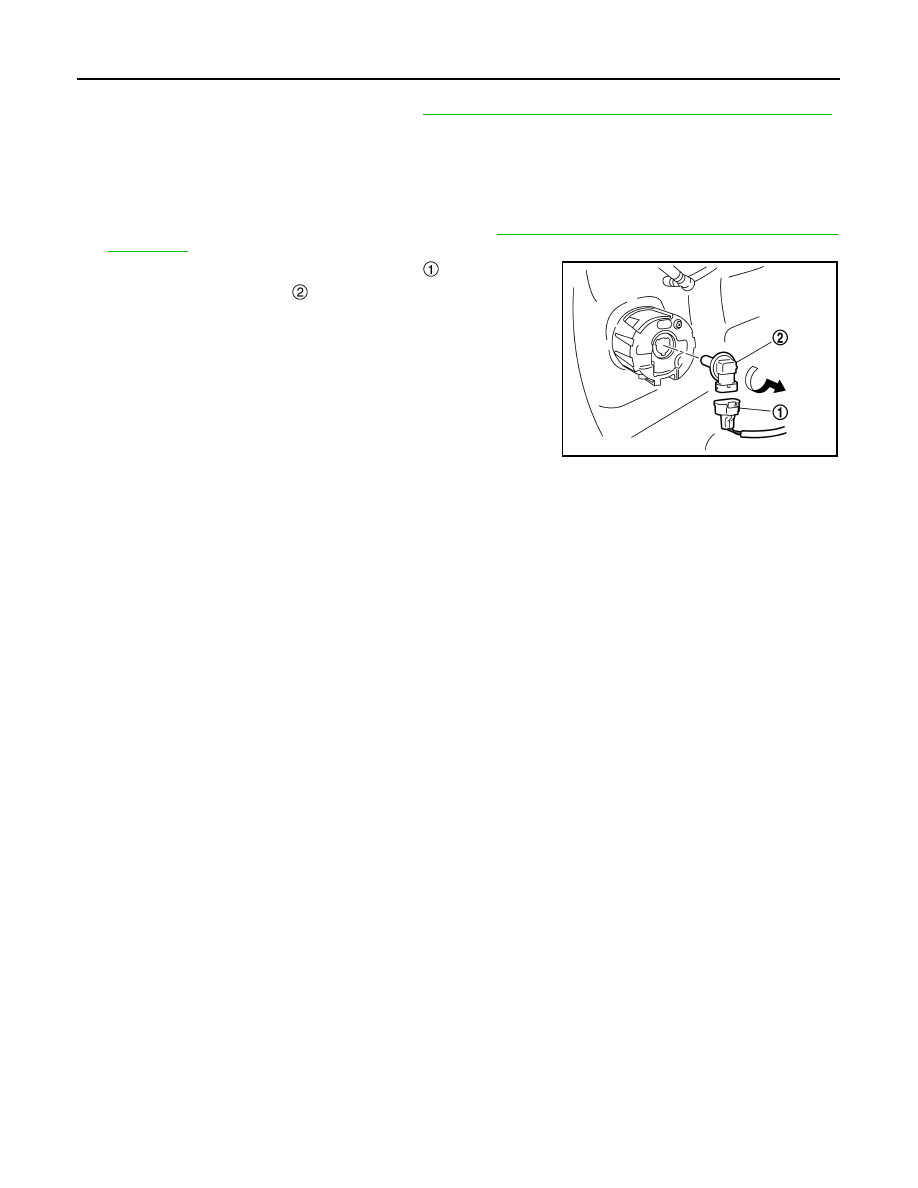

Disconnect front fog lamp harness connector

.

3.

Rotate front fog lamp bulb

 counterclockwise and unlock it.

JPLIA0345ZZ
